STL20N6F7
N-channel 60 V, 0.0046 Ω typ., 20 A STripFET™ F7 Power
MOSFET in a PowerFLAT™ 3.3x3.3 package
Datasheet - production data
Features
1
2
3
•
•
•
•
4

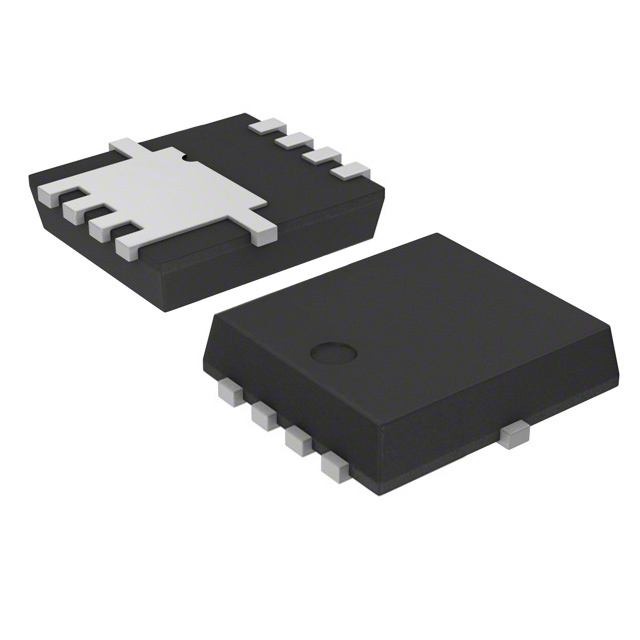

PowerFLAT™ 3.3x3.3 HV
Order code
VDS
RDS(on) max
ID
STL20N6F7
60 V
0.0054 Ω
20 A
Among the lowest RDS(on) on the market
Excellent figure of merit (FoM)
Low Crss/Ciss ratio for EMI immunity
High avalanche ruggedness
Applications
•
Switching applications
Figure 1: Internal schematic diagram
Description
D(5, 6, 7, 8)
8
7
6
5
1
2
3
4
G(4)
S(1, 2, 3)
This N-channel Power MOSFET utilizes
STripFET™ F7 technology with an enhanced
trench gate structure that results in very low onstate resistance, while also reducing internal
capacitance and gate charge for faster and more
efficient switching.
AM15810v1
Table 1: Device summary
Order code
Marking
Package
Packing
STL20N6F7
20N6F
PowerFLAT™ 3.3x3.3
Tape and reel
June 2015
DocID027433 Rev 3
This is information on a product in full production.
1/13
www.st.com
Contents
STL20N6F7
Contents
1
Electrical ratings ............................................................................. 3
2
Electrical characteristics ................................................................ 4
2.1
Electrical characteristics .................................................................... 5
3
Test circuits ..................................................................................... 7
4
Package mechanical data ............................................................... 8
4.1
5
2/13
PowerFLAT 3.3x3.3 package information ......................................... 9
Revision history ............................................................................ 12
DocID027433 Rev 3
STL20N6F7
1
Electrical ratings
Electrical ratings
Table 2: Absolute maximum ratings
Symbol
Parameter
Value
Unit
VDS
Drain-source voltage
60
V
VGS
Gate-source voltage
± 20
V
ID
Drain current (continuous) at TC = 25 °C
100
A
(1)
ID
Drain current (continuous) at TC = 100 °C
61
A
(1)
(1)(2)
IDM
Drain current (pulsed)
400
A
(3)
ID
Drain current (continuous) at Tpcb = 25 °C
20
A
(3)
ID
Drain current (continuous) at Tpcb = 100 °C
12
A
(2)(3)
IDM
Drain current (pulsed)
80
A
PTOT
(1)
Total dissipation at TC = 25 °C
78
W
PTOT
(3)
Total dissipation at Tpcb = 25 °C
3
W
-55 to 150
°C
Value
Unit
Tstg
Storage temperature
Tj
Operating junction temperature
Notes:
(1)
(2)
(3)
This value is rated according to Rthj-c.
Pulse width limited by safe operating area.
This value is rated according to Rthj-pcb.
Table 3: Thermal data
Symbol
Rthj-pcb
(1)
Rthj-case
Parameter
Thermal resistance junction-pcb max.
42.8
°C/W
Thermal resistance junction-case max.
1.6
°C/W
Notes:
(1)
When mounted on FR-4 board of 1 inch², 2oz Cu, t < 10 sec.
DocID027433 Rev 3
3/13
Electrical characteristics
2
STL20N6F7
Electrical characteristics
(TC = 25 °C unless otherwise specified)
Table 4: On /off states
Symbol
Parameter
Test conditions
Drain-source
breakdown voltage
ID = 1 mA, VGS = 0 V
IDSS
Zero gate voltage
drain current
VGS = 0 V
VDS = 60 V
IGSS
Gate-body leakage
current
VGS = 20 V, VDS = 0
VGS(th)
Gate threshold
voltage
VDS = VGS, ID = 250 μA
RDS(on)
Static drain-source
on-resistance
VGS = 10 V, ID = 10 A
V(BR)DSS
Min.
Typ.
Max.
60
Unit
V
1
µA
100
nA
4
V
0.0046
0.0054
Ω
Min.
Typ.
Max.
Unit
-
1600
-
pF
-
880
-
pF
-
66
-
pF
-
25
-
nC
-
7.2
-
nC
-
8.1
-
nC
Min.
Typ.
Max.
Unit
-
15
-
ns
-
17.6
-
ns
-
24.4
-
ns
-
7.8
-
ns
Min.
Typ.
Max.
Unit
1.2
V
2
Table 5: Dynamic
Symbol
Parameter
Ciss
Input capacitance
Coss
Output capacitance
Crss
Reverse transfer
capacitance
Qg
Total gate charge
Qgs
Gate-source charge
Qgd
Gate-drain charge
Test conditions
VDS = 25 V, f = 1 MHz,
VGS = 0 V
VDD = 30 V, ID = 20 A,
VGS = 10 V
Table 6: Switching times
Symbol
td(on)
tr
td(off)
tf
Parameter
Test conditions
Turn-on delay time
Rise time
Turn-off delay time
VDD = 30 V, ID = 10 A,
RG = 4.7 Ω, VGS = 10 V
Fall time
Table 7: Source-drain diode
Symbol
(1)
VSD
trr
Parameter
Forward on voltage
Test conditions
ISD = 20 A, VGS = 0
Reverse recovery
time
Qrr
Reverse recovery
charge
IRRM
Reverse recovery
current
ID = 20 A,
di/dt = 100 A/µs
VDD = 48 V
Notes:
(1)
4/13
Pulsed: pulse duration = 300 µs, duty cycle 1.5%
DocID027433 Rev 3
-
39.6
ns
-
36
nC
-
1.8
A
STL20N6F7
2.1
Electrical characteristics
Electrical characteristics
Figure 2: Safe operating area
Figure 3: Thermal impedance
Figure 4: Output characteristics
Figure 5: Transfer characteristics
Figure 6: Gate charge vs gate-source voltage
Figure 7: Static drain-source on-resistance
DocID027433 Rev 3
5/13
Electrical characteristics
STL20N6F7
Figure 8: Capacitance variations
Figure 9: Normalized gate threshold voltage
vs temperature
Figure 10: Normalized on-resistance vs
temperature
Figure 11: Normalized V(BR)DSS vs
temperature
Figure 12: Source-drain diode forward characteristics
6/13
DocID027433 Rev 3
STL20N6F7
3
Test circuits
Test circuits
Figure 13: Switching times test circuit for resistive
load
Figure 14: Gate charge test circuit
Figure 15: Test circuit for inductive load switching
and diode recovery times
Figure 16: Unclamped inductive load test circuit
Figure 17: Unclamped inductive waveform
Figure 18: Switching time waveform
DocID027433 Rev 3
7/13
Package mechanical data
4
STL20N6F7
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
®
®
ECOPACK packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
®
ECOPACK is an ST trademark.
8/13
DocID027433 Rev 3
STL20N6F7
4.1
Package mechanical data
PowerFLAT 3.3x3.3 package information
Figure 19: PowerFLAT™ 3.3x3.3 HV package outline
BOTTOM VIEW
SIDE VIEW
TOP VIEW
8465286_A
DocID027433 Rev 3
9/13
Package mechanical data
STL20N6F7
Table 8: PowerFLAT™ 3.3x3.3 HV package mechanical data
mm
Dim.
Min.
Typ.
Max.
A
0.70
0.80
0.90
b
0.25
0.30
0.39
c
0.14
0.15
0.20
D
3.10
3.30
3.50
D1
3.05
3.15
3.25
D2
2.15
2.25
2.35
e
0.55
0.65
0.75
E
3.10
3.30
3.50
E1
2.90
3.00
3.10
E2
1.60
1.70
1.80
H
0.25
0.40
0.55
K
0.65
0.75
0.85
L
030
0.45
0.60
L1
0.05
0.15
0.25
L2
ϑ
10/13
0.5
8°
DocID027433 Rev 3
10°
12°
STL20N6F7
Package mechanical data
Figure 20: PowerFLAT™ 3.3x3.3 HV recommended footprint
8465286_footprint
DocID027433 Rev 3
11/13
Revision history
5
STL20N6F7
Revision history
Table 9: Document revision history
Date
Changes
28-Jan-2015
1
First release.
03-Feb-2015
2
Updated Table 2: "Absolute maximum ratings"
3
In Section 2 Electrical characteristics:
- updated Table 5: Dynamic
- updated Table 6: Switching times
- updated Table 7: Source-drain diode
Added Section 2.1 Electrical characteristics (curves)
10-Jun-2015
12/13
Revision
DocID027433 Rev 3
STL20N6F7
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2015 STMicroelectronics – All rights reserved
DocID027433 Rev 3
13/13
