STL4LN80K5

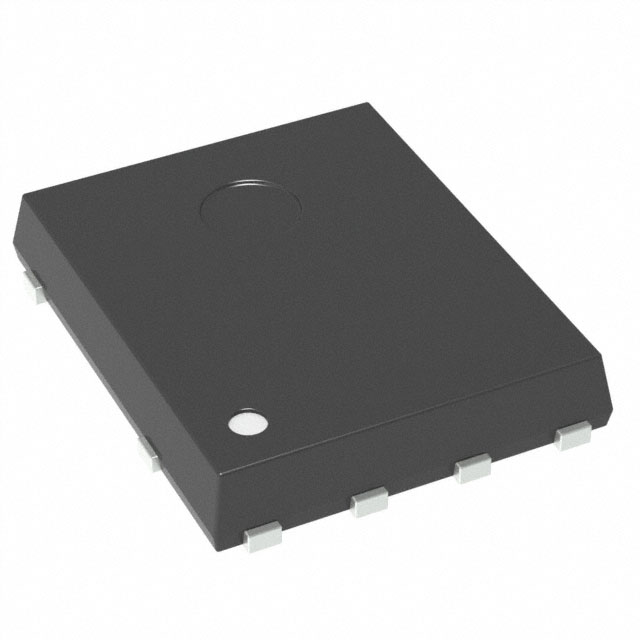

STL4LN80K5 N-channel 800 V, 2.1 Ω typ., 2 A MDmesh™ K5 Power MOSFET in a PowerFLAT™ 5x6 VHV package Datasheet - production data Features 1 2 3      4 PowerFLAT™ 5x6 VHV Order code VDS RDS(on) max. ID STL4LN80K5 800 V 2.6 Ω 2A Industry’s lowest RDS(on) * area Industry’s best FoM (figure of merit) Ultra low-gate charge 100 % avalanche tested Zener-protected Applications Figure 1: Internal schematic diagram D(5, 6, 7, 8) 8 7 6  5 Switching applications Description This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. G(4) 1 2 3 4 Top View S(1, 2, 3) Table 1: Device summary Order code Marking Package Packing STL4LN80K5 4LN80K5 PowerFLAT™ 5x6 VHV Tape and reel October 2017 DocID027815 Rev 2 This is information on a product in full production. 1/16 www.st.com Contents STL4LN80K5 Contents 1 Electrical ratings ............................................................................. 3 2 Electrical characteristics ................................................................ 4 2.1 Electrical characteristics (curves) ...................................................... 6 3 Test circuits ..................................................................................... 8 4 Package information ....................................................................... 9 5 2/16 4.1 PowerFLAT™ 5x6 VHV package information ................................. 10 4.2 PowerFLAT™ 5x6 packing information ........................................... 13 Revision history ............................................................................ 15 DocID027815 Rev 2 STL4LN80K5 1 Electrical ratings Electrical ratings Table 2: Absolute maximum ratings Symbol VGS Parameter Unit ± 30 V ID Drain current (continuous) at TC = 25 °C 2 A ID Drain current (continuous) at TC = 100 °C 1.2 A Drain current (pulsed) 8 A W IDM Gate-source voltage Value (1) PTOT Total dissipation at TC = 25 °C 38 dv/dt (2) Peak diode recovery voltage slope 4.5 dv/dt (3) MOSFET dv/dt ruggedness 50 Tj Operating junction temperature range Tstg V/ns - 55 to 150 °C Value Unit Thermal resistance junction-case 3.3 °C/W Thermal resistance junction-pcb 59 °C/W Value Unit Storage temperature range Notes: (1)Pulse (2)I SD (3)V width limited by safe operating area ≤ 2 A, dv/dt ≤ 100 A/μs; VDS peak < V(BR)DSS DS ≤ 640 V Table 3: Thermal data Symbol Rthj-case Rthj-pcb (1) Parameter Notes: (1)When mounted on FR-4 board of 1 inch², 2 oz Cu Table 4: Avalanche characteristics Symbol Parameter IAR Avalanche current, repetitive or not repetitive (pulse width limited by Tjmax) 0.8 A EAS Single pulse avalanche energy (starting Tj = 25 °C, ID = IAR, VDD = 50 V) 160 mJ DocID027815 Rev 2 3/16 Electrical characteristics 2 STL4LN80K5 Electrical characteristics TC = 25 °C unless otherwise specified Table 5: On/off-state Symbol V(BR)DSS Parameter Test conditions Drain-source breakdown voltage VGS = 0 V, ID = 1 mA Min. Typ. Max. Unit 800 V VGS = 0 V, VDS = 800 V 1 µA IDSS Zero gate voltage drain current VGS = 0 V, VDS = 800 V TC = 125 °C(1) 50 µA IGSS Gate body leakage current VDS = 0 V, VGS = ±20 V VGS(th) Gate threshold voltage VDS = VGS, ID = 100 µA RDS(on) Static drain-source onresistance VGS = 10 V, ID = 1.25 A ±10 µA 4 5 V 2.1 2.6 Ω Min. Typ. Max. Unit - 110 - pF - 9.5 - pF - 0.4 - pF - 23 - pF - 9 - pF 3 Notes: (1)Defined by design, not subject to production test. Table 6: Dynamic Symbol Ciss Parameter Test conditions Input capacitance VDS = 100 V, f = 1 MHz, VGS = 0 V Coss Output capacitance Crss Reverse transfer capacitance Co(tr)(1) Equivalent capacitance time related Co(er)(2) Equivalent capacitance energy related VDS = 0 to 640 V, VGS = 0 V Rg Intrinsic gate resistance f = 1 MHz, ID = 0 A - 18 - Ω VDD = 640 V, ID = 2.5 A VGS = 0 to 10 V, see Figure 15: "Test circuit for gate charge behavior" - 3.7 - nC - 1 - nC - 2.2 - nC Qg Total gate charge Qgs Gate-source charge Qgd Gate-drain charge Notes: (1)Time related is defined as a constant equivalent capacitance giving the same charging time as Coss when VDS increases from 0 to 80 % VDSS. (2)Energy related is defined as a constant equivalent capacitance giving the same stored energy as Coss when VDS increases from 0 to 80 % VDSS. 4/16 DocID027815 Rev 2 STL4LN80K5 Electrical characteristics Table 7: Switching times Symbol td(on) Parameter Turn-on delay time tr Rise time td(off) Turn-off delay time tf Fall time Test conditions Min. Typ. Max. Unit VDD= 400 V, ID = 1.25 A, RG = 4.7 Ω VGS = 10 V (See Figure 14: "Test circuit for resistive load switching times" and Figure 19: "Switching time waveform") - 7 - ns - 9 - ns - 31 - ns - 25 - ns Min. Typ. Max. Unit Table 8: Source-drain diode Symbol Parameter Test conditions ISD Source-drain current - 2 A ISDM(1) Source-drain current (pulsed) - 8 A VSD(2) Forward on voltage ISD = 2 A, VGS = 0 V - 1.6 V trr Reverse recovery time ISD = 2.5 A, di/dt = 100 A/µs, Qrr Reverse recovery charge IRRM Reverse recovery current trr - 230 ns VDD = 60 V, (see Figure 16: "Test circuit for inductive load switching and diode recovery times") - 1.04 µC - 9 A Reverse recovery time ISD = 2.5 A, di/dt = 100 A/µs, - 368 ns Qrr Reverse recovery charge - 1.53 µC IRRM Reverse recovery current VDD = 60 V, Tj = 150 °C (see Figure 16: "Test circuit for inductive load switching and diode recovery times") - 8 A Min. Typ. Max. Unit. 30 - - V Notes: (1)Pulse width limited by safe operating area (2)Pulsed: pulse duration = 300 µs, duty cycle 1.5% Table 9: Gate source-Zener diode Symbol V(BR)GS0 Parameter Gate-source breakdown voltage Test condition IGS= ± 1mA, ID= 0 A The built-in back-to-back Zener diodes have specifically been designed to enhance the device's ESD capability. In this respect the Zener voltage is appropriate to achieve an efficient and cost-effective intervention to protect the device's integrity. These integrated Zener diodes thus avoid the usage of external components. DocID027815 Rev 2 5/16 Electrical characteristics 2.1 STL4LN80K5 Electrical characteristics (curves) Figure 2: Safe operating area Figure 3: Thermal impedance K ZthPowerFlat_5x6_19 d=0.5 0.2 10-1 0.1 10-2 10-3 -6 10 0.05 0.02 0.01 Single pulse 10-5 10-4 10-3 10-2 10-1 100 tp(s) Figure 4: Output characteristics Figure 5: Transfer characteristics Figure 6: Gate charge vs gate-source voltage Figure 7: Static drain-source on-resistance 6/16 DocID027815 Rev 2 STL4LN80K5 Electrical characteristics Figure 8: Capacitance variations Figure 9: Normalized gate threshold voltage vs temperature Figure 10: Normalized on-resistance vs temperature Figure 11: Normalized V(BR)DSS vs temperature Figure 12: Maximum avalanche energy vs starting TJ Figure 13: Source-drain diode forward characteristics DocID027815 Rev 2 7/16 Test circuits 3 STL4LN80K5 Test circuits Figure 14: Test circuit for resistive load switching times Figure 15: Test circuit for gate charge behavior VDD RL IG= CONST VGS + pulse width 2200 μF 100 Ω D.U.T. 2.7 kΩ VG 47 kΩ 1 kΩ AM01469v10 8/16 Figure 16: Test circuit for inductive load switching and diode recovery times Figure 17: Unclamped inductive load test circuit Figure 18: Unclamped inductive waveform Figure 19: Switching time waveform DocID027815 Rev 2 STL4LN80K5 4 Package information Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK ® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. DocID027815 Rev 2 9/16 Package information 4.1 STL4LN80K5 PowerFLAT™ 5x6 VHV package information Figure 20: PowerFLAT™ 5x6 VHV package outline 1 2 3 4 6 5 Bottom view Pin 1 identification 8 7 Side view Pin 1 identification 10/16 8 7 6 5 1 2 3 4 DocID027815 Rev 2 Top view STL4LN80K5 Package information Table 10: PowerFLAT™ 5x6 VHV package mechanical data mm Dim. Min. Typ. Max. A 0.80 1.00 A1 0.02 0.05 A2 0.25 b 0.30 D 5.00 5.20 5.40 E 5.95 6.15 6.35 D2 4.30 4.40 4.50 E2 2.40 2.50 2.60 e 0.50 1.27 L 0.50 0.55 0.60 K 2.60 2.70 2.80 DocID027815 Rev 2 11/16 Package information STL4LN80K5 Figure 21: PowerFLAT™ 5x6 VHV recommended footprint (dimensions are in mm) 8368144_REV_3_footprint 12/16 DocID027815 Rev 2 STL4LN80K5 4.2 Package information PowerFLAT™ 5x6 packing information Figure 22: PowerFLAT™ 5x6 tape (dimensions are in mm) (I) Measured from centreline of sprocket hole to centreline of pocket. (II) Cumulative tolerance of 10 sprocket holes is ±0.20. Base and bulk quantity 3000 pcs All dimensions are in millimeters (III) Measured from centreline of sprocket hole to centreline of pocket 8234350_ Tape_rev_C Figure 23: PowerFLAT™ 5x6 package orientation in carrier tape DocID027815 Rev 2 13/16 Package information STL4LN80K5 Figure 24: PowerFLAT™ 5x6 reel 14/16 DocID027815 Rev 2 STL4LN80K5 5 Revision history Revision history Table 11: Document revision history Date Revision 29-May-2015 1 First release. 2 Updated title and features in cover page. Updated Section 1: "Electrical ratings", Section 2: "Electrical characteristics". Added Section 2.1: "Electrical characteristics (curves)". Minor text changes. 02-Oct-2017 Changes DocID027815 Rev 2 15/16 STL4LN80K5 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2017 STMicroelectronics – All rights reserved 16/16 DocID027815 Rev 2
