STLINK-V3SET
STLINK-V3SET debugger/programmer for STM8 and STM32
Data brief
Features
• Stand-alone probe with modular extensions
• Self-powered through a USB connector
(Micro-B)
• USB 2.0 high-speed compatible interface
• Direct firmware update support (DFU)
• JTAG / serial wire debugging (SWD) specific
features:
– 3 to 3.6 V application voltage support and
5 V tolerant inputs
– Flat cables STDC14 to MIPI10 / STDC14 /
MIPI20 (connectors with 1.27 mm pitch)
– JTAG communication support
– SWD and serial wire viewer (SWV)
communication support
• SWIM specific features (only available with
adapter board MB1440):
– 1.65 to 5.5 V application voltage support
– SWIM header (2.54 mm pitch)
– SWIM low-speed and high-speed modes
support
• Virtual COM port (VCP) specific features:
– 3 to 3.6 V application voltage support on
the UART interface and 5 V tolerant inputs
– VCP frequency up to 15 MHz
– Available on STDC14 debug connector
(not available on MIPI10)
• Multi-path bridge USB to
SPI/UART/I2C/CAN/GPIOs specific features:
– 3 to 3.6 V application voltage support and
5 V tolerant inputs
– Signals available on adapter board only
(MB1440)
• Drag-and-drop flash programming of binary
files
• Two-color LEDs: communication, power
November 2019
Picture is not contractual.
Description

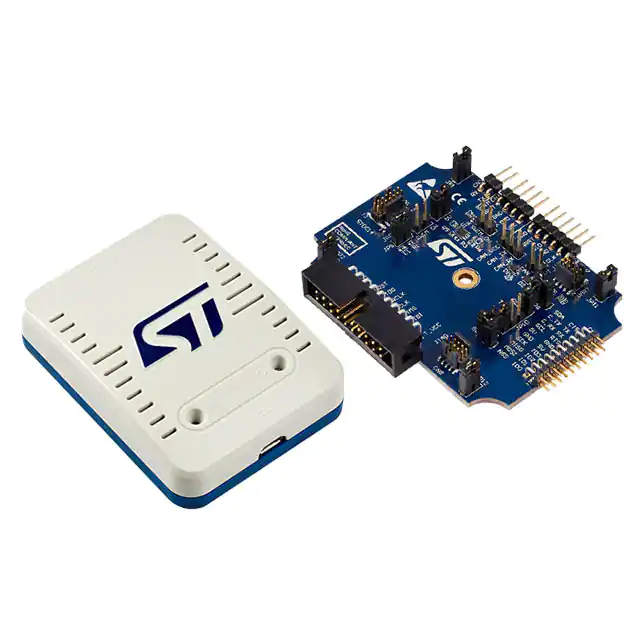

The STLINK-V3SET is a modular stand-alone
debugging and programming probe for the STM8
and STM32 microcontrollers. It is composed of a
main module and a complementary adapter
board.
The SWIM and JTAG/SWD interfaces are used to
communicate with any STM8 or STM32
microcontroller located on an application board.
The STLINK-V3SET also provides a Virtual COM
port interface allowing the host PC to
communicate with the target microcontroller
through one UART, and bridge interfaces (SPI,
I2C, CAN, GPIOs) allowing for instance the
programming of the target through the bootloader.
The STLINK-V3SET can provide a second Virtual
COM port interface allowing the host PC to
communicate with the target microcontroller
through another UART (called bridge UART).
Bridge UART signals, including optional RTS and
CTS, are available on adapter board only
(MB1440). The second Virtual COM port
activation is done through a reversible firmware
update, which also disables the mass storage
interface (used for drag-and-drop flash
programming).
The modular architecture of STLINK-V3SET
enables to extend its main features through
additional modules such as the adapter board.
DB3692 Rev 2
For further information contact your local STMicroelectronics sales office.
1/4
www.st.com
General information
STLINK-V3SET
General information
The STLINK-V3SET embeds an STM32 32-bit microcontroller based on the Arm®(a)
Cortex®-M processor.
System requirements
• Windows® OS (7, 8 and 10), Linux® 64-bit, or macOS®(b)
• USB Type-A to Micro-B cable
Development toolchains
• Keil® MDK-ARM(c)
• IAR™ EWARM(c)
• GCC-based IDEs
Ordering information
To order the STLINK-V3SET, refer to Table 1.
Table 1. Ordering information
Order code
Description
STLINK-V3SET
STLINK-V3 modular in-circuit debugger and programmer for STM8 and
STM32.
a. Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and or elsewhere.
b. macOS® is a trademark of Apple Inc. registered in the U.S. and other countries.
c.
2/4
On Windows® only.
DB3692 Rev 2
STLINK-V3SET
Revision history
Revision history
Table 2. Document revision history
Date
Revision
Changes
6-Sep-2018
1
Initial release.
14-Nov-2019
2
Second Virtual COM port added to Description.
DB3692 Rev 2
3/4
4
STLINK-V3SET
