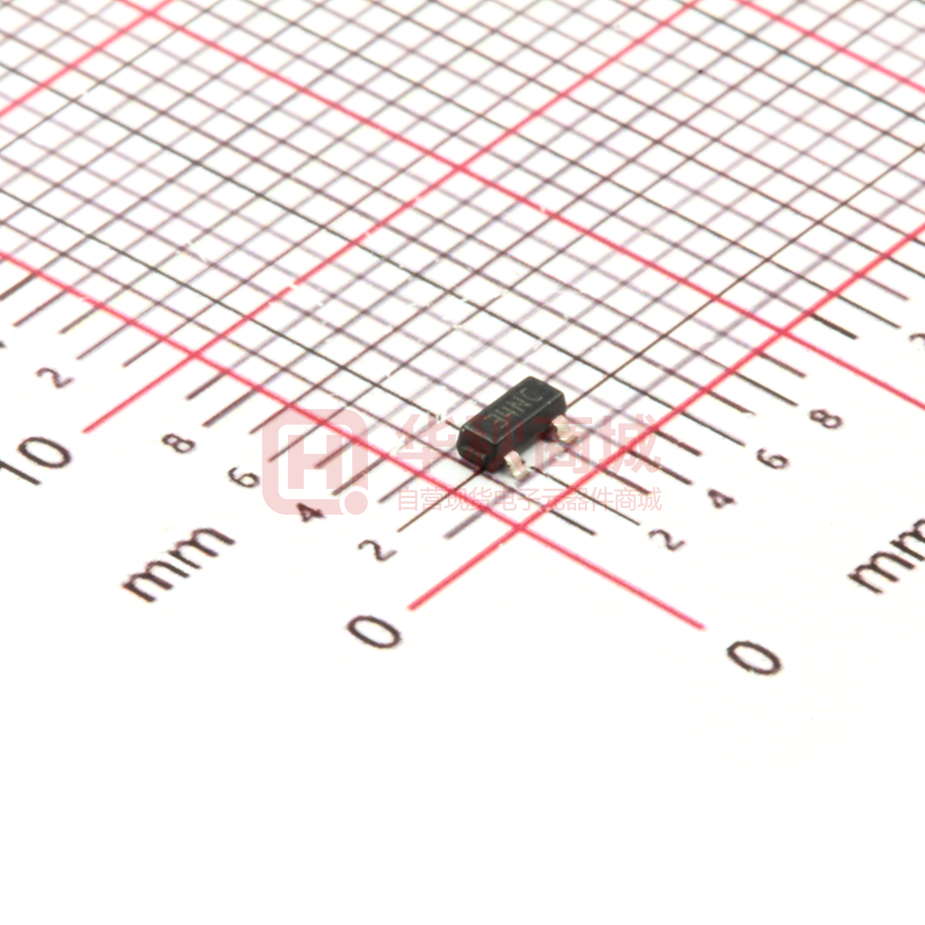

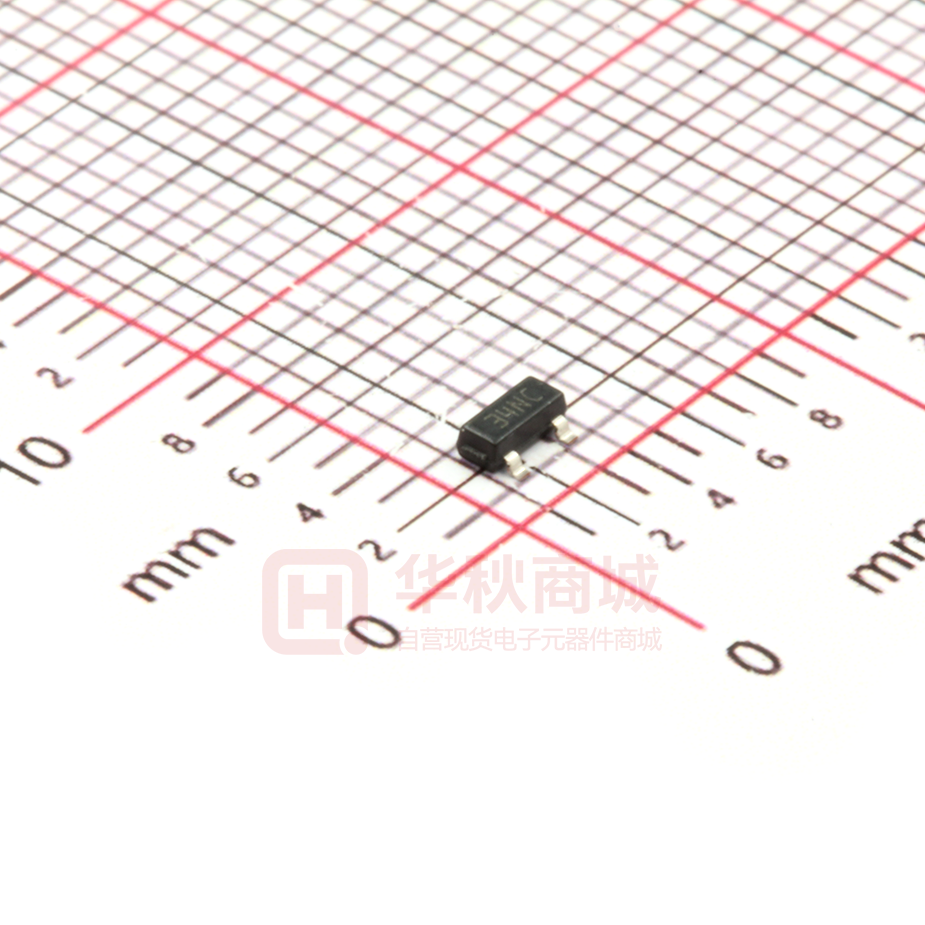

STM1061N34WX6F

STM1061 Low Power Voltage Detector Features ■ Factory-trimmed Voltage Thresholds in 0.1V Increments from 1.6 to 5.5V ■ ±2% Voltage Threshold Accuracy ■ Operating Voltage 0.7 to 6.0V ■ Open Drain Output ■ Low Supply Current of 0.9µA (typ) ■ Guaranteed OUT Assertion Down to VCC = 0.7V ■ Power Supply Transient Immunity ■ Available in SOT23-3 and SOT323-3 (SC70-3) packages ■ Figure 1. Packages SOT23-3 (WX) SOT323-3, SC70-3 (W) (1) Operating Temperature –40 to 85°C. 1. Contact local sales office for availability. July 2006 Rev 4 1/23 www.st.com 1 Contents STM1061 Contents 1 Summary Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3 2.1 OUT (Open Drain) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2 VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.3 VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3.1 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3.2 Negative-Going VCC Transients and Undershoot . . . . . . . . . . . . . . . . . . . . 8 4 Typical Operating Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 5 Maximum Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 6 DC and AC Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 7 Package Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 8 Part Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 9 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 2/23 STM1061 List of tables List of tables Table 1. Table 2. Table 3. Table 4. Table 5. Table 6. Table 7. Table 8. Table 9. Table 10. Signal Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Pin Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Operating and AC Measurement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 DC and AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 SOT23-3 – 3-lead Small Outline Transistor Package Mechanical Data . . . . . . . . . . . . . . . 18 SOT323-3 (SC70-3) – 3-lead Small Outline Transistor Package Mechanical Data . . . . . . 19 Ordering Information Scheme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Factory-Trimmed Thresholds with Marking Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3/23 List of figures STM1061 List of figures Figure 1. Figure 2. Figure 3. Figure 4. Figure 5. Figure 6. Figure 7. Figure 8. Figure 9. Figure 10. Figure 11. Figure 12. Figure 13. Figure 14. Figure 15. Figure 16. Figure 17. Figure 18. 4/23 Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Logic Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 SOT23-3 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 SOT323-3 (SC70-3) Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 N-Channel Open Drain Output Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 STM1061N Active-Low, Open Drain Hardware Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Supply Current vs. Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Supply Current vs. Ambient Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Output Detect Delay Time vs. Ambient Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Output Release Delay Time vs. Ambient Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Maximum Transient Duration vs. Reset Threshold Overdrive . . . . . . . . . . . . . . . . . . . . . . 11 Detect, Release Voltage vs. Ambient Temperature for V TH– = 3.4V . . . . . . . . . . . . . . . . . 11 N-channel Driver Output Current vs. V DS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 N-channel Driver Output Current vs. Input Voltage for V DS = 0.5V . . . . . . . . . . . . . . . . . . 12 AC Testing Input/Output Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Voltage Timing Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 SOT23-3 – 3-lead Small Outline Transistor Package Outline. . . . . . . . . . . . . . . . . . . . . . . 17 SOT323-3 (SC70-3) – 3-lead Small Outline Transistor Package Outline . . . . . . . . . . . . . . 19 STM1061 1 Summary Description Summary Description The STM1061 low power voltage detector provides monitoring of battery, power-supply, and regulated system voltages. A precision voltage reference and comparator monitors the V CC input and compares it with a specified voltage threshold condition. When V CC falls below a specified trip point threshold, the output (OUT) is forced low and remains asserted as long as the VCC input remains below VTH– + hysteresis (VHYST). The STM1061 device is guaranteed to output the correct logic state for VCC down to 0.7V. They are also designed to ignore fast transients on VCC. This small, low power device is ideal for portable applications and is available in spacesaving SOT23-3 and SOT323-3 (SC70-3) packages. Figure 2. Logic Diagram VCC STM1061 OUT VSS Table 1. AI10477 Signal Names OUT Open Drain Active-Low Output VCC Supply Voltage VSS Ground Figure 3. SOT23-3 Connections OUT VSS 1 2 3 VCC AI10478 5/23 Summary Description Figure 4. STM1061 SOT323-3 (SC70-3) Connections VSS OUT 1 2 VCC 3 AI10479 Figure 5. N-Channel Open Drain Output Block Diagram VCC OUT R1 + – VREF R2 VSS R3 AI10482 Figure 6. STM1061N Active-Low, Open Drain Hardware Hookup DC/DC Converter VOUT VIN Regulated 3V VSS R VCC + 3.6V STM1061N (Open Drain) OUT VCC VSS MCU VOUT Suspend VSS AI10484a 6/23 STM1061 2 Pin Descriptions Pin Descriptions See Figure 2 on page 5 and Table 1 on page 5 for a brief overview of the signals connected to this device. 2.1 OUT (Open Drain) This is the Open Drain Output. It goes low when V CC drops below VTH–, and remains low as long as V CC is below VTH– + V HYST. 2.2 VCC This is the Supply voltage and input for the Voltage Detector. 2.3 VSS Ground, VSS, is the reference for the power supply. It must be connected to the system ground. Table 2. Pin Functions Pin SOT323-3 (SC70-3) Name SOT23-3 Function 1 2 OUT Active-Low Open Drain Output 3 3 VCC Supply Voltage 2 1 VSS Ground 7/23 Operation STM1061 3 Operation 3.1 Output The STM1061 Voltage Detector monitors system voltages from 1.6 to 5V in 100mV increments. The detector is designed to ignore fast transients on VCC and has a voltage hysteresis (VHYST). The STM1061 asserts an output signal (OUT) whenever VCC goes below the Voltage Detect Threshold (VTH–). The output signal (OUT) stays asserted until VCC goes above the Voltage Detect Release (VTH+). Output voltage (VOUT) is guaranteed valid down to V CC =0.7V at 25°C. The STM1061has an open drain active-low output which will sink current when output is asserted. Connect a pull-up resistor from OUT to any supply voltage up to 6V (see Figure 6 on page 6). Select a resistor value large enough to register a logic low, and small enough to register a logic high while all of the input current and leakage paths connected to the reset output line are being supplied. A 10k pull-up is sufficient in most applications. The advantages of open drain output is the ability to connect more open drain outputs in parallel (wired OR connections) as well as connect the output to a power supply voltage different from VCC. 3.2 Negative-Going VCC Transients and Undershoot The STM1061 device is relatively immune to negative-going V CC transients (glitches). The graph (see Figure 11 on page 11) indicates the maximum pulse width a negative VCC transient can have without causing a reset pulse. As the magnitude of the transient increases (further below the threshold), the maximum allowable pulse width decreases. Any combination of duration and overdrive which lies under the curve will NOT generate a reset signal. A 0.1µF bypass capacitor mounted as close as possible to the VCC pin provides additional transient immunity. 8/23 STM1061 Typical Operating Characteristics Figure 7. Supply Current vs. Input Voltage 1400 1200 ICC (nA) 1000 800 600 Temp = –40°C 400 Temp = 25°C 200 Temp = 85°C 0 0 1 2 3 4 5 VCC (V) Figure 8. 6 AI11119b Supply Current vs. Ambient Temperature 1250 Supply Current: ICC (nA) 4 Typical Operating Characteristics 1000 750 VCC = 5V 500 VCC = 3V VCC = 2V 250 0 -40 -20 0 20 40 60 80 Ambient Temperature (°C) AI11120b 9/23 Typical Operating Characteristics Figure 9. STM1061 Output Detect Delay Time vs. Ambient Temperature VCC-to-OUT Detect Delay: tPD (µs) 35.00 30.00 VTH– = 3.4V 25.00 20.00 15.00 VTH– = 1.6V 10.00 5.00 0.00 –40 –20 0 20 40 60 Ambient Temperature: TA (°C) 80 AI11121b Figure 10. Output Release Delay Time vs. Ambient Temperature 50.00 VCC-to-OUT Release Delay: tPR (µs) 45.00 40.00 VTH+ = 3.57V 35.00 30.00 25.00 20.00 15.00 VTH+ = 1.68V 10.00 5.00 0.00 –40 –20 0 20 40 Ambient Temperature: TA (°C) 10/23 60 80 AI11122b STM1061 Typical Operating Characteristics Figure 11. Maximum Transient Duration vs. Reset Threshold Overdrive 160 Transient Duration (µs) 140 VTH– = 3.4V 120 VTH– = 1.6V 100 80 60 40 20 0 1 10 100 1000 10000 Threshold Overdrive (mV) AI11123b 1. Reset occurs above the curve. Figure 12. Detect, Release Voltage vs. Ambient Temperature for V TH– = 3.4V Detect, Release Voltage: VTH–, VTH+ (V) 3.6 3.5 Detect Voltage, VTH– Release Voltage, VTH+ 3.4 3.3 –40 –20 0 20 40 60 80 Ambient Temperature (°C) AI11124b 11/23 Typical Operating Characteristics STM1061 Figure 13. N-channel Driver Output Current vs. V DS 0.06 VCC = 3.3V 0.05 Output Current: ID (A) VCC = 3.0V VCC = 2.7V 0.04 VCC = 2.1V VCC = 1.5V 0.03 VCC = 1.0V 0.02 0.01 0 0 0.25 0.5 0.75 1 1.25 Output Voltage: VDS (V) 1.5 AI11125b Figure 14. N-channel Driver Output Current vs. Input Voltage for V DS = 0.5V 30 Output Current: IOUT (mA) 25 Temp. (25°C) 20 Temp. (85°C) Temp. (–40°C) 15 10 5 0 0 0.5 1 1.5 2 2.5 3 Input Voltage: VCC (V) AI11126b 12/23 STM1061 5 Maximum Rating Maximum Rating Stressing the device above the rating listed in the Table 3: Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents. Table 3. Absolute Maximum Ratings Symbol TSTG TSLD (1) Parameter Storage Temperature (V CC Off, VBAT Off) Lead Solder Temperature for 10 seconds Value Unit –55 to 150 °C 260 °C V VIO Input or Output Voltage VCC Supply Voltage –0.3 to VCC +0.3 –0.3 to 7.0 IO Output Current 20 mA PD Power Dissipation 320 mW V 1. Reflow at peak temperature of 260°C (total thermal budget not to exceed 245°C for greater than 30 seconds). 13/23 DC and AC Parameters 6 STM1061 DC and AC Parameters This section summarizes the operating measurement conditions, and the DC and AC characteristics of the device. The parameters in the DC and AC characteristics Tables that follow, are derived from tests performed under the Measurement Conditions summarized in Table 4: Operating and AC Measurement Conditions. Designers should check that the operating conditions in their circuit match the operating conditions when relying on the quoted parameters. Table 4. Operating and AC Measurement Conditions Sym VCC TA Parameter STM1061 Unit Supply Voltage 0.7 to 6.0 V Ambient Operating Temperature –40 to 85 °C ≤05 ns Input Pulse Voltages 0.2 to 0.8VCC V Input and Output Timing Ref. Voltages 0.3 to 0.7VCC V Input Rise and Fall Times Figure 15. AC Testing Input/Output Waveforms 0.8VCC 0.2VCC 0.7VCC 0.3VCC AI02568 14/23 STM1061 DC and AC Parameters Figure 16. Voltage Timing Waveform VCC VTH+ VTH– Release Voltage (VTH+ = VTH– + VHYST) Detect Voltage VCC (min) VSS VOUT tPD Detect Delay VSS tPR Release Delay AI10483 15/23 DC and AC Parameters Table 5. Sym. DC and AC Characteristics Description VCC Operating Voltage ICC VCC Supply Current IOUT STM1061 Output Current, N-channel (VDS = 0.5V), Reset asserted Test Condition (1) Min Typ 0.7 Max Unit 6.0 V VCC = 3.0V, No Load 0.9 3.0 µA VCC = 5.5V, No Load 1.1 3.6 µA VCC = 1.0V 1.0 1.7 mA VCC = 2.0V 3.0 14 mA VCC = 3.0V 5.0 22 mA VCC = 4.0V 6.0 26 mA VCC = 5.0V 7.0 30 mA VTH– – 2% VTH– Voltage Thresholds VTH– Detect Voltage (2) (see Table 9 on page 21 for detailed listing) VTH+ Release Voltage VHYST Threshold Hysteresis tPD tPR VTH– + 2% VTH– + VHYST 0.02VTH– 0.05VTH– VCC to OUT Detect Delay VCC falling from (V TH– + 100mV) to (VTH– – 100mV) at 10mV/µs 25 VCC to OUT Release Delay VCC rising from (VTH+ – 100mV) to (VTH+ + 100mV) at 10mV/µs 30 Threshold Temperature Coefficient V 0.08VTH– V µs 200 ±100 1. Valid for Ambient Operating Temperature: TA = 25°C. 2. Other VTH- threshold are offered. Minimum order quantities may apply. Contact local sales office for availability. 16/23 V µs ppm/oC STM1061 7 Package Mechanical Package Mechanical In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. These packages have a Lead-free second level interconnect. The category of second Level Interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com. Figure 17. SOT23-3 – 3-lead Small Outline Transistor Package Outline E E1 0.15 B M CAB A1 1 e D e1 0.20 M 3X CAB 0.10 C A 3X b A2 C A C θ L1 C L SOT23-3 1. Drawing is not to scale. 17/23 Package Mechanical Table 6. STM1061 SOT23-3 – 3-lead Small Outline Transistor Package Mechanical Data mm inches Symbol Typ Min Max A 0.89 A1 A2 Min Max 1.12 0.035 0.044 0.01 0.10 0.001 0.004 0.88 1.02 0.035 0.042 b 0.30 0.50 0.012 0.020 C 0.08 0.20 0.003 0.008 D 2.80 3.04 0.110 0.120 E 2.10 2.64 0.083 0.104 E1 1.20 1.40 0.047 0.055 e 0.89 1.03 0.035 0.041 e1 1.78 2.05 0.070 0.081 L 18/23 Typ 0.54 0.021 L1 0.40 0.60 0.016 0.024 Q 0° 8° 0° 8° N 3 3 STM1061 Package Mechanical Figure 18. SOT323-3 (SC70-3) – 3-lead Small Outline Transistor Package Outline E E1 0.30 B M CAB A1 1 e D e1 0.10 M 3X CAB 3X b C θ1 C A2 0.10 C A A θ L1 C L SOT323-3 1. Drawing is not to scale. Table 7. SOT323-3 (SC70-3) – 3-lead Small Outline Transistor Package Mechanical Data mm inches Symbol Typ Min Max A 0.80 A1 Typ Min Max 1.10 0.031 0.043 0.00 0.10 0.000 0.004 A2 0.80 1.00 0.031 0.039 b 0.25 0.40 0.010 0.016 C 0.10 0.18 0.004 0.007 D 1.80 2.20 0.071 0.087 E 1.80 2.40 0.071 0.094 E1 1.15 1.35 0.045 0.053 e 0.65 0.026 e1 1.30 0.051 L 0.35 0.45 0.014 0.018 L1 0.10 0.30 0.004 0.012 Q 0° 30° 0° 30° Θ1 8° 12° 8° 12° N 3 3 19/23 Part Numbering 8 STM1061 Part Numbering Table 8. Ordering Information Scheme Example: STM1061 N xx WX 6 F Device Type STM1061 Output Type N = Open Drain (Active-Low) Threshold Voltage (1) xx = See Table 9 on page 21 Package WX = SOT23-3 W = SOT323-3 (SC70-3) (1) Temperature Range 6 = –40 to 85°C Shipping Method F = ECOPACK Package, Tape & Reel 1. Other thresholds voltage options are offered. Minimum order quantities may apply. Contact local sales office for availability. For other options, or for more information on any aspect of this device, please contact the ST Sales Office nearest you. 20/23 STM1061 Part Numbering Table 9. Factory-Trimmed Thresholds with Marking Description Threshold Voltage VTH– (V) at TA = 25°C (1) Suffix Topside Marking Min (–2%) Typ Max (+2%) 16 1.568 1.600 1.632 16Nx 17 1.666 1.700 1.734 17Nx 19 1.862 1.900 1.938 19Nx 21 2.058 2.100 2.142 21Nx 22 2.156 2.200 2.244 22Nx 23 2.254 2.300 2.346 23Nx 25 2.450 2.500 2.550 25Nx 26 2.548 2.600 2.652 26Nx 27 2.646 2.700 2.754 27Nx 28 2.744 2.800 2.856 28Nx 29 2.842 2.900 2.958 29Nx 30 2.940 3.000 3.060 30Nx 31 3.038 3.100 3.162 31Nx 34 3.332 3.400 3.468 34Nx 38 3.724 3.800 3.876 38Nx 1. Other VTH- thresholds are offered. Minimum order quantities may apply. Contact local sales office for availability. 21/23 Revision History 9 STM1061 Revision History Table 10. 22/23 Document Revision History Date Version Description 20-January2004 1.0 First Edition 01-Aug-05 1.1 Update Operation section, characteristics; insert new graphics; add ECOPACK information ( Figure 7, 8, 9, 10, 11, 12, 13, and 14; Table Table 5, 8, and 9 ) 02-Sep-05 1.2 Update characteristics, remove ‘push-pull output’ reference (Figure 8, 9, 10, 11, 12, and 16; Table Table 2, , 5, and 8) 19-Oct-05 2.0 Status upgrade; update characteristics; add Marking information (Figure 7, 8, 9, 10, 11, 12, 13, and 14; Table Table 8, and 9) 18-Nov-05 3.0 Update characteristics (Table 3, and 4) 27-Jul-2006 4 Update Chapter : Features, Figure 1, 5, 6, Table 8 and 9. STM1061 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2006 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 23/23
