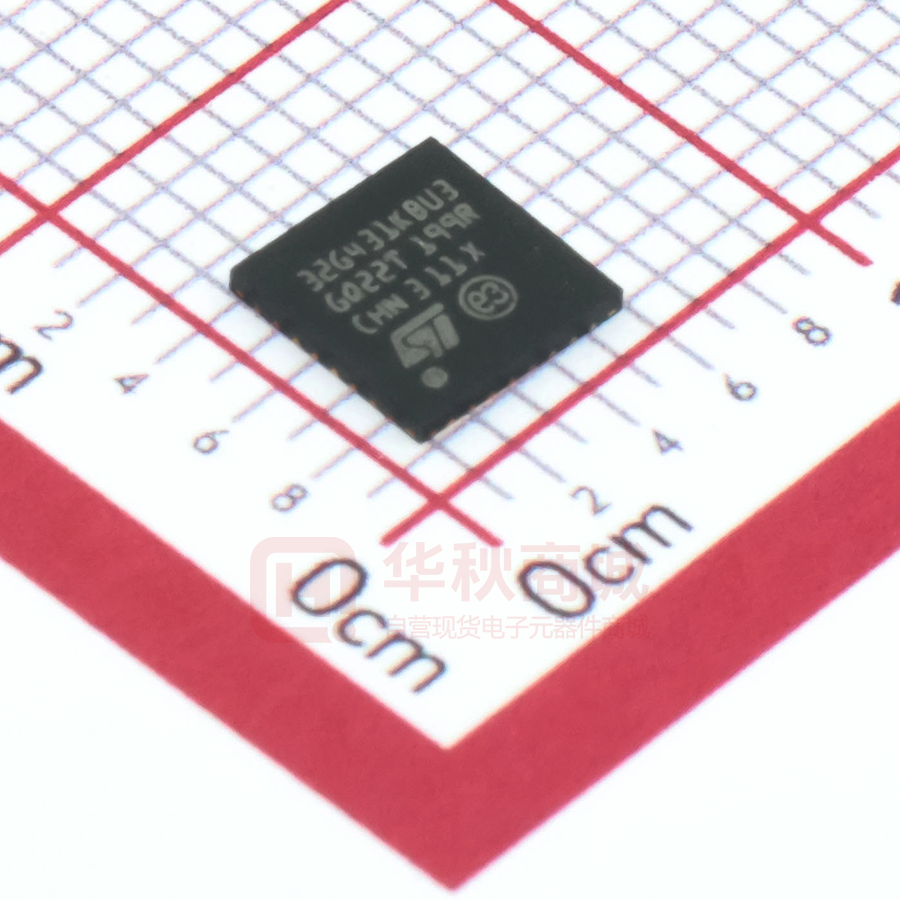

STM32G431KBU3

STM32G431KBU3

  • 厂商:

    STMICROELECTRONICS(意法半导体)

  • 封装:

    UFQFPN-32_5X5MM-EP

  • 描述:

    STM32G431KBU3

  • 数据手册
  • 价格&库存
STM32G431KBU3 数据手册
STM32G431x6 STM32G431x8 STM32G431xB Arm® Cortex®-M4 32-bit MCU+FPU, 170 MHz /213 DMIPS, up to 128 KB Flash, 32 KB SRAM, rich analog, math accelerator Datasheet - production data Features FBGA Includes ST state-of-the-art patented technology • Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait-state execution from Flash memory, frequency up to 170 MHz with 213 DMIPS, MPU, DSP instructions • Operating conditions: – VDD, VDDA voltage range: 1.71 V to 3.6 V • Mathematical hardware accelerators – CORDIC for trigonometric functions acceleration – FMAC: filter mathematical accelerator LQFP32 (7 x 7 mm) UFQFPN32 (5 x 5 mm) LQFP48 (7 x 7 mm) UFQFPN48 (7 x 7 mm) LQFP64 (10 x 10 mm) LQFP80 (12 x 12 mm) LQFP100 (14 x 14 mm) UFBGA64 (5 x 5 mm) WLCSP49 (Pitch 0.4) • Clock management – 4 to 48 MHz crystal oscillator – 32 kHz oscillator with calibration – Internal 16 MHz RC with PLL option (± 1%) – Internal 32 kHz RC oscillator (± 5%) • Up to 86 fast I/Os – All mappable on external interrupt vectors – Several I/Os with 5 V tolerant capability • Memories – 128 Kbytes of Flash memory with ECC support, proprietary code readout protection (PCROP), securable memory area, 1 Kbyte OTP – 22 Kbytes of SRAM, with hardware parity check implemented on the first 16 Kbytes – Routine booster: 10 Kbytes of SRAM on instruction and data bus, with hardware parity check (CCM SRAM) • Interconnect matrix • Reset and supply management – Power-on/power-down reset (POR/PDR/BOR) – Programmable voltage detector (PVD) – Low-power modes: sleep, stop, standby and shutdown – VBAT supply for RTC and backup registers • 3 x operational amplifiers that can be used in PGA mode, all terminals accessible October 2021 This is information on a product in full production. • 12-channel DMA controller • 2 x ADCs 0.25 µs (up to 23 channels). Resolution up to 16-bit with hardware oversampling, 0 to 3.6 V conversion range • 4 x 12-bit DAC channels – 2 x buffered external channels 1 MSPS – 2 x unbuffered internal channels 15 MSPS • 4 x ultra-fast rail-to-rail analog comparators • Internal voltage reference buffer (VREFBUF) supporting three output voltages (2.048 V, 2.5 V, 2.9 V) • 14 timers: – 1 x 32-bit timer and 2 x 16-bit timers with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input – 2 x 16-bit 8-channel advanced motor control timers, with up to 8 x PWM channels, dead time generation and emergency stop DS12589 Rev 6 1/198 www.st.com STM32G431x6 STM32G431x8 STM32G431xB – 1 x 16-bit timer with 2 x IC/OCs, one OCN/PWM, dead time generation and emergency stop – 2 x 16-bit timers with IC/OC/OCN/PWM, dead time generation and emergency stop – 2 x watchdog timers (independent, window) – 1 x SysTick timer: 24-bit downcounter – 2 x 16-bit basic timers – 1 x low-power timer • Calendar RTC with alarm, periodic wakeup from stop/standby – 4 x USART/UARTs (ISO 7816 interface, LIN, IrDA, modem control) – 1 x LPUART – 3 x SPIs, 4 to 16 programmable bit frames, 2 x with multiplexed half duplex I2S interface – 1 x SAI (serial audio interface) – USB 2.0 full-speed interface with LPM and BCD support – IRTIM (infrared interface) – USB Type-C™ /USB power delivery controller (UCPD) • Communication interfaces • True random number generator (RNG) – 1 x FDCAN controller supporting flexible data rate • CRC calculation unit, 96-bit unique ID 2 – 3 x I C Fast mode plus (1 Mbit/s) with • Development support: serial wire debug 20 mA current sink, SMBus/PMBus, (SWD), JTAG, Embedded Trace Macrocell™ wakeup from stop Table 1. Device summary Reference Part number STM32G431x6 STM32G431C6, STM32G431K6, STM32G431R6, STM32G431V6, STM32G431M6 STM32G431x8 STM32G431C8, STM32G431K8, STM32G431R8, STM32G431V8, STM32G431M8 STM32G431xB STM32G431CB, STM32G431KB, STM32G431RB, STM32G431VB, STM32G431MB 2/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Contents Contents 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3 Functional overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.1 Arm® Cortex®-M4 core with FPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.2 Adaptive real-time memory accelerator (ART accelerator) . . . . . . . . . . . 17 3.3 Memory protection unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.4 Embedded Flash memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.5 Embedded SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.6 Multi-AHB bus matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.7 Boot modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.8 CORDIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.9 Filter mathematical accelerator (FMAC) . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.10 Cyclic redundancy check calculation unit (CRC) . . . . . . . . . . . . . . . . . . . 21 3.11 Power supply management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 3.11.1 Power supply schemes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 3.11.2 Power supply supervisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.11.3 Voltage regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.11.4 Low-power modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 3.11.5 Reset mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 3.11.6 VBAT operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 3.12 Interconnect matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 3.13 Clocks and startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 3.14 General-purpose inputs/outputs (GPIOs) . . . . . . . . . . . . . . . . . . . . . . . . . 27 3.15 Direct memory access controller (DMA) . . . . . . . . . . . . . . . . . . . . . . . . . . 27 3.16 DMA request router (DMAMUX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 3.17 Interrupts and events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 3.18 3.17.1 Nested vectored interrupt controller (NVIC) . . . . . . . . . . . . . . . . . . . . . . 28 3.17.2 Extended interrupt/event controller (EXTI) . . . . . . . . . . . . . . . . . . . . . . 28 Analog-to-digital converter (ADC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 3.18.1 Temperature sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 DS12589 Rev 6 3/198 6 Contents STM32G431x6 STM32G431x8 STM32G431xB 3.18.2 Internal voltage reference (VREFINT) . . . . . . . . . . . . . . . . . . . . . . . . . . 30 3.18.3 VBAT battery voltage monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 3.19 Digital to analog converter (DAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 3.20 Voltage reference buffer (VREFBUF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 3.21 Comparators (COMP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.22 Operational amplifier (OPAMP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.23 Random number generator (RNG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.24 Timers and watchdogs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.24.1 Advanced motor control timer (TIM1, TIM8) . . . . . . . . . . . . . . . . . . . . . 33 3.24.2 General-purpose timers (TIM2, TIM3, TIM4, TIM15, TIM16, TIM17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 3.24.3 Basic timers (TIM6 and TIM7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 3.24.4 Low-power timer (LPTIM1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 3.24.5 Independent watchdog (IWDG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 3.24.6 System window watchdog (WWDG) . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 3.24.7 SysTick timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 3.25 Real-time clock (RTC) and backup registers . . . . . . . . . . . . . . . . . . . . . . 36 3.26 Tamper and backup registers (TAMP) . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 3.27 Infrared transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 3.28 Inter-integrated circuit interface (I2C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 3.29 Universal synchronous/asynchronous receiver transmitter (USART) . . . 39 3.30 Low-power universal asynchronous receiver transmitter (LPUART) . . . . 40 3.31 Serial peripheral interface (SPI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 3.32 Serial audio interfaces (SAI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 3.32.1 4 3.33 Controller area network (FDCAN1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 3.34 Universal serial bus (USB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 3.35 USB Type-C™ / USB Power Delivery controller (UCPD) . . . . . . . . . . . . . 42 3.36 Clock recovery system (CRS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 3.37 Development support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 3.37.1 Serial wire JTAG debug port (SWJ-DP) . . . . . . . . . . . . . . . . . . . . . . . . . 43 3.37.2 Embedded trace macrocell™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Pinouts and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 4.1 4/198 SAI peripheral supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 UFQFPN32 pinout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 5 Contents 4.2 LQFP32 pinout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 4.3 UFQFPN48 pinout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 4.4 LQFP48 pinout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 4.5 WLCSP49 ballout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 4.6 LQFP64 pinout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 4.7 UFBGA64 ballout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 4.8 LQFP80 pinout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 4.9 LQFP100 pinout description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 4.10 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 4.11 Alternate functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 5.1 Parameter conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 5.1.1 Minimum and maximum values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 5.1.2 Typical values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 5.1.3 Typical curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 5.1.4 Loading capacitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 5.1.5 Pin input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 5.1.6 Power supply scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 5.1.7 Current consumption measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 5.2 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 5.3 Operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 5.3.1 General operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 5.3.2 Operating conditions at power-up / power-down . . . . . . . . . . . . . . . . . . 72 5.3.3 Embedded reset and power control block characteristics . . . . . . . . . . . 72 5.3.4 Embedded voltage reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 5.3.5 Supply current characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 5.3.6 Wakeup time from low-power modes and voltage scaling transition times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 5.3.7 External clock source characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 5.3.8 Internal clock source characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 103 5.3.9 PLL characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 5.3.10 Flash memory characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 5.3.11 EMC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 5.3.12 Electrical sensitivity characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 5.3.13 I/O current injection characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 DS12589 Rev 6 5/198 6 Contents 6 STM32G431x6 STM32G431x8 STM32G431xB 5.3.14 I/O port characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 5.3.15 NRST pin characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 5.3.16 Extended interrupt and event controller input (EXTI) characteristics . . 117 5.3.17 Analog switches booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 5.3.18 Analog-to-digital converter characteristics . . . . . . . . . . . . . . . . . . . . . . 118 5.3.19 Digital-to-Analog converter characteristics . . . . . . . . . . . . . . . . . . . . . 133 5.3.20 Voltage reference buffer characteristics . . . . . . . . . . . . . . . . . . . . . . . 140 5.3.21 Comparator characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143 5.3.22 Operational amplifiers characteristics . . . . . . . . . . . . . . . . . . . . . . . . . 144 5.3.23 Temperature sensor characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 5.3.24 VBAT monitoring characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 5.3.25 Timer characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 5.3.26 Communication interfaces characteristics . . . . . . . . . . . . . . . . . . . . . . 150 5.3.27 UCPD characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 6.1 UFQFPN32 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 6.2 LQFP32 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 6.3 UFQFPN48 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 6.4 LQFP48 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 6.5 WLCSP49 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174 6.6 LQFP64 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178 6.7 UFBGA64 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181 6.8 LQFP80 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 6.9 LQFP100 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 6.10 Thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 6.10.1 Reference document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 6.10.2 Selecting the product temperature range . . . . . . . . . . . . . . . . . . . . . . 192 7 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 8 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195 6/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB List of tables List of tables Table 1. Table 2. Table 3. Table 4. Table 5. Table 6. Table 7. Table 8. Table 9. Table 10. Table 11. Table 12. Table 13. Table 14. Table 15. Table 16. Table 17. Table 18. Table 19. Table 20. Table 21. Table 22. Table 23. Table 24. Table 25. Table 26. Table 27. Table 28. Table 29. Table 30. Table 31. Table 32. Table 33. Table 34. Table 35. Table 36. Table 37. Table 38. Table 39. Table 40. Table 41. Table 42. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 STM32G431x6/x8/xB features and peripheral counts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 STM32G431x6/x8/xB peripherals interconnect matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 DMA implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Temperature sensor calibration values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Internal voltage reference calibration values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Timer feature comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 I2C implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 USART/UART/LPUART features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 SAI features implementation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Legend/abbreviations used in the pinout table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 STM32G431x6/x8/xB pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Alternate function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Voltage characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Current characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Thermal characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 General operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Operating conditions at power-up / power-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Embedded reset and power control block characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . 72 Embedded internal voltage reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Current consumption in Run and Low-power run modes, code with data processing running from Flash in single Bank, ART enable (Cache ON Prefetch OFF) . . 76 Current consumption in Run and Low-power run modes, code with data processing running from SRAM1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Typical current consumption in Run and Low-power run modes, with different codes running from Flash, ART enable (Cache ON Prefetch OFF) . . . . . . . . . . . . . . . . . . . . . . . 80 Typical current consumption in Run and Low-power run modes, with different codes running from SRAM1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Typical current consumption in Run and Low-power run modes, with different codes running from SRAM2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Typical current consumption in Run and Low-power run modes, with different codes running from CCM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 Current consumption in Sleep and Low-power sleep mode Flash ON . . . . . . . . . . . . . . . . 84 Current consumption in low-power sleep modes, Flash in power-down. . . . . . . . . . . . . . . 85 Current consumption in Stop 1 mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Current consumption in Stop 0 mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Current consumption in Standby mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Current consumption in Shutdown mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Current consumption in VBAT mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Peripheral current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Low-power mode wakeup timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Regulator modes transition times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Wakeup time using USART/LPUART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 High-speed external user clock characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Low-speed external user clock characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 HSE oscillator characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 LSE oscillator characteristics (fLSE = 32.768 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 HSI16 oscillator characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 DS12589 Rev 6 7/198 9 List of tables Table 43. Table 44. Table 45. Table 46. Table 47. Table 48. Table 49. Table 50. Table 51. Table 52. Table 53. Table 54. Table 55. Table 56. Table 57. Table 58. Table 59. Table 60. Table 61. Table 62. Table 63. Table 64. Table 65. Table 66. Table 67. Table 68. Table 69. Table 70. Table 71. Table 72. Table 73. Table 74. Table 75. Table 76. Table 77. Table 78. Table 79. Table 80. Table 81. Table 82. Table 83. Table 84. Table 85. Table 86. Table 87. Table 88. Table 89. Table 90. Table 91. Table 92. Table 93. Table 94. 8/198 STM32G431x6 STM32G431x8 STM32G431xB HSI48 oscillator characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 LSI oscillator characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 PLL characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 Flash memory characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 Flash memory endurance and data retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 EMS characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 EMI characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 ESD absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Electrical sensitivities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 I/O current injection susceptibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 I/O static characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Output voltage characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 I/O (except FT_c) AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114 I/O FT_c AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 NRST pin characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 EXTI input characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 Analog switches booster characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 ADC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Maximum ADC RAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 ADC accuracy - limited test conditions 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 ADC accuracy - limited test conditions 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 ADC accuracy - limited test conditions 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 ADC accuracy (Multiple ADCs operation) - limited test conditions 1 . . . . . . . . . . . . . . . . 129 ADC accuracy (Multiple ADCs operation) - limited test conditions 2 . . . . . . . . . . . . . . . . 130 ADC accuracy (Multiple ADCs operation) - limited test conditions 3 . . . . . . . . . . . . . . . . 131 DAC 1MSPS characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133 DAC 1MSPS accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136 DAC 15MSPS characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 DAC 15MSPS accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 VREFBUF characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 COMP characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143 OPAMP characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 TS characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 VBAT monitoring characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 VBAT charging characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 TIMx characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 IWDG min/max timeout period at 32 kHz (LSI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 WWDG min/max timeout value at 170 MHz (PCLK). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Minimum I2CCLK frequency in all I2C modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151 I2C analog filter characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151 SPI characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152 I2S characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 SAI characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 USB electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159 USART electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159 UCPD characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 UFQFPN32 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162 LQFP32 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165 UFQFPN48 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 LQFP48 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171 WLCSP49 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 WLCSP49 - Recommended PCB design rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Table 95. Table 96. Table 97. Table 98. Table 99. Table 100. Table 101. Table 102. List of tables LQFP64 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178 UFBGA64 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181 UFBGA64 - Recommended PCB design rules (0.5 mm pitch BGA). . . . . . . . . . . . . . . . . 182 LQFP80 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 LQPF100 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Package thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Ordering information scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195 DS12589 Rev 6 9/198 9 List of figures STM32G431x6 STM32G431x8 STM32G431xB List of figures Figure 1. Figure 2. Figure 3. Figure 4. Figure 5. Figure 6. Figure 7. Figure 8. Figure 9. Figure 10. Figure 11. Figure 12. Figure 13. Figure 14. Figure 15. Figure 16. Figure 17. Figure 18. Figure 19. Figure 20. Figure 21. Figure 22. Figure 23. Figure 24. Figure 25. Figure 26. Figure 27. Figure 28. Figure 29. Figure 30. Figure 31. Figure 32. Figure 33. Figure 34. Figure 35. Figure 36. Figure 37. Figure 38. Figure 39. Figure 40. Figure 41. Figure 42. Figure 43. Figure 44. Figure 45. Figure 46. Figure 47. 10/198 STM32G431x6/x8/xB block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Multi-AHB bus matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Voltage reference buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Infrared transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 STM32G431x6/x8/xB UFQFPN32 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 STM32G431x6/x8/xB LQFP32 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 STM32G431x6/x8/xB UFQFPN48 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 STM32G431x6/x8/xB LQFP48 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 STM32G431x6/x8/xB WLCSP49 ballout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 STM32G431x6/x8/xB LQFP64 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 STM32G431x6/x8/xB UFBGA64 ballout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 STM32G431x6/x8/xB LQFP80 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 STM32G431x6/x8/xB LQFP100 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Pin loading conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Pin input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Power supply scheme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Current consumption measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 VREFINT versus temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 High-speed external clock source AC timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 Low-speed external clock source AC timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 Typical application with an 8 MHz crystal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Typical application with a 32.768 kHz crystal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 HSI16 frequency versus temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 HSI48 frequency versus temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 I/O input characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 I/O AC characteristics definition(1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 Recommended NRST pin protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 ADC accuracy characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 Typical connection diagram when using the ADC with FT/TT pins featuring analog switch function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 12-bit buffered / non-buffered DAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 VREFOUT_TEMP in case VRS = 00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 VREFOUT_TEMP in case VRS = 01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142 VREFOUT_TEMP in case VRS = 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142 OPAMP noise density @ 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 SPI timing diagram - slave mode and CPHA = 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 SPI timing diagram - slave mode and CPHA = 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 SPI timing diagram - master mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 SAI master timing waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 SAI slave timing waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 UFQFPN32 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 UFQFPN32 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162 UFQFPN32 top view example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 LQFP32 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 LQFP32 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165 LQFP32 top view example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 UFQFPN48 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 UFQFPN48 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Figure 48. Figure 49. Figure 50. Figure 51. Figure 52. Figure 53. Figure 54. Figure 55. Figure 56. Figure 57. Figure 58. Figure 59. Figure 60. Figure 61. Figure 62. Figure 63. Figure 64. Figure 65. Figure 66. List of figures UFQFPN48 top view example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169 LQFP48 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 LQFP48 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 LQFP48 top view example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 WLCSP49 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174 WLCSP49 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 WLCSP49 top view example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 LQFP64 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178 LQFP64 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179 LQFP64 top view example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 UFBGA64 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181 UFBGA64 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 UFBGA64 top view example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 LQFP80 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 LQFP80 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 LQFP80 top view example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 LQFP100 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 LQFP100 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188 LQFP100 top view example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 DS12589 Rev 6 11/198 11 Introduction 1 STM32G431x6 STM32G431x8 STM32G431xB Introduction This datasheet provides the ordering information and mechanical device characteristics of the STM32G431x6/x8/xB microcontrollers. This document should be read in conjunction with the reference manual RM0440 “STM32G4 Series advanced Arm® 32-bit MCUs”. The reference manual is available from the STMicroelectronics website www.st.com. For information on the Arm®(a) Cortex®-M4 core, refer to the Cortex®-M4 technical reference manual, available from the www.arm.com website. a. Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere. 12/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 2 Description Description The STM32G431x6/x8/xB devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 170 MHz. The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm single-precision data-processing instructions and all the data types. It also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application’s security. These devices embed high-speed memories (up to 128 Kbytes of Flash memory, and 32 Kbytes of SRAM), an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection, securable memory area and proprietary code readout protection. The devices embed peripherals allowing mathematical/arithmetic function acceleration (CORDIC for trigonometric functions and FMAC unit for filter functions). They offer two fast 12-bit ADCs (4 Msps), four comparators, three operational amplifiers, four DAC channels (2 external and 2 internal), an internal voltage reference buffer, a lowpower RTC, one general-purpose 32-bit timers, two 16-bit PWM timers dedicated to motor control, seven general-purpose 16-bit timers, and one 16-bit low-power timer. They also feature standard and advanced communication interfaces such as: - Three I2Cs - Three SPIs multiplexed with two half duplex I2Ss - Three USARTs, one UART and one low-power UART. - One FDCAN - One SAI - USB device - UCPD The devices operate in the -40 to +85 °C (+105 °C junction) and -40 to +125 °C (+130 °C junction) temperature ranges from a 1.71 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications. Some independent power supplies are supported including an analog independent supply input for ADC, DAC, OPAMPs and comparators. A VBAT input allows backup of the RTC and the registers. The STM32G431x6/x8/xB family offers 9 packages from 32-pin to 100-pin. DS12589 Rev 6 13/198 43 Description STM32G431x6 STM32G431x8 STM32G431xB Table 2. STM32G431x6/x8/xB features and peripheral counts Peripheral Flash memory STM32G431Kx STM32G431Cx STM32G431Rx STM32G431Mx STM32G431Vx 32 KB 32 KB 32 KB 64 KB 128 KB 64 KB SRAM Timers 128 KB 64 128 32 KB KB KB 128 KB 32 KB 64 KB 32 (16 + 6 + 10) KB Advanced motor control 2 (16-bit) General purpose 5 (16-bit) 1 (32-bit) Basic 2 (16-bit) Low power 1 (16-bit) SysTick timer 1 Watchdog timers (independent, window) 2 PWM channels (all) 23 32 36 36 36 PWM channels (except complementary) 23 25 25 25 25 SPI(I2S)(1) 3 (2) 2C 3 I USART 2 UART 0 Comm. interfaces LPUART 3 0 in LQFP48 1 in UFQFPN48 1 1 FDCANs 1 USB device Yes UCPD Yes SAI Yes RTC Tamper pins Yes 1 2 2 3 52 66 86 4 4 5 Random number generator Yes AES No CORDIC Yes FMAC Yes GPIOs Wakeup pins 14/198 64 KB 26 2 38 in LQFP48 42 in UFQFPN48 41 in WLCSP49 3 DS12589 Rev 6 128 KB STM32G431x6 STM32G431x8 STM32G431xB Description Table 2. STM32G431x6/x8/xB features and peripheral counts (continued) Peripheral STM32G431Kx STM32G431Cx STM32G431Rx STM32G431Mx STM32G431Vx 2 12-bit ADCs Number of channels 17 in LQFP48 18 in UFQFPN48 18 in WLCSP49 11 12-bit DAC Number of channels 23 Yes Analog comparator 4 Operational amplifiers 3 Max. CPU frequency 170 MHz Operating voltage Packages 23 2 4 (2 external + 2 internal) Internal voltage reference buffer Operating temperature 23 1.71 V to 3.6 V Ambient operating temperature: -40 to 85 °C / -40 to 125 °C LQFP32/ UFQFPN32 LQFP48/ UFQFPN48/ WLCSP49 LQFP64/ UFBGA64 LQFP80 LQFP100 1. The SPI2/3 interfaces can work in an exclusive way in either the SPI mode or the I2S audio mode. DS12589 Rev 6 15/198 43 Description STM32G431x6 STM32G431x8 STM32G431xB Figure 1. STM32G431x6/x8/xB block diagram JTAG & SW ETM MPU NVIC FPU Arm® Cortex-M4 170MHz D-BUS I-BUS S-BUS GP-DMA2 6 Chan GP-DMA1 6 Chan ACCEL/ CACHE TRACECK TRACED(3:0) AHB BUS-MATRIX 5M / 7S JTRST, JTDI, JTCK/SWCLK JTDO/SWD, JTDO FLASH 128 KB CCM SRAM 10 KB @VDDA SRAM2 6 KB CH1 DAC1 OUT1/OUT2 CH2 SRAM1 16 KB DMAMUX AHB2 CH1 DAC3 CH2 RNG @VDDA RNB1 analog SAR ADC1 Ain ADC IF SAR ADC2 POWER MNGT CORDIC VOLT. REG. 3.3V TO 1.2V VDD12 FMAC PB(15:0) PC(15:0) PD(15:0) PE(15:0) PF(10:9,2:0) PG(10:10) AHB1 PA(15:0) GPIO PORT A @VDD SUPPLY SUPERVISION @VDD USART GPIO2MBps PORT B USART GPIO2MBps PORT C LSI POR PLL Reset Int USART GPIO2MBps PORT D HSI USART GPIO2MBps PORT E HSI48 VDD = 1.71 to 3.6V VSS POR / BOR VDD, VSS, VDDA, VSSA, RESET PVD, PWM USART GPIO2MBps PORT F XTAL OSC 4-48MHz GPIO2MBps PORT G USART IWDG RESET& FS, SCK, SD, MCLK as AF CLOCKCTRL SAI1 OSC_IN OSC_OUT Standby Interface VBAT = 1.55 to 3.6V @VBAT peripheralclocks and system EXT IT. WKUP USART 2MBps 4 PWM,4PWM, ETR,BKIN as F TIMER8 16b PWM 16b PWM CH as AF TIMER15 USART 2MBps CH as AF TIMER16 USART 2MBps CH as AF16b TIMER17 USART 2MBps RTC Interface RTC_OUT RTC_TS RTC_TAMPx TIMER2 4 CH, ETR as AF TIMER3&4 4 CH, ETR as AF 16b 16b PWRCTRL 16b USART USART12MBps MOSI, MISO SCK, NSS as AF 1 USART SPI 2MBps Smcard irDA APB2 60MHzAPB1 RX, TX, SCK,CTS, RTS as AF LP_UART1 RX, TX as AF I2C1&2&3 SCL, SDA, SMBAL as AF WinWATCHDOG LP timer1 TIMER6 16b trigg TIMER7 16b trigg CRS USART2&3 UART4 SPI2&3 CAN1 COMP 1,2,3,4 Smcard irDA irDA I2S half duplex RX, TX, SCK, CTS, RTS as AF RX, TX, CTS, RTS as AF MOSI, MISO, SCK NSS, as AF RX,TX as AF USBPD OPAMP 1,2,3 FIFO @VDDA PHY SysCfg Vref_Buf OSC32_IN OSC_OUT AHB/APB2 AHB/APB1 FIFO TIMER1 CRC USB Device PHY 4 PWM,4PWM, ETR,BKIN as F XTAL 32kHz RTC AWU BKPREG APB2 140 AFP D+ D- CC1 CC2 MSv62521V2 1. AF: alternate function on I/O pins. 16/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 3 Functional overview 3.1 Arm® Cortex®-M4 core with FPU Functional overview The Arm® Cortex®-M4 with FPU processor is the latest generation of Arm processors for embedded systems. It was developed to provide a low-cost platform that meets the needs of the MCU implementation, with a reduced pin count and with low-power consumption, while delivering outstanding computational performance and an advanced response to interrupts. The Arm® Cortex®-M4 with FPU 32-bit RISC processor features an exceptional codeefficiency, delivering the expected high-performance from an Arm core in a memory size usually associated with 8-bit and 16-bit devices. The processor supports a set of DSP instructions which allows an efficient signal processing and a complex algorithm execution. Its single precision FPU speeds up the software development by using metalanguage development tools to avoid saturation. With its embedded Arm core, the STM32G431x6/x8/xB family is compatible with all Arm tools and software. Figure 1 shows the general block diagram of the STM32G431x6/x8/xB devices. 3.2 Adaptive real-time memory accelerator (ART accelerator) The ART accelerator is a memory accelerator that is optimized for the STM32 industrystandard Arm® Cortex®-M4 processors. It balances the inherent performance advantage of the Arm® Cortex®-M4 over Flash memory technologies, which normally requires the processor to wait for the Flash memory at higher frequencies. 3.3 Memory protection unit The memory protection unit (MPU) is used to manage the CPU accesses to the memory and to prevent one task to accidentally corrupt the memory or the resources used by any other active task. This memory area is organized into up to 8 protected areas, which can be divided in up into 8 subareas each. The protection area sizes range between 32 bytes and the whole 4 gigabytes of addressable memory. The MPU is especially helpful for applications where some critical or certified code has to be protected against the misbehavior of other tasks. It is usually managed by an RTOS (realtime operating system). If a program accesses a memory location that is prohibited by the MPU, the RTOS can detect it and take action. In an RTOS environment, the kernel can dynamically update the MPU area setting based on the process to be executed. The MPU is optional and can be bypassed for applications that do not need it. 3.4 Embedded Flash memory The STM32G431x6/x8/xB devices feature up to 128 Kbytes of embedded Flash memory which is available for storing programs and data. Flexible protections can be configured thanks to the option bytes: DS12589 Rev 6 17/198 43 Functional overview STM32G431x6 STM32G431x8 STM32G431xB • Readout protection (RDP) to protect the whole memory. Three levels of protection are available: – Level 0: no readout protection – Level 1: memory readout protection; the Flash memory cannot be read from or written to if either the debug features are connected or the boot in RAM or bootloader are selected – Level 2: chip readout protection; the debug features (Cortex-M4 JTAG and serial wire), the boot in RAM and the bootloader selection are disabled (JTAG fuse). This selection is irreversible. • Write protection (WRP): the protected area is protected against erasing and programming. • Proprietary code readout protection (PCROP): a part of the Flash memory can be protected against read and write from third parties. The protected area is execute-only and it can only be reached by the STM32 CPU as an instruction code, while all other accesses (DMA, debug and CPU data read, write and erase) are strictly prohibited. An additional option bit (PCROP_RDP) allows to select if the PCROP area is erased or not when the RDP protection is changed from Level 1 to Level 0. • Securable memory area: a part of Flash memory can be configured by option bytes to be securable. After reset this securable memory area is not secured and it behaves like the remainder of main Flash memory (execute, read, write access). When secured, any access to this securable memory area generates corresponding read/write error. Purpose of the Securable memory area is to protect sensitive code and data (secure keys storage) which can be executed only once at boot, and never again unless a new reset occurs. The Flash memory embeds the error correction code (ECC) feature supporting: 3.5 • Single error detection and correction • Double error detection • The address of the ECC fail can be read in the ECC register • 1 Kbyte (128 double word) OTP (one-time programmable) for user data. The OTP area is available in Bank 1 only. The OTP data cannot be erased and can be written only once. Embedded SRAM STM32G431x6/x8/xB devices feature 32 Kbytes of embedded SRAM. This SRAM is split into three blocks: 18/198 • 16 Kbytes mapped at address 0x2000 0000 (SRAM1). The CM4 can access the SRAM1 through the System Bus (or through the I-Code/D-Code buses when boot from SRAM1 is selected or when physical remap is selected by SYSCFG_MEMRMP register). Whole SRAM1 supports hardware parity check. • 6 Kbytes mapped at address 0x2000 4000 (SRAM2). The CM4 can access the SRAM2 through the System bus. SRAM2 can be kept in stop and standby modes. • 10 Kbytes mapped at address 0x1000 0000 (CCM SRAM). It is accessed by the CPU through I-Code/D-Code bus for maximum performance. It is also aliased at 0x2000 5800 address to be accessed by all masters (CPU, DMA1, DMA2) through SBUS contiguously to SRAM1 and SRAM2. The CCM SRAM supports hardware parity check and can be write-protected with 1-Kbyte granularity. • The memory can be accessed in read/write at max CPU clock speed with 0 wait states. DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 3.6 Functional overview Multi-AHB bus matrix The 32-bit multi-AHB bus matrix interconnects all the masters (CPU, DMAs) and the slaves (Flash memory, RAM,AHB and APB peripherals). It also ensures a seamless and efficient operation even when several high-speed peripherals work simultaneously. Figure 2. Multi-AHB bus matrix DMA1 DMA2 S-bus D-bus I-bus Cortex®-M4 with FPU DCode ACCEL ICode FLASH 128 KB SRAM1 CCM SRAM SRAM2 AHB1 peripherals AHB2 peripherals BusMatrix-S MS47544V1 3.7 Boot modes At startup, a BOOT0 pin (or nBOOT0 option bit)and an nBOOT1 option bit are used to select one of three boot options: • Boot from user Flash • Boot from system memory • Boot from embedded SRAM The BOOT0 value may come from the PB8-BOOT0 pin or from an nBOOT0 option bit depending on the value of a user nBOOT_SEL option bit to free the GPIO pad if needed. The boot loader is located in the system memory. It is used to reprogram the Flash memory by using USART, I2C, SPI, and USB through the DFU (device firmware upgrade). DS12589 Rev 6 19/198 43 Functional overview 3.8 STM32G431x6 STM32G431x8 STM32G431xB CORDIC The CORDIC provides hardware acceleration of certain mathematical functions, notably trigonometric, commonly used in motor control, metering, signal processing and many other applications. It speeds up the calculation of these functions compared to a software implementation, allowing a lower operating frequency, or freeing up processor cycles in order to perform other tasks. Cordic features 3.9 • 24-bit CORDIC rotation engine • Circular and Hyperbolic modes • Rotation and Vectoring modes • Functions: Sine, Cosine, Sinh, Cosh, Atan, Atan2, Atanh, Modulus, Square root, Natural logarithm • Programmable precision up to 20-bit • Fast convergence: 4 bits per clock cycle • Supports 16-bit and 32-bit fixed point input and output formats • Low latency AHB slave interface • Results can be read as soon as ready without polling or interrupt • DMA read and write channels Filter mathematical accelerator (FMAC) The filter mathematical accelerator unit performs arithmetic operations on vectors. It comprises a multiplier/accumulator (MAC) unit, together with address generation logic, which allows it to index vector elements held in local memory. The unit includes support for circular buffers on input and output, which allows digital filters to be implemented. Both finite and infinite impulse response filters can be realized. The unit allows frequent or lengthy filtering operations to be offloaded from the CPU, freeing up the processor for other tasks. In many cases it can accelerate such calculations compared to a software implementation, resulting in a speed-up of time critical tasks. 20/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Functional overview FMAC features 3.10 • 16 x 16-bit multiplier • 24+2-bit accumulator with addition and subtraction • 16-bit input and output data • 256 x 16-bit local memory • Up to three areas can be defined in memory for data buffers (two input, one output), defined by programmable base address pointers and associated size registers • Input and output sample buffers can be circular • Buffer “watermark” feature reduces overhead in interrupt mode • Filter functions: FIR, IIR (direct form 1) • AHB slave interface • DMA read and write data channels Cyclic redundancy check calculation unit (CRC) The CRC (cyclic redundancy check) calculation unit is used to get a CRC code using a configurable generator with polynomial value and size. Among other applications, the CRC-based techniques are used to verify data transmission or storage integrity. In the scope of the EN/IEC 60335-1 standard, they offer a mean to verify the Flash memory integrity. The CRC calculation unit helps to compute a signature of the software during runtime, which can be ulteriorly compared with a reference signature generated at link-time and which can be stored at a given memory location. 3.11 Power supply management 3.11.1 Power supply schemes The STM32G431x6/x8/xB devices require a 1.71 V to 3.6 V VDD operating voltage supply. Several independent supplies, can be provided for specific peripherals: • VDD = 1.71 V to 3.6 V VDD is the external power supply for the I/Os, the internal regulator and the system analog such as reset, power management and internal clocks. It is provided externally through the VDD pins. • • VDDA = 1.62 V to 3.6 V (see Section 5: Electrical characteristics for the minimum VDDA voltage required for ADC, DAC, COMP, OPAMP, VREFBUF operation). VDDA is the external analog power supply for A/D converters, D/A converters, voltage reference buffer, operational amplifiers and comparators. The VDDA voltage level is independent from the VDD voltage and should preferably be connected to VDD when these peripherals are not used. VBAT = 1.55 V to 3.6 V VBAT is the power supply for RTC, external clock 32 kHz oscillator and backup registers (through power switch) when VDD is not present. DS12589 Rev 6 21/198 43 Functional overview • STM32G431x6 STM32G431x8 STM32G431xB VREF-, VREF+ VREF+ is the input reference voltage for ADCs and DACs. It is also the output of the internal voltage reference buffer when enabled. When VDDA < 2 V VREF+ must be equal to VDDA. When VDDA ≥ 2 V VREF+ must be between 2 V and VDDA. The internal voltage reference buffer supports three output voltages, which are configured with VRS bits in the VREFBUF_CSR register: – VREF+ = 2.048 V – VREF+ = 2.5 V – VREF+ = 2.9 V VREF- is double bonded with VSSA. 3.11.2 Power supply supervisor The device has an integrated ultra-low-power brown-out reset (BOR) active in all modes (except for Shutdown mode). The BOR ensures proper operation of the device after poweron and during power down. The device remains in reset mode when the monitored supply voltage VDD is below a specified threshold, without the need for an external reset circuit. The lowest BOR level is 1.71 V at power on, and other higher thresholds can be selected through option bytes.The device features an embedded programmable voltage detector (PVD) that monitors the VDD power supply and compares it to the VPVD threshold. An interrupt can be generated when VDD drops below the VPVD threshold and/or when VDD is higher than the VPVD threshold. The interrupt service routine can then generate a warning message and/or put the MCU into a safe state. The PVD is enabled by software. In addition, the device embeds a peripheral voltage monitor which compares the independent supply voltages VDDA, with a fixed threshold in order to ensure that the peripheral is in its functional supply range. 3.11.3 Voltage regulator Two embedded linear voltage regulators, main regulator (MR) and low-power regulator (LPR), supply most of digital circuitry in the device. The MR is used in Run and Sleep modes. The LPR is used in Low-power run, Low-power sleep and Stop modes. In Standby and Shutdown modes, both regulators are powered down and their outputs set in highimpedance state, such as to bring their current consumption close to zero. The device supports dynamic voltage scaling to optimize its power consumption in Run mode. the voltage from the main regulator that supplies the logic (VCORE) can be adjusted according to the system’s maximum operating frequency. The main regulator (MR) operates in the following ranges: 22/198 • Range 1 boost mode with the CPU running at up to 170 MHz. • Range 1 normal mode with CPU running at up to 150 MHz. • Range 2 with a maximum CPU frequency of 26 MHz. DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 3.11.4 Functional overview Low-power modes By default, the microcontroller is in Run mode after system or power Reset. It is up to the user to select one of the low-power modes described below: 3.11.5 • Sleep mode: In Sleep mode, only the CPU is stopped. All peripherals continue to operate and can wake up the CPU when an interrupt/event occurs. • Low-power run mode: This mode is achieved with VCORE supplied by the low-power regulator to minimize the regulator's operating current. The code can be executed from SRAM or from Flash, and the CPU frequency is limited to 2 MHz. The peripherals with independent clock can be clocked by HSI16. • Low-power sleep mode: This mode is entered from the low-power run mode. Only the CPU clock is stopped. When wakeup is triggered by an event or an interrupt, the system reverts to the Low power run mode. • Stop mode: In Stop mode, the device achieves the lowest power consumption while retaining the SRAM and register contents. All clocks in the VCORE domain are stopped. The PLL, as well as the HSI16 RC oscillator and the HSE crystal oscillator are disabled. The LSE or LSI keep running. The RTC can remain active (Stop mode with RTC, Stop mode without RTC). Some peripherals with wakeup capability can enable the HSI16 RC during Stop mode, so as to get clock for processing the wakeup event. • Standby mode: The Standby mode is used to achieve the lowest power consumption with brown-out reset, BOR. The internal regulator is switched off to power down the VCORE domain. The PLL, as well as the HSI16 RC oscillator and the HSE crystal oscillator are also powered down. The RTC can remain active (Standby mode with RTC, Standby mode without RTC). The BOR always remains active in Standby mode. For each I/O, the software can determine whether a pull-up, a pull-down or no resistor shall be applied to that I/O during Standby mode. Upon entering Standby mode, SRAM and register contents are lost except for registers in the RTC domain and standby circuitry. The device exits Standby mode upon external reset event (NRST pin), IWDG reset event, wakeup event (WKUP pin, configurable rising or falling edge) or RTC event (alarm, periodic wakeup, timestamp, tamper), or when a failure is detected on LSE (CSS on LSE). • Shutdown mode: The Shutdown mode allows to achieve the lowest power consumption. The internal regulator is switched off to power down the VCORE domain. The PLL, as well as the HSI16 and LSI RC-oscillators and HSE crystal oscillator are also powered down. The RTC can remain active (Shutdown mode with RTC, Shutdown mode without RTC). The BOR is not available in Shutdown mode. No power voltage monitoring is possible in this mode. Therefore, switching to RTC domain is not supported. SRAM and register contents are lost except for registers in the RTC domain. The device exits Shutdown mode upon external reset event (NRST pin), IWDG reset event, wakeup event (WKUP pin, configurable rising or falling edge) or RTC event (alarm, periodic wakeup, timestamp, tamper). Reset mode In order to improve the consumption under reset, the I/Os state under and after reset is “analog state” (the I/O schmitt trigger is disabled). In addition, the internal reset pull-up is deactivated when the reset source is internal. DS12589 Rev 6 23/198 43 Functional overview 3.11.6 STM32G431x6 STM32G431x8 STM32G431xB VBAT operation The VBAT pin allows to power the device VBAT domain from an external battery, an external supercapacitor, or from VDD when there is no external battery and when an external supercapacitor is present. The VBAT pin supplies the RTC with LSE and the backup registers. Three anti-tamper detection pins are available in VBAT mode. The VBAT operation is automatically activated when VDD is not present. An internal VBAT battery charging circuit is embedded and can be activated when VDD is present. Note: 24/198 When the microcontroller is supplied from VBAT, neither external interrupts nor RTC alarm/events exit the microcontroller from the VBAT operation. DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Interconnect matrix Several peripherals have direct connections between them. This allows autonomous communication between peripherals, saving CPU resources thus power supply consumption. In addition, these hardware connections allow fast and predictable latency. Depending on peripherals, these interconnections can operate in Run, Sleep and Stop modes. Sleep Low-power run Stop Table 3. STM32G431x6/x8/xB peripherals interconnect matrix Run 3.12 Functional overview TIMx Timers synchronization or chaining Y Y Y - ADCx DACx Conversion triggers Y Y Y - DMA Memory to memory transfer trigger Y Y Y - COMPx Comparator output blanking Y Y Y - IRTIM Infrared interface output generation Y Y Y - TIM1, 8 TIM2, 3, 4 Timer input channel, trigger, break from analog signals comparison Y Y Y - LPTIMER1 Low-power timer triggered by analog signals comparison Y Y Y Y TIM1, 8 Timer triggered by analog watchdog Y Y Y - TIM16 Timer input channel from RTC events Y Y Y - LPTIMER1 Low-power timer triggered by RTC alarms or tampers Y Y Y Y All clocks sources (internal and external) TIM15, 16, 17 Clock source used as input channel for RC measurement and trimming Y Y Y - USB TIM2 Timer triggered by USB SOF Y Y - - CSS CPU (hard fault) RAM (parity error) Flash memory (ECC error) COMPx PVD TIM1, 8 Timer break TIM15, 16, 17 Y Y Y - TIMx External trigger Y Y Y - LPTIMER1 External trigger Y Y Y - ADCx DACx Conversion external trigger Y Y Y - Interconnect source TIMx TIM16/TIM17 COMPx ADCx Interconnect destination RTC GPIO Interconnect action DS12589 Rev 6 25/198 43 Functional overview 3.13 STM32G431x6 STM32G431x8 STM32G431xB Clocks and startup The clock controller distributes the clocks coming from different oscillators to the core and the peripherals. It also manages clock gating for low-power modes and ensures clock robustness. It features: • Clock prescaler: to get the best trade-off between speed and current consumption, the clock frequency to the CPU and peripherals can be adjusted by a programmable prescaler • Safe clock switching: clock sources can be changed safely on the fly in run mode through a configuration register. • Clock management: to reduce power consumption, the clock controller can stop the clock to the core, individual peripherals or memory. • System clock source: three different sources can deliver SYSCLK system clock: – 4 - 48 MHz high-speed oscillator with external crystal or ceramic resonator (HSE). It can supply clock to system PLL. The HSE can also be configured in bypass mode for an external clock. – 16 MHz high-speed internal RC oscillator (HSI16), trimmable by software. It can supply clock to system PLL. – System PLL with maximum output frequency of 170 MHz. It can be fed with HSE or HSI16 clocks. • RC48 with clock recovery system (HSI48): internal HSIRC48 MHz clock source can be used to drive the USB or the RNG peripherals. • Auxiliary clock source: two ultra-low-power clock sources for the real-time clock (RTC): – 32.768 kHz low-speed oscillator with external crystal (LSE), supporting four drive capability modes. The LSE can also be configured in bypass mode for using an external clock. – 32 kHz low-speed internal RC oscillator (LSI) with ±5% accuracy, also used to clock an independent watchdog. • Peripheral clock sources: several peripherals (I2S, USART, I2C, LPTimer, ADC, SAI, RNG) have their own clock independent of the system clock. • Clock security system (CSS): in the event of HSE clock failure, the system clock is automatically switched to HSI16 and, if enabled, a software interrupt is generated. LSE clock failure can also be detected and generate an interrupt. • Clock-out capability: – MCO: microcontroller clock output: it outputs one of the internal clocks for external use by the application – LSCO: low speed clock output: it outputs LSI or LSE in all low-power modes. Several prescalers allow to configure the AHB frequency, the High-speed APB (APB2) and the low speed APB (APB1) domains. The maximum frequency of the AHB and the APB domains is 170 MHz. 26/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 3.14 Functional overview General-purpose inputs/outputs (GPIOs) Each of the GPIO pins can be configured by software as output (push-pull or open-drain), as input (with or without pull-up or pull-down) or as peripheral alternate function. Most of the GPIO pins are shared with digital or analog alternate functions. Fast I/O toggling can be achieved thanks to their mapping on the AHB2 bus. The I/Os alternate function configuration can be locked if needed following a specific sequence in order to avoid spurious writing to the I/Os registers. 3.15 Direct memory access controller (DMA) The device embeds 2 DMAs. Refer to Table 4: DMA implementation for the features implementation. Direct memory access (DMA) is used in order to provide a high-speed data transfer between peripherals and memory as well as from memory to memory. Data can be quickly moved by DMA without any CPU actions. This keeps the CPU resources free for other operations. The two DMA controllers have 12 channels in total, each one dedicated to manage memory access requests from one or more peripherals. Each controller has an arbiter for handling the priority between DMA requests. The DMA supports: • 12 independently configurable channels (requests) – Each channel is connected to a dedicated hardware DMA request, a software trigger is also supported on each channel. This configuration is done by software. • Priorities between requests from channels of one DMA are both software programmable (4 levels: very high, high, medium, low) or hardware programmable in case of equality (request 1 has priority over request 2, etc.) • Independent source and destination transfer size (byte, half word, word), emulating packing and unpacking. Source/destination addresses must be aligned on the data size. • Support for circular buffer management • 3 event flags (DMA half transfer, DMA transfer complete and DMA transfer error) logically ORed together in a single interrupt request for each channel • Memory-to-memory transfer • Peripheral-to-memory, memory-to-peripheral, and peripheral-to-peripheral transfers • Access to Flash, SRAM, APB and AHB peripherals as source and destination • Programmable number of data to be transferred: up to 65536. Table 4. DMA implementation DMA features DMA1 DMA2 Number of regular channels 6 6 DS12589 Rev 6 27/198 43 Functional overview 3.16 STM32G431x6 STM32G431x8 STM32G431xB DMA request router (DMAMUX) When a peripheral indicates a request for DMA transfer by setting its DMA request line, the DMA request is pending until it is served and the corresponding DMA request line is reset. The DMA request router allows to route the DMA control lines between the peripherals and the DMA controllers of the product. An embedded multi-channel DMA request generator can be considered as one of such peripherals. The routing function is ensured by a multi-channel DMA request line multiplexer. Each channel selects a unique set of DMA control lines, unconditionally or synchronously with events on synchronization inputs. For simplicity, the functional description is limited to DMA request lines. The other DMA control lines are not shown in figures or described in the text. The DMA request generator produces DMA requests following events on DMA request trigger inputs. 3.17 Interrupts and events 3.17.1 Nested vectored interrupt controller (NVIC) The STM32G431x6/x8/xB devices embed a nested vectored interrupt controller which is able to manage 16 priority levels, and to handle up to 71 maskable interrupt channels plus the 16 interrupt lines of the Cortex®-M4. The NVIC benefits are the following: • Closely coupled NVIC gives low latency interrupt processing • Interrupt entry vector table address passed directly to the core • Allows early processing of interrupts • Processing of late arriving higher priority interrupts • Support for tail chaining • Processor state automatically saved • Interrupt entry restored on interrupt exit with no instruction overhead The NVIC hardware block provides flexible interrupt management features with minimal interrupt latency. 3.17.2 Extended interrupt/event controller (EXTI) The extended interrupt/event controller consists of 39 edge detector lines used to generate interrupt/event requests and to wake-up the system from the Stop mode. Each external line can be independently configured to select the trigger event (rising edge, falling edge, both) and can be masked independently. A pending register maintains the status of the interrupt requests. The internal lines are connected to peripherals with wakeup from Stop mode capability. The EXTI can detect an external line with a pulse width shorter than the internal clock period. Up to 86 GPIOs can be connected to the 16 external interrupt lines. 28/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 3.18 Functional overview Analog-to-digital converter (ADC) The device embeds two successive approximation analog-to-digital converters with the following features: • 12-bit native resolution, with built-in calibration • 4 Msps maximum conversion rate with full resolution Down to 41.67 ns sampling time – Increased conversion rate for lower resolution (up to 6.66 Msps for 6-bit resolution) • One external reference pin is available on all packages, allowing the input voltage range to be independent from the power supply • Single-ended and differential mode inputs • Low-power design • 3.18.1 – – Capable of low-current operation at low conversion rate (consumption decreases linearly with speed) – Dual clock domain architecture: ADC speed independent from CPU frequency Highly versatile digital interface – Single-shot or continuous/discontinuous sequencer-based scan mode: 2 groups of analog signals conversions can be programmed to differentiate background and high-priority real-time conversions – Each ADC support multiple trigger inputs for synchronization with on-chip timers and external signals – Results stored into a data register or in RAM with DMA controller support – Data pre-processing: left/right alignment and per channel offset compensation – Built-in oversampling unit for enhanced SNR – Channel-wise programmable sampling time – Analog watchdog for automatic voltage monitoring, generating interrupts and trigger for selected timers – Hardware assistant to prepare the context of the injected channels to allow fast context switching – Flexible sample time control – Hardware gain and offset compensation Temperature sensor The temperature sensor (TS) generates a voltage VTS that varies linearly with temperature. The temperature sensor is internally connected to the ADC1_IN16 input channel which is used to convert the sensor output voltage into a digital value. The sensor provides good linearity but it has to be calibrated to obtain good overall accuracy of the temperature measurement. As the offset of the temperature sensor varies from chip to chip due to process variation, the uncalibrated internal temperature sensor is suitable for applications that detect temperature changes only. To improve the accuracy of the temperature sensor measurement, each device is individually factory-calibrated by ST. The temperature sensor factory calibration data are stored by ST in the system memory area, accessible in read-only mode. DS12589 Rev 6 29/198 43 Functional overview STM32G431x6 STM32G431x8 STM32G431xB Table 5. Temperature sensor calibration values 3.18.2 Calibration value name Description Memory address TS_CAL1 TS ADC raw data acquired at a temperature of 30 °C (± 5 °C), VDDA = VREF+ = 3.0 V (± 10 mV) 0x1FFF 75A8 - 0x1FFF 75A9 TS_CAL2 TS ADC raw data acquired at a temperature of 130 °C (± 5 °C), VDDA = VREF+ = 3.0 V (± 10 mV) 0x1FFF 75CA - 0x1FFF 75CB Internal voltage reference (VREFINT) The internal voltage reference (VREFINT) provides a stable (bandgap) voltage output for the ADC and the comparators. The VREFINT is internally connected to the ADC1_IN18 input channel. The precise voltage of VREFINT is individually measured for each part by ST during production test and stored in the system memory area. It is accessible in read-only mode. Table 6. Internal voltage reference calibration values 3.18.3 Calibration value name Description Memory address VREFINT Raw data acquired at a temperature of 30 °C (± 5 °C), VDDA = VREF+ = 3.0 V (± 10 mV) 0x1FFF 75AA - 0x1FFF 75AB VBAT battery voltage monitoring This embedded hardware enables the application to measure the VBAT battery voltage using the internal ADC1_IN17 channel. As the VBAT voltage may be higher than the VDDA, and thus outside the ADC input range, the VBAT pin is internally connected to a bridge divider by 3. As a consequence, the converted digital value is one third of the VBAT voltage. 3.19 Digital to analog converter (DAC) Four 12 bit DAC channels (2 external buffered and 2 internal unbuffered) can be used to convert digital signals into analog voltage signal outputs. The chosen design structure is composed of integrated resistor strings and an amplifier in inverting configuration. 30/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Functional overview This digital interface supports the following features: • Up to two DAC output channels • 8-bit or 12-bit output mode • Buffer offset calibration (factory and user trimming) • Left or right data alignment in 12-bit mode • Synchronized update capability • Noise-wave generation • Triangular-wave generation • Saw tooth wave generation • Dual DAC channel independent or simultaneous conversions • DMA capability for each channel • External triggers for conversion • Sample and hold low-power mode, with internal or external capacitor • Up to 1 Msps for external output and 15 Msps for internal output The DAC channels are triggered through the timer update outputs that are also connected to different DMA channels. 3.20 Voltage reference buffer (VREFBUF) The STM32G431x6/x8/xB devices embed a voltage reference buffer which can be used as voltage reference for ADC, DACs and also as voltage reference for external components through the VREF+ pin. The internal voltage reference buffer supports three voltages: • 2.048 V • 2.5 V • 2.9 V An external voltage reference can be provided through the VREF+ pin when the internal voltage reference buffer is off. The VREF+ pin is double-bonded with VDDA on some packages. In these packages the internal voltage reference buffer is not available. Figure 3. Voltage reference buffer VREFBUF VDDA Bandgap + DAC, ADC VREF+ Low frequency cut-off capacitor 100 nF MSv40197V1 DS12589 Rev 6 31/198 43 Functional overview 3.21 STM32G431x6 STM32G431x8 STM32G431xB Comparators (COMP) The STM32G431x6/x8/xB devices embed four rail-to-rail comparators with programmable reference voltage (internal or external), hysteresis. The reference voltage can be one of the following: • External I/O • DAC output channels • Internal reference voltage or submultiple (1/4, 1/2, 3/4). All comparators can wake up from Stop mode, generate interrupts and breaks for the timers. 3.22 Operational amplifier (OPAMP) The STM32G431x6/x8/xB devices embed three operational amplifiers with external or internal follower routing and PGA capability. The operational amplifier features: 3.23 • 13 MHz bandwidth • Rail-to-rail input/output • PGA with a non-inverting gain ranging of 2, 4, 8, 16, 32 or 64 or inverting gain ranging of -1, -3, -7, -15, -31 or -63 Random number generator (RNG) All devices embed an RNG that delivers 32-bit random numbers generated by an integrated analog circuit. 3.24 Timers and watchdogs The STM32G431x6/x8/xB devices include two advanced motor control timers, up to six general-purpose timers, two basic timers, one low-power timer, two watchdog timers and a SysTick timer. The table below compares the features of the advanced motor control, general purpose and basic timers. Table 7. Timer feature comparison DMA request generation Capture/ compare channels Complementary outputs Up, Any integer down, between 1 and Up/down 65536 Yes 4 4 32-bit Up, Any integer down, between 1 and Up/down 65536 Yes 4 No 16-bit Up, Any integer down, between 1 and Up/down 65536 Yes 4 No Timer type Timer Counter resolution Advanced motor control TIM1, TIM8 16-bit Generalpurpose TIM2 Generalpurpose TIM3, TIM4 32/198 Counter type Prescaler factor DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Functional overview Table 7. Timer feature comparison (continued) Timer type Timer Counter resolution Counter type Prescaler factor DMA request generation Capture/ compare channels Complementary outputs Generalpurpose TIM15 16-bit Up Any integer between 1 and 65536 Yes 2 1 Generalpurpose TIM16, TIM17 16-bit Up Any integer between 1 and 65536 Yes 1 1 Basic TIM6, TIM7 16-bit Up Any integer between 1 and 65536 Yes 0 No 3.24.1 Advanced motor control timer (TIM1, TIM8) The advanced motor control timers can each be seen as a four-phase PWM multiplexed on 8 channels. They have complementary PWM outputs with programmable inserted dead-times. They can also be seen as complete general-purpose timers. The 4 independent channels can be used for: • Input capture • Output compare • PWM generation (edge or center-aligned modes) with full modulation capability (0-100%) • One-pulse mode output In debug mode, the advanced motor control timer counter can be frozen and the PWM outputs disabled in order to turn off any power switches driven by these outputs. Many features are shared with the general-purpose TIMx timers (described in Section 3.24.2) using the same architecture, so the advanced motor control timers can work together with the TIMx timers via the Timer Link feature for synchronization or event chaining. DS12589 Rev 6 33/198 43 Functional overview 3.24.2 STM32G431x6 STM32G431x8 STM32G431xB General-purpose timers (TIM2, TIM3, TIM4, TIM15, TIM16, TIM17) There are up to six synchronizable general-purpose timers embedded in the STM32G431x6/x8/xB devices (see Table 7 for differences). Each general-purpose timer can be used to generate PWM outputs, or act as a simple time base. • TIM2, TIM3, and TIM4 They are full-featured general-purpose timers: – TIM2 has a 32-bit auto-reload up/downcounter and 32-bit prescaler – TIM3 and TIM4 have 16-bit auto-reload up/downcounter and 16-bit prescaler. These timers feature 4 independent channels for input capture/output compare, PWM or one-pulse mode output. They can work together, or with the other general-purpose timers via the Timer Link feature for synchronization or event chaining. The counters can be frozen in debug mode. All have independent DMA request generation and support quadrature encoders. • TIM15, 16 and 17 They are general-purpose timers with mid-range features: They have 16-bit auto-reload upcounters and 16-bit prescalers. – TIM15 has 2 channels and 1 complementary channel – TIM16 and TIM17 have 1 channel and 1 complementary channel All channels can be used for input capture/output compare, PWM or one-pulse mode output. The timers can work together via the Timer Link feature for synchronization or event chaining. The timers have independent DMA request generation. The counters can be frozen in debug mode. 3.24.3 Basic timers (TIM6 and TIM7) The basic timers are mainly used for DAC trigger generation. They can also be used as generic 16-bit timebases. 34/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 3.24.4 Functional overview Low-power timer (LPTIM1) The devices embed a low-power timer. This timer has an independent clock and are running in Stop mode if it is clocked by LSE, LSI or an external clock. It is able to wakeup the system from Stop mode. LPTIM1 is active in Stop mode. This low-power timer supports the following features: 3.24.5 • 16-bit up counter with 16-bit autoreload register • 16-bit compare register • Configurable output: pulse, PWM • Continuous/ one shot mode • Selectable software/hardware input trigger • Selectable clock source – Internal clock sources: LSE, LSI, HSI16 or APB clock – External clock source over LPTIM input (working even with no internal clock source running, used by pulse counter application). • Programmable digital glitch filter • Encoder mode Independent watchdog (IWDG) The independent watchdog is based on a 12-bit downcounter and an 8-bit prescaler. It is clocked from an independent 32 kHz internal RC (LSI) and as it operates independently from the main clock, it can operate in Stop and Standby modes. It can be used either as a watchdog to reset the device when a problem occurs, or as a free running timer for application timeout management. It is hardware or software configurable through the option bytes. The counter can be frozen in debug mode. 3.24.6 System window watchdog (WWDG) The window watchdog is based on a 7-bit downcounter that can be set as free running. It can be used as a watchdog to reset the device when a problem occurs. It is clocked from the main clock. It has an early warning interrupt capability and the counter can be frozen in debug mode. 3.24.7 SysTick timer This timer is dedicated to real-time operating systems, but could also be used as a standard down counter. It features: • A 24-bit down counter • Autoreload capability • Maskable system interrupt generation when the counter reaches 0. • Programmable clock source DS12589 Rev 6 35/198 43 Functional overview 3.25 STM32G431x6 STM32G431x8 STM32G431xB Real-time clock (RTC) and backup registers The RTC supports the following features: • Calendar with subsecond, seconds, minutes, hours (12 or 24 format), week day, date, month, year, in BCD (binary-coded decimal) format. • Automatic correction for 28, 29 (leap year), 30, and 31 days of the month. • Two programmable alarms. • On-the-fly correction from 1 to 32767 RTC clock pulses. This can be used to synchronize it with a master clock. • Reference clock detection: a more precise second source clock (50 or 60 Hz) can be used to enhance the calendar precision. • Digital calibration circuit with 0.95 ppm resolution, to compensate for quartz crystal inaccuracy. • Timestamp feature which can be used to save the calendar content. This function can be triggered by an event on the timestamp pin, or by a tamper event, or by a switch to VBAT mode. • 17-bit auto-reload wakeup timer (WUT) for periodic events with programmable resolution and period. The RTC is supplied through a switch that takes power either from the VDD supply when present or from the VBAT pin. The RTC clock sources can be: • A 32.768 kHz external crystal (LSE) • An external resonator or oscillator (LSE) • The internal low power RC oscillator (LSI, with typical frequency of 32 kHz) • The high-speed external clock (HSE) divided by 32. The RTC is functional in VBAT mode and in all low-power modes when it is clocked by the LSE. When clocked by the LSI, the RTC is not functional in VBAT mode, but is functional in all low-power modes except Shutdown mode. All RTC events (Alarm, WakeUp Timer, Timestamp) can generate an interrupt and wakeup the device from the low-power modes. 3.26 36/198 Tamper and backup registers (TAMP) • 16 32-bit backup registers, retained in all low-power modes and also in VBAT mode. They can be used to store sensitive data as their content is protected by an tamper detection circuit. They are not reset by a system or power reset, or when the device wakes up from Standby or Shutdown mode. • Up to three tamper pins for external tamper detection events. The external tamper pins can be configured for edge detection, edge and level, level detection with filtering. • Five internal tampers events. • Any tamper detection can generate a RTC timestamp event. • Any tamper detection erases the backup registers. • Any tamper detection can generate an interrupt and wake-up the device from all lowpower modes. DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 3.27 Functional overview Infrared transmitter The STM32G431x6/x8/xB devices provide an infrared transmitter solution. The solution is based on internal connections between TIM16 and TIM17 as shown in the figure below. TIM17 is used to provide the carrier frequency and TIM16 provides the main signal to be sent. The infrared output signal is available on PB9 or PA13. To generate the infrared remote control signals, TIM16 channel 1 and TIM17 channel 1 must be properly configured to generate correct waveforms. All standard IR pulse modulation modes can be obtained by programming the two timers output compare channels. Figure 4. Infrared transmitter TIM17_CH1 IRTIM IR_OUT TIM16_CH1 MS30474V2 DS12589 Rev 6 37/198 43 Functional overview 3.28 STM32G431x6 STM32G431x8 STM32G431xB Inter-integrated circuit interface (I2C) The device embeds three I2Cs. Refer to Table 8: I2C implementation for the features implementation. The I2C bus interface handles communications between the microcontroller and the serial I2C bus. It controls all I2C bus-specific sequencing, protocol, arbitration and timing. The I2C peripheral supports: • • I2C-bus specification and user manual rev. 5 compatibility: – Slave and master modes, multimaster capability – Standard-mode (Sm), with a bitrate up to 100 kbit/s – Fast-mode (Fm), with a bitrate up to 400 kbit/s – Fast-mode Plus (Fm+), with a bitrate up to 1 Mbit/s and 20 mA output drive I/Os – 7-bit and 10-bit addressing mode, multiple 7-bit slave addresses – Programmable setup and hold times – Optional clock stretching System management bus (SMBus) specification rev 2.0 compatibility: – Hardware PEC (packet error checking) generation and verification with ACK control – Address resolution protocol (ARP) support – SMBus alert • Power system management protocol (PMBusTM) specification rev 1.1 compatibility • Independent clock: a choice of independent clock sources allowing the I2C communication speed to be independent from the PCLK reprogramming. • Wakeup from Stop mode on address match • Programmable analog and digital noise filters • 1-byte buffer with DMA capability Table 8. I2C implementation I2C features(1) I2C1 I2C2 I2C3 Standard-mode (up to 100 kbit/s) X X X Fast-mode (up to 400 kbit/s) X X X Fast-mode Plus with 20mA output drive I/Os (up to 1 Mbit/s) X X X Programmable analog and digital noise filters X X X SMBus/PMBus hardware support X X X Independent clock X X X Wakeup from Stop mode on address match X X X 1. X: supported 38/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 3.29 Functional overview Universal synchronous/asynchronous receiver transmitter (USART) The STM32G431x6/x8/xB devices have three embedded universal synchronous receiver transmitters (USART1, USART2 and USART3) and one universal asynchronous receiver transmitters (UART4). These interfaces provide asynchronous communication, IrDA SIR ENDEC support, multiprocessor communication mode, single-wire half-duplex communication mode and have LIN master/slave capability. They provide hardware management of the CTS and RTS signals, and RS485 driver enable. The USART1, USART2 and USART3 also provide a Smartcard mode (ISO 7816 compliant) and an SPI-like communication capability. The USART comes with a Transmit FIFO (TXFIFO) and a Receive FIFO (RXFIFO). FIFO mode is enabled by software and is disabled by default. All USART have a clock domain independent from the CPU clock, allowing the USARTx (x=1,2,3,4) to wake up the MCU from Stop mode. The wakeup from Stop mode can be done on: • Start bit detection • Any received data frame • A specific programmed data frame • Some specific TXFIFO/RXFIFO status interrupts when FIFO mode is enabled All USART interfaces can be served by the DMA controller. Table 9. USART/UART/LPUART features USART modes/features(1) USART1 USART2 USART3 UART4 LPUART1 Hardware flow control for modem X X X X X Continuous communication using DMA X X X X X Multiprocessor communication X X X X X Synchronous mode X X X - - Smartcard mode X X X - - Single-wire half-duplex communication X X X X X IrDA SIR ENDEC block X X X X - LIN mode X X X X - Dual clock domain X X X X X Wakeup from Stop mode X X X X X Receiver timeout interrupt X X X X - Modbus communication X X X X - Auto baud rate detection Driver Enable X (4 modes) X LPUART/USART data length X X X X 7, 8 and 9 bits DS12589 Rev 6 39/198 43 Functional overview STM32G431x6 STM32G431x8 STM32G431xB Table 9. USART/UART/LPUART features (continued) USART modes/features(1) USART1 USART2 USART3 Tx/Rx FIFO X Tx/Rx FIFO size 8 UART4 LPUART1 1. X = supported. 3.30 Low-power universal asynchronous receiver transmitter (LPUART) The STM32G431x6/x8/xB devices embed one Low-Power UART. The LPUART supports asynchronous serial communication with minimum power consumption. It supports halfduplex single-wire communication and modem operations (CTS/RTS). It allows multiprocessor communication. The LPUART comes with a Transmit FIFO (TXFIFO) and a Receive FIFO (RXFIFO). FIFO mode is enabled by software and is disabled by default. It has a clock domain independent from the CPU clock, and can wakeup the system from Stop mode. The wake up from Stop mode can be done on: • Start bit detection • Any received data frame • A specific programmed data frame • Some specific TXFIFO/RXFIFO status interrupts when FIFO mode is enabled Only a 32.768 kHz clock (LSE) is needed to allow LPUART communication up to 9600 baud. Therefore, even in Stop mode, the LPUART can wait for an incoming frame while having an extremely low energy consumption. Higher speed clock can be used to reach higher baudrates. The LPUART interface can be served by the DMA controller. 3.31 Serial peripheral interface (SPI) Three SPI interfaces allow communication up to 75 Mbits/s in master and up to 41 Mbits/s in slave, half-duplex, full-duplex and simplex modes. The 3-bit prescaler gives 8 master mode frequencies and the frame size is configurable from 4 bits to 16 bits. The SPI interfaces support NSS pulse mode, TI mode and hardware CRC calculation. Two standard I2S interfaces (multiplexed with SPI2 and SPI3) supporting four different audio standards can operate as master or slave at half-duplex communication modes. They can be configured to transfer 16 and 24 or 32 bits with 16-bit or 32-bit data resolution and synchronized by a specific signal. Audio sampling frequency from 8 kHz up to 192 kHz can be set by 8-bit programmable linear prescaler. When operating in master mode it can output a clock for an external audio component at 256 times the sampling frequency. All SPI interfaces can be served by the DMA controller. 40/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 3.32 Functional overview Serial audio interfaces (SAI) The device embeds 1 SAI. The SAI bus interface handles communications between the microcontroller and the serial audio protocol. 3.32.1 SAI peripheral supports • Two independent audio sub-blocks which can be transmitters or receivers with their respective FIFO. • 8-word integrated FIFOs for each audio sub-block. • Synchronous or asynchronous mode between the audio sub-blocks. • Master or slave configuration independent for both audio sub-blocks. • Clock generator for each audio block to target independent audio frequency sampling when both audio sub-blocks are configured in master mode. • Data size configurable: 8-, 10-, 16-, 20-, 24-, 32-bit. • Peripheral with large configurability and flexibility allowing to target as example the following audio protocol: I2S, LSB or MSB-justified, PCM/DSP, TDM, AC’97 and SPDIF out. • Up to 16 slots available with configurable size and with the possibility to select which ones are active in the audio frame. • Number of bits by frame may be configurable. • Frame synchronization active level configurable (offset, bit length, level). • First active bit position in the slot is configurable. • LSB first or MSB first for data transfer. • Mute mode. • Stereo/Mono audio frame capability. • Communication clock strobing edge configurable (SCK). • Error flags with associated interrupts if enabled respectively. • • – Overrun and underrun detection. – Anticipated frame synchronization signal detection in slave mode. – Late frame synchronization signal detection in slave mode. – Codec not ready for the AC’97 mode in reception. Interruption sources when enabled: – Errors. – FIFO requests. DMA interface with 2 dedicated channels to handle access to the dedicated integrated FIFO of each SAI audio sub-block. Table 10. SAI features implementation SAI features Support(1) I2S, LSB or MSB-justified, PCM/DSP, TDM, AC’97 X Mute mode X Stereo/Mono audio frame capability X 16 slots X DS12589 Rev 6 41/198 43 Functional overview STM32G431x6 STM32G431x8 STM32G431xB Table 10. SAI features implementation (continued) SAI features Data size configurable: 8-, 10-, 16-, 20-, 24-, 32-bit FIFO size Support(1) X X (8 word) SPDIF X 1. X: supported. 3.33 Controller area network (FDCAN1) The controller area network (CAN) subsystem consists of one CAN module and message RAM memory. The CAN module (FDCAN) is compliant with ISO 11898-1 (CAN protocol specification version 2.0 part A, B) and CAN FD protocol specification version 1.0. A 1-Kbyte message RAM memory implements filters, receive FIFOs, receive buffers, transmit event FIFOs, transmit buffers. 3.34 Universal serial bus (USB) The STM32G431x6/x8/xB devices embed a full-speed USB device peripheral compliant with the USB specification version 2.0. The internal USB PHY supports USB FS signaling, embedded DP pull-up and also battery charging detection according to Battery Charging Specification Revision 1.2. The USB interface implements a full-speed (12 Mbit/s) function interface with added support for USB 2.0 Link Power Management. It has softwareconfigurable endpoint setting with packet memory up-to 1 Kbyte and suspend/resume support. It requires a precise 48 MHz clock which can be generated from the internal main PLL (the clock source must use a HSE crystal oscillator) or by the internal 48 MHz oscillator in automatic trimming mode. The synchronization for this oscillator can be taken from the USB data stream itself (SOF signalization) which allows crystal less operation. 3.35 USB Type-C™ / USB Power Delivery controller (UCPD) The device embeds one controller (UCPD) compliant with USB Type-C Rev. 1.2 and USB Power Delivery Rev. 3.0 specifications. The controller uses specific I/Os supporting the USB Type-C and USB Power Delivery requirements, featuring: 42/198 • USB Type-C pull-up (Rp, all values) and pull-down (Rd) resistors • “Dead battery” support • USB Power Delivery message transmission and reception • FRS (fast role swap) support DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Functional overview The digital controller handles notably: • USB Type-C level detection with de-bounce, generating interrupts • FRS detection, generating an interrupt • Byte-level interface for USB Power Delivery payload, generating interrupts (DMA compatible) • USB Power Delivery timing dividers (including a clock pre-scaler) • CRC generation/checking • 4b5b encode/decode • Ordered sets (with a programmable ordered set mask at receive) • Frequency recovery in receiver during preamble The interface offers low-power operation compatible with Stop mode, maintaining the capacity to detect incoming USB Power Delivery messages and FRS signaling. 3.36 Clock recovery system (CRS) The devices embed a special block which allows automatic trimming of the internal 48 MHz oscillator to guarantee its optimal accuracy over the whole device operational range. This automatic trimming is based on the external synchronization signal, which could be either derived from USB SOF signalization, from LSE oscillator, from an external signal on CRS_SYNC pin or generated by user software. For faster lock-in during startup it is also possible to combine automatic trimming with manual trimming action. 3.37 Development support 3.37.1 Serial wire JTAG debug port (SWJ-DP) The Arm SWJ-DP interface is embedded, and is a combined JTAG and serial wire debug port that enables either a serial wire debug or a JTAG probe to be connected to the target. Debug is performed using 2 pins only instead of 5 required by the JTAG (JTAG pins could be re-use as GPIO with alternate function): the JTAG TMS and TCK pins are shared with SWDIO and SWCLK, respectively, and a specific sequence on the TMS pin is used to switch between JTAG-DP and SW-DP. 3.37.2 Embedded trace macrocell™ The Arm embedded trace macrocell provides a greater visibility of the instruction and data flow inside the CPU core by streaming compressed data at a very high rate from the STM32G431x6/x8/xB devices through a small number of ETM pins to an external hardware trace port analyzer (TPA) device. Real-time instruction and data flow activity be recorded and then formatted for display on the host computer that runs the debugger software. TPA hardware is commercially available from common development tool vendors. The Embedded trace macrocell operates with third party debugger software tools. DS12589 Rev 6 43/198 43 Pinouts and pin description STM32G431x6 STM32G431x8 STM32G431xB 4 Pinouts and pin description 4.1 UFQFPN32 pinout description PB3 PA15 PB5 PB4 PB7 PB6 VSS PB8-BOOT0 Figure 5. STM32G431x6/x8/xB UFQFPN32 pinout VDD 1 32 31 30 29 28 27 26 25 24 PA14 PF0-OSC_IN 2 23 PA13 PF1-OSC_OUT 3 22 PA12 PG10-NRST 4 21 PA11 PA0 5 20 PA10 PA1 6 19 PA9 PA2 7 18 PA8 PA3 8 17 VDD UFQFPN32 VSS VDDA PB0 VSSA PA5 PA7 10 11 12 13 14 15 16 PA6 9 PA4 Exposed pad MSv47174V1 1. The above figure shows the package top view. 4.2 LQFP32 pinout description VSS PB8-BOOT0 PB7 PB6 PB5 PB4 PB3 PA15 32 31 30 29 28 27 26 25 Figure 6. STM32G431x6/x8/xB LQFP32 pinout VDD 1 24 PA14 PF0-OSC_IN 2 23 PA13 PF1-OSC_OUT 3 22 PA12 PG10-NRST 4 21 PA11 PA0 5 20 PA10 PA1 6 19 PA9 PA2 7 18 PA8 PA3 8 17 VDD 9 10 11 12 13 14 15 16 PA4 PA5 PA6 PA7 PB0 VSSA VDDA VSS LQFP32 MSv47175V1 1. The above figure shows the package top view. 44/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 4.3 Pinouts and pin description UFQFPN48 pinout description VDD PB9 PB8-BOOT0 PB7 PB6 PB5 PB4 PB3 PC11 PC10 PA15 PA14 48 47 46 45 44 43 42 41 40 39 38 37 Figure 7. STM32G431x6/x8/xB UFQFPN48 pinout VBAT 1 36 PA13 PC13 2 35 VDD PC14-OSC32_IN 3 34 PA12 PC15-OSC32_OUT 4 33 PA11 PF0-OSC_IN 5 32 PA10 PF1-OSC_OUT 6 31 PA9 PG10-NRST 7 30 PA8 PA0 8 29 PC6 PA1 9 28 PB15 PA2 10 27 PB14 PA3 11 26 PB13 PA4 12 25 PB12 UFQFPN48 24 VSS PB11 23 VDD 22 PB10 21 VDDA 20 VREF+ 19 PB2 18 PB1 17 PB0 16 PC4 15 PA7 14 PA6 PA5 13 Exposed pad MSv47172V1 1. The above figure shows the package top view. 2. VSS pads are connected to the exposed pad. LQFP48 pinout description VDD VSS PB9 PB8-BOOT0 PB7 PB6 PB5 PB4 PB3 PA15 PA14 PA13 48 47 46 45 44 43 42 41 40 39 38 37 Figure 8. STM32G431x6/x8/xB LQFP48 pinout VBAT 1 36 VDD PC13 2 35 VSS PC14 - OSC32_IN 3 34 PA12 PC15 - OSC32_OUT 4 33 PA11 PF0 - OSC_IN 5 32 PA10 PF1 - OSC_OUT 6 31 PA9 PG10 - NRST 7 30 PA8 PA0 8 29 PB15 PA1 9 28 PB14 PA2 10 27 PB13 PA3 11 26 PB12 PA4 12 25 PB11 13 14 15 16 17 18 19 20 21 22 23 24 PA6 PA7 PB0 PB1 PB2 VSSA VREF+ VDDA PB10 VSS VDD LQFP48 PA5 4.4 MSv42659V2 1. The above figure shows the package top view. DS12589 Rev 6 45/198 66 Pinouts and pin description 4.5 STM32G431x6 STM32G431x8 STM32G431xB WLCSP49 ballout description Figure 9. STM32G431x6/x8/xB WLCSP49 ballout 1 2 3 4 5 6 7 A PA15 PC11 PB3 PB5 PB7 VSS VDD B PA12 PA13 PA14 PB4 PB8BOOT0 PB9 VBAT C PA11 PA10 PA9 PB6 PC13 PG10NRST PC14OSC32_IN D PC6 PA8 PB14 PC4 PA7 PA1 PC15OSC32_O UT E PB15 PB13 PB11 PB1 PA4 PF1OSC_OUT PF0OSC_IN F PB12 PB10 VREF+ PB2 PA5 PA2 PA0 G VDD VSS VDDA VSSA PB0 PA6 PA3 MSv47176V2 1. The above figure shows the package top view. 4.6 LQFP64 pinout description VDD VSS PB9 PB8-BOOT0 PB7 PB6 PB5 PB4 PB3 PD2 PC12 PC11 PC10 PA15 PA14 PA13 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 Figure 10. STM32G431x6/x8/xB LQFP64 pinout VBAT 1 48 VDD PC13 2 47 VSS PC14-OSC32_IN 3 46 PA12 PC15-OSC32_OUT 4 45 PA11 PF0-OSC_IN 5 44 PA10 PF1-OSC_OUT 6 43 PA9 PG10-NRST 7 42 PA8 PC0 8 41 PC9 PC1 9 40 PC8 PC2 10 39 PC7 PC3 11 38 PC6 PA0 12 37 PB15 PA1 13 36 PB14 PA2 14 35 PB13 VSS 15 34 PB12 VDD 16 33 PB11 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 PA3 PA4 PA5 PA6 PA7 PC4 PC5 PB0 PB1 PB2 VSSA VREF+ VDDA PB10 VSS VDD LQFP64 1. The above figure shows the package top view. 46/198 DS12589 Rev 6 MSv42658V2 STM32G431x6 STM32G431x8 STM32G431xB 4.7 Pinouts and pin description UFBGA64 ballout description Figure 11. STM32G431x6/x8/xB UFBGA64 ballout 1 2 3 4 5 6 7 8 A VDD PB9 PB7 PB6 PB3 PC12 PA15 VDD B PC13 VSS PB8-BOOT0 PB5 PD2 PC11 VSS PA12 C PC14OSC32_IN VBAT PC1 PB4 PC10 PA14 PA13 PA11 D PC15OSC32_OUT PG10-NRST PC2 PA4 PC4 PA10 PA9 PC9 E PF0-OSC_IN PC0 PA1 PA5 PB0 PA8 PC7 PC6 F PF1-OSC_OUT PA0 PA2 PC5 PB1 PC8 PB15 PB14 PA6 VSSA VREF+ PB13 VSS PB12 PA7 PB2 VDDA PB10 PB11 VDD G PC3 VSS H VDD PA3 MSv47177V3 1. The above figure shows the package top view. DS12589 Rev 6 47/198 66 Pinouts and pin description 4.8 STM32G431x6 STM32G431x8 STM32G431xB LQFP80 pinout description VDD VSS PB9 PB8-BOOT0 PB7 PB6 PB5 PB4 PB3 PD2 PD1 PD0 PC12 PC11 PC10 PA15 PA14 PA13 VDD VSS 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 Figure 12. STM32G431x6/x8/xB LQFP80 pinout VBAT 1 60 PA12 PC13 2 59 PA11 PC14-OSC32_IN 3 58 PA10 PC15-OSC32_OUT 4 57 PA9 PF0-OSC_IN 5 56 PA8 PF1-OSC_OUT 6 55 PC9 PG10-NRST 7 54 PC8 PC0 8 53 PC7 PC1 9 52 PC6 PC2 10 51 VDD PC3 11 50 VSS PA0 12 49 PD10 PA1 13 48 PD9 PA2 14 47 PD8 VSS 15 46 PB15 VDD 16 45 PB14 PA3 17 44 PB13 PA4 18 43 PB12 PA5 19 42 PB11 PA6 20 41 VDD 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 PA7 PC4 PC5 PB0 PB1 PB2 VSSA VREF+ VDDA PE7 PE8 PE9 PE10 PE11 PE12 PE13 PE14 PE15 PB10 VSS LQFP80 MSv60826V1 1. The above figure shows the package top view. 48/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB LQFP100 pinout description VDD VSS PE1 PE0 PB9 PB8-BOOT0 PB7 PB6 PB5 PB4 PB3 PD7 PD6 PD5 PD4 PD3 PD2 PD1 PD0 PC12 PC11 PC10 PA15 PA14 PA13 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 Figure 13. STM32G431x6/x8/xB LQFP100 pinout PE2 1 75 VDD PE3 2 74 VSS PE4 3 73 PA12 PE5 4 72 PA11 PE6 5 71 PA10 VBAT 6 70 PA9 PC13 7 69 PA8 PC14-OSC32_IN 8 68 PC9 PC15-OSC32_OUT 9 67 PC8 PF9 10 66 PC7 PF10 11 65 PC6 PF0-OSC_IN 12 64 VDD PF1-OSC_OUT 13 63 VSS PG10-NRST 14 62 PD15 PC0 15 61 PD14 PC1 16 60 PD13 PC2 17 59 PD12 PC3 18 58 PD11 PF2 19 57 PD10 PA0 20 56 PD9 PA1 21 55 PD8 PA2 22 54 PB15 VSS 23 53 PB14 VDD 24 52 PB13 PA3 25 51 PB12 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 PA5 PA6 PA7 PC4 PC5 PB0 PB1 PB2 VSSA VREF+ VDDA PE7 PE8 PE9 PE10 PE11 PE12 PE13 PE14 PE15 PB10 VSS VDD PB11 LQFP100 PA4 4.9 Pinouts and pin description MSv42661V3 1. The above figure shows the package top view. DS12589 Rev 6 49/198 66 Pinouts and pin description 4.10 STM32G431x6 STM32G431x8 STM32G431xB Pin definition Table 11. Legend/abbreviations used in the pinout table Name Pin name Pin type Abbreviation Unless otherwise specified in brackets below the pin name, the pin function during and after reset is the same as the actual pin name S Supply pin I Input only pin I/O Input / output pin FT 5 V tolerant I/O TT 3.6 V tolerant I/O B Dedicated BOOT0 pin NRST I/O structure _a I/O, with Analog switch function supplied by VDDA _c I/O, USB Type-C PD capable _d I/O, USB Type-C PD Dead Battery function _u Pin functions Bidirectional reset pin with embedded weak pull-up resistor Option for TT or FT I/Os (1) _f(2) Notes Definition (3) I/O, Fm+ capable I/O, with USB function Unless otherwise specified by a note, all I/Os are set as floating inputs during and after reset Alternate functions Functions selected through GPIOx_AFR registers Additional functions Functions directly selected/enabled through peripheral registers 1. The related I/O structures in Table 12 are: FT_a, FT_fa, TT_a. 2. The related I/O structures in Table 12 are: FT_f, FT_fa. 3. The related I/O structures in Table 12 are FT_u. 50/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Pinouts and pin description Table 12. STM32G431x6/x8/xB pin definition(1) I/O structure - - - 1 PE2 I/O FT - - - - - - - - - 2 PE3 I/O FT - TRACED0, TIM3_CH2, SAI1_SD_B, EVENTOUT - - - - - - - - - 3 PE4 I/O FT - TRACED1, TIM3_CH3, SAI1_D2, SAI1_FS_A, EVENTOUT - - TRACED2, TIM3_CH4, SAI1_CK2, SAI1_SCK_A, EVENTOUT - WKUP3, RTC_TAMP3 - - - - - - - - LQFP100 - LQFP80 - UFBGA64 - LQFP64 - WLCSP49 - TRACECK, TIM3_CH1, SAI1_CK1, SAI1_MCLK_A, EVENTOUT LQFP48 Alternate function LQFP32 Notes Pin name (function after reset) Pin type UFQFPN48 UFQFPN32 Pin Number 4 PE5 I/O FT Additional functions - - - - - - - - - 5 PE6 I/O FT - TRACED3, SAI1_D1, SAI1_SD_A, EVENTOUT - - 1 1 B7 1 C2 1 6 VBAT S - - - - TIM1_BKIN, TIM1_CH1N, TIM8_CH4N, EVENTOUT WKUP2, RTC_TAMP1, RTC_TS, RTC_OUT1 EVENTOUT OSC32_IN (3) EVENTOUT OSC32_OUT - TIM15_CH1, SPI2_SCK, SAI1_FS_B, EVENTOUT - - TIM15_CH2, SPI2_SCK, SAI1_D3, EVENTOUT - ADC1_IN10, OSC_IN - - 2 2 C5 2 B1 2 7 PC13 I/O FT - - 3 3 C7 3 C1 3 8 PC14OSC32_IN I/O FT - - 4 4 D7 4 D1 4 9 PC15OSC32_OUT I/O FT - - - - - - - - - - - - - - - - 10 11 PF9 PF10 I/O FT I/O FT (2) (3) (2) (3) (2) 2 2 5 5 E7 5 E1 5 12 PF0-OSC_IN I/O FT_fa - I2C2_SDA, SPI2_NSS/ I2S2_WS, TIM1_CH3N, EVENTOUT 3 3 6 6 E6 6 F1 6 13 PF1OSC_OUT I/O FT_a - SPI2_SCK/ I2S2_CK, EVENTOUT ADC2_IN10, COMP3_INM, OSC_OUT 4 4 7 7 C6 7 D2 7 14 PG10-NRST I/O - MCO, EVENTOUT NRST NRST DS12589 Rev 6 (4) 51/198 66 Pinouts and pin description STM32G431x6 STM32G431x8 STM32G431xB Table 12. STM32G431x6/x8/xB pin definition(1) (continued) - - - - - - - - - - - - - 8 9 10 E2 C3 D3 8 9 10 15 16 17 PC0 PC1 PC2 I/O structure Pin type LQFP100 LQFP80 UFBGA64 LQFP64 WLCSP49 LQFP48 UFQFPN48 - Pin name (function after reset) I/O I/O I/O FT_a TT_a FT_a Notes - LQFP32 UFQFPN32 Pin Number Alternate function Additional functions - LPTIM1_IN1, TIM1_CH1, LPUART1_RX, EVENTOUT ADC12_IN6, COMP3_INM - LPTIM1_OUT, TIM1_CH2, LPUART1_TX, SAI1_SD_A, EVENTOUT ADC12_IN7, COMP3_INP - LPTIM1_IN2, TIM1_CH3, COMP3_OUT, EVENTOUT ADC12_IN8 ADC12_IN9 - - - - - 11 G1 11 18 PC3 I/O FT_a - LPTIM1_ETR, TIM1_CH4, SAI1_D1, TIM1_BKIN2, SAI1_SD_A, EVENTOUT - - - - - - - - 19 PF2 I/O FT - I2C2_SMBA, EVENTOUT - - TIM2_CH1, USART2_CTS, COMP1_OUT, TIM8_BKIN, TIM8_ETR, TIM2_ETR, EVENTOUT ADC12_IN1, COMP1_INM, COMP3_INP, RTC_TAMP2, WKUP1 - RTC_REFIN, TIM2_CH2, USART2_RTS_DE, TIM15_CH1N, EVENTOUT ADC12_IN2, COMP1_INP, OPAMP1_VINP, OPAMP3_VINP ADC1_IN3, COMP2_INM, OPAMP1_VOUT, WKUP4/ LSCO 5 6 5 6 8 9 8 9 F7 D6 12 13 F2 E3 12 13 20 21 PA0 PA1 I/O I/O TT_a TT_a 7 7 10 10 F6 14 F3 14 22 PA2 I/O TT_a - TIM2_CH3, USART2_TX, COMP2_OUT, TIM15_CH1, LPUART1_TX, UCPD1_FRSTX, EVENTOUT - - - - - 15 G2 15 23 VSS S - - - - - - - - - 16 H1 16 24 VDD S - - - - - TIM2_CH4, SAI1_CK1, USART2_RX, TIM15_CH2, LPUART1_RX, SAI1_MCLK_A, EVENTOUT ADC1_IN4, COMP2_INP, OPAMP1_VINM/ OPAMP1_VINP 8 8 52/198 11 11 G7 17 H2 17 25 PA3 I/O TT_a DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Pinouts and pin description Table 12. STM32G431x6/x8/xB pin definition(1) (continued) 10 11 9 10 11 13 14 12 13 14 E5 F5 G6 18 19 20 D4 E4 G3 18 19 20 26 27 28 PA4 PA5 PA6 I/O structure Pin type LQFP100 LQFP80 UFBGA64 LQFP64 WLCSP49 LQFP48 UFQFPN48 12 Pin name (function after reset) I/O I/O I/O TT_a TT_a TT_a Notes 9 LQFP32 UFQFPN32 Pin Number Alternate function Additional functions - TIM3_CH2, SPI1_NSS, SPI3_NSS/ I2S3_WS, USART2_CK, SAI1_FS_B, EVENTOUT ADC2_IN17, DAC1_OUT1, COMP1_INM - TIM2_CH1, TIM2_ETR, SPI1_SCK, UCPD1_FRSTX, EVENTOUT ADC2_IN13, DAC1_OUT2, COMP2_INM, OPAMP2_VINM - TIM16_CH1, TIM3_CH1, TIM8_BKIN, SPI1_MISO, TIM1_BKIN, COMP1_OUT, LPUART1_CTS, EVENTOUT ADC2_IN3, OPAMP2_VOUT ADC2_IN4, COMP2_INP, OPAMP1_VINP, OPAMP2_VINP 12 12 15 15 D5 21 H3 21 29 PA7 I/O TT_a - TIM17_CH1, TIM3_CH2, TIM8_CH1N, SPI1_MOSI, TIM1_CH1N, COMP2_OUT, UCPD1_FRSTX, EVENTOUT - - 16 - D4 22 D5 22 30 PC4 I/O FT_fa - TIM1_ETR, I2C2_SCL, USART1_TX, EVENTOUT ADC2_IN5 - - - - - 23 F4 23 31 PC5 I/O TT_a - TIM15_BKIN, SAI1_D3, TIM1_CH4N, USART1_RX, EVENTOUT ADC2_IN11, OPAMP1_VINM, OPAMP2_VINM, WKUP5 - TIM3_CH3, TIM8_CH2N, TIM1_CH2N, UCPD1_FRSTX, EVENTOUT ADC1_IN15, COMP4_INP, OPAMP2_VINP, OPAMP3_VINP ADC1_IN12, COMP1_INP, OPAMP3_VOUT ADC2_IN12, COMP4_INM, OPAMP3_VINM 13 13 17 16 G5 24 E5 24 32 PB0 I/O TT_a - - 18 17 E4 25 F5 25 33 PB1 I/O TT_a - TIM3_CH4, TIM8_CH3N, TIM1_CH3N, COMP4_OUT, LPUART1_RTS_DE, EVENTOUT - - 19 18 F4 26 H4 26 34 PB2 I/O TT_a - RTC_OUT2, LPTIM1_OUT, I2C3_SMBA, EVENTOUT DS12589 Rev 6 53/198 66 Pinouts and pin description STM32G431x6 STM32G431x8 STM32G431xB Table 12. STM32G431x6/x8/xB pin definition(1) (continued) UFQFPN32 LQFP32 UFQFPN48 LQFP48 WLCSP49 LQFP64 UFBGA64 LQFP80 LQFP100 Pin type I/O structure Notes Pin Number Alternate function 14 14 - 19 G4 27 G4 27 35 VSSA S - - - - - - 20 20 F3 28 G5 28 36 VREF+ S - - - VREFBUF_OUT - - 21 21 G3 29 H5 29 37 VDDA S - - - - 15 15 - - - - - - - VDDA/VREF+ S - - - - - - - - - - - 30 38 PE7 I/O TT_a - TIM1_ETR, SAI1_SD_B, EVENTOUT COMP4_INP - - - - - - - 31 39 PE8 I/O FT_a - TIM1_CH1N, SAI1_SCK_B, EVENTOUT COMP4_INM - - - - - - - 32 40 PE9 I/O FT - TIM1_CH1, SAI1_FS_B, EVENTOUT - - - - - - - - 33 41 PE10 I/O FT - TIM1_CH2N, SAI1_MCLK_B, EVENTOUT - - - - - - - - 34 42 PE11 I/O FT - TIM1_CH2, EVENTOUT - - - - - - - - 35 43 PE12 I/O FT - TIM1_CH3N, EVENTOUT - - - - - - - - 36 44 PE13 I/O FT - TIM1_CH3, EVENTOUT - - - - - - - - 37 45 PE14 I/O FT - TIM1_CH4, TIM1_BKIN2, EVENTOUT - - TIM1_BKIN, TIM1_CH4N, USART3_RX, EVENTOUT - OPAMP3_VINM - - - - - - - 38 46 Pin name (function after reset) PE15 I/O FT Additional functions - - 22 22 F2 30 H6 39 47 PB10 I/O TT_a - TIM2_CH3, USART3_TX, LPUART1_RX, TIM1_BKIN, SAI1_SCK_A, EVENTOUT 16 16 - 23 G2 31 G7 40 48 VSS S - - - - 17 17 23 24 G1 32 H8 41 49 VDD S - - - - - TIM2_CH4, USART3_RX, LPUART1_TX, EVENTOUT ADC12_IN14 - - 54/198 24 25 E3 33 H7 42 50 PB11 I/O FT_a DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Pinouts and pin description Table 12. STM32G431x6/x8/xB pin definition(1) (continued) - - - - - 26 27 26 27 28 F1 E2 D3 34 35 36 G8 G6 F8 43 44 45 51 52 53 PB12 PB13 PB14 I/O structure Pin type LQFP100 LQFP80 UFBGA64 LQFP64 WLCSP49 LQFP48 UFQFPN48 25 Pin name (function after reset) I/O I/O I/O FT_a TT_a TT_a Notes - LQFP32 UFQFPN32 Pin Number Alternate function Additional functions - I2C2_SMBA, SPI2_NSS/ I2S2_WS, TIM1_BKIN, USART3_CK, LPUART1_RTS_DE, EVENTOUT ADC1_IN11 - SPI2_SCK/I2S2_CK, TIM1_CH1N, USART3_CTS, LPUART1_CTS, EVENTOUT OPAMP3_VINP - TIM15_CH1, SPI2_MISO, TIM1_CH2N, USART3_RTS_DE, COMP4_OUT, EVENTOUT ADC1_IN5, OPAMP2_VINP ADC2_IN15 - - 28 29 E1 37 F7 46 54 PB15 I/O FT_a - RTC_REFIN, TIM15_CH2, TIM15_CH1N, COMP3_OUT, TIM1_CH3N, SPI2_MOSI/ I2S2_SD, EVENTOUT - - - - - - - 47 55 PD8 I/O FT_a - USART3_TX, EVENTOUT - - - - - - - - 48 56 PD9 I/O FT - USART3_RX, EVENTOUT - - - - - - - - 49 57 PD10 I/O FT - USART3_CK, EVENTOUT - - - - - - - - - 58 PD11 I/O FT_a - USART3_CTS, EVENTOUT - - - - - - - - - 59 PD12 I/O FT - TIM4_CH1, USART3_RTS_DE, EVENTOUT - - - - - - - - - 60 PD13 I/O FT - TIM4_CH2, EVENTOUT - - - - - - - - - 61 PD14 I/O TT_a - TIM4_CH3, EVENTOUT OPAMP2_VINP - - - - - - - - 62 PD15 I/O FT - TIM4_CH4, SPI2_NSS, EVENTOUT - - - - - - - - 50 63 VSS S - - - - - - - - - - - 51 64 VDD S - - - - DS12589 Rev 6 55/198 66 Pinouts and pin description STM32G431x6 STM32G431x8 STM32G431xB Table 12. STM32G431x6/x8/xB pin definition(1) (continued) UFQFPN32 LQFP32 UFQFPN48 LQFP48 WLCSP49 LQFP64 UFBGA64 LQFP80 LQFP100 Pin type I/O structure Notes Pin Number Alternate function - - 29 - D1 38 E8 52 65 PC6 I/O FT - TIM3_CH1, TIM8_CH1, I2S2_MCK, EVENTOUT - - - - - - 39 E7 53 66 PC7 I/O FT - TIM3_CH2, TIM8_CH2, I2S3_MCK, EVENTOUT - - - - - - 40 F6 54 67 PC8 I/O FT_f - TIM3_CH3, TIM8_CH3, I2C3_SCL, EVENTOUT - - - - - - 41 D8 55 68 PC9 I/O FT_f - TIM3_CH4, TIM8_CH4, I2SCKIN, TIM8_BKIN2, I2C3_SDA, EVENTOUT - - MCO, I2C3_SCL, I2C2_SDA, I2S2_MCK, TIM1_CH1, USART1_CK, TIM4_ETR, SAI1_CK2, SAI1_SCK_A, EVENTOUT - - I2C3_SMBA, I2C2_SCL, I2S3_MCK, TIM1_CH2, USART1_TX, TIM15_BKIN, TIM2_CH3, SAI1_FS_A, EVENTOUT UCPD1_DBCC1 - TIM17_BKIN, USB_CRS_SYNC, I2C2_SMBA, SPI2_MISO, TIM1_CH3, USART1_RX, TIM2_CH4, TIM8_BKIN, SAI1_D1, SAI1_SD_A, EVENTOUT UCPD1_DBCC2 - SPI2_MOSI/ I2S2_SD, TIM1_CH1N, USART1_CTS, COMP1_OUT, FDCAN1_RX, TIM4_CH1, TIM1_CH4, TIM1_BKIN2, EVENTOUT USB_DM 18 19 20 21 18 19 20 21 56/198 30 31 32 33 30 31 32 33 D2 C3 C2 C1 42 43 44 45 E6 D7 D6 C8 56 57 58 59 69 70 71 72 Pin name (function after reset) PA8 PA9 PA10 PA11 I/O I/O I/O I/O FT_f FT_fd FT_d a FT_u DS12589 Rev 6 Additional functions STM32G431x6 STM32G431x8 STM32G431xB Pinouts and pin description Table 12. STM32G431x6/x8/xB pin definition(1) (continued) I/O structure 46 B8 60 73 PA12 I/O FT_u - - - - 35 - 47 B7 61 74 VSS S - - - - - - 35 36 - 48 A8 62 75 VDD S - - - - (5) SWDIO-JTMS, TIM16_CH1N, I2C1_SCL, IR_OUT, USART3_CTS, TIM4_CH3, SAI1_SD_B, EVENTOUT - (5) SWCLK-JTCK, LPTIM1_OUT, I2C1_SDA, TIM8_CH2, TIM1_BKIN, USART2_TX, SAI1_FS_B, EVENTOUT - (5) JTDI, TIM2_CH1, TIM8_CH1, I2C1_SCL, SPI1_NSS, SPI3_NSS/ I2S3_WS, USART2_RX, UART4_RTS_DE, TIM1_BKIN, TIM2_ETR, EVENTOUT - - TIM8_CH1N, UART4_TX, SPI3_SCK/ I2S3_CK, USART3_TX, EVENTOUT - - TIM8_CH2N, UART4_RX, SPI3_MISO, USART3_RX, I2C3_SDA, EVENTOUT - 23 24 25 - - 23 24 25 - - 36 37 38 39 40 37 38 39 - - B2 B3 A1 - A2 49 50 51 52 53 C7 C6 A7 C5 B6 63 64 65 66 67 LQFP100 B1 LQFP80 34 UFBGA64 34 LQFP64 22 WLCSP49 22 TIM16_CH1, I2SCKIN, TIM1_CH2N, USART1_RTS_DE, COMP2_OUT, FDCAN1_TX, TIM4_CH2, TIM1_ETR, EVENTOUT LQFP48 Alternate function LQFP32 Notes Pin name (function after reset) Pin type UFQFPN48 UFQFPN32 Pin Number 76 77 78 79 80 PA13 PA14 PA15 PC10 PC11 I/O I/O I/O FT_f FT_f FT_f I/O I/O FT FT_f DS12589 Rev 6 Additional functions USB_DP 57/198 66 Pinouts and pin description STM32G431x6 STM32G431x8 STM32G431xB Table 12. STM32G431x6/x8/xB pin definition(1) (continued) 54 A6 68 81 PC12 I/O FT - - - - - - - - 69 82 PD0 I/O FT - TIM8_CH4N, FDCAN1_RX, EVENTOUT - - LQFP100 - LQFP80 - UFBGA64 - LQFP64 - WLCSP49 - TIM8_CH3N, SPI3_MOSI/ I2S3_SD, USART3_CK, UCPD1_FRSTX, EVENTOUT LQFP48 Alternate function LQFP32 Notes I/O structure Pin name (function after reset) Pin type UFQFPN48 UFQFPN32 Pin Number Additional functions - - - - - - - - 70 83 PD1 I/O FT - TIM8_CH4, TIM8_BKIN2, FDCAN1_TX, EVENTOUT - - - - - 55 B5 71 84 PD2 I/O FT - TIM3_ETR, TIM8_BKIN, EVENTOUT - - - - - - - - - - 85 PD3 I/O FT - TIM2_CH1/ TIM2_ETR, USART2_CTS, EVENTOUT - - - - - - - - 86 PD4 I/O FT - TIM2_CH2, USART2_RTS_DE, EVENTOUT - - - - - - - - - 87 PD5 I/O FT - USART2_TX, EVENTOUT - - - - - - - - - - 88 PD6 I/O FT - TIM2_CH4, SAI1_D1, USART2_RX, SAI1_SD_A, EVENTOUT - - - - - - - - 89 PD7 I/O FT - TIM2_CH3, USART2_CK, EVENTOUT - (5) JTDO-TRACESWO, TIM2_CH2, TIM4_ETR, USB_CRS_SYNC, TIM8_CH1N, SPI1_SCK, SPI3_SCK/ I2S3_CK, USART2_TX, TIM3_ETR, SAI1_SCK_B, EVENTOUT - 26 26 58/198 41 40 A3 56 A5 72 90 PB3 I/O DS12589 Rev 6 FT STM32G431x6 STM32G431x8 STM32G431xB Pinouts and pin description Table 12. STM32G431x6/x8/xB pin definition(1) (continued) 27 28 29 30 31 27 28 29 30 31 42 43 44 45 46 41 B4 42 A43 43 44 45 C4 A5 B5 57 58 59 60 61 C4 B4 A4 A3 B3 73 74 75 76 77 91 92 93 94 95 PB4 PB5 PB6 PB7 PB8-BOOT0 I/O I/O I/O I/O I/O FT_c FT_f FT_c FT_f FT_f DS12589 Rev 6 Notes I/O structure Pin name (function after reset) Pin type LQFP100 LQFP80 UFBGA64 LQFP64 WLCSP49 LQFP48 UFQFPN48 LQFP32 UFQFPN32 Pin Number Alternate function Additional functions (6) JTRST, TIM16_CH1, TIM3_CH1, TIM8_CH2N, SPI1_MISO, SPI3_MISO, USART2_RX, TIM17_BKIN, SAI1_MCLK_B, EVENTOUT UCPD1_CC2 - TIM16_BKIN, TIM3_CH2, TIM8_CH3N, I2C1_SMBA, SPI1_MOSI, SPI3_MOSI/ I2S3_SD, USART2_CK, I2C3_SDA, TIM17_CH1, LPTIM1_IN1, SAI1_SD_B, EVENTOUT - (6) TIM16_CH1N, TIM4_CH1, TIM8_CH1, TIM8_ETR, USART1_TX, COMP4_OUT, TIM8_BKIN2, LPTIM1_ETR, SAI1_FS_B, EVENTOUT UCPD1_CC1 - TIM17_CH1N, TIM4_CH2, I2C1_SDA, TIM8_BKIN, USART1_RX, COMP3_OUT, TIM3_CH4, LPTIM1_IN2, UART4_CTS, EVENTOUT PVD_IN (7) TIM16_CH1, TIM4_CH3, SAI1_CK1, I2C1_SCL, USART3_RX, COMP1_OUT, FDCAN1_RX, TIM8_CH2, TIM1_BKIN, SAI1_MCLK_A, EVENTOUT - (5) 59/198 66 Pinouts and pin description STM32G431x6 STM32G431x8 STM32G431xB Table 12. STM32G431x6/x8/xB pin definition(1) (continued) - 46 B6 62 A2 78 96 PB9 I/O structure Pin type LQFP100 LQFP80 UFBGA64 LQFP64 WLCSP49 LQFP48 UFQFPN48 47 Pin name (function after reset) I/O FT_f Notes - LQFP32 UFQFPN32 Pin Number Alternate function Additional functions - TIM17_CH1, TIM4_CH4, SAI1_D2, I2C1_SDA, IR_OUT, USART3_TX, COMP2_OUT, FDCAN1_TX, TIM8_CH3, TIM1_CH3N, SAI1_FS_A, EVENTOUT - - - - - - - - - - 97 PE0 I/O FT - TIM4_ETR, TIM16_CH1, USART1_TX, EVENTOUT - - - - - - - - 98 PE1 I/O FT - TIM17_CH1, USART1_RX, EVENTOUT - 32 32 - 47 A6 63 B2 79 99 VSS S - - - - 1 1 48 48 A7 64 A1 80 100 VDD S - - - - 1. Function availability depends on the chosen device. 2. PC13, PC14 and PC15 are supplied through the power switch. Since the switch only sinks a limited amount of current (3 mA), the use of GPIOs PC13 to PC15 in output mode is limited: - The speed should not exceed 2 MHz with a maximum load of 30 pF - These GPIOs must not be used as current sources (for instance to drive an LED). 3. After a Backup domain power-up, PC13, PC14 and PC15 operate as GPIOs. Their function then depends on the content of the RTC registers which are not reset by the system reset. For details on how to manage these GPIOs, refer to the Backup domain and RTC register descriptions in the reference manual RM0440 "STM32G4 Series advanced Arm®-based 32-bit MCUs". 4. PG10-NRST pin is FT tolerant if it is configured as PG10 GPIO by option bytes except for the startup time until option bytes are loaded. 5. After reset, these pins are configured as JTAG/SW debug alternate functions, and the internal pull-up on PA15, PA13, PB4 pins and the internal pull-down on PA14 pin are activated. 6. After reset, a pull-down resistor (Rd = 5.1kΩ from UCPD peripheral) can be activated on PB6, PB4 (UCPD1_CC1, UCPD1_CC2). The pull-down on PB6 (UCPD1_CC1) is activated by high level on PA9 (UCPD1_DBCC1). The pull-down on PB4 (UCPD1_CC2) is activated by high level on PA10 (UCPD1_DBCC2). This pull-down control (dead battery support on UCPD peripheral) can be disabled by setting bit UCPD1_DBDIS=1 in the PWR_CR3 register. PB4, PB6 have UCPD_CC functionality which implements an internal pull-down resistor (5.1kΩ) which is controlled by the voltage on the UCPD_DBCC pin (PA10, PA9). A high level on the UCPD_DBCC pin activates the pull-down on the UCPD_CC pin. The pull-down effect on the CC lines can be removed by using the bit UCPD1_DBDIS =1 (USB Type-C and power delivery dead battery disable) in the PWR_CR3 register. 7. It is recommended to set PB8 in another mode than analog mode after startup to limit consumption if the pin is left unconnected. 60/198 DS12589 Rev 6 Alternate functions Table 13. Alternate function AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15 SYS_AF LPTIM1/TI M2/5/15/1 6/17 I2C3/TIM1/ 2/3/4/8/15/ GPCOMP1 I2C3/SAI1/ USB/TIM8/ 15/ GPCOMP3 I2C1/2/3/ TIM1/8/16/ 17 SPI1/2/3/ I2S2/3/ UART4 /TIM8/Infra red SPI2/3/ I2S2/3/ TIM1/8/ Infrared USART1/2/ 3 I2C3/4 /UART4/ LPUART1/ GPCOMP1/ 2/3 TIM1/8/15/ FDCAN1 TIM2/3/4/8/ 17 LPTIM1/TI M1/8/FDCA N1 LPUART1/ SAI1/TIM1 SAI1/ OPAMP2 UART4/SAI 1/TIM2/15/ UCPD1 EVENT PA0 - TIM2_ CH1 - - - - - USART2_ CTS COMP1_ OUT TIM8_BKIN TIM8_ETR - - - TIM2_ETR EVENT OUT PA1 RTC_ REFIN TIM2_ CH2 - - - - - USART2_ RTS_DE - TIM15_ CH1N - - - - - EVENT OUT PA2 - TIM2_ CH3 - - - - - USART2_ TX COMP2_ OUT TIM15_ CH1 - - LPUART1_ TX - UCPD1_ FRSTX EVENT OUT PA3 - TIM2_ CH4 - SAI1_CK1 - - - USART2_ RX - TIM15_ CH2 - - LPUART1_ RX SAI1_ MCLK_A - EVENT OUT PA4 - - TIM3_CH2 - - SPI1_NSS SPI3_NSS/ I2S3_WS USART2_ CK - - - - - SAI1_FS_B - EVENT OUT PA5 - TIM2_ CH1 TIM2_ETR - - SPI1_SCK - - - - - - - - UCPD1_ FRSTX EVENT OUT PA6 - TIM16_ CH1 TIM3_CH1 - TIM8_BKIN SPI1_MISO TIM1_BKIN - COMP1_ OUT - - - LPUART1_ CTS - - EVENT OUT PA7 - TIM17_ CH1 TIM3_CH2 - TIM8_ CH1N SPI1_MOSI TIM1_ CH1N - COMP2_ OUT - - - - - UCPD1_ FRSTX EVENT OUT PA8 MCO - I2C3_SCL - I2C2_SDA I2S2_MCK TIM1_CH1 USART1_ CK - - TIM4_ETR - SAI1_CK2 - SAI1_ SCK_A EVENT OUT PA9 - - I2C3_ SMBA - I2C2_SCL I2S3_MCK TIM1_CH2 USART1_ TX - TIM15_ BKIN TIM2_CH3 - - - SAI1_FS_A EVENT OUT PA10 - TIM17_ BKIN - USB_ CRS_SYNC I2C2_ SMBA SPI2_MISO TIM1_CH3 USART1_ RX - - TIM2_CH4 TIM8_BKIN SAI1_D1 - SAI1_SD_ A EVENT OUT PA11 - - - - - SPI2_MOSI /I2S2_SD TIM1_ CH1N USART1_ CTS COMP1_ OUT FDCAN1_R X TIM4_CH1 TIM1_CH4 TIM1_ BKIN2 - - EVENT OUT PA12 - TIM16_ CH1 - - - I2SCKIN TIM1_ CH2N USART1_ RTS_DE COMP2_ OUT FDCAN1_T X TIM4_CH2 TIM1_ETR - - - EVENT OUT PA13 SWDIOJTMS TIM16_ CH1N - - I2C1_SCL IR_OUT - USART3_ CTS - - TIM4_CH3 - - SAI1_SD_ B - EVENT OUT PA14 SWCLKJTCK LPTIM1_ OUT - - I2C1_SDA TIM8_CH2 TIM1_BKIN USART2_ TX - - - - - SAI1_FS_B - EVENT OUT PA15 JTDI TIM2_ CH1 TIM8_CH1 - I2C1_SCL SPI1_NSS SPI3_NSS/ I2S3_WS USART2_ RX UART4_ RTS_DE TIM1_BKIN - - - - TIM2_ETR EVENT OUT Port Port A DS12589 Rev 6 61/198 Pinouts and pin description AF0 STM32G431x6 STM32G431x8 STM32G431xB 4.11 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15 SYS_AF LPTIM1/TI M2/5/15/1 6/17 I2C3/TIM1/ 2/3/4/8/15/ GPCOMP1 I2C3/SAI1/ USB/TIM8/ 15/ GPCOMP3 I2C1/2/3/ TIM1/8/16/ 17 SPI1/2/3/ I2S2/3/ UART4 /TIM8/Infra red SPI2/3/ I2S2/3/ TIM1/8/ Infrared USART1/2/ 3 I2C3/4 /UART4/ LPUART1/ GPCOMP1/ 2/3 TIM1/8/15/ FDCAN1 TIM2/3/4/8/ 17 LPTIM1/TI M1/8/FDCA N1 LPUART1/ SAI1/TIM1 SAI1/ OPAMP2 UART4/SAI 1/TIM2/15/ UCPD1 EVENT PB0 - - TIM3_CH3 - TIM8_ CH2N - TIM1_ CH2N - - - - - - - UCPD1_FR STX EVENT OUT PB1 - - TIM3_CH4 - TIM8_ CH3N - TIM1_ CH3N - COMP4_ OUT - - - LPUART1_ RTS_DE - - EVENT OUT PB2 RTC_OUT2 LPTIM1_ OUT - - I2C3_ SMBA - - - - - - - - - - EVENT OUT PB3 JTDOTRACESWO TIM2_ CH2 TIM4_ETR USB_CRS_ SYNC TIM8_ CH1N SPI1_SCK SPI3_SCK/ I2S3_CK USART2_ TX - - TIM3_ETR - - - SAI1_SCK _B EVENT OUT PB4 JTRST TIM16_ CH1 TIM3_CH1 - TIM8_ CH2N SPI1_MISO SPI3_MISO USART2_ RX - - TIM17_ BKIN - - - SAI1_ MCLK_B EVENT OUT PB5 - TIM16_ BKIN TIM3_CH2 TIM8_ CH3N I2C1_ SMBA SPI1_MOSI SPI3_MOSI /I2S3_SD USART2_ CK I2C3_SDA - TIM17_ CH1 LPTIM1_ IN1 SAI1_SD_ B - - EVENT OUT PB6 - TIM16_ CH1N TIM4_CH1 - - TIM8_CH1 TIM8_ETR USART1_ TX COMP4_ OUT - TIM8_ BKIN2 LPTIM1_ ETR - - SAI1_FS_B EVENT OUT PB7 - TIM17_ CH1N TIM4_CH2 - I2C1_SDA TIM8_BKIN - USART1_ RX COMP3_ OUT - TIM3_CH4 LPTIM1_ IN2 - - UART4_ CTS EVENT OUT PB8 - TIM16_ CH1 TIM4_CH3 SAI1_CK1 I2C1_SCL - - USART3_ RX COMP1_ OUT FDCAN1_R X TIM8_CH2 - TIM1_BKIN - SAI1_ MCLK_A EVENT OUT PB9 - TIM17_ CH1 TIM4_CH4 SAI1_D2 I2C1_SDA - IR_OUT USART3_ TX COMP2_ OUT FDCAN1_T X TIM8_CH3 - TIM1_ CH3N - SAI1_FS_A EVENT OUT PB10 - TIM2_ CH3 - - - - - USART3_ TX LPUART1_ RX - - - TIM1_BKIN - SAI1_ SCK_A EVENT OUT PB11 - TIM2_ CH4 - - - - - USART3_ RX LPUART1_ TX - - - - - - EVENT OUT PB12 - - - - I2C2_ SMBA SPI2_NSS/ I2S2_WS TIM1_BKIN USART3_ CK LPUART1_ RTS_DE - - - - - - EVENT OUT PB13 - - - - - SPI2_SCK/ I2S2_CK TIM1_ CH1N USART3_ CTS LPUART1_ CTS - - - - - - EVENT OUT PB14 - TIM15_ CH1 - - - SPI2_MISO TIM1_ CH2N USART3_ RTS_DE COMP4_ OUT - - - - - - EVENT OUT PB15 RTC_REFIN TIM15_ CH2 TIM15_ CH1N COMP3_ OUT TIM1_ CH3N SPI2_MOSI /I2S2_SD - - - - - - - - - EVENT OUT DS12589 Rev 6 Port B Port STM32G431x6 STM32G431x8 STM32G431xB AF0 Pinouts and pin description 62/198 Table 13. Alternate function (continued) AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15 SYS_AF LPTIM1/TI M2/5/15/1 6/17 I2C3/TIM1/ 2/3/4/8/15/ GPCOMP1 I2C3/SAI1/ USB/TIM8/ 15/ GPCOMP3 I2C1/2/3/ TIM1/8/16/ 17 SPI1/2/3/ I2S2/3/ UART4 /TIM8/Infra red SPI2/3/ I2S2/3/ TIM1/8/ Infrared USART1/2/ 3 I2C3/4 /UART4/ LPUART1/ GPCOMP1/ 2/3 TIM1/8/15/ FDCAN1 TIM2/3/4/8/ 17 LPTIM1/TI M1/8/FDCA N1 LPUART1/ SAI1/TIM1 SAI1/ OPAMP2 UART4/SAI 1/TIM2/15/ UCPD1 EVENT PC0 - LPTIM1_ IN1 TIM1_CH1 - - - - - LPUART1_ RX - - - - - - EVENT OUT PC1 - LPTIM1_ OUT TIM1_CH2 - - - - - LPUART1_ TX - - - - SAI1_SD_ A - EVENT OUT PC2 - LPTIM1_ IN2 TIM1_CH3 COMP3_ OUT - - - - - - - - - - - EVENT OUT PC3 - LPTIM1_ ETR TIM1_CH4 SAI1_D1 - - TIM1_ BKIN2 - - - - - - SAI1_SD_ A - EVENT OUT PC4 - - TIM1_ETR - I2C2_SCL - - USART1_ TX - - - - - - - EVENT OUT PC5 - - TIM15_ BKIN SAI1_D3 - - TIM1_ CH4N USART1_ RX - - - - - - - EVENT OUT PC6 - - TIM3_CH1 - TIM8_ CH1 - I2S2_MCK - - - - - - - - EVENT OUT PC7 - - TIM3_CH2 - TIM8_ CH2 - I2S3_MCK - - - - - - - - EVENT OUT PC8 - - TIM3_CH3 - TIM8_ CH3 - - - I2C3_SCL - - - - - - EVENT OUT PC9 - - TIM3_CH4 - TIM8_ CH4 I2SCKIN TIM8_ BKIN2 - I2C3_SDA - - - - - - EVENT OUT PC10 - - - - TIM8_ CH1N UART4_TX SPI3_SCK/ I2S3_CK USART3_ TX - - - - - - - EVENT OUT PC11 - - - - TIM8_ CH2N UART4_RX SPI3_MISO USART3_ RX I2C3_SDA - - - - - - EVENT OUT PC12 - - - - TIM8_ CH3N - SPI3_MOSI /I2S3_SD USART3_ CK - - - - - - UCPD1_ FRSTX EVENT OUT PC13 - - TIM1_BKIN - TIM1_ CH1N - TIM8_ CH4N - - - - - - - - EVENT OUT PC14 - - - - - - - - - - - - - - - EVENT OUT PC15 - - - - - - - - - - - - - - - EVENT OUT DS12589 Rev 6 Port C Port 63/198 Pinouts and pin description AF0 STM32G431x6 STM32G431x8 STM32G431xB Table 13. Alternate function (continued) AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15 SYS_AF LPTIM1/TI M2/5/15/1 6/17 I2C3/TIM1/ 2/3/4/8/15/ GPCOMP1 I2C3/SAI1/ USB/TIM8/ 15/ GPCOMP3 I2C1/2/3/ TIM1/8/16/ 17 SPI1/2/3/ I2S2/3/ UART4 /TIM8/Infra red SPI2/3/ I2S2/3/ TIM1/8/ Infrared USART1/2/ 3 I2C3/4 /UART4/ LPUART1/ GPCOMP1/ 2/3 TIM1/8/15/ FDCAN1 TIM2/3/4/8/ 17 LPTIM1/TI M1/8/FDCA N1 LPUART1/ SAI1/TIM1 SAI1/ OPAMP2 UART4/SAI 1/TIM2/15/ UCPD1 EVENT PD0 - - - - - - TIM8_ CH4N - - FDCAN1_R X - - - - - EVENT OUT PD1 - - - - TIM8_CH4 - TIM8_ BKIN2 - - FDCAN1_T X - - - - - EVENT OUT PD2 - - TIM3_ETR - TIM8_BKIN - - - - - - - - - - EVENT OUT PD3 - - TIM2_CH1/ TIM2_ETR - - - - USART2_ CTS - - - - - - - EVENT OUT PD4 - - TIM2_CH2 - - - - USART2_ RTS_DE - - - - - - - EVENT OUT PD5 - - - - - - - USART2_ TX - - - - - - - EVENT OUT PD6 - - TIM2_CH4 SAI1_D1 - - - USART2_ RX - - - - - SAI1_SD_ A - EVENT OUT PD7 - - TIM2_CH3 - - - - USART2_ CK - - - - - - - EVENT OUT PD8 - - - - - - - USART3_ TX - - - - - - - EVENT OUT PD9 - - - - - - - USART3_ RX - - - - - - - EVENT OUT PD10 - - - - - - - USART3_ CK - - - - - - - EVENT OUT PD11 - - - - - - - USART3_ CTS - - - - - - - EVENT OUT PD12 - - TIM4_CH1 - - - - USART3_ RTS_DE - - - - - - - EVENT OUT PD13 - - TIM4_CH2 - - - - - - - - - - - - EVENT OUT PD14 - - TIM4_CH3 - - - - - - - - - - - - EVENT OUT PD15 - - TIM4_CH4 - - - SPI2_NSS - - - - - - - - EVENT OUT DS12589 Rev 6 Port D Port STM32G431x6 STM32G431x8 STM32G431xB AF0 Pinouts and pin description 64/198 Table 13. Alternate function (continued) AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15 SYS_AF LPTIM1/TI M2/5/15/1 6/17 I2C3/TIM1/ 2/3/4/8/15/ GPCOMP1 I2C3/SAI1/ USB/TIM8/ 15/ GPCOMP3 I2C1/2/3/ TIM1/8/16/ 17 SPI1/2/3/ I2S2/3/ UART4 /TIM8/Infra red SPI2/3/ I2S2/3/ TIM1/8/ Infrared USART1/2/ 3 I2C3/4 /UART4/ LPUART1/ GPCOMP1/ 2/3 TIM1/8/15/ FDCAN1 TIM2/3/4/8/ 17 LPTIM1/TI M1/8/FDCA N1 LPUART1/ SAI1/TIM1 SAI1/ OPAMP2 UART4/SAI 1/TIM2/15/ UCPD1 EVENT PE0 - - TIM4_ETR - TIM16_ CH1 - - USART1_ TX - - - - - - - EVENT OUT PE1 - - - - TIM17_ CH1 - - USART1_ RX - - - - - - - EVENT OUT PE2 TRACECK - TIM3_ CH1 SAI1_CK1 - - - - - - - - - SAI1_ MCLK_A - EVENT OUT PE3 TRACED0 - TIM3_ CH2 - - - - - - - - - - SAI1_ SD_B - EVENT OUT PE4 TRACED1 - TIM3_ CH3 SAI1_D2 - - - - - - - - - SAI1_ FS_A - EVENT OUT PE5 TRACED2 - TIM3_ CH4 SAI1_CK2 - - - - - - - - - SAI1_ SCK_A - EVENT OUT PE6 TRACED3 - - SAI1_D1 - - - - - - - - - SAI1_ SD_A - EVENT OUT PE7 - - TIM1_ ETR - - - - - - - - - - SAI1_ SD_B - EVENT OUT PE8 - - TIM1_ CH1N - - - - - - - - - - SAI1_ SCK_B - EVENT OUT PE9 - - TIM1_ CH1 - - - - - - - - - - SAI1_ FS_B - EVENT OUT PE10 - - TIM1_ CH2N - - - - - - - - - - SAI1_ MCLK_B - EVENT OUT PE11 - - TIM1_ CH2 - - - - - - - - - - - - EVENT OUT PE12 - - TIM1_ CH3N - - - - - - - - - - - - EVENT OUT PE13 - - TIM1_ CH3 - - - - - - - - - - - - EVENT OUT PE14 - - TIM1_ CH4 - - - TIM1_ BKIN2 - - - - - - - - EVENT OUT PE15 - - TIM1_ BKIN - - - TIM1_ CH4N USART3_ RX - - - - - - - EVENT OUT DS12589 Rev 6 Port E Port 65/198 Pinouts and pin description AF0 STM32G431x6 STM32G431x8 STM32G431xB Table 13. Alternate function (continued) AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15 SYS_AF LPTIM1/TI M2/5/15/1 6/17 I2C3/TIM1/ 2/3/4/8/15/ GPCOMP1 I2C3/SAI1/ USB/TIM8/ 15/ GPCOMP3 I2C1/2/3/ TIM1/8/16/ 17 SPI1/2/3/ I2S2/3/ UART4 /TIM8/Infra red SPI2/3/ I2S2/3/ TIM1/8/ Infrared USART1/2/ 3 I2C3/4 /UART4/ LPUART1/ GPCOMP1/ 2/3 TIM1/8/15/ FDCAN1 TIM2/3/4/8/ 17 LPTIM1/TI M1/8/FDCA N1 LPUART1/ SAI1/TIM1 SAI1/ OPAMP2 UART4/SAI 1/TIM2/15/ UCPD1 EVENT PF0 - - - - I2C2_ SDA SPI2_NSS/ I2S2_WS TIM1_ CH3N - - - - - - - - EVENT OUT PF1 - - - - - SPI2_SCK/ I2S2_CK - - - - - - - - - EVENT OUT PF2 - - - - I2C2_ SMBA - - - - - - - - - - EVENT OUT PF9 - - - TIM15_CH1 - SPI2_SCK - - - - - - - SAI1_FS_B - EVENT OUT PF10 - - - TIM15_CH2 - SPI2_SCK - - - - - - - SAI1_D3 - EVENT OUT PG10 MCO - - - - - - - - - - - - - - EVENT OUT Port G Port F Port Pinouts and pin description 66/198 Table 13. Alternate function (continued) STM32G431x6 STM32G431x8 STM32G431xB DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 5 Electrical characteristics 5.1 Parameter conditions Electrical characteristics Unless otherwise specified, all voltages are referenced to VSS. 5.1.1 Minimum and maximum values Unless otherwise specified, the minimum and maximum values are guaranteed in the worst conditions of ambient temperature, supply voltage and frequencies by tests in production on 100% of the devices with an ambient temperature at TA = 25 °C and TA = TAmax (given by the selected temperature range). Data based on characterization results, design simulation and/or technology characteristics are indicated in the table footnotes and are not tested in production. Based on characterization, the minimum and maximum values refer to sample tests and represent the mean value plus or minus three times the standard deviation (mean ±3σ). 5.1.2 Typical values Unless otherwise specified, typical data are based on TA = 25 °C, VDD = VDDA = 3 V. They are given only as design guidelines and are not tested. Typical ADC accuracy values are determined by characterization of a batch of samples from a standard diffusion lot over the full temperature range, where 95% of the devices have an error less than or equal to the value indicated (mean ±2σ). 5.1.3 Typical curves Unless otherwise specified, all typical curves are given only as design guidelines and are not tested. 5.1.4 Loading capacitor The loading conditions used for pin parameter measurement are shown in Figure 14. 5.1.5 Pin input voltage The input voltage measurement on a pin of the device is described in Figure 15. Figure 14. Pin loading conditions Figure 15. Pin input voltage MCU pin MCU pin C = 50 pF VIN MS19210V1 DS12589 Rev 6 MS19211V1 67/198 160 Electrical characteristics 5.1.6 STM32G431x6 STM32G431x8 STM32G431xB Power supply scheme Figure 16. Power supply scheme VBAT Backup circuitry (LSE, RTC, Backup registers) 1.55 – 3.6 V Power switch VDD VCORE n x VDD Regulator OUT n x 100 nF GPIOs IN +1 x 4.7 μF Level shifter VDDIO IO logic Kernel logic (CPU, Digital & Memories) n x VSS VDDA VREF+ VREF VREF+ 10 nF +1 μF Reset block Temp. sensor PLL, HSI16, HSI48 VDDA 100 nF +1 μF VREF- ADCs/ DACs/ OPAMPs/ COMPs/ VREFBUF Standby circuitry (Wakeup logic, IWDG) VSSA MS60206V1 Caution: 68/198 Each power supply pair (VDD/VSS, VDDA/VSSA etc.) must be decoupled with filtering ceramic capacitors as shown above. These capacitors must be placed as close as possible to, or below, the appropriate pins on the underside of the PCB to ensure the good functionality of the device. DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 5.1.7 Electrical characteristics Current consumption measurement Figure 17. Current consumption measurement IDD_VBAT IDD IDDA VBAT VDD VDDA MS60200V1 The IDD_ALL parameters given in Table 21 to Table 24 represent the total MCU consumption including the current supplying VDD, VDDA and VBAT. 5.2 Absolute maximum ratings Stresses above the absolute maximum ratings listed in Table 14: Voltage characteristics, Table 15: Current characteristics and Table 16: Thermal characteristics may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability. Exposure to maximum rating conditions for extended periods may affect device reliability. Device mission profile (application conditions) is compliant with JEDEC JESD47 qualification standard, extended mission profiles are available on demand. Table 14. Voltage characteristics(1) Symbol VDD - VSS VIN(2) |∆VDDx| |VSSx-VSS| Ratings Min Max -0.3 4.0 Input voltage on FT_xxx pins except FT_c pins VSS-0.3 min (VDD, VDDA) + 4.0(3)(4) Input voltage on FT_c pins VSS-0.3 5.5 Input voltage on TT_xx pins VSS-0.3 4.0 Input voltage on any other pins VSS-0.3 4.0 - 50 - 50 - 0.4 External main supply voltage (including VDD, VDDA, VBAT and VREF+) Variations between different VDDX power pins of the same domain Variations between all the different ground pins VREF+-VDDA Allowed voltage difference for VREF+ > VDDA (5) Unit V mV V 1. All main power (VDD, VDDA, VBAT) and ground (VSS, VSSA) pins must always be connected to the external power supply, in the permitted range. DS12589 Rev 6 69/198 160 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB 2. VIN maximum must always be respected. Refer to Table 15: Current characteristics for the maximum allowed injected current values. 3. This formula has to be applied only on the power supplies related to the IO structure described in the pin definition table. 4. To sustain a voltage higher than 4 V the internal pull-up/pull-down resistors must be disabled. 5. Include VREF- pin. Table 15. Current characteristics Symbol Ratings Max ∑IVDD Total current into sum of all VDD power lines (source)(1) 150 ∑IVSS (sink)(1) 150 IVDD(PIN) IVSS(PIN) IIO(PIN) Total current out of sum of all VSS ground lines (1) 100 (sink)(1) 100 Maximum current into each VDD power pin (source) Maximum current out of each VSS ground pin Output current sunk by any I/O and control pin except FT_f 20 Output current sunk by any FT_f pin 20 Output current sourced by any I/O and control pin ∑IIO(PIN) Total output current sunk by sum of all I/Os and control Unit mA 20 pins(2) 100 Total output current sourced by sum of all I/Os and control pins(2) IINJ(PIN)(3) Injected current on FT_xxx, TT_xx, NRST pins ∑|IINJ(PIN)| Total injected current (sum of all I/Os and control pins)(5) 100 -5/0(4) ±25 1. All main power (VDD, VDDA, VBAT) and ground (VSS, VSSA) pins must always be connected to the external power supplies, in the permitted range. 2. This current consumption must be correctly distributed over all I/Os and control pins. The total output current must not be sunk/sourced between two consecutive power supply pins referring to high pin count LQFP packages. 3. Positive injection (when VIN > VDD) is not possible on these I/Os and does not occur for input voltages lower than the specified maximum value. 4. A negative injection is induced by VIN < VSS. IINJ(PIN) must never be exceeded. Refer also to Table 14: Voltage characteristics for the minimum allowed input voltage values. 5. When several inputs are submitted to a current injection, the maximum ∑|IINJ(PIN)| is the absolute sum of the negative injected currents (instantaneous values). Table 16. Thermal characteristics Symbol TSTG TJ 70/198 Ratings Storage temperature range Maximum junction temperature DS12589 Rev 6 Value Unit –65 to +150 °C 150 °C STM32G431x6 STM32G431x8 STM32G431xB Electrical characteristics 5.3 Operating conditions 5.3.1 General operating conditions Table 17. General operating conditions Symbol Parameter Conditions Min Max fHCLK Internal AHB clock frequency - 0 170 fPCLK1 Internal APB1 clock frequency - 0 170 fPCLK2 Internal APB2 clock frequency - 0 170 Standard operating voltage - 1.71(1) 3.6 VDD VDDA Analog supply voltage ADC or COMP used 1.62 DAC 1 MSPS or DAC 15 MSPS 1.71 OPAMP used 2.0 VREFBUF used 2.4 ADC, DAC, OPAMP, COMP, VREFBUF not used VBAT VIN Backup operating voltage - TA TJ Power dissipation V 3.6 TT_xx I/O -0.3 VDD+0.3 FT_c I/O -0.3 5 -0.3 MIN(MIN(VDD, VDDA)+3.6 V, 5.5 V)(2)(3) V V See Section 6.10: Thermal characteristics for application appropriate thermal resistance and package. Power dissipation is then calculated according ambient temperature (TA) and maximum junction temperature (TJ) and selected thermal resistance. Ambient temperature for the suffix 6 version Maximum power dissipation -40 85 Low-power dissipation(4) -40 105 Ambient temperature for the suffix 3 version Maximum power dissipation -40 125 Low-power dissipation(4) -40 130 Suffix 6 version -40 105 Suffix 3 version -40 130 Junction temperature range V 3.6 3.6 I/O input voltage MHz 3.6 1.55 All I/O except TT_xx and FT_c PD 0 Unit mW °C °C 1. When RESET is released functionality is guaranteed down to VBOR0 Min. 2. This formula has to be applied only on the power supplies related to the IO structure described by the pin definition table. Maximum I/O input voltage is the smallest value between MIN(VDD, VDDA)+3.6 V and 5.5V. 3. For operation with voltage higher than Min (VDD, VDDA) +0.3 V, the internal Pull-up and Pull-Down resistors must be disabled. 4. In low-power dissipation state, TA can be extended to this range as long as TJ does not exceed TJmax (see Section 6.10: Thermal characteristics). DS12589 Rev 6 71/198 160 Electrical characteristics 5.3.2 STM32G431x6 STM32G431x8 STM32G431xB Operating conditions at power-up / power-down The parameters given in Table 18 are derived from tests performed under the ambient temperature condition summarized in Table 17. Table 18. Operating conditions at power-up / power-down Symbol Parameter VDD rise time rate tVDD Min Max 0 ∞ 10 ∞ 0 ∞ 10 ∞ - VDD fall time rate VDDA rise time rate tVDDA 5.3.3 Conditions - VDDA fall time rate Unit µs/V µs/V Embedded reset and power control block characteristics The parameters given in Table 19 are derived from tests performed under the ambient temperature conditions summarized in Table 17: General operating conditions. Table 19. Embedded reset and power control block characteristics Symbol tRSTTEMPO(2) 72/198 Parameter Reset temporization after BOR0 is detected VBOR0(2) Brown-out reset threshold 0 VBOR1 Brown-out reset threshold 1 VBOR2 Brown-out reset threshold 2 VBOR3 Brown-out reset threshold 3 VBOR4 Brown-out reset threshold 4 VPVD0 Programmable voltage detector threshold 0 VPVD1 PVD threshold 1 VPVD2 PVD threshold 2 VPVD3 PVD threshold 3 Conditions(1) Min Typ Max Unit - 250 400 μs Rising edge 1.62 1.66 1.7 Falling edge 1.6 1.64 1.69 Rising edge 2.06 2.1 2.14 Falling edge 1.96 2 2.04 Rising edge 2.26 2.31 2.35 Falling edge 2.16 2.20 2.24 Rising edge 2.56 2.61 2.66 Falling edge 2.47 2.52 2.57 Rising edge 2.85 2.90 2.95 Falling edge 2.76 2.81 2.86 Rising edge 2.1 2.15 2.19 Falling edge 2 2.05 2.1 Rising edge 2.26 2.31 2.36 Falling edge 2.15 2.20 2.25 Rising edge 2.41 2.46 2.51 Falling edge 2.31 2.36 2.41 Rising edge 2.56 2.61 2.66 Falling edge 2.47 2.52 2.57 VDD rising DS12589 Rev 6 V V V V V V V V V STM32G431x6 STM32G431x8 STM32G431xB Electrical characteristics Table 19. Embedded reset and power control block characteristics (continued) Conditions(1) Min Typ Max Rising edge 2.69 2.74 2.79 Falling edge 2.59 2.64 2.69 Rising edge 2.85 2.91 2.96 Falling edge 2.75 2.81 2.86 Rising edge 2.92 2.98 3.04 Falling edge 2.84 2.90 2.96 Hysteresis in continuous Hysteresis voltage of BORH0 mode - 20 - Hysteresis in other mode - 30 - Symbol Parameter VPVD4 PVD threshold 4 VPVD5 PVD threshold 5 VPVD6 PVD threshold 6 Vhyst_BORH0 Unit V V V mV Hysteresis voltage of BORH (except BORH0) and PVD - - 100 - mV BOR(3) (except BOR0) and IDD (BOR_PVD)(2) PVD consumption from VDD - - 1.1 1.6 µA Vhyst_BOR_PVD VPVM1 VDDA peripheral voltage monitoring (COMP/ADC) Rising edge 1.61 1.65 1.69 Falling edge 1.6 1.64 1.68 VPVM2 VDDA peripheral voltage monitoring (OPAMP/DAC) Rising edge 1.78 1.82 1.86 Falling edge 1.77 1.81 1.85 V V Vhyst_PVM1 PVM1 hysteresis - - 10 - mV Vhyst_PVM2 PVM2 hysteresis - - 10 - mV - - 2 - µA IDD PVM1 and PVM2 (PVM1/PVM2) consumption from VDD (2) 1. Continuous mode means Run/Sleep modes, or temperature sensor enable in Low-power run/Low-power sleep modes. 2. Guaranteed by design. 3. BOR0 is enabled in all modes (except shutdown) and its consumption is therefore included in the supply current characteristics tables. DS12589 Rev 6 73/198 160 Electrical characteristics 5.3.4 STM32G431x6 STM32G431x8 STM32G431xB Embedded voltage reference The parameters given in Table 20 are derived from tests performed under the ambient temperature and supply voltage conditions summarized in Table 17: General operating conditions. Table 20. Embedded internal voltage reference Symbol Parameter VREFINT Internal reference voltage Conditions Min –40 °C < TA < +130 °C 1.182 1.212 Max Unit 1.232 V ADC sampling time when reading the internal reference voltage - 4(2) - - µs Start time of reference voltage buffer when ADC is enable - - 8 12(2) µs VREFINT buffer consumption from VDD IDD(VREFINTBUF) when converted by ADC - - 12.5 20(2) µA tS_vrefint (1) tstart_vrefint ∆VREFINT Internal reference voltage spread over the temperature range VDD = 3 V - 5 7.5(2) mV TCoeff Average temperature coefficient –40°C < TA < +130°C - 30 50(2) ppm/°C ACoeff Long term stability 1000 hours, T = 25°C - 300 1000(2) ppm Average voltage coefficient 3.0 V < VDD < 3.6 V - 250 1200(2) ppm/V 24 25 26 49 50 51 74 75 76 VDDCoeff VREFINT_DIV1 1/4 reference voltage VREFINT_DIV2 1/2 reference voltage VREFINT_DIV3 3/4 reference voltage - 1. The shortest sampling time is determined in the application by multiple iterations. 2. Guaranteed by design. 74/198 Typ DS12589 Rev 6 % VREFINT STM32G431x6 STM32G431x8 STM32G431xB Electrical characteristics Figure 18. VREFINT versus temperature V 1.235 1.23 1.225 1.22 1.215 1.21 1.205 1.2 1.195 1.19 1.185 -40 -20 0 20 40 Mean 60 Min 80 100 120 °C Max MSv40169V2 5.3.5 Supply current characteristics The current consumption is a function of several parameters and factors such as the operating voltage, ambient temperature, I/O pin loading, device software configuration, operating frequencies, I/O pin switching rate, program location in memory and executed binary code The current consumption is measured as described in Figure 17: Current consumption measurement. Typical and maximum current consumption The MCU is placed under the following conditions: • All I/O pins are in analog input mode • All peripherals are disabled except when explicitly mentioned • The Flash memory access time is adjusted with the minimum wait states number, depending on the fHCLK frequency (refer to the table “number of wait states according to CPU clock (HCLK) frequency” available in the reference manual RM0440 "STM32G4 Series advanced Arm®-based 32-bit MCUs"). • When the peripherals are enabled fPCLK = fHCLK • The voltage scaling Range 1 is adjusted to fHCLK frequency as follows: – Voltage Range 1 Boost mode for 150 MHz < fHCLK ≤ 170 MHz – Voltage Range 1 Normal mode for 26 MHz < fHCLK ≤ 150 MHz The parameters given in Table 21 to Table 24 are derived from tests performed under ambient temperature and supply voltage conditions summarized in Table 17: General operating conditions. DS12589 Rev 6 75/198 160 Condition Symbol Parameter - Typ Voltage scaling Range 2 Unit 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 26 MHz 3.20 3.35 3.60 4.15 5.05 3.90 4.90 7.40 11.0 15.0 16 MHz 2.05 2.15 2.50 3.05 3.95 2.70 3.70 6.10 9.30 14.0 8 MHz 1.10 1.25 1.60 2.10 3.05 1.70 2.60 5.10 8.30 13.0 4 MHz 0.635 0.755 1.15 1.65 2.60 1.10 2.10 3.60 7.60 13.0 2 MHz 0.400 0.525 0.910 1.45 2.35 0.840 1.90 3.40 7.40 12.0 1 MHz 0.280 0.415 0.800 1.35 2.25 0.710 1.70 3.20 7.30 12.0 100 KHz 0.170 0.305 0.690 1.20 2.15 0.590 1.60 3.10 1.00 12.0 Range 1 Boost 170 MHz mode 25.5 26.0 27.0 27.5 29.0 28.0 29.0 33.0 38.0 44.0 150 MHz 21.0 21.5 22.0 23.0 24.0 23.0 24.0 28.0 32.0 38.0 120 MHz 17.0 17.5 18.0 18.5 20.0 19.0 20.0 24.0 28.0 33.0 80 MHz 11.5 11.5 12.5 13.0 14.0 13.0 14.0 18.0 22.0 27.0 72 MHz 10.5 10.5 11.0 12.0 13.0 12.0 13.0 17.0 21.0 26.0 64 MHz 9.30 9.50 10.0 11.0 12.0 11.0 12.0 15.0 20.0 25.0 48 MHz 6.95 7.15 7.45 8.15 9.30 8.10 9.40 13.0 17.0 23.0 32 MHz 4.70 4.90 5.25 5.95 7.10 5.80 7.10 11.0 15.0 20.0 24 MHz 3.60 3.80 4.20 4.85 6.00 4.60 5.90 9.20 14.0 19.0 16 MHz 2.45 2.65 3.10 3.75 4.90 3.40 4.70 8.00 13.0 18.0 Range 1 mA STM32G431x6 STM32G431x8 STM32G431xB DS12589 Rev 6 IDD (Run) Supply current in Run mode fHCLK = fHSE up to 48 MHz included, bypass mode PLL ON above 48 MHz all peripherals disable fHCLK Max Electrical characteristics 76/198 Table 21. Current consumption in Run and Low-power run modes, code with data processing running from Flash in single Bank, ART enable (Cache ON Prefetch OFF) Condition Symbol Parameter - fHCLK = fHSE all peripherals disable Supply current IDD (LPRun) in Low-power run mode fHCLK = fHSI / HPRE all peripherals disable Typ Voltage scaling fHCLK Max Unit DS12589 Rev 6 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 2 MHz 350 525 990 1600 2650 970 2200 3900 6700 11000 1 MHz 255 410 860 1500 2550 830 2100 3800 6600 11000 250 KHz 145 300 750 1400 2450 690 1900 3700 6500 11000 62.5 KHz 99.5 270 725 1350 2400 670 1800 3700 6500 11000 2 MHz 865 1050 1500 2150 3200 1600 2800 4500 7600 12000 1 MHz 820 965 1400 2050 3100 1500 2700 4400 7400 12000 250 KHz 725 875 1300 1950 3000 1400 2600 4400 7400 12000 62.5 KHz 685 860 1300 1900 2950 1300 2600 4400 7400 12000 μA STM32G431x6 STM32G431x8 STM32G431xB Table 21. Current consumption in Run and Low-power run modes, code with data processing running from Flash in single Bank, ART enable (Cache ON Prefetch OFF) (continued) Electrical characteristics 77/198 Condition Symbol Parameter - Typ Voltage scaling Range 2 Unit 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 26 MHz 2.85 3.00 3.30 3.85 4.75 3.50 4.40 6.90 11.0 15.0 16 MHz 1.80 1.95 2.30 2.85 3.75 2.50 3.40 5.90 9.00 14.0 8 MHz 0.995 1.15 1.50 2.05 2.95 1.50 2.50 4.00 7.80 13.0 4 MHz 0.580 0.725 1.10 1.65 2.55 1.10 2.10 3.50 7.40 13.0 2 MHz 0.370 0.510 0.900 1.45 2.35 0.800 1.80 3.30 7.00 12.0 1 MHz 0.270 0.405 0.790 1.35 2.25 0.690 1.70 3.20 6.90 12.0 100 KHz 0.170 0.310 0.695 1.25 2.15 0.590 1.60 3.10 6.70 12.0 Range 1 Boost 170 MHz mode 23.0 23.5 24.0 25.0 26.5 24.0 26.0 30.0 35.0 41.0 150 MHz 19.0 19.5 20.0 20.5 22.0 20.0 21.0 25.0 29.0 35.0 120 MHz 15.5 15.5 16.0 17.0 18.0 16.0 18.0 21.0 25.0 31.0 80 MHz 10.5 10.5 11.0 12.0 13.0 11.0 13.0 16.0 20.0 26.0 72 MHz 9.35 9.55 10.0 11.0 12.0 11.0 12.0 15.0 19.0 25.0 64 MHz 8.35 8.55 9.15 9.85 11.0 9.10 11.0 14.0 18.0 24.0 48 MHz 6.25 6.45 6.75 7.45 8.65 7.10 8.40 12.0 16.0 22.0 32 MHz 4.25 4.45 4.80 5.50 6.65 5.20 6.50 9.80 14.0 20.0 24 MHz 3.25 3.45 3.85 4.55 5.65 4.20 5.40 8.70 13.0 19.0 16 MHz 2.25 2.40 2.85 3.55 4.70 3.00 4.40 7.40 12.0 18.0 Range 1 mA STM32G431x6 STM32G431x8 STM32G431xB DS12589 Rev 6 IDD (Run) Supply current in Run mode fHCLK = fHSE up to 48 MHz included, bypass mode PLL ON above 48 MHz all peripherals disable fHCLK Max Electrical characteristics 78/198 Table 22. Current consumption in Run and Low-power run modes, code with data processing running from SRAM1 Condition Symbol Parameter - fHCLK = fHSE all peripherals disable Supply current IDD (LPRun) in Low-power run mode fHCLK = fHSI / HPRE all peripherals disable Typ Voltage scaling fHCLK Max Unit DS12589 Rev 6 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 2 MHz 350 495 965 1600 2650 900 2100 3900 6700 12000 1 MHz 210 370 845 1500 2550 780 2000 3800 6600 11000 250 KHz 115 275 755 1400 2450 680 1900 3700 6800 12000 62.5 KHz 98.0 255 725 1350 2400 630 1800 3600 6400 11000 2 MHz 850 1000 1500 2100 3150 1500 2700 4500 7500 12000 1 MHz 770 900 1400 2000 3050 1500 2700 4500 7600 13000 250 KHz 720 840 1300 1950 3000 1400 2600 4400 7300 12000 62.5 KHz 665 830 1300 1900 2950 1400 2600 4400 7300 12000 μA STM32G431x6 STM32G431x8 STM32G431xB Table 22. Current consumption in Run and Low-power run modes, code with data processing running from SRAM1 (continued) Electrical characteristics 79/198 Conditions Symbol Parameter Code - Voltage scaling Range2 fHCLK=26MHz Supply current in Run mode Range 1 Boost mode fHCLK= 170 MHz IDD (LPRun) Supply current in Low-power run SYSCLK source is HSI fHCLK = 2 MHz all peripherals disable TYP Single Bank Mode Unit 25°C Unit 25°C Pseudo-dhrystone 3.20 mA 123 Coremark 3.15 mA 121 Dhrystone2.1 3.20 mA 123 Fibonacci 3.60 mA 138 While(1) 3.00 mA 115 Pseudo-dhrystone 21.0 mA 140 Coremark 21.0 mA 140 Dhrystone2.1 21.0 mA 140 Fibonacci 23.5 mA 157 While(1) 20.0 mA 133 Pseudo-dhrystone 25.5 mA 150 Coremark 25.0 mA 147 Dhrystone2.1 26.0 mA 153 Fibonacci 28.5 mA 168 While(1) 24.5 mA 144 Pseudo-dhrystone 865 µA 433 Coremark 855 µA 428 Dhrystone2.1 875 µA 438 Fibonacci 905 µA 453 While(1) 870 µA 435 µA/MHz µA/MHz µA/MHz µA/MHz STM32G431x6 STM32G431x8 STM32G431xB DS12589 Rev 6 IDD (Run) fHCLK= fHSE up to 48 MHZ included, bypass Range 1 mode PLL ON above = 150 MHz f 48 MHz all peripherals HCLK disable TYP Single Bank Mode Electrical characteristics 80/198 Table 23. Typical current consumption in Run and Low-power run modes, with different codes running from Flash, ART enable (Cache ON Prefetch OFF) Conditions Symbol TYP 25°C Parameter Code - Voltage scaling Range2 fHCLK=26 MHz DS12589 Rev 6 IDD (Run) fHCLK = fHSE up to 48 MHZ Range 1 Supply current in included, bypass mode PLL ON above 48 MHz all fHCLK= 150 MHz Run mode peripherals disable Range 1 Boost mode fHCLK= 170 MHz SYSCLK source is HSI Supply current in fHCLK = 2 MHz Low-power run all peripherals disable Unit Single bank mode 81/198 Pseudo-dhrystone 2.85 mA 110 Coremark 2.95 mA 113 Dhrystone2.1 2.85 mA 110 Fibonacci 2.85 mA 110 While(1) 3.05 mA 117 Pseudo-dhrystone 19.0 mA 127 Coremark 19.5 mA 130 Dhrystone2.1 19.0 mA 127 Fibonacci 20.5 mA 137 While(1) 18.5 mA 123 Pseudo-dhrystone 23.0 mA 135 Coremark 24.0 mA 141 Dhrystone2.1 23.0 mA 135 Fibonacci 24.5 mA 144 While(1) 22.0 mA 129 Pseudo-dhrystone 850 µA 425 Coremark 870 µA 435 Dhrystone2.1 840 µA 420 Fibonacci 855 µA 428 While(1) 820 µA 410 Unit µA/MHz µA/MHz µA/MHz µA/MHz Electrical characteristics IDD (LPRun) Single bank mode TYP 25°C STM32G431x6 STM32G431x8 STM32G431xB Table 24. Typical current consumption in Run and Low-power run modes, with different codes running from SRAM1 Conditions Symbol TYP 25°C Parameter Code - Voltage scaling Range2 fHCLK=26 MHz Range 1 Boost mode fHCLK= 170 MHz IDD (LPRun) SYSCLK source is HSI Supply current in fHCLK = 2 MHz Low-power run all peripherals disable Unit Single bank mode Pseudo-dhrystone 2.40 mA 92 Coremark 2.50 mA 96 Dhrystone2.1 2.40 mA 92 Fibonacci 2.35 mA 90 While(1) 2.25 mA 87 Pseudo-dhrystone 15.5 mA 103 Coremark 16.5 mA 110 Dhrystone2.1 15.5 mA 103 Fibonacci 15.5 mA 103 While(1) 14.5 mA 97 Pseudo-dhrystone 19.0 mA 112 Coremark 20.0 mA 118 Dhrystone2.1 19.0 mA 112 Fibonacci 19.0 mA 112 While(1) 18.0 mA 106 Pseudo-dhrystone 835 µA 418 Coremark 825 µA 413 Dhrystone2.1 830 µA 415 Fibonacci 830 µA 415 While(1) 815 µA 408 Unit µA/MHz µA/MHz µA/MHz µA/MHz STM32G431x6 STM32G431x8 STM32G431xB DS12589 Rev 6 IDD (Run) fHCLK = fHSE up to 48 MHZ Range 1 Supply current in included, bypass mode PLL ON above 48 MHz all fHCLK= 150 MHz Run mode peripherals disable Single bank mode TYP 25°C Electrical characteristics 82/198 Table 25. Typical current consumption in Run and Low-power run modes, with different codes running from SRAM2 Conditions Symbol TYP 25°C Parameter Code - Voltage scaling Range2 fHCLK=26 MHz DS12589 Rev 6 IDD (Run) fHCLK = fHSE up to 48 MHZ Range 1 Supply current in included, bypass mode PLL ON above 48 MHz all fHCLK= 150 MHz Run mode peripherals disable Range 1 Boost mode fHCLK= 170 MHz SYSCLK source is HSI Supply current in fHCLK = 2 MHz Low-power run all peripherals disable Unit Single bank mode Pseudo-dhrystone 2.65 mA 102 Coremark 2.80 mA 108 Dhrystone2.1 2.65 mA 102 Fibonacci 3.25 mA 125 While(1) 3.25 mA 125 Pseudo-dhrystone 17.5 mA 117 Coremark 19.0 mA 127 Dhrystone2.1 17.5 mA 117 Fibonacci 21.5 mA 143 While(1) 21.5 mA 143 Pseudo-dhrystone 21.5 mA 126 Coremark 23.0 mA 135 Dhrystone2.1 21.5 mA 126 Fibonacci 26.0 mA 153 While(1) 26.0 mA 153 Pseudo-dhrystone 845 µA 423 Coremark 825 µA 413 Dhrystone2.1 820 µA 410 Fibonacci 885 µA 443 While(1) 890 µA 445 Unit µA/MHz µA/MHz µA/MHz µA/MHz 83/198 Electrical characteristics IDD (LPRun) Single bank mode TYP 25°C STM32G431x6 STM32G431x8 STM32G431xB Table 26. Typical current consumption in Run and Low-power run modes, with different codes running from CCM Typ Condition Symbol Parameter - Voltage scaling Range 2 Unit 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 26 MHz 1.05 1.15 1.45 2.00 2.90 1.70 2.70 5.20 8.30 13.0 16 MHz 0.690 0.810 1.15 1.70 2.60 1.30 2.30 3.80 8.00 13.0 8 MHz 0.425 0.545 0.920 1.45 2.35 0.930 2.00 3.50 7.70 13.0 4 MHz 0.300 0.400 0.815 1.35 2.25 0.760 1.80 3.30 7.60 12.0 2 MHz 0.230 0.355 0.755 1.30 2.20 0.670 1.70 3.20 7.50 12.0 1 MHz 0.200 0.320 0.725 1.25 2.15 0.620 1.60 3.10 7.50 12.0 100 KHz 0.165 0.285 0.690 1.25 2.15 0.580 1.60 3.10 7.40 12.0 Range 1 Boost 170 MHz mode 7.40 7.65 8.30 9.10 10.5 8.60 11.0 14.0 19.0 25.0 150 MHz 6.10 6.30 6.90 7.60 8.80 7.10 8.40 12.0 16.0 22.0 120 MHz 4.95 5.15 5.70 6.40 7.60 5.90 7.20 11.0 15.0 21.0 80 MHz 3.45 3.65 4.15 4.85 6.00 4.40 5.70 9.00 13.0 19.0 72 MHz 3.15 3.35 3.85 4.55 5.70 4.10 5.30 8.60 13.0 19.0 64 MHz 2.85 3.00 3.55 4.25 5.40 3.70 5.00 8.30 13.0 18.0 48 MHz 2.10 2.30 2.55 3.25 4.40 3.10 4.40 7.60 12.0 18.0 32 MHz 1.50 1.65 2.00 2.70 3.80 2.50 3.80 7.10 12.0 17.0 24 MHz 1.15 1.35 1.75 2.40 3.55 2.20 3.40 6.70 11.0 17.0 16 MHz 0.850 1.05 1.45 2.15 3.25 1.80 3.10 6.30 11.0 16.0 Range 1 mA STM32G431x6 STM32G431x8 STM32G431xB DS12589 Rev 6 IDD (Sleep) Supply current in Sleep mode fHCLK = fHSE up to 48 MHz included, bypass mode PLL ON above 48 MHz all peripherals disable fHCLK Max Electrical characteristics 84/198 Table 27. Current consumption in Sleep and Low-power sleep mode Flash ON Condition Symbol Parameter - Typ Voltage scaling fHCLK = fHSE all peripherals disable IDD (LPSleep) Supply current in Low-power sleep mode fHCLK = fHSI / HPRE all peripherals disable fHCLK Max Unit 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 2 MHz 180 335 810 1450 2500 1600 2900 4600 7700 13000 1 MHz 135 300 770 1400 2450 1200 2400 4100 7100 12000 250 KHz 115 265 740 1350 2400 670 2000 3600 6300 11000 62.5 KHz 89.5 255 730 1350 2400 660 1900 3600 6300 11000 2 MHz 730 875 1350 1950 3000 1400 2600 4300 7200 12000 1 MHz 675 830 1300 1950 3000 1400 2600 4300 7200 12000 250 KHz 655 820 1300 1950 3000 1400 2600 4300 7200 12000 62.5 KHz 680 850 1300 1950 3000 1400 2600 4300 7200 12000 μA DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Table 27. Current consumption in Sleep and Low-power sleep mode Flash ON (continued) Table 28. Current consumption in low-power sleep modes, Flash in power-down Condition Symbol Parameter - fHCLK = fHSE all peripherals disable Voltage scaling - Supply current in low-power sleep mode fHCLK = fHSI all peripherals disable - fHCLK Max Unit 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 2 MHz 175 290 805 1450 2500 750 2000 3700 6400 11000 1 MHz 125 280 765 1400 2450 700 2000 3700 6400 11000 250 KHz 105 240 735 1350 2400 670 1900 3700 6400 11000 62.5 KHz 105 245 725 1350 2400 660 1900 3700 6400 11000 2 MHz 670 830 1350 1950 3000 1400 2600 4300 7200 12000 1 MHz 655 825 1300 1950 3000 1400 2600 4300 7200 12000 250 KHz 635 825 1300 1900 2950 1400 2600 4300 7100 12000 62.5 KHz 640 840 1300 1900 2950 1200 2200 3700 6200 11000 μA 85/198 Electrical characteristics IDD (LPSleep) Typ Conditions Symbol Parameter 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 1.8 V 58.5 175 550 1050 1900 430 1400 3600 6500 11000 2.4 V 58.5 175 550 1050 1950 430 1400 3600 6600 11000 3.0 V 59.0 175 555 1050 1950 430 1400 3700 6600 11000 3.6 V 59.5 180 560 1100 1950 430 1400 3700 6700 11000 1.8 V 59.0 175 550 1050 1950 430 1400 3600 6500 11000 2.4 V 59.5 175 555 1050 1950 430 1400 3600 6600 11000 3.0 V 59.5 175 555 1050 1950 440 1400 3700 6600 11000 3.6 V 60.5 180 560 1100 1950 440 1400 3700 6700 11000 1.8 V 58.5 175 550 1050 1900 - - - - - 2.4 V 59.0 175 555 1050 1950 - - - - - 3.0 V 60.0 180 555 1050 1950 - - - - - 3.6 V 62.0 180 565 1100 1950 - - - - - 1.8 V 58.5 150 445 890 - - - - - - 2.4 V 59.0 150 445 890 - - - - - - 3.0 V 59.5 150 445 890 - - - - - - 3.6 V 61.0 150 450 895 - - - - - - Wakeup clock is HSI = 16 MHz, 3.0 V 1.39 - - - - - - - - - Wakeup clock is HSI = 4 MHz, (HPRE divider=4), voltage Range 2 3.0 V 0.93 - - - - - - - - - RTC clocked by LSI DS12589 Rev 6 IDD Supply current RTC clocked by LSE in Stop 1 mode, bypassed at 32768 (Stop 1 with RTC) RTC enabled Hz RTC clocked by LSE quartz in low drive mode at 32768 Hz IDD (Stop 1 with RTC) µA mA 1. Guaranteed by characterization results, unless otherwise specified. STM32G431x6 STM32G431x8 STM32G431xB 25°C Supply current in Stop 1 mode, RTC disabled RTC disabled Supply current during wakeup from Stop 1 mode Unit VDD - IDD (Stop 1) MAX(1) TYP Electrical characteristics 86/198 Table 29. Current consumption in Stop 1 mode Conditions Symbol Parameter - IDD(Stop 0) Supply current in Stop 0 mode, RTC disabled MAX(1) TYP Unit VDD 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 1.8 V 150 280 680 1200 2100 560 1600 4000 7100 12000 2.4 V 150 280 680 1200 2100 560 1600 4000 7100 12000 3V 155 280 685 1200 2150 560 1600 4000 7100 12000 3.6 V 155 285 685 1200 2150 560 1600 4000 7200 12000 µA 1. Guaranteed by characterization results, unless otherwise specified. Table 31. Current consumption in Standby mode Conditions Symbol Parameter DS12589 Rev 6 - No independent watchdog IDD (Standby) Supply current in Standby mode (backup registers retained), RTC disabled With independent watchdog MAX(1) TYP Unit 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 1.8 V 92.0 205 870 2250 5600 220 1000 3200 8000 20000 2.4 V 100 240 1000 2600 6450 250 1100 3600 9000 23000 3V 120 280 1200 3050 7400 280 1300 4200 11000 26000 3.6 V 175 385 1550 3800 9200 370 1500 4900 12000 30000 1.8 V 275 - - - - - - - - - 2.4 V 335 - - - - - - - - - 3V 400 - - - - - - - - - 3.6 V 510 - - - - - - - - - nA 87/198 Electrical characteristics VDD 25°C STM32G431x6 STM32G431x8 STM32G431xB Table 30. Current consumption in Stop 0 mode Conditions Symbol Parameter 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 1.8 V 490 605 1300 2650 5950 670 1400 3600 8200 20000 2.4 V 630 765 1550 3100 6950 850 1700 4200 9400 23000 3V 785 955 1850 3700 8050 1100 1900 4900 11000 26000 3.6 V 1000 1200 2350 4600 9950 1400 2400 5800 13000 30000 1.8 V 530 - - - - - - - - - 2.4 V 685 - - - - - - - - - 3V 860 - - - - - - - - - 3.6 V 1100 - - - - - - - - - 1.8 V 360 470 1100 2450 5750 - - - - - 2.4 V 480 625 1400 3000 6800 - - - - - 3V 825 1100 2200 4200 8700 - - - - - 3.6 V 2550 3400 5250 8000 13500 - - - - - 1.8 V 355 490 990 2150 4800 - - - - - RTC clocked by 2.4 V LSE quartz(2) in low 3V drive mode 455 605 1200 2550 5550 - - - - - 595 775 1450 3100 6400 - - - - - 3.6 V 810 1200 2050 3900 7750 - - - - - 1.8 V 218 530 1680 3500 6900 - - - - - DS12589 Rev 6 IDD (SRAM2)(3) Supply current to be added in Standby mode when SRAM2 is retained 2.4 V 220 525 1700 3500 7050 - - - - - 3V 215 530 1650 3500 7100 - - - - - 3.6 V 220 545 1700 3600 6800 - - - - - RTC clocked by LSI, with independent watchdog RTC clocked by LSE bypassed at 32768 Hz - nA nA nA STM32G431x6 STM32G431x8 STM32G431xB 55°C RTC clocked by LSI, no independent watchdog Supply current in Standby mode (backup registers (Standby with retained), RTC) RTC enabled Unit VDD 25°C - IDD MAX(1) TYP Electrical characteristics 88/198 Table 31. Current consumption in Standby mode (continued) Conditions Symbol Parameter VDD 25°C - IDD (wakeup Supply current during wakeup Wakeup clock is from Standby) from Standby mode HSI16 = 16 MHz(4) MAX(1) TYP 3V 2.0 Unit 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C - - - - - - - - - mA 1. Guaranteed by characterization results, unless otherwise specified. 2. Based on characterization done with a 32.768 kHz crystal (MC306-G-06Q-32.768, manufacturer JFVNY) with two 6.8 pF loading capacitors. 3. The supply current in Standby with SRAM2 mode is: IDD_ALL(Standby) + IDD_ALL(SRAM2). The supply current in Standby with RTC with SRAM2 mode is: IIDD_ALL(Standby + RTC) + IDD_ALL(SRAM2). 4. Wakeup with code execution from Flash. Average value given for a typical wakeup time as specified in Table 35: Low-power mode wakeup timings. Table 32. Current consumption in Shutdown mode Conditions DS12589 Rev 6 Symbol Parameter - IDD (Shutdown) Supply current in Shutdown mode (backup registers retained) RTC disabled - MAX(1) TYP Unit VDD 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 1.8 V 14.0 94.0 570 1600 4350 130 420 2100 6100 17000 2.4 V 22.0 120 670 1900 4950 150 490 2400 6900 19000 3V 35.0 150 805 2200 5750 180 560 2800 7800 21000 3.6 V 74.0 245 1100 2900 7350 220 710 3300 9100 24000 STM32G431x6 STM32G431x8 STM32G431xB Table 31. Current consumption in Standby mode (continued) nA Electrical characteristics 89/198 Conditions Symbol Parameter Supply current in Shutdown IDD mode (backup (Shutdown with registers RTC) retained) RTC enabled Supply current during wakeup from Shutdown mode Unit - VDD 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C RTC clocked by LSE bypassed at 32768 Hz 1.8 V 280 355 800 1800 4500 - - - - - 2.4 V 400 500 1050 2250 5350 - - - - - 3V 745 985 1850 3400 7100 - - - - - 3.6 V 2450 3250 4850 7100 11500 - - - - - RTC clocked by LSE quartz(2) in low drive mode 1.8 V 275 375 775 1650 - - - - - - 2.4 V 375 495 950 2050 - - - - - - 3V 515 640 1200 2550 - - - - - - 3.6 V 710 925 1750 3300 - - - - - - 3V 0.24 - - - - - - - - - Wakeup clock is HSI16 = 16 MHz(3) 1. Guaranteed by characterization results, unless otherwise specified. 2. Based on characterization done with a 32.768 kHz crystal (MC306-G-06Q-32.768, manufacturer JFVNY) with two 6.8 pF loading capacitors. 3. Wakeup with code execution from Flash. Average value given for a typical wakeup time as specified in Table 35: Low-power mode wakeup timings. nA mA STM32G431x6 STM32G431x8 STM32G431xB DS12589 Rev 6 IDD(wakeup from Shutdown) MAX(1) TYP Electrical characteristics 90/198 Table 32. Current consumption in Shutdown mode (continued) Conditions Symbol Parameter 25°C 55°C 85°C 105°C 125°C 25°C 55°C 85°C 105°C 125°C 1.8 V 4.00 21.0 105 280 685 - - - - - 2.4 V 5.00 24.0 120 310 765 - - - - - 3V 6.00 28.0 140 360 865 - - - - - 3.6 V 15.0 54.0 240 615 1500 - - - - - RTC enabled and clocked by LSE bypassed at 32768 Hz 1.8 V 270 275 330 475 - - - - - - 2.4 V 385 400 490 690 - - - - - - 3V 725 865 1150 1550 - - - - - - 3.6 V 2500 3050 3900 4700 - - - - - - RTC enabled and clocked by LSE quartz(2) 1.8 V 265 315 415 670 1000 - - - - - 2.4 V 355 415 530 865 1150 - - - - - 3V 480 545 710 1050 1250 - - - - - 3.6 V 675 870 1100 1500 1700 - - - - - RTC disabled Backup domain supply current Unit VBAT - IDD(VBAT) MAX(1) TYP nA DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Table 33. Current consumption in VBAT mode 1. Guaranteed by characterization results, unless otherwise specified. 2. Based on characterization done with a 32.768 kHz crystal (MC306-G-06Q-32.768, manufacturer JFVNY) with two 6.8 pF loading capacitors. Electrical characteristics 91/198 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB I/O system current consumption The current consumption of the I/O system has two components: static and dynamic. I/O static current consumption All the I/Os used as inputs with pull-up generate current consumption when the pin is externally held low. The value of this current consumption can be simply computed by using the pull-up/pull-down resistors values given in Table 53: I/O static characteristics. For the output pins, any external pull-down or external load must also be considered to estimate the current consumption. Additional I/O current consumption is due to I/Os configured as inputs if an intermediate voltage level is externally applied. This current consumption is caused by the input Schmitt trigger circuits used to discriminate the input value. Unless this specific configuration is required by the application, this supply current consumption can be avoided by configuring these I/Os in analog mode. This is notably the case of ADC, OPAMP, COMP input pins which should be configured as analog inputs. Caution: Any floating input pin can also settle to an intermediate voltage level or switch inadvertently, as a result of external electromagnetic noise. To avoid current consumption related to floating pins, they must either be configured in analog mode, or forced internally to a definite digital value. This is done either by using pull-up/down resistors or by configuring the pins in output mode. I/O dynamic current consumption In addition to the internal peripheral current consumption measured previously (see Table 35: Low-power mode wakeup timings), the I/Os used by an application also contribute to the current consumption. When an I/O pin switches, it uses the current from the I/O supply voltage to supply the I/O pin circuitry and to charge/discharge the capacitive load (internal or external) connected to the pin: I SW = V DDIOx × f SW × C where ISW is the current sunk by a switching I/O to charge/discharge the capacitive load VDD is the I/O supply voltage fSW is the I/O switching frequency C is the total capacitance seen by the I/O pin: C = CINT+ CEXT + CS CS is the PCB board capacitance including the pad pin. The test pin is configured in push-pull output mode and is toggled by software at a fixed frequency. 92/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Electrical characteristics On-chip peripheral current consumption The current consumption of the on-chip peripherals is given in Table 34. The MCU is placed under the following conditions: • All I/O pins are in Analog mode • The given value is calculated by measuring the difference of the current consumptions: – when the peripheral is clocked on – when the peripheral is clocked off • Ambient operating temperature and supply voltage conditions summarized in Table 14: Voltage characteristics • The power consumption of the digital part of the on-chip peripherals is given in Table 34. The power consumption of the analog part of the peripherals (where applicable) is indicated in each related section of the datasheet. Table 34. Peripheral current consumption Range 1 Boost Mode Range 1 Range 2 Low-power run and sleep Unit Bus Matrix 5.31 5.00 4.07 4.97 µA/MHz DMA1 3.21 2.95 2.45 2.68 DMA2 3.10 2.86 2.37 2.59 DMAMUX 7.48 6.97 5.74 6.43 CORDIC 1.61 1.50 1.24 1.34 FMAC 3.70 3.47 2.86 3.27 FLASH 6.10 5.66 4.64 5.33 SRAM1 0.31 0.32 0.26 0.38 BUS AHB AHB1 Peripheral DS12589 Rev 6 µA/MHz 93/198 160 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB Table 34. Peripheral current consumption (continued) Range 1 Boost Mode Range 1 Range 2 Low-power run and sleep CRC 1.11 1.05 0.86 0.90 GPIOA 1.00 0.91 0.73 0.93 GPIOB 0.55 0.50 0.41 0.54 GPIOC 0.56 0.51 0.42 0.43 GPIOD 0.35 0.33 0.26 0.26 GPIOE 0.59 0.55 0.45 0.41 GPIOF 0.46 0.43 0.36 0.31 GPIOG 0.38 0.36 0.29 0.26 CCMSRAM 0.32 0.31 0.26 0.25 SRAM2 0.70 0.66 0.55 0.55 ADC12 AHB clock domain 6.72 6.27 5.17 5.95 ADC12 independent clock domain 0.61 0.59 0.46 0.56 DAC1 5.57 5.17 4.40 4.99 DAC3 5.67 5.30 NA NA RNG clock domain 3.63 3.37 NA Na RNG independent clock domain 1.06 1.00 NA NA ALL AHB peripherals 79.97 74.54 57.83 66.98 AHB to APB1 bridge 0.47 0.37 0.32 0.08 TIM2 10.84 10.04 8.21 9.31 TIM3 9.32 8.65 7.10 8.02 TIM4 8.60 8.00 6.61 7.53 TIM6 2.88 2.69 2.22 2.66 TIM7 2.72 2.53 2.09 2.41 CRS 0.65 0.62 0.50 0.57 RTC 3.72 3.49 2.92 3.73 WWDG 0.77 0.74 0.60 0.71 SPI2 4.96 4.63 3.82 4.33 SPI3 5.33 4.98 4.09 4.67 I2S2 clock domain 3.45 3.23 2.65 2.95 I2S2 independent clock domain 1.51 1.40 1.17 1.38 I2S3 clock domain 3.86 3.62 2.97 3.49 I2S3 independent clock domain 1.47 1.36 1.12 1.18 BUS AHB2 AHB APB1 94/198 Peripheral DS12589 Rev 6 Unit µA/MHz µA/MHz µA/MHz STM32G431x6 STM32G431x8 STM32G431xB Electrical characteristics Table 34. Peripheral current consumption (continued) Range 1 Boost Mode Range 1 Range 2 Low-power run and sleep USART2 clock domain 3.57 3.36 2.76 3.22 USART2 independent clock domain 7.93 7.36 6.10 6.84 USART3 clock domain 3.50 3.29 2.68 3.12 USART3 independent clock domain 7.69 7.14 5.94 6.71 UART4 clock domain 3.30 3.10 2.54 2.91 UART4 independent clock domain 6.53 6.06 5.02 5.61 I2C1 clock domain 1.69 1.60 1.31 1.53 I2C1 independent clock domain 3.95 3.68 3.05 3.47 I2C2 clock domain 1.69 1.60 1.31 1.53 I2C2 independent clock domain 4.04 3.76 3.11 3.58 USB clock domain 0.57 0.55 0.44 0.51 USB independent clock domain 1.19 1.10 5.28 NA FDCAN clock domain 9.52 8.90 7.32 8.29 FDCAN independent clock domain 4.82 4.48 3.70 4.37 PWR 1.26 1.19 0.96 1.04 I2C3 clock domain 1.68 1.59 1.30 1.53 I2C3 independent clock domain 2.48 2.30 1.92 2.19 LPTIM1 clock domain 1.52 1.45 1.17 1.43 LPTIM1 independent clock domain 4.38 4.05 3.38 3.68 LPUART1 clock domain 2.42 2.29 1.87 2.15 LPUART1 independent clock domain 4.65 4.30 3.59 4.14 138.92 129.50 105.42 120.34 AHB to APB2 bridge 0.43 0.36 0.30 0.19 UCPD clock domain 3.67 3.42 2.82 3.24 UCPD independent clock domain 1.28 1.20 5.73 NA BUS APB1 Peripheral ALL APB1 on DS12589 Rev 6 Unit µA/MHz 95/198 160 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB Table 34. Peripheral current consumption (continued) Range 1 Boost Mode Range 1 Range 2 Low-power run and sleep SYSCFG/VREFBUF/COMP 1.94 1.81 1.49 1.82 TIM1 12.00 11.16 9.20 10.41 SPI1 2.47 2.32 1.92 2.18 TIM8 11.65 10.83 8.93 10.17 USART1 clock domain 2.84 2.65 2.18 2.48 USART1 independent clock domain 7.01 6.53 5.38 6.17 SPI4 2.47 2.32 1.92 2.18 TIM15 6.00 5.57 4.61 5.26 TIM16 4.18 3.89 3.20 3.57 TIM17 4.37 4.06 3.33 3.76 SAI1 clock domain 3.08 2.88 2.36 2.79 SAI1 independent clock domain 3.07 2.84 2.35 2.63 ALL APB2 on 62.79 58.41 52.90 53.64 ALL peripherals 250.00 210.44 179.05 225.00 BUS APB2 96/198 Peripheral DS12589 Rev 6 Unit µA/MHz STM32G431x6 STM32G431x8 STM32G431xB 5.3.6 Electrical characteristics Wakeup time from low-power modes and voltage scaling transition times The wakeup times given in Table 35 are the latency between the event and the execution of the first user instruction. The device goes in low-power mode after the WFE (Wait For Event) instruction. Table 35. Low-power mode wakeup timings(1) Symbol tWUSLEEP Parameter Conditions Typ Max - 11 12 - 10 11 Wakeup time from Sleep mode to Run mode Wakeup time from LowtWULPSLEEP power sleep mode to Lowpower run mode tWUSTOP0 tWUSTOP1 Wake up time from Stop 0 mode to Run mode in Flash Range 1 Wakeup clock HSI16 = 16 MHz 5.8 6 Range 2 Wakeup clock HSI16 = 16 MHz 18.4 19.1 Wake up time from Stop 0 mode to Run mode in SRAM1 Range 1 Wakeup clock HSI16 = 16 MHz 2.8 3 Range 2 Wakeup clock HSI16 = 16 MHz 2.9 3 Wake up time from Stop 1 mode to Run in Flash Range 1 Wakeup clock HSI16 = 16 MHz 9.5 9.8 Range 2 Wakeup clock HSI16 = 16 MHz 21.9 22.7 Wake up time from Stop 1 mode to Run mode in SRAM1 Range 1 Wakeup clock HSI16 = 16 MHz 6.6 6.9 Range 2 Wakeup clock HSI16 = 16 MHz 6.4 6.6 26.1 27.1(2) Wake up time from Stop 1 mode to Low-power run mode in Flash Wake up time from Stop 1 mode to Low-power run mode in SRAM1 Regulator in Wakeup clock low-power HSI16 = 16 MHz, mode (LPR=1 with HPRE = 8 in PWR_CR1) 14.4 15(2) Wakeup time from Standby mode to Run mode Range 1 Wakeup clock HSI16 = 16 MHz 29.7 33.8 Wakeup time from Standby with SRAM2 to Run mode Range 1 Wakeup clock HSI16 = 16 MHz 29.7 33.5 tWUSHDN Wakeup time from Shutdown mode to Run mode Range 1 Wakeup clock HSI16 = 16 MHz 267.9 274.6(2) tWULPRUN Wakeup time from Lowpower run mode to Run mode(3) tWUSTBY tWUSTBY SRAM2 Wakeup clock HSI16 = 16 MHz HPRE = 8 5 Unit Nb of CPU cycles µs 7 1. Guaranteed by characterization results. 2. Characterization results for temperature range from 0°C to 125°C. 3. Time until REGLPF flag is cleared in PWR_SR2. DS12589 Rev 6 97/198 160 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB Table 36. Regulator modes transition times(1) Symbol tVOST Parameter Conditions Regulator transition time from Range 2 to Range 1 or Range 1 to Range 2(2) Typ Max Unit 20 40 μs Typ Max Unit Stop 0 mode - 1.7 Stop 1 mode - 8.5 Wakeup clock HSI16 = 16 MHz HPRE = 8 1. Guaranteed by characterization results. 2. Time until VOSF flag is cleared in PWR_SR2. Table 37. Wakeup time using USART/LPUART(1) Symbol tWUUSART tWULPUART Parameter Conditions Wakeup time needed to calculate the maximum USART/LPUART baudrate allowing to wakeup up from stop mode when USART/LPUART clock source is HSI16 μs 1. Guaranteed by design. 5.3.7 External clock source characteristics High-speed external user clock generated from an external source In bypass mode the HSE oscillator is switched off and the input pin is a standard GPIO. The external clock signal has to respect the I/O characteristics in Section 5.3.14. However, the recommended clock input waveform is shown in Figure 19: High-speed external clock source AC timing diagram. Table 38. High-speed external user clock characteristics(1) Symbol fHSE_ext Parameter User external clock source frequency Conditions Min Typ Max Voltage scaling Range 1 - 8 48 Voltage scaling Range 2 - 8 26 OSC_IN input pin high level voltage - 0.7 VDD - VDD VHSEL OSC_IN input pin low level voltage - VSS - 0.3 VDD Voltage scaling Range 1 7 - - Voltage scaling Range 2 18 - - V OSC_IN high or low time 1. Guaranteed by design. 98/198 MHz VHSEH tw(HSEH) tw(HSEL) Unit DS12589 Rev 6 ns STM32G431x6 STM32G431x8 STM32G431xB Electrical characteristics Figure 19. High-speed external clock source AC timing diagram tw(HSEH) VHSEH 90% VHSEL 10% tr(HSE) tf(HSE) t tw(HSEL) THSE MS19214V2 Low-speed external user clock generated from an external source In bypass mode the LSE oscillator is switched off and the input pin is a standard GPIO. The external clock signal has to respect the I/O characteristics in Section 5.3.14. However, the recommended clock input waveform is shown in Figure 20. Table 39. Low-speed external user clock characteristics(1) Symbol Parameter Conditions Min Typ Max Unit kHz fLSE_ext User external clock source frequency - - 32.768 1000 VLSEH OSC32_IN input pin high level voltage - 0.7 VDD - VDD VLSEL OSC32_IN input pin low level voltage - VSS - 0.3 VDD - 250 - - V tw(LSEH) OSC32_IN high or low time tw(LSEL) ns 1. Guaranteed by design. Figure 20. Low-speed external clock source AC timing diagram tw(LSEH) VLSEH 90% VLSEL 10% tr(LSE) tf(LSE) t tw(LSEL) TLSE MS19215V2 DS12589 Rev 6 99/198 160 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB High-speed external clock generated from a crystal/ceramic resonator The high-speed external (HSE) clock can be supplied with a 4 to 48 MHz crystal/ceramic resonator oscillator. All the information given in this paragraph are based on design simulation results obtained with typical external components specified in Table 40. In the application, the resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and startup stabilization time. Refer to the crystal resonator manufacturer for more details on the resonator characteristics (frequency, package, accuracy). Table 40. HSE oscillator characteristics(1) Symbol fOSC_IN RF Conditions(2) Min Typ Max Unit Oscillator frequency - 4 8 48 MHz Feedback resistor - - 200 - kΩ - - 5.5 VDD = 3 V, Rm = 30 Ω, CL = 10 pF@8 MHz - 0.44 - VDD = 3 V, Rm = 45 Ω, CL = 10 pF@8 MHz - 0.45 - VDD = 3 V, Rm = 30 Ω, CL = 5 pF@48 MHz - 0.68 - VDD = 3 V, Rm = 30 Ω, CL = 10 pF@48 MHz - 0.94 - VDD = 3 V, Rm = 30 Ω, CL = 20 pF@48 MHz - 1.77 - Startup - - 1.5 mA/V VDD is stabilized - 2 - ms Parameter During startup IDD(HSE) Gm HSE current consumption Maximum critical crystal transconductance tSU(HSE)(4) Startup time (3) mA 1. Guaranteed by design. 2. Resonator characteristics given by the crystal/ceramic resonator manufacturer. 3. This consumption level occurs during the first 2/3 of the tSU(HSE) startup time 4. tSU(HSE) is the startup time measured from the moment it is enabled (by software) to a stabilized 8 MHz oscillation is reached. This value is measured for a standard crystal resonator and it can vary significantly with the crystal manufacturer For CL1 and CL2, it is recommended to use high-quality external ceramic capacitors in the 5 pF to 20 pF range (typ.), designed for high-frequency applications, and selected to match the requirements of the crystal or resonator (see Figure 21). CL1 and CL2 are usually the same size. The crystal manufacturer typically specifies a load capacitance which is the series combination of CL1 and CL2. PCB and MCU pin capacitance must be included (10 pF can be used as a rough estimate of the combined pin and board capacitance) when sizing CL1 and CL2. 100/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Note: Electrical characteristics For information on selecting the crystal, refer to the application note AN2867 “Oscillator design guide for ST microcontrollers” available from the ST website www.st.com. Figure 21. Typical application with an 8 MHz crystal Resonator with integrated capacitors CL1 OSC_IN 8 MHz resonator CL2 REXT (1) fHSE RF Bias controlled gain OSC_OUT MS19876V1 1. REXT value depends on the crystal characteristics. Low-speed external clock generated from a crystal resonator The low-speed external (LSE) clock can be supplied with a 32.768 kHz crystal resonator oscillator. All the information given in this paragraph are based on design simulation results obtained with typical external components specified in Table 41. In the application, the resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and startup stabilization time. Refer to the crystal resonator manufacturer for more details on the resonator characteristics (frequency, package, accuracy). DS12589 Rev 6 101/198 160 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB Table 41. LSE oscillator characteristics (fLSE = 32.768 kHz)(1) Symbol IDD(LSE) Conditions(2) Parameter LSE current consumption Maximum critical crystal Gmcritmax gm tSU(LSE)(3) Startup time Min Typ Max LSEDRV[1:0] = 00 Low drive capability - 250 - LSEDRV[1:0] = 01 Medium low drive capability - 315 - LSEDRV[1:0] = 10 Medium high drive capability - 500 - LSEDRV[1:0] = 11 High drive capability - 630 - LSEDRV[1:0] = 00 Low drive capability - - 0.5 LSEDRV[1:0] = 01 Medium low drive capability - - 0.75 LSEDRV[1:0] = 10 Medium high drive capability - - 1.7 LSEDRV[1:0] = 11 High drive capability - - 2.7 VDD is stabilized - 2 - Unit nA µA/V s 1. Guaranteed by design. 2. Refer to the note and caution paragraphs below the table, and to the application note AN2867 “Oscillator design guide for ST microcontrollers”. 3. Note: tSU(LSE) is the startup time measured from the moment it is enabled (by software) to a stabilized 32.768 kHz oscillation is reached. This value is measured for a standard crystal and it can vary significantly with the crystal manufacturer For information on selecting the crystal, refer to the application note AN2867 “Oscillator design guide for ST microcontrollers” available from the ST website www.st.com. Figure 22. Typical application with a 32.768 kHz crystal Resonator with integrated capacitors CL1 OSC32_IN fLSE Drive programmable amplifier 32.768 kHz resonator OSC32_OUT CL2 MS30253V2 Note: 102/198 An external resistor is not required between OSC32_IN and OSC32_OUT and it is forbidden to add one. DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB 5.3.8 Electrical characteristics Internal clock source characteristics The parameters given in Table 42 are derived from tests performed under ambient temperature and supply voltage conditions summarized in Table 17: General operating conditions. The provided curves are characterization results, not tested in production. High-speed internal (HSI16) RC oscillator Table 42. HSI16 oscillator characteristics(1) Symbol fHSI16 TRIM Parameter HSI16 Frequency HSI16 user trimming step Conditions Min Typ VDD=3.0 V, TA=30 °C 15.88 - Trimming code is not a multiple of 64 0.2 0.3 Trimming code is a multiple of 64 -4 -6 -8 45 - 55 % -1 - 1 % -2 - 1.5 % -0.1 - 0.05 % DuCy(HSI16)(2) Duty Cycle - Max Unit 16.08 MHz 0.4 % ∆Temp(HSI16) HSI16 oscillator frequency TA= 0 to 85 °C drift over temperature TA= -40 to 125 °C ∆VDD(HSI16) HSI16 oscillator frequency VDD=1.62 V to 3.6 V drift over VDD tsu(HSI16)(2) HSI16 oscillator start-up time - - 0.8 1.2 μs tstab(HSI16)(2) HSI16 oscillator stabilization time - - 3 5 μs IDD(HSI16)(2) HSI16 oscillator power consumption - - 155 190 μA 1. Guaranteed by characterization results. 2. Guaranteed by design. DS12589 Rev 6 103/198 160 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB Figure 23. HSI16 frequency versus temperature MHz 16.4 +2 % 16.3 +1.5 % 16.2 +1 % 16.1 16 15.9 -1 % 15.8 -1.5 % 15.7 -2 % 15.6 -40 -20 0 20 Mean 40 60 80 min 100 120 °C max MSv39299V2 High-speed internal 48 MHz (HSI48) RC oscillator Table 43. HSI48 oscillator characteristics(1) Symbol fHSI48 TRIM USER TRIM COVERAGE Parameter HSI48 Frequency Conditions VDD=3.0V, TA=30°C HSI48 user trimming step HSI48 user trimming coverage ±32 steps DuCy(HSI48) Duty Cycle - VDD = 3.0 V to 3.6 V, Accuracy of the HSI48 TA = –15 to 85 °C ACCHSI48_REL oscillator over temperature VDD = 1.65 V to 3.6 V, (factory calibrated) TA = –40 to 125 °C DVDD(HSI48) 104/198 HSI48 oscillator frequency VDD = 3 V to 3.6 V drift with VDD VDD = 1.65 V to 3.6 V Min Typ Max Unit - 48 - MHz - 0.11(2) 0.18(2) % ±3(3) ±3.5(3) - % 45(2) - 55(2) % - - ±3(3) - - ±4.5(3) - 0.025(3) 0.05(3) - 0.05(3) 0.1(3) % % tsu(HSI48) HSI48 oscillator start-up time - - 2.5(2) 6(2) μs IDD(HSI48) HSI48 oscillator power consumption - - 340(2) 380(2) μA DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Electrical characteristics Table 43. HSI48 oscillator characteristics(1) (continued) Symbol Parameter Conditions Min Typ Max Unit NT jitter Next transition jitter Accumulated jitter on 28 cycles(4) - - +/-0.15(2) - ns PT jitter Paired transition jitter Accumulated jitter on 56 cycles(4) - - +/-0.25(2) - ns 1. VDD = 3 V, TA = –40 to 125°C unless otherwise specified. 2. Guaranteed by design. 3. Guaranteed by characterization results. 4. Jitter measurement are performed without clock source activated in parallel. Figure 24. HSI48 frequency versus temperature % 6 4 2 0 -2 -4 -6 -50 -30 -10 10 30 50 Avg 70 90 min 110 130 °C max MSv40989V1 Low-speed internal (LSI) RC oscillator Table 44. LSI oscillator characteristics(1) Symbol fLSI tSU(LSI)(2) Parameter LSI Frequency Conditions Min Typ Max VDD = 3.0 V, TA = 30 °C 31.04 - 32.96 VDD = 1.62 to 3.6 V, TA = -40 to 125 °C 29.5 - 34 - 80 130 LSI oscillator start-up time DS12589 Rev 6 - Unit kHz μs 105/198 160 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB Table 44. LSI oscillator characteristics(1) (continued) Symbol Parameter tSTAB(LSI)(2) IDD(LSI)(2) Conditions Min Typ Max Unit LSI oscillator stabilization 5% of final frequency time - 125 180 μs LSI oscillator power consumption - 110 180 nA - 1. Guaranteed by characterization results. 2. Guaranteed by design. 5.3.9 PLL characteristics The parameters given in Table 45 are derived from tests performed under temperature and VDD supply voltage conditions summarized in Table 17: General operating conditions. Table 45. PLL characteristics(1) Symbol fPLL_IN Parameter Conditions Min Typ Max Unit PLL input clock(2) - 2.66 - 16 MHz PLL input clock duty cycle - 45 - 55 % Voltage scaling Range 1 Boost mode 2.0645 - 170 Voltage scaling Range 1 2.0645 - 150 Voltage scaling Range 2 2.0645 - 26 Voltage scaling Range 1 Boost mode 8 - 170 Voltage scaling Range 1 8 - 150 Voltage scaling Range 2 8 - 26 Voltage scaling Range 1 Boost mode 8 - 170 Voltage scaling Range 1 8 - 150 Voltage scaling Range 2 8 - 26 Voltage scaling Range 1 96 - 344 Voltage scaling Range 2 96 - 128 - - 15 40 - 28.6 - - 21.4 - VCO freq = 96 MHz - 200 260 VCO freq = 192 MHz - 300 380 VCO freq = 344 MHz - 520 650 fPLL_P_OUT PLL multiplier output clock P fPLL_Q_OUT PLL multiplier output clock Q fPLL_R_OUT PLL multiplier output clock R fVCO_OUT tLOCK Jitter IDD(PLL) PLL VCO output PLL lock time RMS cycle-to-cycle jitter RMS period jitter PLL power consumption on VDD(1) System clock 150 MHz 1. Guaranteed by design. 2. Take care of using the appropriate division factor M to obtain the specified PLL input clock values. 106/198 DS12589 Rev 6 MHz μs ±ps μA STM32G431x6 STM32G431x8 STM32G431xB 5.3.10 Electrical characteristics Flash memory characteristics Table 46. Flash memory characteristics(1) Symbol Parameter Conditions Typ Max Unit tprog 64-bit programming time - 81.7 83.35 µs tprog_row One row (32 double word) programming time Normal programming 2.61 2.7 Fast programming 1.91 1.95 tprog_page One page (2 Kbytes) programming time Normal programming 20.91 21.34 Fast programming 15.29 15.6 22.02 24.47 Normal programming 1.34 1.49 Fast programming 0.98 1.09 22.13 24.6 Write mode 3.5 - Erase mode 3.5 - Write mode 7 (for 6 µs) - Erase mode 7 (for 67 µs) - tERASE Page (2 Kbytes) erase time tprog_bank One bank (128 Kbyte) programming time tME IDD - Mass erase time - Average consumption from VDD Maximum current (peak) ms s ms mA 1. Guaranteed by design. Table 47. Flash memory endurance and data retention Symbol NEND tRET Min(1) Unit TA = -40 to +105 °C 10 kcycles 1 kcycle(2) at TA = 85 °C 30 Parameter Endurance Data retention Conditions 1 kcycle (2) 1 kcycle (2) at TA = 105 °C 15 at TA = 125 °C 7 (2) at TA = 55 °C 30 10 kcycles(2) at TA = 85 °C 15 10 kcycles 10 kcycles (2) at TA = 105 °C Years 10 1. Guaranteed by characterization results. 2. Cycling performed over the whole temperature range. DS12589 Rev 6 107/198 160 Electrical characteristics 5.3.11 STM32G431x6 STM32G431x8 STM32G431xB EMC characteristics Susceptibility tests are performed on a sample basis during device characterization. Functional EMS (electromagnetic susceptibility) While a simple application is executed on the device (toggling 2 LEDs through I/O ports). the device is stressed by two electromagnetic events until a failure occurs. The failure is indicated by the LEDs: • Electrostatic discharge (ESD) (positive and negative) is applied to all device pins until a functional disturbance occurs. This test is compliant with the IEC 61000-4-2 standard. • FTB: A Burst of Fast Transient voltage (positive and negative) is applied to VDD and VSS through a 100 pF capacitor, until a functional disturbance occurs. This test is compliant with the IEC 61000-4-4 standard. A device reset allows normal operations to be resumed. The test results are given in Table 48. They are based on the EMS levels and classes defined in application note AN1709. Table 48. EMS characteristics Conditions Level/ Class Symbol Parameter VFESD Voltage limits to be applied on any I/O pin to induce a functional disturbance VDD = 3.3 V, TA = +25 °C, fHCLK = 170 MHz, conforming to IEC 61000-4-2 2B VEFTB Fast transient voltage burst limits to be applied through 100 pF on VDD and VSS pins to induce a functional disturbance VDD = 3.3 V, TA = +25 °C, fHCLK = 170 MHz, conforming to IEC 61000-4-4 5A Designing hardened software to avoid noise problems EMC characterization and optimization are performed at component level with a typical application environment and simplified MCU software. It should be noted that good EMC performance is highly dependent on the user application and the software in particular. Therefore it is recommended that the user applies EMC software optimization and prequalification tests in relation with the EMC level requested for his application. Software recommendations The software flowchart must include the management of runaway conditions such as: • Corrupted program counter • Unexpected reset • Critical Data corruption (control registers...) Prequalification trials Most of the common failures (unexpected reset and program counter corruption) can be reproduced by manually forcing a low state on the NRST pin or the Oscillator pins for 1 second. 108/198 DS12589 Rev 6 STM32G431x6 STM32G431x8 STM32G431xB Electrical characteristics To complete these trials, ESD stress can be applied directly on the device, over the range of specification values. When unexpected behavior is detected, the software can be hardened to prevent unrecoverable errors occurring (see application note AN1015). Electromagnetic Interference (EMI) The electromagnetic field emitted by the device are monitored while a simple application is executed (toggling 2 LEDs through the I/O ports). This emission test is compliant with IEC 61967-2 standard which specifies the test board and the pin loading. Table 49. EMI characteristics Symbol SEMI Parameter Peak level Monitored frequency band Conditions Unit 8 MHz / 170 MHz 0.1 MHz to 30 MHz 3 30 MHz to 130 MHz VDD = 3.6 V, TA = 25 °C, LQFP100 package 130 MHz to 1 GHz compliant with IEC 61967-2 1 GHz to 2 GHz -2 EMI Level 5.3.12 Max vs. [fHSE/fHCLK] dBµV 25 18 4 - Electrical sensitivity characteristics Based on three different tests (ESD, LU) using specific measurement methods, the device is stressed in order to determine its performance in terms of electrical sensitivity. Electrostatic discharge (ESD) Electrostatic discharges (a positive then a negative pulse separated by 1 second) are applied to the pins of each sample according to each pin combination. The sample size depends on the number of supply pins in the device (3 parts × (n+1) supply pins). This test conforms to the ANSI/JEDEC standard. Table 50. ESD absolute maximum ratings Symbol Ratings Conditions VESD(HBM) Electrostatic discharge voltage (human body model) TA = +25 °C, conforming to ANSI/ESDA/JEDEC JS-001 VESD(CDM) Electrostatic discharge TA = +25 °C, conforming to voltage (charge device model) ANSI/ESDA/JEDEC JS- 002 Class Maximum Unit value(1) 2 2000 V C1 250 V 1. Guaranteed by characterization results. DS12589 Rev 6 109/198 160 Electrical characteristics STM32G431x6 STM32G431x8 STM32G431xB Static latch-up Two complementary static tests are required on three parts to assess the latch-up performance: • A supply overvoltage is applied to each power supply pin. • A current injection is applied to each input, output and configurable I/O pin. These tests are compliant with EIA/JESD 78E IC latch-up standard. Table 51. Electrical sensitivities Symbol LU 5.3.13 Parameter Static latch-up class Conditions Class TA = +125 °C conforming to JESD78E Class II level A I/O current injection characteristics As a general rule, current injection to the I/O pins, due to external voltage below VSS or above VDD (for standard, 3.3 V-capable I/O pins) should be avoided during normal product operation. However, in order to give an indication of the robustness of the microcontroller in cases when abnormal injection accidentally happens, susceptibility tests are performed on a sample basis during device characterization. Functional susceptibility to I/O current injection While a simple application is executed on the device, the device is stressed by injecting current into the I/O pins programmed in floating input mode. While current is injected into the I/O pin, one at a time, the device is checked for functional failures. The failure is indicated by an out of range parameter: ADC error above a certain limit (higher than 5 LSB TUE), out of conventional limits of induced leakage current on adjacent pins (out of the -5 µA/+0 µA range) or other functional failure (for example reset occurrence or oscillator frequency deviation). The characterization results are given in Table 52. Negative induced leakage current is caused by negative injection and positive induced leakage current is caused by positive injection. Table 52. I/O current injection susceptibility Functional susceptibility Symbol (1) IINJ Description Injected current on pin Unit Negative injection Positive injection All except TT_a, PF2 -5 NA PF2 -0 NA TT_a pins -5 0 1. Guaranteed by characterization. 110/198 DS12589 Rev 6 mA STM32G431x6 STM32G431x8 STM32G431xB 5.3.14 Electrical characteristics I/O port characteristics General input/output characteristics Unless otherwise specified, the parameters given in Table 53 are derived from tests performed under the conditions summarized in Table 17: General operating conditions. All I/Os are designed as CMOS- and TTL-compliant. Table 53. I/O static characteristics Symbol Parameter I/O input VIL(1)(2) low level voltage I/O input VIH(1)(2) high level voltage VHYS(3) Input hysteresis Conditions All except FT_c 1.62 V
