STN2580

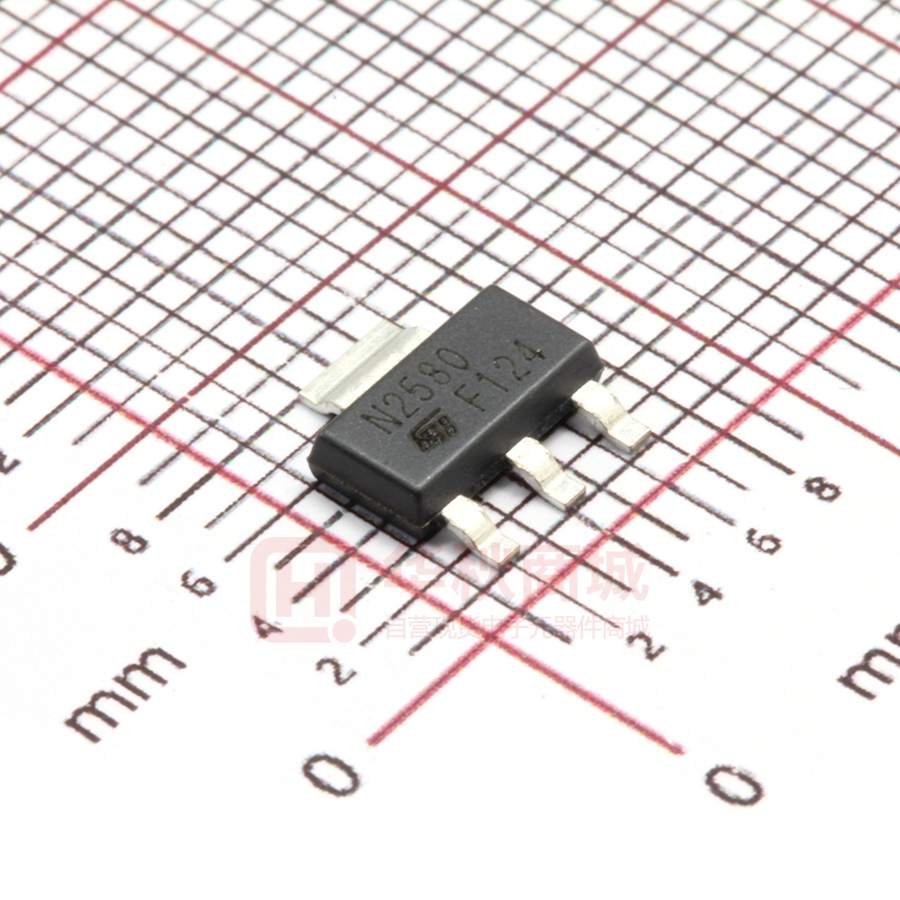

STN2580 High voltage fast switching NPN power transistor Datasheet — production data Features ■ High voltage capability ■ Fast switching speed 4 Applications 1 ■ Lighting ■ Switch mode power supply 2 3 SOT-223 Description This device is a high voltage fast-switching NPN power transistor. It is manufactured using high voltage multi epitaxial planar technology for high switching speeds and medium voltage capability. It uses a cellular emitter structure with planar edge termination to enhance switching speeds while maintaining a wide RBSOA. The device is designed for use in lighting applications and low cost switch-mode power supplies. Table 1. Figure 1. Internal schematic diagram Device summary Order codes Marking Package Packaging STN2580 N2580 SOT-223 Tape and reel January 2013 This is information on a product in full production. Doc ID 023873 Rev 2 1/15 www.st.com 15 Contents STN2580 Contents 1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3 Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 5 Packaging mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2/15 Doc ID 023873 Rev 2 STN2580 1 Electrical ratings Electrical ratings Table 2. Absolute maximum ratings Symbol Parameter Value Unit VCES Collector-emitter voltage (VBE = 0) 800 V VCEO Collector-emitter voltage (IB = 0) 400 V VEBO Emitter-base voltage (IC = 0) 9 V Collector current 1 A Collector peak current (tP < 5 ms) 2 A Base current 0.5 A PTOT Total dissipation at Tamb = 25 °C 1.6 W TSTG Storage temperature -65 to 150 °C 150 °C Value Unit 78 °C/W IC ICM IB TJ Table 3. Max. operating junction temperature Thermal data Symbol RthJA Parameter Thermal resistance junction-ambient max(1) 1. When mounted on PCB area of 1cm2 Doc ID 023873 Rev 2 3/15 Electrical characteristics 2 STN2580 Electrical characteristics Tcase = 25 °C unless otherwise specified. Table 4. Symbol Electrical characteristics Parameter Test conditions Typ. Max. Unit ICBO Collector cut-off current (IE = 0) VCB = 800 V 10 µA IEBO Emitter cut-off current (IC = 0) VEB = 8 V 100 µA Collector-emitter V(BR)CEO (1) breakdown voltage (IB = 0) IC = 10 mA 400 V Emitter-base breakdown voltage (IC = 0) IE = 100 µA 9 V DC current gain IC = 250 mA VCE = 5 V VCE(sat) (1) Collector-emitter saturation voltage IC = 1 A IB = 0.2 A 1 V VBE(sat) (1) Base-emitter saturation voltage IC = 1 A IB = 0.2 A 1.1 V Resistive load Rise time Storage time Fall time VCC=200 V, IC=0.3 A IB1=20 mA, IB2=-50 mA Tp=30 µs V(BR)EBO hFE (1) tr ts tf 1. Pulse test: pulse duration ≤300 µs, duty cycle ≤2% 4/15 Min. Doc ID 023873 Rev 2 60 100 140 4 90 ns µs ns STN2580 Electrical characteristics 2.1 Electrical characteristics (curves) Figure 2. Safe operating area Figure 3.   0ULSEOPERATION  )C-AX MS )C;!= MS )C-AX#ONT  MS &ORSINGLE NONREPETITIVE PULSE —S  4 # #    Figure 4.          6CE;6=  #OLLECTORPOWERDISSIPATION 0C7        Figure 5.      4AMB #  !-V Output curves up to VCE=10 V )"M!  )"M!     )"M!   #OLLECTORCURRENT)C;!=      )"M!     !-V Output curves up to VCE=2 V  #OLLECTORCURRENT)C;!= Derating curve               #OLLECTOR EMITTERVOLTAGE6CE;6=  DC current gain (VCE = 1 V)       #OLLECTOR EMITTERVOLTAGE6CE;6= !-V Figure 6.  Figure 7.   !-V DC current gain (VCE = 5 V)   4J # 4J #   4J  # HFE HFE 4J  # 4J # 4J #          )C;!= !-V Doc ID 023873 Rev 2   )C;!=  !-V 5/15 Electrical characteristics Figure 8. STN2580 Collector-emitter saturation voltage Figure 9. Base-emitter saturation voltage   4J #  4J  # H  6CESAT;6= 6CESAT;6= &%  4J # 4J #  H &%  4J  # 4J #         )C;!=  !-V Figure 10. Base-emitter on voltage  !-V  Figure 11. Capacitance variation   4J #  #IB 4J  #  #CAPACITANCE;P&=  6BEON ;6=  )C;!=  4J #  #OB      )C;!=    !-V  Figure 12. Resistive switching time  !-V Figure 13. Vbe(sat) vs. IC    ƚƐ  T4)-% ;NS = #OLLECTORCURRENT)C;!= ƚƌ  ƚĨ  4J #   4J #   HFE   4J  #          )C#/,,%#4/2#522%.4 ;!= 6/15    62REVERSEVOLTAGE ;6=      !-V Doc ID 023873 Rev 2     "ASE EMITTERVOLTAGE6BE;6=   !-V STN2580 Electrical characteristics Figure 14. Reverse biased operating area 2.5 2 Ic [A] 1.5 1 hfe = 5 Vbeoff = -5 V Rbb = 0 Ω L=1mH Tj ≤ 125 ° C 0.5 0 0 100 200 300 400 500 600 700 800 900 1000 Vce [V] AM10010v1 Doc ID 023873 Rev 2 7/15 Test circuit 3 STN2580 Test circuit Figure 15. Resistive load switching test circuit 1. Fast electronic switching 2. Non-inductive resistor 8/15 Doc ID 023873 Rev 2 STN2580 4 Package mechanical data Package mechanical data In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. Doc ID 023873 Rev 2 9/15 Package mechanical data Table 5. STN2580 SOT-223 mechanical data mm Dim. Min. Typ. A Max. 1.80 A1 0.02 0.1 B 0.60 0.70 0.85 B1 2.90 3.00 3.15 c 0.24 0.26 0.35 D 6.30 6.50 6.70 e 2.30 e1 4.60 E 3.30 3.50 3.70 H 6.70 7.00 7.30 V 10° Figure 16. SOT-223 mechanical data drawing 0046067_M 10/15 Doc ID 023873 Rev 2 STN2580 Package mechanical data Figure 17. SOT-223 footprint (dimensions are in mm) Doc ID 023873 Rev 2 11/15 Packaging mechanical data 5 STN2580 Packaging mechanical data Table 6. SOT-223 tape and reel mechanical data Tape Reel mm mm Dim. Dim. Min. Typ. Max. A0 6.75 6.85 6.95 A B0 7.30 7.40 7.50 N K0 1.80 1.90 2.00 W1 12.4 F 5.40 5.50 5.60 W2 18.4 E 1.65 1.75 1.85 W3 W 11.7 12 12.3 P2 1.90 2 2.10 Base quantity pcs 1000 P0 3.90 4 4.10 Bulk quantity pcs 1000 P1 7.90 8 8.10 T 0.25 0.30 0.35 Dφ 1.50 1.55 1.60 D1φ 1.50 1.60 1.70 Figure 18. Tape for SOT-223 * Cumulative tolerance of 10 sprocket holes is ±0.20 mm 12/15 Doc ID 023873 Rev 2 Min. Max. 180 60 11.9 15.4 STN2580 Packaging mechanical data Figure 19. Reel for SOT-223 (dimensions are in mm) Doc ID 023873 Rev 2 13/15 Revision history 6 STN2580 Revision history Table 7. 14/15 Document revision history Date Revision Changes 30-Oct-2012 1 Initial release. 10-Jan-2013 2 Added new section: Packaging mechanical data Doc ID 023873 Rev 2 STN2580 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2013 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com Doc ID 023873 Rev 2 15/15
