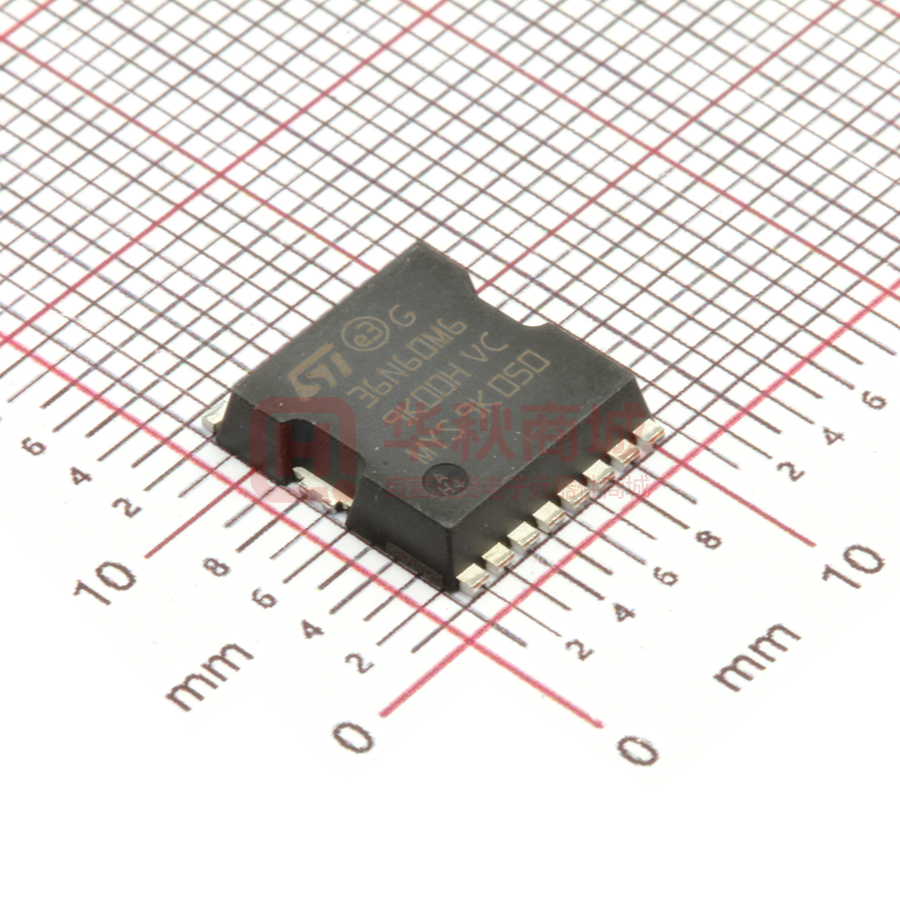

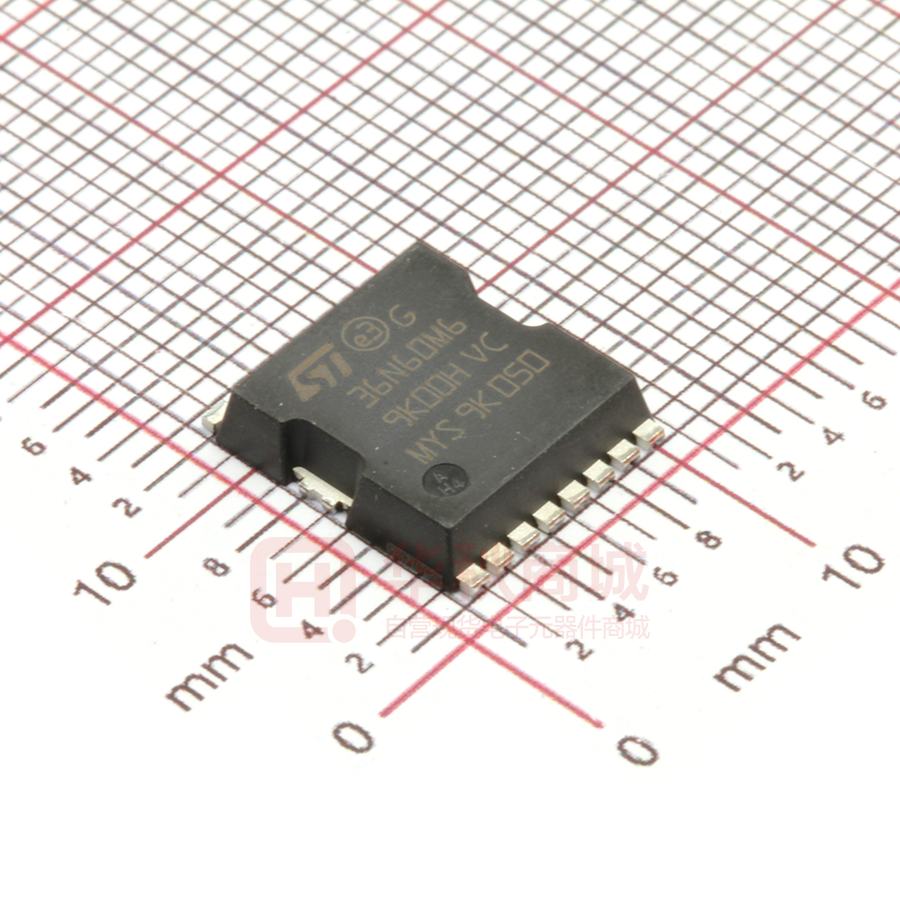

STO36N60M6

STO36N60M6 Datasheet N-channel 600 V, 85 mΩ typ., 30 A, MDmesh M6 Power MOSFET in a TO‑LL package Features TO-LL type A Drain (TAB) Order code VDS RDS(on) max. ID STO36N60M6 600 V 99 mΩ 30 A • • Reduced switching losses Lower RDS(on) per area vs previous generation • • • • Low gate input resistance 100% avalanche tested Zener-protected Excellent switching performance thanks to the extra driving source pin Applications Gate(1) • Driver source (2) Power source (3, 4, 5, 6, 7,8) N-chG1DS2PS345678DTABZ Switching applications Description The new MDmesh M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. STMicroelectronics builds on the previous generation of MDmesh devices through its new M6 technology, which combines excellent RDS(on) per area improvement with one of the most effective switching behaviors available, as well as a user-friendly experience for maximum end-application efficiency. Product status link STO36N60M6 Product summary Order code STO36N60M6 Marking 36N60M6 Package TO-LL type A Packing Tape and reel DS12120 - Rev 4 - May 2021 For further information contact your local STMicroelectronics sales office. www.st.com STO36N60M6 Electrical ratings 1 Electrical ratings Table 1. Absolute maximum ratings Symbol Value Unit Gate-source voltage ±25 V Drain current (continuous) at TC = 25 °C 30 Drain current (continuous) at TC = 100 °C 19 IDM(1) Drain current (pulsed) 102 A PTOT Total power dissipation at TC = 25 °C 230 W dv/dt(2) Peak diode recovery voltage slope 15 V/ns dv/dt(3) MOSFET dv/dt ruggedness 100 V/ns Tstg Storage temperature range VGS ID TJ Parameter Operating junction temperature range -55 to 150 A °C °C 1. Pulse width limited by safe operating area. 2. ISD ≤ 30 A, di/dt ≤ 400 A/µs, VDS (peak) < V(BR)DSS, VDD = 400 V. 3. VDS ≤ 480 V. Table 2. Thermal data Symbol RthJC RthJB Parameter Thermal resistance, junction-to-case Value Unit 0.54 °C/W Thermal resistance, junction-to-board(1) 43 Thermal resistance, junction-to-board(2) 22 °C/W 1. When mounted on 1 inch² FR-4 pcb, standard footprint 2 Oz copper board. 2. When mounted on 40x40mm FR-4 pcb, 6 cm² 2 Oz copper board. Table 3. Avalanche characteristics Symbol DS12120 - Rev 4 Parameter IAR Avalanche current, repetitive or not repetitive (pulse width limited by TJ max.) EAS Single pulse avalanche energy (starting TJ = 25 °C, ID = IAR, VDD = 50 V) Value Unit 5 A 750 mJ page 2/15 STO36N60M6 Electrical characteristics 2 Electrical characteristics TC = 25 °C unless otherwise specified. Table 4. On/off states Symbol V(BR)DSS Parameter Test conditions Drain-source breakdown voltage Min. VGS = 0 V, ID = 1 mA Typ. 600 Zero gate voltage drain current IGSS Gate-body leakage current VDS = 0 V, VGS = ±25 V VGS(th) Gate threshold voltage VDS = VGS, ID = 250 µA RDS(on) Static drain-source on-resistance VGS = 10 V, ID = 15 A VGS = 0 V, VDS = 600 V, TC = 125 Unit V VGS = 0 V, VDS = 600 V IDSS Max. 1 µA 100 µA ±5 µA 4.00 4.75 V 85 99 mΩ Min. Typ. Max. Unit - 1960 - pF - 93 - pF - 6 - pF °C(1) 3.25 1. Defined by design, not subject to production test. Table 5. Dynamic Symbol Parameter Test conditions Ciss Input capacitance Coss Output capacitance Crss Reverse transfer capacitance Coss eq.(1) Equivalent output capacitance VDS = 0 to 480 V, VGS = 0 V - 332 - pF RG Intrinsic gate resistance f = 1 MHz, ID = 0 A - 1.6 - Ω Qg Total gate charge - 44.3 - nC Qgs Gate-source charge - 10.1 - nC Qgd Gate-drain charge - 25 - nC VDS= 100 V, f = 1 MHz, VGS = 0 V VDD = 480 V, ID = 30 A, VGS = 0 to 10 V (see Figure 14. Test circuit for gate charge behavior) 1. Coss eq. is defined as a constant equivalent capacitance giving the same charging time as Coss when VDS increases from 0 to 80% VDSS. Table 6. Switching times Symbol td(on) tr td(off) tf DS12120 - Rev 4 Parameter Test conditions Min. Typ. Max. Unit Turn-on delay time VDD = 300 V, ID = 15 A, - 15.2 - ns Rise time RG = 4.7 Ω, VGS = 10 V - 5.3 - ns Turn-off delay time (see Figure 13. Switching times test circuit for resistive load and Figure 18. Switching time waveform) - 50.2 - ns - 7.3 - ns Fall time page 3/15 STO36N60M6 Electrical characteristics Table 7. Source-drain diode Symbol ISD ISDM (1) VSD (2) Parameter Test conditions Min. Typ. Max. Unit Source-drain current - 30 A Source-drain current (pulsed) - 102 A 1.6 V Forward on voltage VGS = 0 V, ISD = 30 A - trr Reverse recovery time ISD = 30 A, di/dt = 100 A/µs, - 340 ns Qrr Reverse recovery charge VDD = 60 V - 5.3 µC IRRM Reverse recovery current (see Figure 15. Test circuit for inductive load switching and diode recovery times) - 31 A trr Reverse recovery time ISD = 30 A, di/dt = 100 A/µs, - 430 ns Qrr Reverse recovery charge VDD = 60 V, TJ = 150 °C - 7.7 µC Reverse recovery current (see Figure 15. Test circuit for inductive load switching and diode recovery times) - 36 A IRRM 1. Pulse width is limited by safe operating area. 2. Pulse test: pulse duration = 300 μs, duty cycle 1.5%. DS12120 - Rev 4 page 4/15 STO36N60M6 Electrical characteristics (curves) 2.1 Electrical characteristics (curves) Figure 2. Thermal impedance Figure 1. Safe operating area ID (A) K GADG240920181102SOA Zthjc_opt6_9x δ = 0.5 δ = 0.2 10 2 tp =1 µs Operation in this area is limited by RDS(on) 10-1 δ = 0.1 δ = 0.05 tp =10 µs 10 1 δ = 0.02 tp =100 µs tp =1 ms T j ≤ 150 °C T c = 25°C single pulse 10 0 10 -1 10 -1 10 0 δ = 0.01 10-2 tp =10 ms 10 1 VDS (V) 10 2 10-3 10-6 Figure 3. Output characteristics ID (A) VGS = 9, 10V 4 6 8 Figure 5. Gate charge vs gate-source voltage GADG030220171159QVG VDS (V) VDD = 480 V ID = 30 A 12 0 3 500 89 8 400 87 6 300 85 4 200 83 2 100 81 0 Q g (nC) 79 0 DS12120 - Rev 4 10 20 30 40 50 5 6 7 8 9 VGS (V) GADG010220171211RID RDS(on) (mΩ) 91 VDS 4 Figure 6. Static drain-source on-resistance 600 0 0 VDS = 18V 20 VGS = 5V 10 12 14 16 VDS (V) VGS (V) tp (s) 40 VGS = 6V 2 10-1 60 VGS = 7V 20 10-2 100 VGS = 8V 40 10-3 GADG220320170910TCH 80 60 10 10-4 ID (A) 80 0 0 10-5 Figure 4. Transfer characteristics GADG220320170910OCH 100 Zth = k*RthJC Single pulse VGS =10 V 5 10 15 20 25 30 ID (A) page 5/15 STO36N60M6 Electrical characteristics (curves) Figure 8. Normalized gate threshold voltage vs temperature Figure 7. Capacitance variations C (pF) GADG220320170921CVR VGS(th) (norm.) 104 GIPG300920151316VTH ID = 250 µA 1.1 CISS 103 1.0 0.9 102 COSS f= 1MHz 101 0.8 CRSS 0.7 100 10-1 100 101 VDS (V) 102 Figure 9. Normalized on-resistance vs temperature RDS(on) (norm.) GIPG300920151317RON VGS = 10 V 0.6 -75 25 75 V(BR)DSS (norm.) GIPG300920151318BDV ID = 1 mA 1.00 1.4 1.0 0.96 0.6 0.92 -25 25 75 125 TJ (°C) Figure 11. Output capacitance stored energy EOSS (µJ) GADG010220171214EOS 0.88 -75 -25 25 75 125 TJ (°C) Figure 12. Source-drain diode forward characteristics VSD (V) GADG010220171212SDF 1.1 16 TJ = -50 °C 1.0 12 TJ = 25 °C 0.9 0.8 8 TJ = 150 °C 0.7 4 DS12120 - Rev 4 TJ (°C) 1.04 1.8 0 0 125 Figure 10. Normalized V(BR)DSS vs temperature 1.08 2.2 0.2 -75 -25 0.6 100 200 300 400 500 600 VDS (V) 0.5 0 5 10 15 20 25 30 ISD (A) page 6/15 STO36N60M6 Test circuits 3 Test circuits Figure 13. Switching times test circuit for resistive load Figure 14. Test circuit for gate charge behavior VDD 12V 47kΩ 1kΩ 100nF + VD VGS 3.3 µF 2200 RL µF IG=CONST VDD 2200 µF + RG 100Ω Vi ≤ VGS D.U.T. D.U.T. VG 2.7kΩ PW 47kΩ GND1 (driver signal) GND2 (power) 1kΩ PW GND1 AM15855v1 Figure 15. Test circuit for inductive load switching and diode recovery times A A D.U.T. FAST DIODE S A L L=100µH D 25Ω VD 3.3 µF B B B AM15856v1 Figure 16. Unclamped inductive load test circuit D G GND2 + 1000 µF 2200 µF + VDD 3.3 µF VDD ID G S RG D.U.T. Vi Pw GND2 GND1 D.U.T. GND1 GND2 AM15858v1 AM15857v1 Figure 18. Switching time waveform Figure 17. Unclamped inductive waveform ton td(on) V(BR)DSS toff td(off) tr tf VD 90% 90% IDM ID VDD 10% 0 VDS 10% VDD VGS AM01472v1 0 90% 10% AM01473v1 DS12120 - Rev 4 page 7/15 STO36N60M6 Package information 4 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark. 4.1 TO-LL type A package information Figure 19. TO-LL type A package outline DM00276569_5_type_A DS12120 - Rev 4 page 8/15 STO36N60M6 TO-LL type A package information Table 8. TO-LL type A package mechanical data Dim. mm Min. Typ. Max. A 2.20 2.30 2.40 A1 0.40 0.48 0.60 b 0.70 0.80 0.90 c 0.46 c1 0.15 C 10.28 10.38 10.48 C2 2.35 2.45 2.55 C3 1.16 D 9.80 9.90 10.00 D2 3.30 3.50 3.70 D3 9.30 9.40 9.50 D4 8.20 8.40 8.60 D5 9.50 9.70 9.90 D6 7.40 D7 2.20 e 1.20 E 11.48 E1 4.96 E2 5.54 E3 5.14 E4 0.90 E5 0.72 E6 6.41 E7 6.61 11.88 6.81 1.44 E8 0.50 0.70 0.90 K 1.70 1.90 2.10 K1 2.70 L 0.70 L1 0.44 L2 θ DS12120 - Rev 4 11.68 0.40 0.60 0.80 11° page 9/15 STO36N60M6 TO-LL type A package information Figure 20. TO-LL type A recommended footprint (dimensions are in mm) DM00276569_5_type_A_FP DS12120 - Rev 4 page 10/15 STO36N60M6 TO-LL packing information 4.2 TO-LL packing information Figure 21. Carrier tape outline and dimensions Figure 22. Reel outline and dimensions DS12120 - Rev 4 page 11/15 STO36N60M6 TO-LL packing information Figure 23. TO-LL orientation in tape pocket DS12120 - Rev 4 page 12/15 STO36N60M6 Revision history Table 9. Document revision history Date Version 21-Apr-2017 1 Changes First release. Updated Section 1 Electrical ratings, Section 2 Electrical characteristics and Section 3 Test circuits. 08-Oct-2018 2 Updated Section 4.1 TO-LL type A package information. Minor text changes Updated title and Device summary in cover page. 05-May-2021 3 Updated Table 2. Thermal data. Updated Section 4 Package information. Minor text changes. 10-May-2021 DS12120 - Rev 4 4 Updated Section 3 Test circuits. page 13/15 STO36N60M6 Contents Contents 1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2 Electrical characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3 Test circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 4 Package information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4.1 TO-LL type A package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 4.2 TO-LL packing information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 DS12120 - Rev 4 page 14/15 STO36N60M6 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2021 STMicroelectronics – All rights reserved DS12120 - Rev 4 page 15/15
