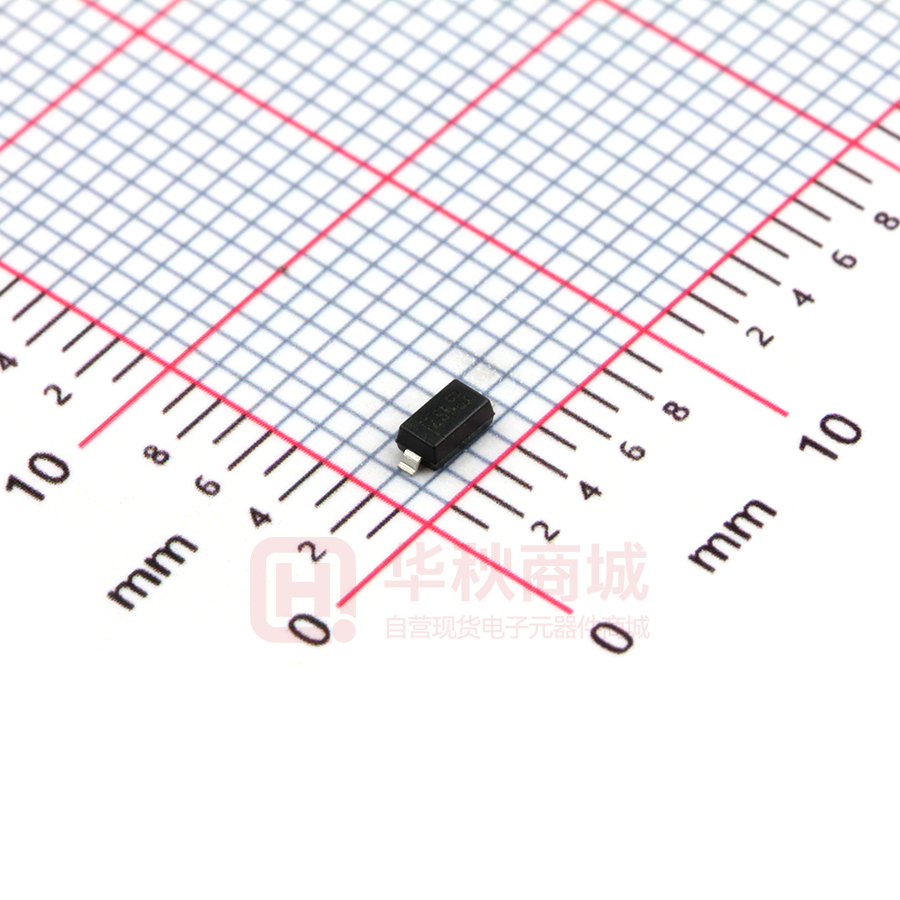

STPS0560Z

® STPS0540Z / STPS0560Z SCHOTTKY RECTIFIER PRELIMINARY DATASHEET MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM VF (max) 0.5 A 40 / 60 V 0.40 / 0.50 V FEATURES AND BENEFITS VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES EXTREMELY FAST SWITCHING DESCRIPTION Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packades in SOD-123, these devicse are intended for use in low voltage, high frequency inverters, free wheeling and polarIty protection applications. Due to the small size of the package these devices fit GSM and PCMCIA requirements. ABSOLUTE RATINGS (limiting values) Value STPS 0540Z VRRM IF(RMS) IF(AV) IFSM dV/dt Tstg Tj TL *: Repetitive peak reverse voltage RMS forward current Average forward current STPS0540Z δ=0.5 STPS0560Z Surge non repetitive forward current Critical rate of rise of reverse voltage Storage temperature range Maximum operating junction temperature * Maximum temperaturefor soldering during 10s Ta = 60°C Ta = 40°C tp=10ms sinusoidal 40 2 0.5 5.5 10000 - 65 to + 150 150 260 0560Z 60 V A A A V/µs °C °C °C Unit SOD-123 Symbol Parameter dPtot 1 < thermal runaway condition for a diode on its own heatsink Rth(j−a) dTj 1/3 August 1999 - Ed : 1A STPS0540Z / STPS0560Z THERMAL RESISTANCE Symbol Rth (j-a) Junction to ambient (*) Parameter Value 340 Unit °C/W (*) Mounted on epoxy board with recommended Pad Layout. STATIC ELECTRICAL CHARACTERISTICS Value Symbol Parameter Tests conditions STPS0540Z STPS0560Z Unit typ. IR * Reverse leakage current Forward voltage drop Tj=25°C T =100°C Tj=25°C Tj=100°C Tj=25°C Tj=100°C Pulse test : * tp = 5 ms, δ < 2% ** tp = 380 µs, δ < 2% max. 40 typ. max. 50 1 4 0.53 0.44 0.50 0.66 0.58 0.65 µA mA V VR = VRRM 1.5 IF = 0.5 A 0.35 IF = 1 A 0.45 5 0.50 0.40 0.55 0.51 VF ** To evaluate the maximum conduction losses use the following equation : STPS0540Z:P = 0.29 x IF(AV) + 0.22 x IF2(RMS) STPS0560Z:P = 0.35 x IF(AV) + 0.3 x IF2(RMS) 2/3 STPS0540Z / STPS0560Z PACKAGE MECHANICAL DATA SOD-123 DIMENSIONS H b E A2 A1 REF. Millimeters Min. Max. 1.45 0 0.85 0.1 1.35 0 Inches Min. Max. 0.057 0.004 0.053 0.033 A A1 A2 D c A b c D E G 0.55 Typ. 0.15 Typ. 2.55 1.4 0.25 3.55 3.95 2.85 1.7 0.022 Typ. 0.039 Typ. 0.1 0.055 0.01 0.14 0.156 0.112 0.067 G H MARKING Type STPS0540Z STPS0560Z Epoxy meets UL94, V0. Band indicates cathode. Marking Z54 Z56 Package SOD-123 SOD-123 Weight 0.01g. 0.01g. Base qty 3000 3000 Delivery mode Tape & reel Tape & Reel I nformation furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics. The ST logo is a registered trademark of STMicroelectronics © 1999 STMicroelectronics - Printed in Italy - All rights reserved. STMicroelectronics GROUP OF COMPANIES Australia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Malaysia Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A. http://www.st.com 3/3
