STPS1L60
Datasheet
60 V, 1 A low drop power Schottky rectifier
Features
•
•
•
•
•
Negligible switching losses
Low forward voltage drop
Surface mount miniature packages
Avalanche rated
ECOPACK2 compliant
Applications
•
•
•
•
•
Lighting
Desktop power supply
Battery charger
Set top box
Auxiliary power
Description
Axial and surface mount power Schottky rectifiers suited to switched mode power
supplies and high frequency DC to DC converters.
Packaged in SMA, SMA Flat Notch, STmite flat, DO-41 and SOD123Flat, the
STPS1L60 is ideal for use in low voltage, high frequency inverters and small battery
chargers.
Product status
STPS1L60
Product summary
Symbol
Value
IF(AV)
1A
VRRM
60 V
T j(max.)
175 °C
VF(typ.)
0.50 V
DS2133 - Rev 12 - September 2019
For further information contact your local STMicroelectronics sales office.
www.st.com
STPS1L60
Characteristics
1
Characteristics
Table 1. Absolute ratings (limiting values at 25 °C, unless otherwise specified)
Symbol
Parameter
VRRM
Repetitive peak reverse voltage
IF(RMS)
Forward rms current
IF(AV)
Tstg
Tj
V
STmite flat
2
SMA
TL = 155 °C
SMA Flat Notch
TL = 160 °C
TL = 145 °C
SOD123 Flat
TL = 160 °C
STmite flat
TC = 160 °C
SMA Flat Notch
A
1
A
40
tp = 10 ms sinusoidal
60
SOD123 Flat
PARM
60
10
Average forward current δ = 0.5, square wave DO-41
Surge non repetitive forward current
Unit
SMA/DO-41
SMA, DO-41, STmite flat
IFSM
Value
A
50
tp = 10 µs, Tj = 125 °C
Repetitive peak avalanche power
Storage temperature range
85
W
-65 to +175
°C
+175
°C
Operating junction temperature(1)
1. (dPtot/dTj) < (1/Rth(j-a)) condition to avoid thermal runaway for a diode on its own heatsink.
Table 2. Thermal resistance parameters
Symbol
Rth(j-l)
Rth(j-c)
Parameter
Junction to lead
Junction to case
Max. value
SMA
30
SMA Flat Notch
20
DO-41/lead length = 10 mm
45
SOD123 Flat
20
STmite flat
20
Unit
°C/W
For more information, please refer to the following application note :
•
AN5088 : Rectifiers thermal management, handling and mounting recommendations
Table 3. Static electrical characteristics
Symbol
Parameter
Test conditions
Min.
Tj = 25 °C
IR(1)
Reverse leakage current
Tj = 100 °C
Tj = 125 °C
DS2133 - Rev 12
Typ.
VR = VRRM
Max.
Unit
50
µA
-
1.5
5
-
5.6
21
mA
page 2/19
STPS1L60
Characteristics
Symbol
Parameter
Test conditions
Tj = 25 °C
VF(1)
Forward voltage drop
Tj = 125 °C
Tj = 25 °C
Tj = 125 °C
Min.
IF = 1 A
IF = 2 A
Typ.
-
Unit
0.57
0.50
-
Max.
0.54
0.75
0.60
V
0.66
1. Pulse test: tp = 380 µs, δ < 2%
To evaluate the conduction losses, use the following equation:
P = 0.42 x IF(AV) + 0.12 x IF2(RMS)
For more information, please refer to the following application notes related to the power losses :
•
AN604: Calculation of conduction losses in a power rectifier
•
AN4021: Calculation of reverse losses on a power diode
DS2133 - Rev 12
page 3/19
STPS1L60
Characteristics (curves)
1.1
Characteristics (curves)
Figure 1. Average forward power dissipation versus
average forward current
0.8
PF(AV) (W)
Figure 2. Average forward current versus ambient
temperature (δ = 0.5)
5
IF(AV)(A)
SMA
0.7
δ = 0.05
δ = 0.2
δ = 0.1
δ = 0.5
δ= 1
4
0.6
0.5
Rth(j-a) = Rth(j-l)
3
0.4
2
0.3
0.2
T
T
0.1
IF(AV) (A)
0.0
0.0
0.2
0.4
0.6
0.8
δ = tp/T
1.0
1
0
1.2
Figure 3. Average forward current versus ambient
temperature (δ = 0.5)
3.5
IF(AV)(A)
0
25
50
1.6
100
125
150
175
IF(AV)(A)
STmite flat
Rth(j-a) = Rth(j-c)
1.4
Rth(j-a) = Rth(j-l)
75
Figure 4. Average forward current versus ambient
temperature (δ = 0.5)
DO-41
3.0
Tamb(°C)
tp
δ = tp/T
tp
1.2
2.5
1.0
2.0
0.8
1.5
0.6
1.0
T
0.5
δ = tp/T
T
0.4
0.2
Tamb(°C)
tp
0.0
δ = tp/T
Tamb(°C)
tp
0.0
0
DS2133 - Rev 12
25
50
75
100
125
150
175
0
25
50
75
100
125
150
175
page 4/19
STPS1L60
Characteristics (curves)
Figure 5. Average forward current versus ambient
temperature (δ = 0.5)
6
Figure 6. Normalized avalanche power derating versus
pulse duration (Tj = 125 °C)
PARM (t p )
PARM (10 µs)
IF(AV)(A)
1
SOD123Flat
SMA Flat Notch
5
Rth(j-a) = Rth(j-l)
4
0.1
3
2
T
0.01
1
Tamb(°C)
tp
δ = tp/T
0
0
25
50
75
100
125
150
175
0.001
t p(µs)
1
10
100
1000
Figure 7. Relative variation of thermal impedance junction Figure 8. Relative variation of thermal impedance junction
to ambient versus pulse duration
to ambient versus pulse duration
1.0
Zth(j-a) /Rth(j-a)
1.0
SMA
0.9
0.8
0.7
0.7
0.6
0.6
0.5
0.5
0.4
0.4
0.3
0.3
0.2
0.2
Single pulse
0.0
1.E-02
1.E-01
0.1
tp(s)
1.E+00
1.E+01
1.E+02
1.E+03
Figure 9. Relative variation of thermal impedance junction
to ambient versus pulse duration
1.0
0.9
Zth(j-a) /Rth(j-a)
1.E-01
tp(s)
1.E+00
1.E+01
1.E+02
1.E+03
Figure 10. Relative variation of thermal impedance
junction to lead versus pulse duration
0.9
STmite flat
Single pulse
0.0
1.E-02
1.0
Zth(j-l) /Rth(j-l)
SOD123Flat
0.8
0.8
0.7
0.7
0.6
0.6
0.5
0.5
0.4
0.4
0.3
0.3
0.2
DO-41
0.9
0.8
0.1
Zth(j-a) /Rth(j-a)
0.2
Single pulse
0.1
0.0
1.E-02
DS2133 - Rev 12
tp(s)
1.E-01
1.E+00
1.E+01
1.E+02
0.1
1.E+03
Single pulse
0.0
1.E-04
tp(s)
1.E-03
1.E-02
1.E-01
1.E+00
1.E+01
page 5/19
STPS1L60
Characteristics (curves)
Figure 11. Reverse leakage current versus reverse voltage
applied (typical values)
IR(mA)
1.E+02
Figure 12. Junction capacitance versus reverse voltage
applied (typical values)
C(pF)
1000
F = 1 MHz
VOSC = 30 mVRMS
Tj = 25 °C
Tj = 150 °C
1.E+01
Tj = 125 °C
Tj = 100 °C
1.E+00
100
Tj = 75 °C
1.E-01
Tj = 50 °C
1.E-02
Tj = 25 °C
VR(V)
VR(V)
1.E-03
0
5
10
15
20
25
30
35
40
45
50
55
10
Figure 13. Forward voltage drop versus forward current
(typical values)
10.00
1
60
IF(A)
10
100
Figure 14. Thermal resistance junction to ambient versus
copper surface under each lead (typical values)
200
Rth(j-a)(°C/W)
SMA
150
1.00
Tj = 125 °C
100
Tj = 25 °C
Tj = 75 °C
0.10
Epoxy printed board FR4, eCu = 35 µm
50
SCu (cm²)
VF(V)
0.01
0.0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Figure 15. Thermal resistance junction to ambient versus
copper surface under tab (typical values)
200
Rth(j-a)(°C/W)
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
Figure 16. Thermal resistance junction to ambient versus
copper surface under each lead (typical values)
250
Rth(j-a)(°C/W)
STmite flat
SOD123Flat
200
150
150
100
100
Epoxy printed board FR4, eCu = 35 µm
Epoxy printed board FR4, eCu = 35 µm
50
50
SCu (cm²)
SCu (cm²)
0
0
0.0
0.5
DS2133 - Rev 12
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
page 6/19
STPS1L60
Characteristics (curves)
Figure 17. Thermal resistance versus lead length
120
Figure 18. Thermal resistance junction to ambient versus
copper surface under each lead (SMA Flat Notch)
Rth(°C/W)
Rth(j-a) (°C/W)
Rth(j-a)
100
200
DO-41
Epoxy printed circuit board FR4, copper thickness: 35 µm
SMA Flat Notch
150
80
60
Rth(j-l)
100
40
20
50
Lleads(mm)
S(Cu)(cm²)
0
5
10
15
20
25
0
0.0
DS2133 - Rev 12
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
page 7/19
STPS1L60
Package information
2
Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages,
depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product
status are available at: www.st.com. ECOPACK is an ST trademark.
2.1
SMA package information
•
•
Epoxy meets UL94, V0
Cooling method : by conduction (C)
Figure 19. SMA package outline
E1
D
E
A1
C
A2
L
b
Table 4. SMA package mechanical data
Dimensions
Ref.
A1
DS2133 - Rev 12
Millimeters
Inches (for reference only)
Min.
Max.
Min.
Max.
1.90
2.45
0.074
0.097
A2
0.05
0.20
0.001
0.008
b
1.25
1.65
0.049
0.065
c
0.15
0.40
0.005
0.016
D
2.25
2.90
0.088
0.115
E
4.80
5.35
0.188
0.211
E1
3.95
4.60
0.155
0.182
L
0.75
1.50
0.029
0.060
page 8/19
STPS1L60
SMA package information
Figure 20. SMA recommended footprint in mm (inches)
1.4
2.63
1.4
(0.055)
(0.104)
(0.055)
1.64
(0.065)
5.43
(0.214)
DS2133 - Rev 12
page 9/19
STPS1L60
SMA Flat Notch package information
2.2
SMA Flat Notch package information
•
•
•
Epoxy meets UL94, V0
Cooling method: by conduction (C)
Band indicates cathode
Figure 21. SMA Flat Notch package outline
Table 5. SMA Flat Notch package mechanical data
Dimensions
Ref.
Millimeters
Min.
A1
0.90
A1
Max.
Min.
1.10
0.035
0.05
Typ.
Max.
0.044
0.002
b
1.25
1.65
0.049
0.065
C
0.15
0.40
0.005
0.016
D
2.25
2.90
0.088
0.115
E
5.00
5.35
0.196
0.211
E1
3.95
4.60
0.155
0.182
G
2.00
0.079
G1
0.85
0.033
L
DS2133 - Rev 12
Typ.
Inches (for reference only)
0.75
1.20
0.029
L1
0.45
0.018
L2
0.45
0.018
L3
0.05
0.002
V
8°
8°
V1
8°
8°
page 10/19
STPS1L60
SMA Flat Notch package information
Figure 22. SMA Flat Notch recommended footprint in mm (inches)
1.20
(0.047)
3.12
1.20
(0.123)
(0.047)
1.52
(0.060)
5.52
(0.217)
DS2133 - Rev 12
page 11/19
STPS1L60
DO-41 package information
2.3
DO-41 package information
•
Epoxy meets UL 94, V0
Figure 23. DO-41 package outline
C
C
A
ØD
ØB
Table 6. DO-41 package mechanical data
Dimensions
Ref.
DS2133 - Rev 12
Millimeters
Inches (for reference only)
Min.
Typ.
Max.
Min.
Typ.
Max.
A
4.07
-
5.20
0.160
-
0.205
B
2.04
-
2.71
0.080
-
0.107
C
25.40
-
1.000
-
D
0.71
-
0.028
-
0.86
0.0034
page 12/19
STPS1L60
SOD123Flat package information
2.4
SOD123 Flat package information
Figure 24. SOD123Flat package outline
A
C1
L
HD D
L
C
b
E
Table 7. SOD123Flat package mechanical data
Dimensions
Millimeters
Ref.
DS2133 - Rev 12
Inches (for reference only)
Min.
Typ.
Max.
Min.
Typ.
Max.
A
0.86
0.98
1.10
0.034
0.038
0.043
b
0.80
0.90
1.00
0.031
0.035
0.039
c
0.08
0.15
0.25
0.003
0.006
0.009
c1
0.00
0.10
0.000
D
2.50
2.60
2.70
0.098
0.102
0.106
E
1.50
1.60
1.80
0.059
0.063
0.070
HD
3.30
3.50
3.70
0.130
0.137
0.146
L
0.45
0.65
0.85
0.018
0.025
0.033
0.004
page 13/19
STPS1L60
SOD123Flat package information
Figure 25. SOD123Flat footprint dimensions (mm)
1.60
1.40
1.30
DS2133 - Rev 12
page 14/19
STPS1L60
STmite Flat package information
2.5
STmiteFlat package information
•
Epoxy meets UL 94,V0
Figure 26. STmite Flat package outline
L1
1
L2
L
E1
1
E
D
b2
b
L3
BOTTOM VIEW
TOP VIEW
C
A
FRONT VIEW
RIGHT VIEW
Table 8. STmite Flat package mechanical data
Dimensions
Ref.
DS2133 - Rev 12
Millimeters
Inches (for reference only)
Min.
Typ.
Max.
Min.
Typ.
Max.
A
0.80
0.85
0.95
0.031
0.033
0.037
b
0.40
0.55
0.65
0.016
0.022
0.026
b2
0.70
0.85
1.00
0.027
0.033
0.039
c
0.10
0.15
0.25
0.004
0.006
0.009
D
1.75
1.90
2.05
0.069
0.075
0.081
E
3.60
3.80
3.90
0.142
0.150
0.154
E1
2.80
2.95
3.10
0.110
0.116
0.122
L
0.50
0.55
0.80
0.020
0.022
0.031
L1
2.10
2.40
2.60
0.083
0.094
0.102
L2
0.45
0.60
0.75
0.018
0.024
0.030
L3
0.20
0.35
0.50
0.008
0.014
0.020
page 15/19
STPS1L60
STmite Flat package information
Figure 27. STmite Flat Recommended footprint
(0.033) (0.025)
0.85 0.63
(0.079)
2.00
(0.026) 0.65
(0.026)
0.65
0.95 (0.037)
1.95 (0.077)
4.13
(0.163)
millimeters
(inches)
DS2133 - Rev 12
page 16/19
STPS1L60
Ordering information
3
Ordering information
Table 9. Ordering information
DS2133 - Rev 12
Order code
Marking
Package
Weight
Base qty.
Delivery mode
STPS1L60A
GB6
SMA
68 mg
5000
Tape and reel
STPS1L60AFN
A16
SMA Flat Notch
39 mg
10 000
Tape and reel
STPS1L60RL
STPS1L60
DO-41
340 mg
5000
Tape and reel
STPS1L60MF
F1L6
STmite flat
16 mg
12000
Tape and reel

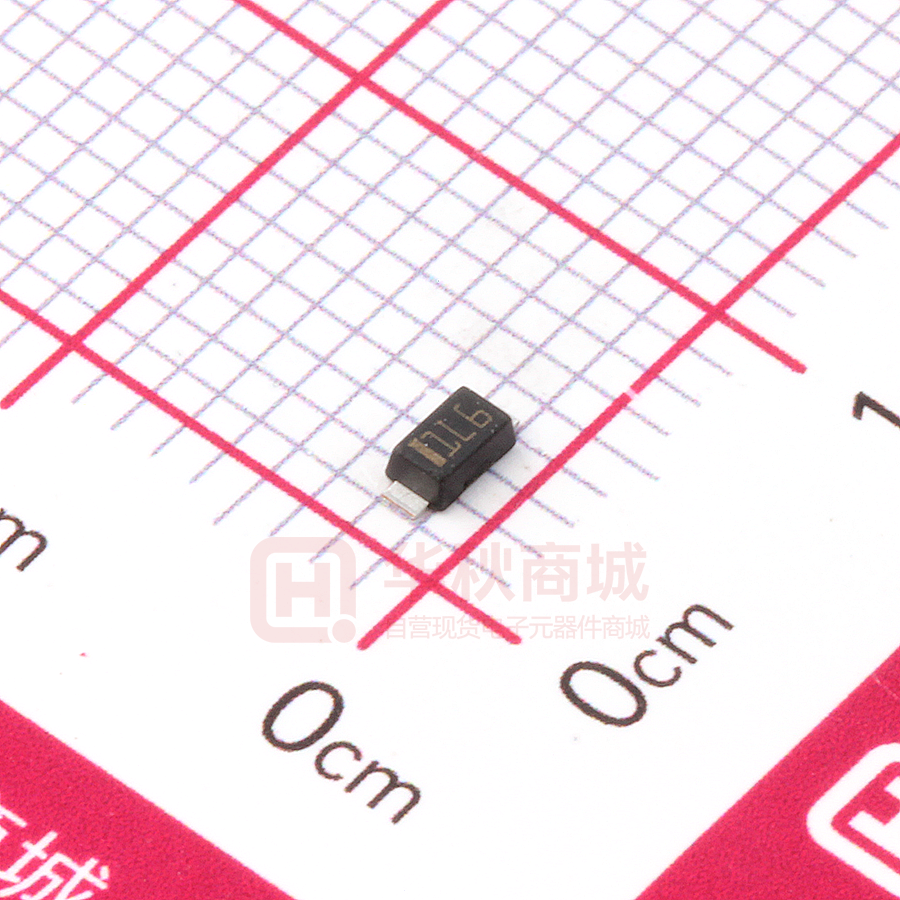

STPS1L60ZF
1L6
SOD123 Flat
12.5 mg
3000
Tape and reel
page 17/19
STPS1L60
Revision history
Table 10. Document revision history
Date
DS2133 - Rev 12
Revision Changes
Jul-2003
5A
Last update.
Aug-2004
6
SMA package dimensions update. Reference A1 max. changed from 2.70 mm (0.106 inch.) to 2.03
mm (0.080 inc.).
25-Jun-2009
7
Added STmite flat package. Updated ECOPACK statement.
30-Sep-2009
8
Updated table 7 ref. "C"
9-Aug-2016
9
Added SOD123Flat package.
26-Aug-2016
10
Updated table 4.
05-Dec-2018
11
Updated Section Features and Table 1. Absolute ratings (limiting values at 25 °C, unless otherwise
specified).
27-Sep-2019
12
Added Section 2.2 SMA Flat Notch package information.
page 18/19
STPS1L60
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST
products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST
products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of
Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service
names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2019 STMicroelectronics – All rights reserved
DS2133 - Rev 12
page 19/19
很抱歉,暂时无法提供与“STPS1L60ZF”相匹配的价格&库存,您可以联系我们找货
免费人工找货
