STPS2045C
Power Schottky rectifier
Datasheet - production data
A1
A2
Description
K
K
A2
K
A2
K
A1
Dual center tap Schottky rectifier suited for switch
mode power supply and high frequency DC to
DC converters. Packaged either in TO-220AB,
TO-220FPAB, or D²PAK, this device is especially
intended for use in low voltage, high frequency
inverters, free wheeling and polarity protection
applications.
A1
Table 1: Device summary

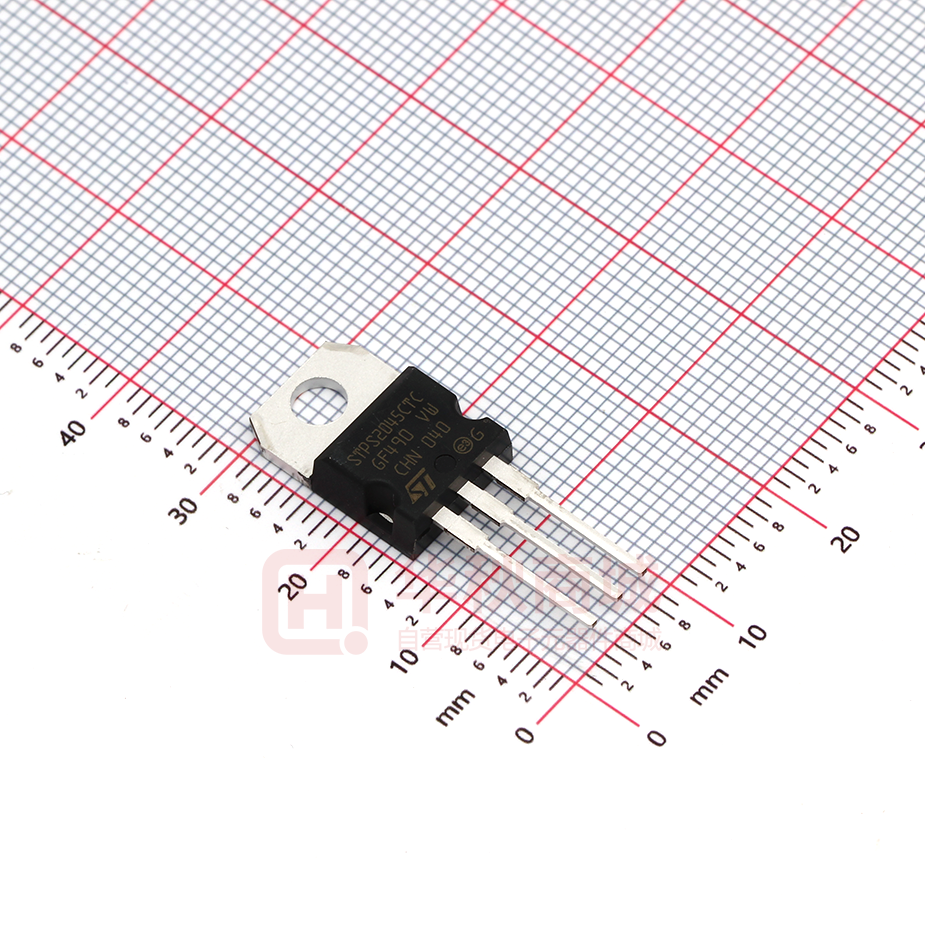

TO-220AB
TO-220FPAB
K
K
A2
A2
A1
A1
Symbol
Value
IF(AV)
2 x 10 A
VRRM
45 V
VF (typ.)
0.5 V
Tj (max.)
175 °C
D²PAK
Features
Very small conduction losses
Negligible switching losses
Extremely fast switching
Insulated package: TO-220FPAB
Insulating voltage = 2000 VRMS sine
Avalanche rated
ECOPACK®2 compliant component for
D²PAK on demand
October 2016
DocID3506 Rev 10
This is information on a product in full production.
1/15
www.st.com
Characteristics
1
STPS2045C
Characteristics
Table 2: Absolute ratings (limiting values, per diode, at 25 °C, unless otherwise specified)
Symbol
Parameter
Value
Unit
VRRM
Repetitive peak reverse voltage
45
V
IF(RMS)
Forward rms current
30
A
IF(AV)
Average forward
current
δ = 0.5, square wave
Per diode
10
Per device
20
TC = 140 °C
Per diode
10
TC = 125 °C
Per device
20
Surge non repetitive forward current
tp = 10 ms
sinusoidal
180
A
PARM(1)
Repetitive peak avalanche power
tp = 10 µs,
Tj = 125 °C
280
W
VARM(2)
Maximum repetitive peak avalanche voltage
VASM(2)
Maximum single-pulse peak avalanche voltage
tp < 10 µs,
Tj < 125 °C,
IAR < 7.7 A
60
V
IFSM
Tstg
TO-220AB /
D²PAK
TO-220FPAB
TC = 155 °C
Storage temperature range
-65 to +175
Maximum operating junction temperature (3)
Tj
175
A
°C
Notes:
(1)For
pulse time duration deratings, please refer to Figure 3. More details regarding the avalanche energy
measurements and diode validation in the avalanche are provided in the STMicroelectronics Application notes
AN1768, “Admissible avalanche power of Schottky diodes” and AN2025, “Converter improvement using Schottky
rectifier avalanche specification”.
(2)See
(3)(dP
Figure 9.
tot/dTj)
< (1/Rth(j-a)) condition to avoid thermal runaway for a diode on its own heatsink.
Table 3: Thermal parameters
Symbol
Parameter
TO-220AB / D²PAK
Rth(j-c)
Junction to case
TO-220FPAB
Rth(c)
Coupling
Per diode
2.2
Total
1.4
Per diode
4.5
Total
3.5
TO-220AB / D²PAK
0.4
TO-220FPAB
2.5
When the diodes 1 and 2 are used simultaneously:
ΔTj (diode1) = P(diode1) x Rth(j-c) (per diode) + P(diode2) x Rth(c)
2/15
Max. value
DocID3506 Rev 10
Unit
°C/W
STPS2045C
Characteristics
Table 4: Static electrical characteristics (per diode)
Symbol
Parameter
Test conditions
IR(1)
Reverse leakage current
Tj = 25 °C
Tj = 125 °C
Tj = 125 °C
VF(1)
Forward voltage drop
Tj = 25 °C
Tj = 125 °C
VR = VRRM
IF = 10 A
IF = 20 A
Min.
Typ.
-
Max.
Unit
100
µA
mA
-
7
15
-
0.5
0.57
-
0.84
0.65
V
0.72
Notes:
(1)Pulse
test: tp = 380 µs, δ < 2%
To evaluate the conduction losses, use the following equation:
P = 0.42 x IF(AV) + 0.015 x IF2(RMS)
DocID3506 Rev 10
3/15
Characteristics
1.1
STPS2045C
Characteristics (curves)
Figure 1: Average forward power dissipation
versus average forward current (per diode)
Figure 2: Average forward current versus ambient
temperature (δ = 0.5, per diode)
PF(AV) (W)
8
12
δ = 0.1
δ = 0.05
7
δ = 0.2
IF(AV) (A)
δ = 0.5
TO-220AB
D²PAK
R
=R
th(j-a)
th(j-c)
10
6
TO-220FPAB
8
δ=1
5
Rth(j-a) = 15 °C/W
6
4
3
4
T
T
2
2
1
IF(AV) (A)
δ = tp/T
0
0
1
2
3
4
5
6
7
8
9
10
δ = tp/T
tp
11
0
12
Figure 3: Normalized avalanche power deratings
versus pulse duration (Tj = 125 °C)
1
tp
T am b (°C)
0
PARM (t p )
PARM (10 µs)
25
50
75
100
125
150
175
Figure 4: Reverse leakage current versus reverse
voltage applied (typical values, per diode)
5E+4
IR(µA)
Tj = 150°C
1E+4
Tj = 125°C
Tj = 100°C
1E+3
0.1
Tj = 75°C
1E+2
Tj = 50°C
0.01
1E+1
Tj = 25°C
1E+0
t p (µs)
0.001
1
10
100
1000
VR(V)
1E-1
0
Figure 5: Relative variation of thermal impedance
junction to case versus pulse duration
(TO-220AB, D²PAK)
1.0
Zth(j-c)/Rth(j-c)
0.6
10
15
20
25
30
35
Zth(j-c)/Rth(j-c)
0.6
δ = 0.5
δ = 0.5
0.4
T
T
δ = 0.2
0.2
δ = 0.2
δ = 0.1
δ = 0.1
t p (s)
Single pulse
δ = tp/T
tp
t p(s )
Single pulse
0.0
δ = tp/T
tp
0.0
1E-4
4/15
45
0.8
0.4
0.2
40
Figure 6: Relative variation of thermal impedance
junction to case versus pulse duration
(TO-220FPAB)
1.0
0.8
5
1E-3
1E-2
1E-1
1E+0
DocID3506 Rev 10
1E-3
1E-2
1E-1
1E+0
1E+1
STPS2045C
Characteristics
Figure 8: Forward voltage drop versus forward
current (maximum values, per diode)
Figure 7: Junction capacitance versus reverse
voltage applied (typical values, per diode)
1000
C(pF)
F = 1 MHz
VOSC = 30 mVRMS
Tj = 25 °C
500
200
VR(V)
100
1
2
5
10
20
Figure 9: Reverse safe operating area
(tp < 10 µs and Tj < 125 °C)
50
Figure 10: Thermal resistance junction to ambient
versus copper surface under tab for D²PAK
80
Rth(j-a) (°C/W)
Iarm(A)
70
60
50
40
30
20
Epoxy printed board FR4, eCU= 35 µm
10
SCu(cm²)
0
0
DocID3506 Rev 10
5
10
15
20
25
30
35
5/15
40
Package information
2
STPS2045C
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
6/15
Cooling method: by conduction (C)
Epoxy meets UL 94,V0
Recommended torque value: 0.55 N·m (for TO-220AB and TO-220FPAB)
Maximum torque value: 0.7 N·m (for TO-220AB and TO-220FPAB)
DocID3506 Rev 10
Package information
STPS2045C
2.1
TO-220AB package information
Figure 11: TO-220AB package outline
DocID3506 Rev 10
7/15
Package information
STPS2045C
Table 5: TO-220AB package mechanical data
Dimensions
Ref.
Millimeters
Min.
Max.
Min.
Max.
A
4.40
4.60
0.173
0.181
b
0.61
0.88
0.240
0.035
b1
1.14
1.70
0.045
0.067
c
0.48
0.70
0.019
0.028
D
15.25
15.75
0.600
0.620
D1
8/15
Inches
1.27 typ.
0.050 typ.
E
10.00
10.40
0.394
0.409
e
2.40
2.70
0.094
0.106
e1
4.95
5.15
0.195
0.203
F
1.23
1.32
0.048
0.052
H1
6.20
6.60
0.244
0.260
J1
2.40
2.72
0.094
0.107
L
13.00
14.00
0.512
0.551
L1
3.50
3.93
0.138
0.155
L20
16.40 typ.
0.646 typ.
L30
28.90 typ.
1.138 typ.
θP
3.75
3.85
0.148
0.152
Q
2.65
2.95
0.104
0.116
DocID3506 Rev 10
Package information
STPS2045C
2.2
TO-220FPAB package information
Figure 12: TO-220FPAB package outline
DocID3506 Rev 10
9/15
Package information
STPS2045C
Table 6: TO-220FPAB package mechanical data
Dimensions
Ref.
Millimeters
Min.
Max.
Min.
Max.
A
4.40
4.60
0.173
0.181
B
2.5
2.7
0.098
0.106
D
2.5
2.75
0.098
0.108
E
0.45
0.70
0.018
0.028
F
0.75
1
0.030
0.039
F1
1.15
1.70
0.045
0.067
F2
1.15
1.70
0.045
0.067
G
4.95
5.2
0.195
0.205
G1
2.4
2.7
0.094
0.106
H
10
10.4
0.394
0.409
L2
10/15
Inches
16 typ.
0.63 typ.
L3
28.60
30.6
1.126
1.205
L4
9.8
10.6
0.386
0.417
L5
2.9
3.6
0.114
0.142
L6
15.9
16.4
0.626
0.646
L7
9
9.3
0.354
0.366
Dia
3
3.2
0.118
0.126
DocID3506 Rev 10
Package information
STPS2045C
2.3
D²PAK package information
Figure 13: D²PAK package outline
This package drawing may slightly differ from the physical package. However, all
the specified dimensions are guaranteed.
DocID3506 Rev 10
11/15
Package information
STPS2045C
Table 7: D²PAK package mechanical data
Dimensions
Ref.
Millimeters
Min.
Max.
Min.
Max.
A
4.36
4.60
0.172
0.181
A1
0.00
0.25
0.000
0.010
b
0.70
0.93
0.028
0.037
b2
1.14
1.70
0.045
0.067
c
0.38
0.69
0.015
0.027
c2
1.19
1.36
0.047
0.053
D
8.60
9.35
0.339
0.368
D1
6.90
8.00
0.272
0.311
D2
1.10
1.50
0.043
0.060
E
10.00
10.55
0.394
0.415
E1
8.10
8.90
0.319
0.346
E2
6.85
7.25
0.266
0.282
e
2.54 typ.
0.100
e1
4.88
5.28
0.190
0.205
H
15.00
15.85
0.591
0.624
J1
2.49
2.90
0.097
0.112
L
1.90
2.79
0.075
0.110
L1
1.27
1.65
0.049
0.065
L2
1.30
1.78
0.050
0.070
R
V2
12/15
Inches
0.4 typ.
0°
0.015
8°
DocID3506 Rev 10
0°
8°
Package information
STPS2045C
Figure 14: D²PAK recommended footprint (dimensions in mm)
DocID3506 Rev 10
13/15
Ordering information
3
STPS2045C
Ordering information
Table 8: Ordering information
Order code
4
Marking
Package
Weight
Base qty.
Delivery mode
STPS2045CT
STPS2045CT
TO-220AB
1.95 g
50
Tube
STPS2045CFP
STPS2045CFP
TO-220FPAB
1.9 g
50
Tube
STPS2045CG-TR
STPS2045CG
D²PAK
1.38 g
1000
Tape and reel
Revision history
Table 9: Document revision history
Date
Revision
05-Oct-2004
4F
01-Dec-2004
5
Figure 16 (I²PAK Package Mechanical Data): references b1 and
b2 changed from 1.17mm to 1.70mm.
05-Feb-2010
6
Updated Table 2 (removed voltage). Updated ECOPACK
statement. Updated Table 6.: TO-220AB package mechanical
data.
05-Mar-2013
7
Updated Table 3
21-Oct-2014
8
Updated Features, Table 2, Figure 3 and D²PAK package
information. Added Figure 9. Removed fig 4,5 and 6 of version 7.
17-Aug-2015
9
Corrected XML fragment and reformatted to current standard.
10
Remove of I²PAK package.
Updated cover page, Section 3.1: "Characteristics (curves)",
Section 3: "Characteristics", Section 4.4: "D²PAK package
information" and Table 8: "Ordering information".
14-Oct-2016
14/15
Changes
Last update.
DocID3506 Rev 10
STPS2045C
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2016 STMicroelectronics – All rights reserved
DocID3506 Rev 10
15/15
很抱歉,暂时无法提供与“STPS2045CTC”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 1+1.68479
- 10+1.62239
- 100+1.47263
- 500+1.39775
