STPSC10C065-Y
Datasheet
Automotive 650 V power Schottky silicon carbide diode
Features
NC(1)
K(2)
A(3)
K
A

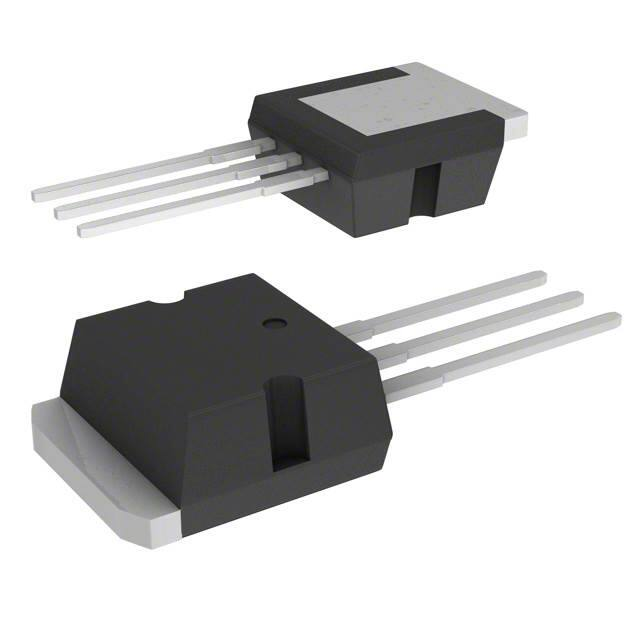

I2PAK
NC
K
•
•
•
•
•
AEC-Q101 qualified
No reverse recovery charge in application current range
Switching behavior independent of temperature
Recommended to PFC applications
PPAP capable
•
ECOPACK®2 compliant component
Description
The SiC diode is an ultra-high performance power Schottky diode. It is manufactured
using a silicon carbide substrate. The wide band gap material allows the design of a
Schottky diode structure with a 650 V rating. Due to the Schottky construction, no
recovery is shown at turn-off and ringing patterns are negligible. The minimal
capacitive turn-off behavior is independent of temperature.
Especially suited for use in PFC applications, the STPSC10C065-Y will boost
performance in hard switching conditions.
Product status link
STPSC10C065-Y
Product summary
IF(AV)
10 A
VRRM
650 V
Tj (max.)
175 °C
DS12402 - Rev 2 - September 2018
For further information contact your local STMicroelectronics sales office.
www.st.com
STPSC10C065-Y
Characteristics
1
Characteristics
Table 1. Absolute ratings (limiting values at 25 °C, unless otherwise specified)
Symbol
Parameter
VRRM
Repetitive peak reverse voltage
IF(RMS)
Forward rms current
IF(AV)
Surge non repetitive forward current
Tstg
Unit
650
V
22
A
Tc = 120 °C, DC current(1)
10
A
tp = 10 ms sinusoidal, Tc = 25 °C
85
tp = 10 ms sinusoidal, Tc = 125 °C
75
tp = 10 µs square, Tc = 25 °C
500
Tj from -40 °C to 175 °C
Average forward current
IFSM
Value
Storage temperature range
Tj
Operating junction
temperature(2)
A
-55 to +175
°C
-40 to +175
°C
1. Value based on Rth(j-c) max.
2. (dPtot/dTj) < (1/Rth(j-a)) condition to avoid thermal runaway for a diode on its own heatsink.
Table 2. Thermal resistance parameters
Symbol
Rth(j-c)
Value
Parameter
Junction to case
Typ.
Max.
1.3
2.0
Unit
°C/W
Table 3. Static electrical characteristics
Symbol
Parameter
Test conditions
IR(1)
Reverse leakage current
VF(2)
Forward voltage drop
Tj = 25 °C
Tj = 150 °C
Tj = 25 °C
Tj = 150 °C
VR = VRRM
IF = 10 A
Min.
Typ.
Max.
-
9
100
-
85
425
-
1.56
1.75
-
1.98
2.50
Unit
µA
V
1. Pulse test: tp = 10 ms, δ < 2%
2. Pulse test: tp = 500 µs, δ < 2%
To evaluate the conduction losses, use the following equation:
P = 1.35 x IF(AV) + 0.12 x IF2(RMS)
Table 4. Dynamic electrical characteristics
Symbol
QCj(1)
Cj
1.
DS12402 - Rev 2
Parameter
Total capacitive charge
Total capacitance
Test conditions
Typ.
Unit
VR = 400 V
26.4
nC
VR = 0 V, Tc = 25 °C, F = 1 MHz
480
VR = 300 V, Tc = 25 °C, F = 1 MHz
47
pF
VR
Most accurate value for the capacitive charge: Qcj VR = ∫ C j V dV
0
page 2/9
STPSC10C065-Y
Characteristics (curves)
1.1
Characteristics (curves)
Figure 2. Forward voltage drop versus forward
current (typical values, high level)
Figure 1. Forward voltage drop versus forward
current (typical values, low level)
20
IF(A)
100
IF(A)
Pulse test : tp = 500 µs
Pulse test : tp = 500 µs
80
16
Ta = 100 °C
60
12
Ta = 150 °C
Ta = 175 °C
8
T a = 25 °C
40
Ta = 100 °C
Ta = 25 °C
Ta = 150 °C
20
4
Ta = 175 °C
VF(V)
Ta = -40 °C
0
0.0
0.5
1.0
1.5
2.0
VF(V)
0
2.5
3.0
0
3.5
Figure 3. Reverse leakage current versus reverse
voltage applied (typical values)
IR(µA)
1
2
3
4
5
6
7
Figure 4. Peak forward current versus case
temperature
80
IM (A)
1.E+03
T
δ = 0.1
70
δ =tp/T
1.E+02
8
tp
60
Tj = 175 °C
1.E+01
50
Tj = 150 °C
1.E+00
δ = 0.3
40
δ = 0.5
1.E-01
30
1.E-02
20
Tj = 25 °C
1.E-03
VR(V)
δ = 0.7
TC(°C)
0
1.E-04
0
DS12402 - Rev 2
δ= 1
10
50
100 150 200 250 300 350 400 450 500 550 600 650
0
25
50
75
100
125
150
175
page 3/9
STPSC10C065-Y
Characteristics (curves)
Figure 5. Junction capacitance versus reverse
voltage applied (typical values)
Figure 6. Relative variation of thermal impedance
junction to case versus pulse duration
Zth(j-c) /Rth(j-c)
Cj (pF)
1.0
500
F = 1 MHz
VOSC = 30 mVRMS
Tj = 25 °C
400
0.9
0.8
0.7
0.6
300
0.5
0.4
200
0.3
0.2
100
0
0.1
1.0
10.0
Single pulse
t p (s)
0.1
VR(V)
100.0
1000.0
Figure 7. Non-repetitive peak surge forward current
versus pulse duration (sinusoidal waveform)
0.0
1.E-05
1.E-03
1.E-02
1.E-01
1.E+00
Figure 8. Total capacitive charges versus reverse
voltage applied (typical values)
IFSM(A)
30
1.E+03
1.E-04
QCj (nC)
25
Ta = 25 °C
20
Ta = 125 °C
15
1.E+02
10
5
VR(V)
t p (s)
0
1.E+01
1.E-05
DS12402 - Rev 2
1.E-04
1.E-03
1.E-02
0
50
100
150
200
250
300
350
400
page 4/9
STPSC10C065-Y
Package information
2
Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK®
packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions
and product status are available at: www.st.com. ECOPACK® is an ST trademark.
2.1
I²PAK package information
•
•
Epoxy meets UL 94,V0
Cooling method: by conduction (C)
Figure 9. I²PAK package outline
DS12402 - Rev 2
page 5/9
STPSC10C065-Y
I²PAK package information
Table 5. I²PAK package mechanical data
Dimensions
Ref.
DS12402 - Rev 2
Millimeters
Inches (for reference only)
Min.
Max.
Min.
Max.
A
4.40
4.60
0.173
0.181
A1
2.40
2.72
0.094
0.107
b
0.61
0.88
0.024
0.035
b1
1.14
1.70
0.044
0.067
c
0.49
0.70
0.019
0.028
c2
1.23
1.32
0.048
0.052
D
8.95
9.35
0.352
0.368
e
2.40
2.70
0.094
0.106
e1
4.95
5.15
0.195
0.203
E
10.00
10.40
0.394
0.409
L
13.00
14.00
0.512
0.551
L1
3.50
3.93
0.138
0.155
L2
1.27
1.40
0.050
0.055
page 6/9
STPSC10C065-Y
Ordering information
3
Ordering information
Table 6. Ordering information
DS12402 - Rev 2
Order code
Marking
Package
Weight
Base qty.
Delivery mode
STPSC10C065RY
PSC10C065RY
I²PAK
1.5 g
50
Tube
page 7/9
STPSC10C065-Y
Revision history
Table 7. Document revision history
DS12402 - Rev 2
Date
Revision
Changes
16-Feb-2018
1
First issue.
24-Sep-2018
2
Corrected cover image.
page 8/9
STPSC10C065-Y
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST
products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST
products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of
Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2018 STMicroelectronics – All rights reserved
DS12402 - Rev 2
page 9/9
