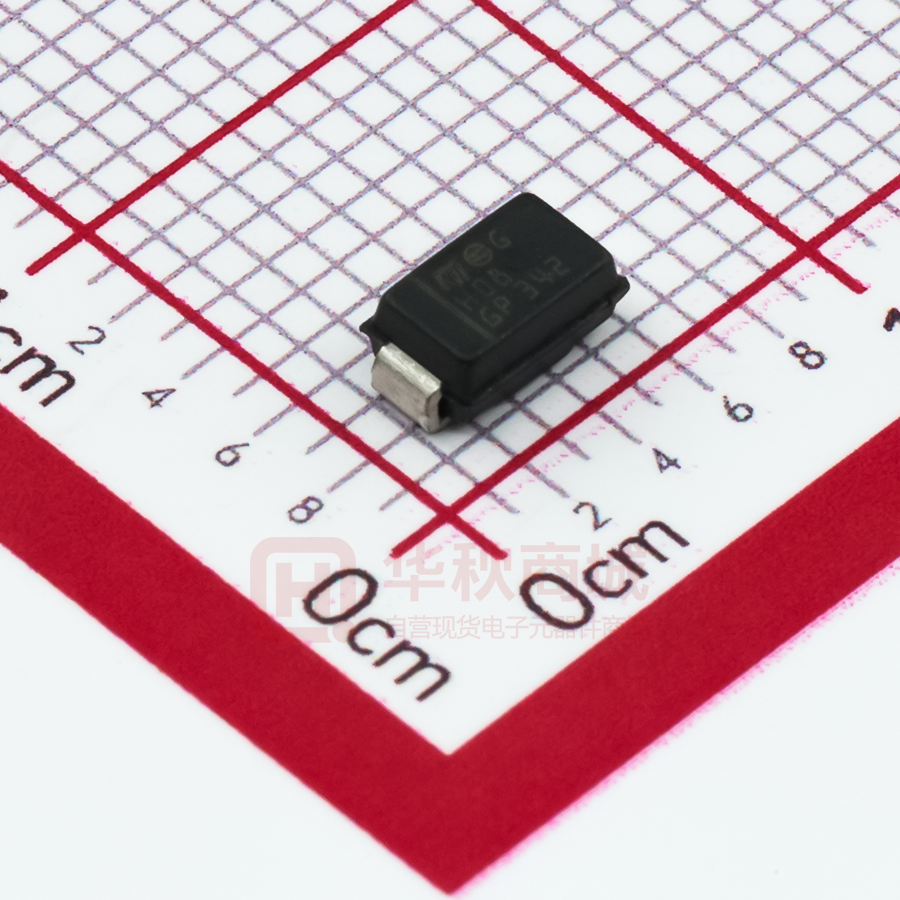

STTH108A

STTH108 High voltage ultrafast rectifier Features ■ Low forward voltage drop ■ High reliability ■ High surge current capability ■ Soft switching for reduced EMI disturbances ■ Planar technology K Description The STTH108, which is using ST ultrafast high voltage planar technology, is specially suited for free-wheeling, clamping, snubbering, demagnetization in power supplies and other power switching applications. October 2009 A A K SMA (JEDEC DO-214AC) STTH108A Table 1. Doc ID 9342 Rev 3 DO-41 STTH108 Device summary Symbol Value IF(AV) 1A VRRM 800 V Tj (max) 175 °C VF(max) 1.25 V 1/6 www.st.com 6 Characteristics 1 STTH108 Characteristics Table 2. Absolute ratings (limiting values) Symbol Parameter Value Unit VRRM Repetitive peak reverse voltage 800 V V(RMS) Voltage rms 560 V 1 A IF(AV) Average forward current IFSM Forward Surge current Tstg Storage temperature range Tj Table 3. DO-41 TL = 130 °C δ = 0.5 SMA 20 DO-41 25 t = 8.3 ms A -50 to + 175 °C 175 °C Value Unit Thermal resistance Parameter Rth(j-l) Junction to lead Rth(j-a) Junction to ambient Symbol TL = 110 °C δ = 0.5 Maximum operating junction temperature Symbol Table 4. SMA SMA 30 Lead length = 10 mm DO-41 45 Lead length = 10 mm DO-41 110 °C/W Static electrical characteristics Parameter Tests conditions Tj = 25 °C IR Reverse leakage current VF Forward voltage drop Tj = 125 °C Tj = 25 °C Tj = 125 °C Min. Typ. Max. Unit 5 VR = 800 V µA 1 50 1.65 IF = 1 A V 0.89 1.25 Typ. Max. Unit To evaluate the conduction losses use the following equation: P = 1.05 x IF(AV) + 0.20 IF2(RMS) Table 5. Symbol Parameter Tests conditions Min. trr Reverse recovery time Tj = 25 °C IF = 0.5 A, Irr = 0.25 A IR = 1 A 75 ns tfr Forward recovery time Tj = 25 °C IF = 1 A, dIF/dt = 50 A/ms VFR = 1.1 x VFmax 200 ns IF = 1 A, dIF/dt = 50 A/ms 12 V VFP 2/6 Dynamic electrical characteristics Forward T = 25 °C recovery voltage j Doc ID 9342 Rev 3 STTH108 Characteristics Figure 1. Conduction losses versus average Figure 2. current Forward voltage drop versus forward current IFM(A) P(W) 1.6 δ = 0.1 δ = 0.05 1.4 100.0 δ = 0.2 δ = 0.5 Tj=150°C (maximum values) 1.2 δ=1 Tj=150°C (typical values) 10.0 1.0 0.8 Tj=25°C (maximum values) 0.6 1.0 T 0.4 0.2 IF(AV)(A) δ=tp/T VFM(V) tp 0.0 0.1 0.0 0.1 Figure 3. 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 0.0 Relative variation of thermal Figure 4. impedance junction ambient versus pulse duration (DO-41) Zth(j-c)/Rth(j-c) 0.9 0.9 0.8 0.8 0.7 0.7 2.0 2.5 3.0 3.5 4.0 4.5 Relative variation of thermal impedance junction ambient versus pulse duration (epoxy FR4) (SMA) δ = 0.5 0.6 δ = 0.5 0.5 0.5 0.4 0.4 δ = 0.2 0.3 δ = 0.2 0.2 1.5 1.0 epoxy FR4, leads = 10 mm 0.3 1.0 Zth(j-c)/Rth(j-c) 1.0 0.6 0.5 T δ = 0.1 0.2 T δ = 0.1 0.1 tp(s) Single pulse δ=tp/T 0.0 1.E-01 1.E+00 Figure 5. 1.E+01 0.1 tp tp(s) Single pulse δ=tp/T 0.0 1.E+02 1.E+03 Thermal resistance junction to ambient versus copper surface under each lead (DO-41) 1.E-01 1.E+00 Figure 6. 1.E+01 tp 1.E+02 1.E+03 Thermal resistance junction to ambient versus copper surface under each lead (SMA) Rth(j-a)(°C/W) Rth(j-a)(°C/W) 140 120 epoxy printed circuit board FR4, copper thickness: 35 µm 110 epoxy printed circuit board FR4, copper thickness: 35 µm 130 120 100 110 90 100 80 90 70 80 60 70 50 60 50 40 40 30 30 20 20 S(cm²) 10 S(cm²) 10 0 0 0 1 2 3 4 5 6 7 8 9 10 0.0 Doc ID 9342 Rev 3 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 3/6 Package information 2 STTH108 Package information ● Epoxy meets UL 94, V0 ● Band indicates cathode ● Bending method (DO-41): see Application note AN1471 In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. Table 6. SMA dimensions Dimensions Ref. E1 D E A1 A2 C L Figure 7. b Millimeters Inches Min. Max. Min. Max. A1 1.90 2.45 0.075 0.094 A2 0.05 0.20 0.002 0.008 b 1.25 1.65 0.049 0.065 c 0.15 0.40 0.006 0.016 D 2.25 2.90 0.089 0.114 E 4.80 5.35 0.189 0.211 E1 3.95 4.60 0.156 0.181 L 0.75 1.50 0.030 0.059 Footprint (dimensions in mm) 2.63 1.4 1.4 1.64 5.43 Table 7. DO-41 (plastic) package dimensions Dimensions Ref. 4/6 A C Doc ID 9342 Rev 3 Inches Min. Max. Min. Max. A 4.07 5.20 0.160 0.205 2.71 0.080 0.107 ØD ØB C Millimeters B 2.04 C 25.4 D 0.71 1 0.86 0.028 0.034 STTH108 3 Ordering information Ordering information Table 8. 4 Ordering information Order code Marking Package Weight Base qty Delivery mode STTH108 STTH108 DO-41 0.34 g 2000 Ammopack STTH108A H08 SMA 0.068 g 5000 Tape and reel STTH108RL STTH108 DO-41 0.34 g 5000 Tape and reel Revision history Table 9. Document revision history Date Revision Changes Jan-2003 2 Last update. 30-Sep-2009 3 Updated table 7 package dimensions. Doc ID 9342 Rev 3 5/6 STTH108 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2009 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 6/6 Doc ID 9342 Rev 3
