STW26NM60N
N-channel 600 V, 0.135 Ω typ., 20 A MDmesh™ II
Power MOSFET in a TO-247 package
Datasheet - production data
Features
3
2
1
Order code
VDS
RDS(on) max
ID
STW26NM60N
600 V
0.165 Ω
20 A
100% avalanche tested
Low input capacitance and gate charge
Low gate input resistance
Applications

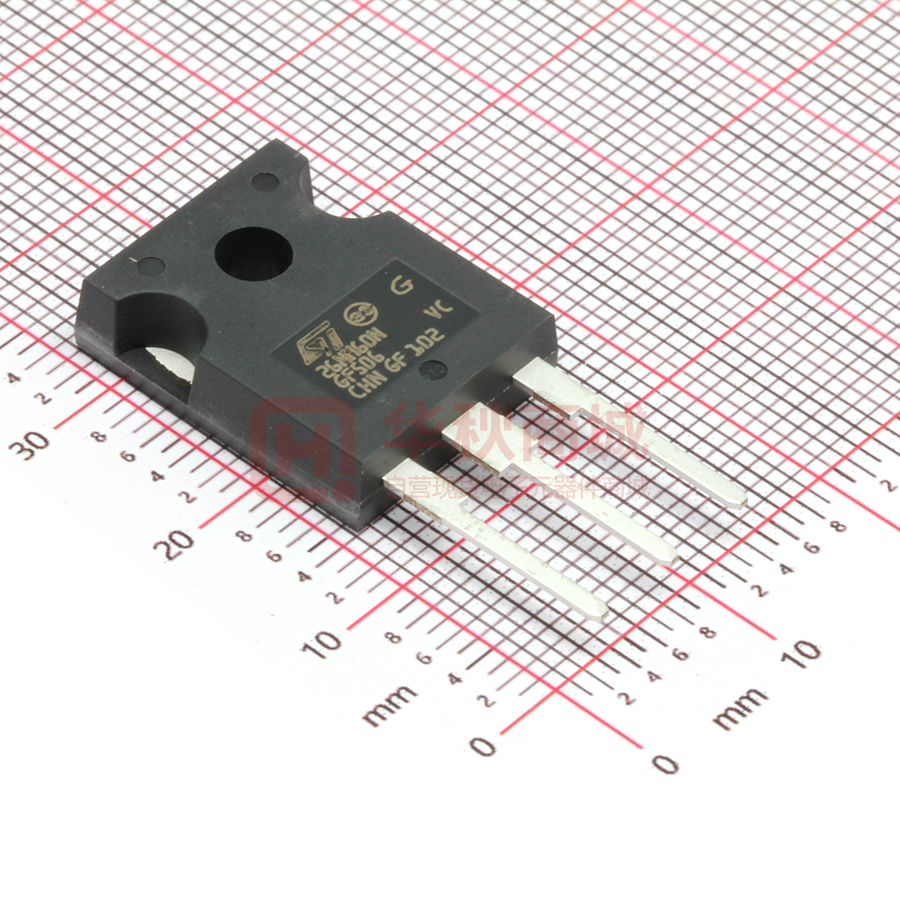

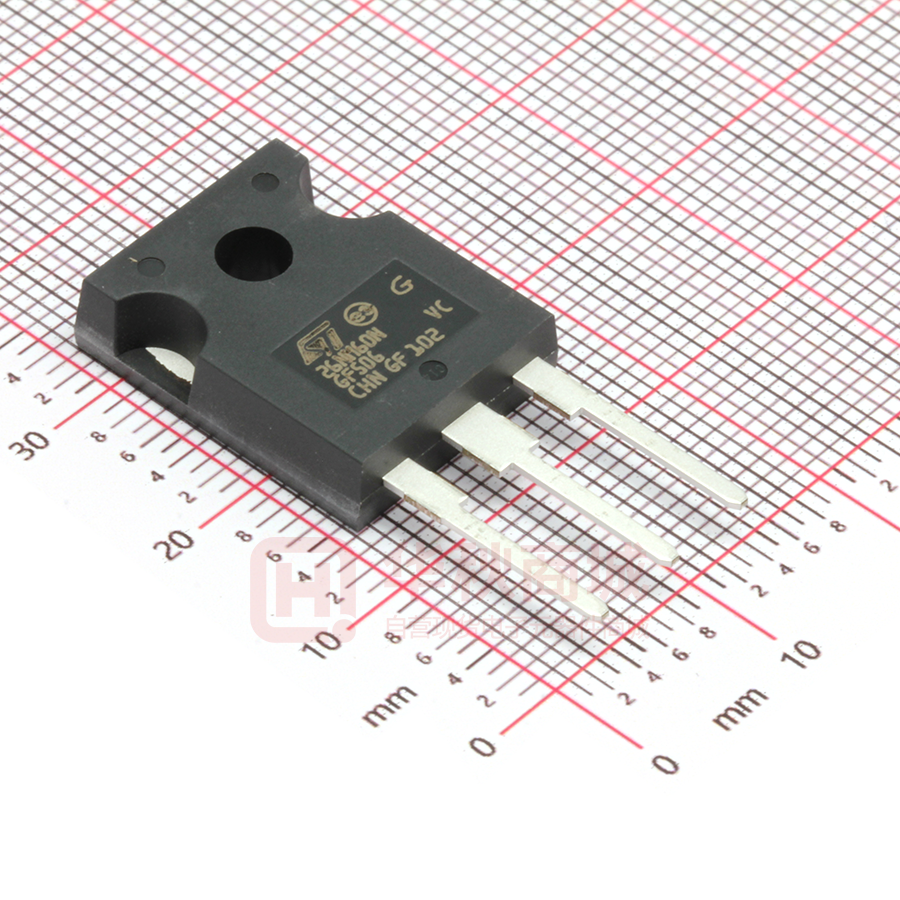

TO-247
Switching applications
Description
Figure 1: Internal schematic diagram
D(2)
This device is an N-channel Power MOSFET
developed using the second generation of
MDmesh™ technology. This revolutionary Power
MOSFET associates a vertical structure to the
company’s strip layout to yield one of the world’s
lowest on-resistance and gate charge. It is
therefore suitable for the most demanding high
efficiency converters.
G(1)
S(3)
AM01475v1_no Tab_noZen
Table 1: Device summary
Order code
Marking
Package
Packaging
STW26NM60N
26NM60N
TO-247
Tube
December 2016
DocID025246 Rev 2
This is information on a product in full production.
1/12
www.st.com
Contents
STW26NM60N
Contents
1
Electrical ratings ............................................................................. 3
2
Electrical characteristics ................................................................ 4
2.1
Electrical characteristics (curves) ...................................................... 6
3
Test circuits ..................................................................................... 8
4
Package information ....................................................................... 9
4.1
5
2/12
TO-247 package information ............................................................. 9
Revision history ............................................................................ 11
DocID025246 Rev 2
STW26NM60N
1
Electrical ratings
Electrical ratings
Table 2: Absolute maximum ratings
Symbol
Parameter
Value
Unit
VDS
Drain-source voltage
600
V
VGS
Gate-source voltage
±30
V
ID
Drain current (continuous) at TC = 25 °C
20
A
ID
Drain current (continuous) at TC = 100 °C
12.6
A
Drain current (pulsed)
80
A
Total dissipation at TC = 25 °C
140
W
Peak diode recovery voltage slope
15
V/ns
-55 to 150
°C
Value
Unit
0.89
°C/W
50
°C/W
Value
Unit
6
A
610
mJ
IDM
(1)
PTOT
(2)
dv/dt
Tstg
Tj
Storage temperature range
Operating junction temperature range
Notes:
(1)Pulse
(2)I
SD
width limited by safe operating area.
≤ 20 A, di/dt ≤ 400 A/µs, VDS(peak) ≤ V(BR)DSS, VDD ≤ 80% V(BR)DSS
Table 3: Thermal data
Symbol
Parameter
Rthj-case
Thermal resistance junction-case
Rthj-amb
Thermal resistance junction-ambient
Table 4: Avalanche characteristics
Symbol
Parameter
IAS
Single pulse avalanche current (pulse width limited by
Tjmax)
EAS
Single pulse avalanche energy (starting TJ=25 °C, ID=IAS,
VDD=50 V)
DocID025246 Rev 2
3/12
Electrical characteristics
2
STW26NM60N
Electrical characteristics
(TCASE = 25 °C unless otherwise specified)
Table 5: On/off states
Symbol
Parameter
V(BR)DSS
Drain-source
breakdown voltage
Test conditions
ID = 1 mA, VGS = 0 V
Min.
Typ.
Max.
600
Unit
V
VGS = 0 V, VDS = 600 V
1
VGS = 0 V, VDS = 600 V,
TC= 125 °C (1)
100
Gate-body leakage
current
VDS = 0 V, VGS = ±25 V
±0.1
µA
VGS(th)
Gate threshold voltage
VDS = VGS, ID = 250 µA
3
4
V
RDS(on)
Static drain-source onresistance
VGS = 10 V, ID = 10 A
0.135
0.165
Ω
Min.
Typ.
Max.
Unit
-
1800
-
pF
-
115
-
pF
-
6
-
pF
VGS = 0 V, VDS = 0 to 480 V
-
310
-
pF
-
60
-
nC
-
8.5
-
nC
-
30
-
nC
-
2.8
-
Ω
IDSS
Zero gate voltage drain
current
IGSS
2
µA
Notes:
(1)Defined
by design, not subject to production test.
Table 6: Dynamic
Symbol
Parameter
Ciss
Input capacitance
Coss
Output capacitance
Crss
Reverse transfer
capacitance
Coss eq. (1)
Equivalent output
capacitance
Test conditions
VDS = 50 V, f = 1 MHz,
VGS = 0 V
Qg
Total gate charge
Qgs
Gate-source charge
Qgd
Gate-drain charge
VDD = 480 V, ID = 20 A,
VGS = 10 V
(see Figure 14: "Test circuit for
gate charge behavior")
RG
Gate input resistance
f=1 MHz, ID=0 A
Notes:
(1)C
oss eq.
is defined as a constant equivalent capacitance giving the same charging time as C oss when VDS
increases from 0 to 80% VDS
Table 7: Switching times
Symbol
td(on)
tr
td(off)
tf
4/12
Parameter
Turn-on delay time
Rise time
Turn-off delay time
Fall time
Test conditions
Min.
Typ.
Max.
Unit
VDD = 300 V, ID = 10 A,
RG = 4.7 Ω, VGS = 10 V
(see Figure 13: "Test circuit for
resistive load switching times"
and Figure 18: "Switching time
waveform")
-
13
-
ns
-
25
-
ns
-
85
-
ns
-
50
-
ns
DocID025246 Rev 2
STW26NM60N
Electrical characteristics
Table 8: Source-drain diode
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
ISD
Source-drain current
-
20
A
ISDM(1)
Source-drain current
(pulsed)
-
80
A
VSD(2)
Forward on voltage
ISD = 20 A, VGS = 0 V
-
1.5
V
trr
Reverse recovery time
-
370
ns
Qrr
Reverse recovery charge
-
5.8
µC
IRRM
Reverse recovery current
ISD = 20 A, di/dt = 100 A/µs
VDD = 60 V
(see Figure 15: "Test circuit for
inductive load switching and
diode recovery times")
-
31.6
A
ISD = 20 A, di/dt = 100 A/µs
VDD = 60 V, Tj = 150 °C
(see Figure 15: "Test circuit for
inductive load switching and
diode recovery times" )
-
450
ns
-
7.5
µC
-
32.5
A
trr
Reverse recovery time
Qrr
Reverse recovery charge
IRRM
Reverse recovery current
Notes:
(1)Pulse
(2)
width limited by safe operating area.
Pulsed: pulse duration = 300 µs, duty cycle 1.5%
DocID025246 Rev 2
5/12
Electrical characteristics
2.1
STW26NM60N
Electrical characteristics (curves)
Figure 2: Safe operating area
Figure 3: Thermal impedance
Figure 4: Output characteristics
Figure 5: Transfer characteristics
Figure 6: Static drain-source on-resistance
Figure 7: Gate charge vs gate-source voltage
W
6/12
DocID025246 Rev 2
STW26NM60N
Electrical characteristics
Figure 8: Capacitance variations
Figure 9: Normalized gate threshold voltage vs
temperature
Figure 10: Normalized on-resistance vs temperature
Figure 11: Source-drain diode forward
characteristics
Figure 12: Normalized V(BR)DSS vs temperature
DocID025246 Rev 2
7/12
Test circuits
3
8/12
STW26NM60N
Test circuits
Figure 13: Test circuit for resistive load
switching times
Figure 14: Test circuit for gate charge
behavior
Figure 15: Test circuit for inductive load
switching and diode recovery times
Figure 16: Unclamped inductive load test
circuit
Figure 17: Unclamped inductive waveform
Figure 18: Switching time waveform
DocID025246 Rev 2
STW26NM60N
4
Package information
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK ®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
4.1
TO-247 package information
Figure 19: TO-247 package outline
0075325_8
DocID025246 Rev 2
9/12
Package information
STW26NM60N
Table 9: TO-247 package mechanical data
mm
Dim.
Min.
Max.
A
4.85
5.15
A1
2.20
2.60
b
1.0
1.40
b1
2.0
2.40
b2
3.0
3.40
c
0.40
0.80
D
19.85
20.15
E
15.45
15.75
e
5.30
L
14.20
14.80
L1
3.70
4.30
L2
10/12
Typ.
5.45
5.60
18.50
ØP
3.55
ØR
4.50
S
5.30
DocID025246 Rev 2
3.65
5.50
5.50
5.70
STW26NM60N
5
Revision history
Revision history
Table 10: Document revision history
Date
Revision
07-Jul-2016
1
First release.
2
Modified Table 6: "Dynamic" and Table 8: "Source-drain diode"
Modified Section 2.1: "Electrical characteristics (curves)"
Minor text changes
12-Dec-2016
Changes
DocID025246 Rev 2
11/12
STW26NM60N
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2016 STMicroelectronics – All rights reserved
12/12
DocID025246 Rev 2
