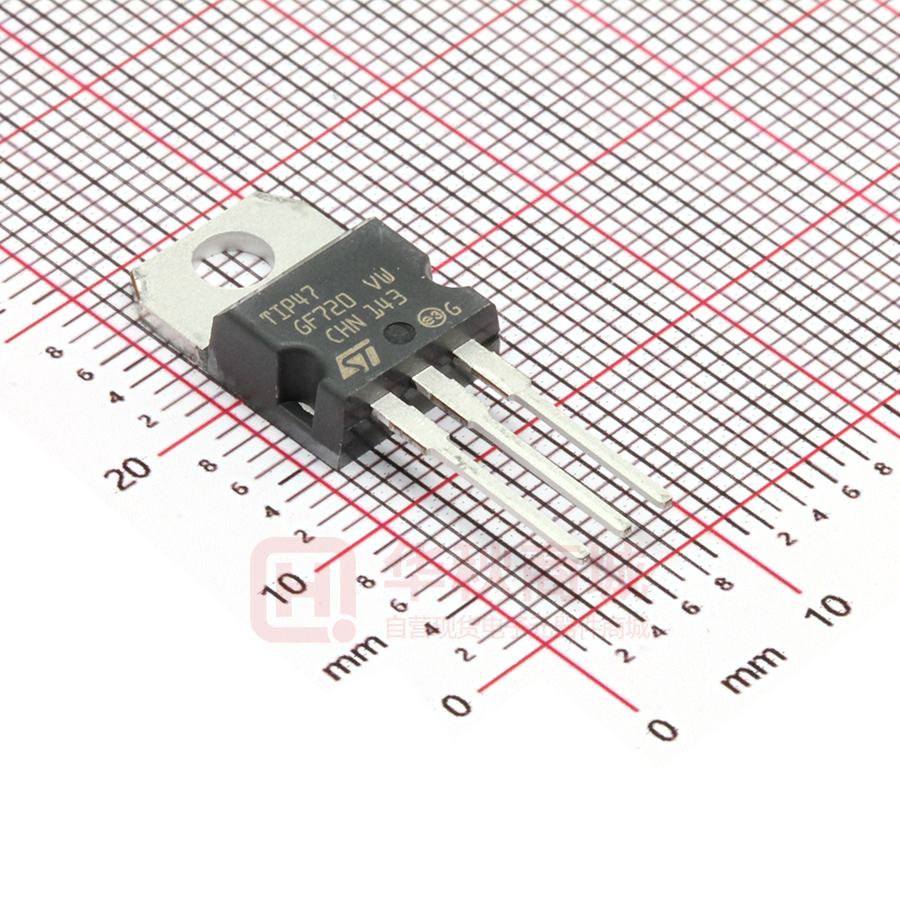

TIP47/TIP48 TIP49/TIP50 ® SILICON NPN SWITCHING TRANSISTORS ■ ■ STMicroelectronics PREFERRED SALESTYPES NPN TRANSISTOR DESCRIPTION The TIP47, TIP48, TIP49 and TIP50 are silicon Multiepitaxial NPN Planar transistors mounted in Jedec TO-220 plastic package. It is intented for use in linear and switching applications. 3 1 2 TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit TIP47 TIP48 TIP49 V CBO Collector-Base Voltage (I E = 0) 350 400 450 500 V V CEO Collector-Emitter Voltage (I B = 0) 250 300 350 400 V VEBO Emitter-Base Voltage (I C = 0) 5 V Collector Current 1 A Collector Peak Current 2 A IC ICM IB P tot Tstg Tj TIP50 Base Current 0.6 A Total Dissipation at T case ≤ 25 o C T amb ≤ 25 o C Storage Temperature 40 2 W W Max. Operating Junction Temperature October 1999 -65 to 150 o C 150 o C 1/4 TIP47 / TIP48 / TIP49 / TIP50 THERMAL DATA R thj-case R thj-amb Thermal Resistance Junction-case Thermal Resistance Junction-ambient Max Max o 3.125 62.5 o C/W C/W ELECTRICAL CHARACTERISTICS (Tcase = 25 oC unless otherwise specified) Symbol Max. Unit I CES Collector Cut-off Current (V BE = 0) Parameter for for for for TIP47 TIP48 TIP49 TIP50 VCE VCE VCE VCE = = = = 350 400 450 500 V V V V 1 1 1 1 mA mA mA mA I CEO Collector Cut-off Current (I B = 0) for for for for TIP47 TIP48 TIP49 TIP50 VCE VCE VCE VCE = = = = 150 200 250 300 V V V V 1 1 1 1 mA mA mA mA IEBO Emitter Cut-off Current (I C = 0) V EB = 5 V 1 mA V CEO(sus) * Collector-Emitter Sustaining Voltage (I B = 0) Test Conditions Min. I C = 30 mA for TIP47 for TIP48 for TIP49 for TIP50 Collector-Emitter Saturation Voltage IC = 1 A I B = 0.2 A V BE(on) * Base-Emitter Voltage IC = 1 A V CE = 10 V DC Current Gain I C = 0.3 A IC = 1 A V CE = 10 V V CE = 10 V 30 10 fT Transition Frequency V CE = 10 V f = 2 MHz I C = 0.2 A 10 h fe Small Signal Current Gain V CE = 10 V f = 1 KHz I C = 0.2 A 25 ∗ Pulsed: Pulse duration = 300 µs, duty cycle ≤ 2 % 2/4 V V V V 250 300 350 400 VCE(sat) * h FE * Typ. 1 V 1.5 V 150 MHz TIP47 / TIP48 / TIP49 / TIP50 TO-220 MECHANICAL DATA mm DIM. MIN. MAX. MIN. A 4.40 4.60 0.173 0.181 C 1.23 1.32 0.048 0.051 D 2.40 2.72 0.094 D1 TYP. inch 1.27 TYP. MAX. 0.107 0.050 E 0.49 0.70 0.019 0.027 F 0.61 0.88 0.024 0.034 F1 1.14 1.70 0.044 0.067 F2 1.14 1.70 0.044 0.067 G 4.95 5.15 0.194 0.203 G1 2.4 2.7 0.094 0.106 H2 10.0 10.40 0.393 L2 16.4 0.409 0.645 L4 13.0 14.0 0.511 0.551 L5 2.65 2.95 0.104 0.116 L6 15.25 15.75 0.600 0.620 L7 6.2 6.6 0.244 0.260 L9 3.5 3.93 0.137 0.154 DIA. 3.75 3.85 0.147 0.151 P011C 3/4 TIP47 / TIP48 / TIP49 / TIP50 Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specification mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics. The ST logo is a trademark of STMicroelectronics © 1999 STMicroelectronics – Printed in Italy – All Rights Reserved STMicroelectronics GROUP OF COMPANIES Australia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Malaysia - Malta - Morocco Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A. http://www.st.com . 4/4
