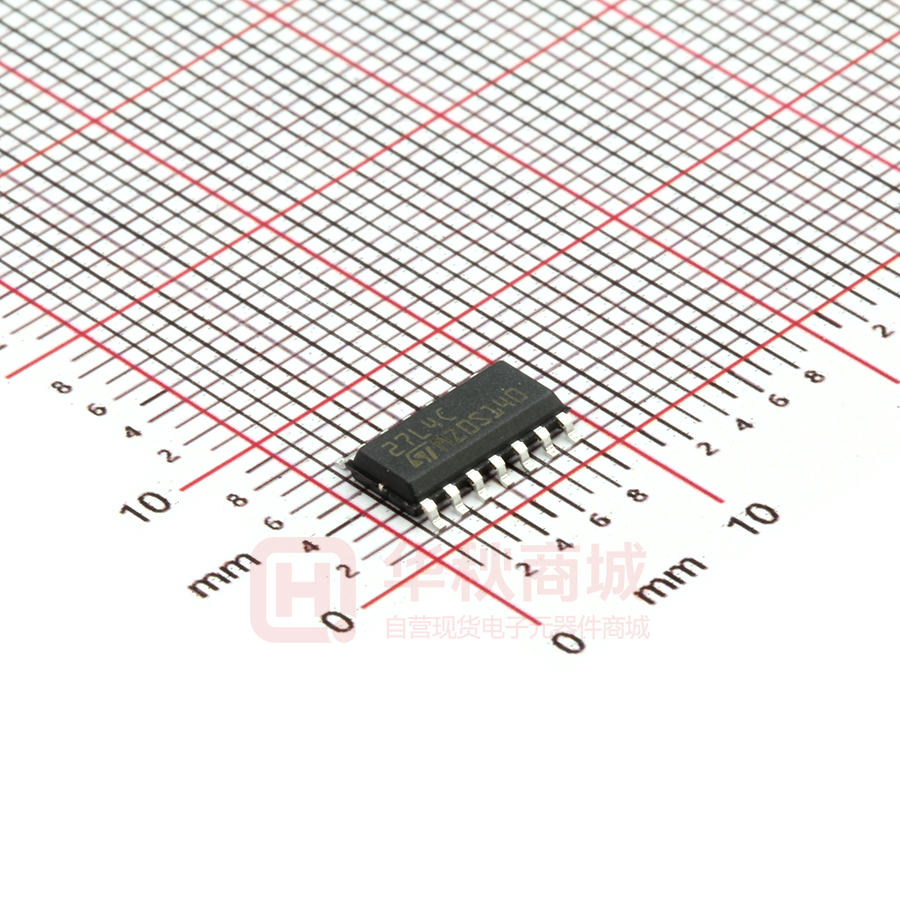

TS27L4CDT

TS27L4 Very low power precision CMOS quad operational amplifiers Features ■ Very low power consumption: 10 µA/op ■ Output voltage can swing to ground ■ Excellent phase margin on capacitive loads ■ Unity gain stable ■ Two input offset voltage selections DIP14 (Plastic package) SO-14 (Plastic micropackage) Description The TS27L4 series are low-cost, low-power quad operational amplifiers designed to operate with single or dual supplies. These operational amplifiers use the ST silicon gate CMOS process allowing an excellent consumption-speed ratio. These series are ideally suited for low consumption applications. TSSOP14 (Thin shrink small outline package) Three power consumptions are available enabling the best consumption-speed ratio: ICC = 10 µA/amp: TS27L4 (very low power), ICC = 150 µA/amp: TS27M4 (low power), ICC = 1 mA/amp: TS274 (standard). Pin connections (top view) These CMOS amplifiers offer very high input impedance and extremely low input currents. The major advantage versus JFET devices is the very low input current drift with temperature (see Figure 4). March 2009 14 Output 4 Output 1 1 Inverting Input 1 2 - - 13 Inverting Input 4 Non-inverting Input 1 3 + + 12 Non-inverting Input 4 11 VCC - VCC + 4 Non-inverting Input 2 5 + + 10 Non-inverting Input 3 Inverting Input 2 6 - - 9 Inverting Input 3 8 Output 3 Output 2 7 Rev 3 1/15 www.st.com 15 Circuit schematics 1 TS27L4 Circuit schematics Figure 1. Internal block diagram VCC Current source xI Input differential Second stage Output stage Output VCC E 2/15 E T20 T19 T17 T24 T21 T 18 R2 T 25 VCC T 22 T 23 T 26 T29 T 28 T27 Input T3 T1 T5 T4 T2 C1 Input R1 T7 T6 T9 T8 T 13 T11 T 10 T 14 T 12 T16 Output T 15 Figure 2. VCC TS27L4 Circuit schematics Schematic diagram (for 1/4 TS27L4) 3/15 Absolute maximum ratings and operating conditions 2 TS27L4 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings Symbol VCC+ Vid Parameter Value Unit 18 V Supply voltage (1) Differential input voltage (2) ±18 V Vin Input voltage (3) -0.3 to 18 V Io Output current for VCC+ ≥ 15V ±30 mA Iin Input current ±5 mA -65 to +150 °C Tstg Storage temperature range Rthja Thermal resistance junction to ambient(4) SO-14 TSSOP14 DIP14 105 100 80 Rthjc Thermal resistance junction to case(4) SO-14 TSSOP14 DIP14 31 32 33 HBM: human body model(5) 1 kV 100 V 1.5 kV ESD MM: machine model(6) (7) CDM: charged device model °C/W °C/W 1. All values, except differential voltage are with respect to network ground terminal. 2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal. 3. The magnitude of the input and the output voltages must never exceed the magnitude of the positive supply voltage. 4. Short-circuits can cause excessive heating and destructive dissipation. Values are typical. 5. Human body model: a 100 pF capacitor is charged to the specified voltage, then discharged through a 1.5 kΩ resistor between two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating. 6. Machine model: a 200 pF capacitor is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 Ω). This is done for all couples of connected pin combinations while the other pins are floating. 7. Charged device model: all pins and the package are charged together to the specified voltage and then discharged directly to the ground through only one pin. This is done for all pins. Table 2. Symbol VCC+ 4/15 Operating conditions Parameter TS27L4C Supply voltage Vicm Common mode input voltage range Toper Operating free-air temperature range TS27L4I 3 to 16 V + 0 to VCC - 1.5 0 to +70 Unit -40 to +125 V °C TS27L4 Electrical characteristics 3 Electrical characteristics Table 3. VCC+ = +10 V, VCC- = 0 V, Tamb = +25° C (unless otherwise specified) TS27L4C/AC Symbol Unit Min. Typ. Vio DVio TS27L4I/AI Parameter Input offset voltage Vo = 1.4V, Vic = 0V TS27L4 TS27L4A Tmin ≤ Tamb ≤ Tmax TS27L4 TS27L4A 1.1 0.9 Max. Min. 10 5 Typ. Max. 1.1 0.9 10 5 12 6.5 Input offset voltage drift mV 12 6.5 2 2 µV/°C (1) Iio Iib Input offset current Vic = 5V, VO = 5V Tmin ≤ Tamb ≤ Tmax 1 Input bias current (1) Vic = 5V, VO = 5V Tmin ≤ Tamb ≤ Tmax 1 VOH High level output voltage Vid = 100mV, RL = 1MΩ Tmin ≤ Tamb ≤ Tmax VOL Low level output voltage Vid = -100mV Avd Large signal voltage gain ViC = 5V, RL = 1MΩ, Vo = 1V to 6V Tmin ≤ Tamb ≤ Tmax 200 9 300 8.8 8.6 100 V 9 50 60 45 pA 1 150 8.8 8.7 pA 1 100 50 60 40 mV 100 V/mV 0.1 MHz GBP Gain bandwidth product Av = 40dB, RL = 1MΩ, CL = 100pF, fin = 100kHz CMR Common mode rejection ratio ViC = 1V to 7.4V, Vo = 1.4V 65 80 65 80 dB SVR Supply voltage rejection ratio VCC+ = 5V to 10V, Vo = 1.4V 60 80 60 80 dB ICC Supply current (per amplifier) Av = 1, no load, Vo = 5V Tmin ≤ Tamb ≤ Tmax 10 Output short circuit current Vo = 0V, Vid = 100mV 60 60 mA Isink Output sink current Vo = VCC, Vid = -100mV 45 45 mA SR Slew rate at unity gain RL = 1MΩ, CL = 100pF, Vi = 3 to 7V 0.04 0.04 V/µs Io 0.1 15 17 10 15 18 µA 5/15 Electrical characteristics Table 3. TS27L4 VCC+ = +10 V, VCC- = 0 V, Tamb = +25° C (unless otherwise specified) (continued) TS27L4C/AC Symbol TS27L4I/AI Parameter Unit Min. Typ. Max. Min. Typ. Max. φm Phase margin at unity gain Av = 40dB, RL = 1MΩ, CL = 100pF 45 45 Degrees Kov Overshoot factor 30 30 % en Equivalent input noise voltage f = 1kHz, Rs = 100Ω 68 68 nV -----------Hz Channel separation 120 120 dB Vo1/Vo2 1. Maximum values include unavoidable inaccuracies of the industrial tests. 6/15 TS27L4 Typical characteristics Figure 3. Supply current (each amplifier) versus supply voltage 2.0 1.5 1.0 Tamb = 25°C AV = 1 VO = VCC / 2 0.5 0 4 8 12 SUPPLY VOLTAGE, VCC (V) Figure 5. VCC = 5V 2 0 VCC = 3V -10 1 Figure 6. 1.0 0.6 V CC = 3V V CC = 5V 0.4 0.2 0 T amb = 25°C V ic = 0.5V V id = -100mV 1 2 OUTPUT CURRENT, I OL (mA) 75 100 125 High level output voltage versus high level output current 16 3 T amb = 25˚C V id = 100mV VCC = 16V 12 VCC = 10V 8 4 0 -50 Low level output voltage versus low Figure 8. level output current 0.8 50 20 0 OUTPUT VOLTAGE, VOL (V) OUTPUT VOLTAGE, VOL (V) Figure 7. -8 -6 -4 -2 OUTPUT CURRENT, I OH (mA) 10 25 OUTPUT VOLTAGE, V OH (V) OUTPUT VOLTAGE, V OH (V) T amb = 25˚C V id = 100mV 1 VCC = 10V Vic = 5V TEMPERATURE, T amb (˚C) 5 3 Input bias current versus free air temperature 100 16 High level output voltage versus high level output current 4 Figure 4. INPUT BIAS CURRENT, I IB (pA) Typical characteristics SUPPLY CURRENT, I CC (µ A) 4 3 -40 -30 -20 OUTPUT CURRENT, I 0 Low level output voltage versus low level output current V CC = 10V VCC = 16V 2 1 -10 OH (mA) T amb = 25°C V i = 0.5V V = -100mV id 0 4 8 12 16 OUTPUT CURRENT, I OL (mA) 20 7/15 Typical characteristics Open loop frequency response and Figure 10. Gain bandwidth product versus phase shift supply voltage 40 0 G A IN G A IN (d B ) 30 45 PHASE 20 Phase Margin T amb = 2 5 °C V CC+ = 1 0 V R L = 1 MΩ C L = 100pF A VCL = 1 0 0 10 0 135 2 10 3 180 Gain Bandwidth Product -1 0 10 90 10 4 10 5 10 6 10 P H A S E (D e g re e s ) 50 7 G A IN B A N D W . P R O D ., G B P (M H z ) Figure 9. TS27L4 120 T amb = 2 5 °C R L = 1M Ω C = 100pF L AV = 1 100 80 60 40 0 4 F R E Q U E N C Y , f (H z ) 60 T amb = 2 5 °C R L = 1 MΩ C = 100pF L AV = 1 40 30 0 4 8 12 T amb = 2 5 °C R L = 1MΩ AV = 1 V CC= 1 0 V 70 60 50 40 0 16 20 60 80 100 Figure 14. Input voltage noise versus frequency EQUIVALENT INPUT NOISE VOLTAGE (nV/VHz) 0 .0 5 S L E W R A T E S , S R (V /μ s ) 40 C A P A C IT A N C E , C L (p F ) Figure 13. Slew rate versus supply voltage SR 0 .0 4 SR 0 .0 3 0 .0 2 300 VCC = 10V Tamb = 25˚C R S = 100Ω 200 100 0 4 8/15 16 80 S U P P L Y V O L T A G E , V CC (V ) T amb = 2 5 °C R L = 1M Ω C = 100pF L 12 Figure 12. Phase margin versus capacitive load P H A S E M A R G IN , φ m (D e g re e s ) P H A S E M A R G IN , φ m (D e g re e s ) Figure 11. Phase margin versus supply voltage 50 8 S U P P L Y V O L T A G E , V CC (V ) 6 8 10 12 14 S U P P L Y V O L T A G E , VCC (V ) 16 1 100 10 FREQUENCY (Hz) 1000 TS27L4 5 Package information Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. 9/15 Package information 5.1 TS27L4 DIP14 package information Figure 15. DIP14 package mechanical drawing Table 4. DIP14 package mechanical data Dimensions Millimeters Inches Ref. Min. Typ. A Min. Typ. 5.33 Max. 0.21 A1 0.38 0.015 A2 2.92 3.30 4.95 0.11 0.13 0.19 b 0.36 0.46 0.56 0.014 0.018 0.022 b2 1.14 1.52 1.78 0.04 0.06 0.07 c 0.20 0.25 0.36 0.007 0.009 0.01 D 18.67 19.05 19.69 0.73 0.75 0.77 E 7.62 7.87 8.26 0.30 0.31 0.32 E1 6.10 6.35 7.11 0.24 0.25 0.28 e 2.54 0.10 e1 15.24 0.60 eA 7.62 0.30 eB L 10/15 Max. 10.92 2.92 3.30 3.81 0.43 0.11 0.13 0.15 TS27L4 5.2 Package information SO-14 package information Figure 16. SO-14 package mechanical drawing Table 5. SO-14 package mechanical data Dimensions Millimeters Inches Ref. Min. Typ. Max. Min. Typ. Max. A 1.35 1.75 0.05 0.068 A1 0.10 0.25 0.004 0.009 A2 1.10 1.65 0.04 0.06 B 0.33 0.51 0.01 0.02 C 0.19 0.25 0.007 0.009 D 8.55 8.75 0.33 0.34 E 3.80 4.0 0.15 0.15 e 1.27 0.05 H 5.80 6.20 0.22 0.24 h 0.25 0.50 0.009 0.02 L 0.40 1.27 0.015 0.05 k ddd 8° (max.) 0.10 0.004 11/15 Package information 5.3 TS27L4 TSSOP14 package information Figure 17. TSSOP14 package mechanical drawing Table 6. TSSOP14 package mechanical data Dimensions Ref. Millimeters Min. Typ. A Max. Min. Typ. 1.20 A1 0.05 A2 0.80 b Max. 0.047 0.15 0.002 0.004 0.006 1.05 0.031 0.039 0.041 0.19 0.30 0.007 0.012 c 0.09 0.20 0.004 0.0089 D 4.90 5.00 5.10 0.193 0.197 0.201 E 6.20 6.40 6.60 0.244 0.252 0.260 E1 4.30 4.40 4.50 0.169 0.173 0.176 e L k aaa 1.00 0.65 0.45 L1 12/15 Inches 0.60 0.0256 0.75 0.018 1.00 0° 0.024 0.030 0.039 8° 0.10 0° 8° 0.004 TS27L4 6 Ordering information Ordering information Table 7. Order codes Order code Temperature range Package Packing SO-14 Tube or Tape & reel TS27L4CD TS27L4CDT 27L4C TS27L4ACD TS27L4ACDT TS27L4CN TS27L4ACN 27L4AC 0°C, +70°C TS27L4CN DIP14 27L4C TSSOP14 Tape & reel 27L4AC TS27L4ID TS27L4IDT 27L4I SO-14 TS27L4AID TS27L4AIDT TS27L4IPT TS27L4AIPT Tube TS27L4ACN TS27L4CPT TS27L4ACPT TS27L4IN TS27L4AIN Marking Tube or Tape & reel 27L4AI -40°C, +125°C TS27L4IN DIP14 Tube TS27L4AIN 27L4I TSSOP14 Tape & reel 27L4AI 13/15 Revision history 7 TS27L4 Revision history Table 8. 14/15 Document revision history Date Revision Changes 11-Nov-2001 1 Initial release. 08-Sep-2008 2 Removed TS27L4B version of device. Added Rthja, Rthjc, and ESD parameters in Table 1: Absolute maximum ratings. Expanded Table 7: Order codes. Updated document format. 02-Mar-2009 3 Removed TS27L4*M* from Table 7: Order codes. Updated package mechanical drawings and data in Chapter 5: Package information. TS27L4 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2009 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 15/15
