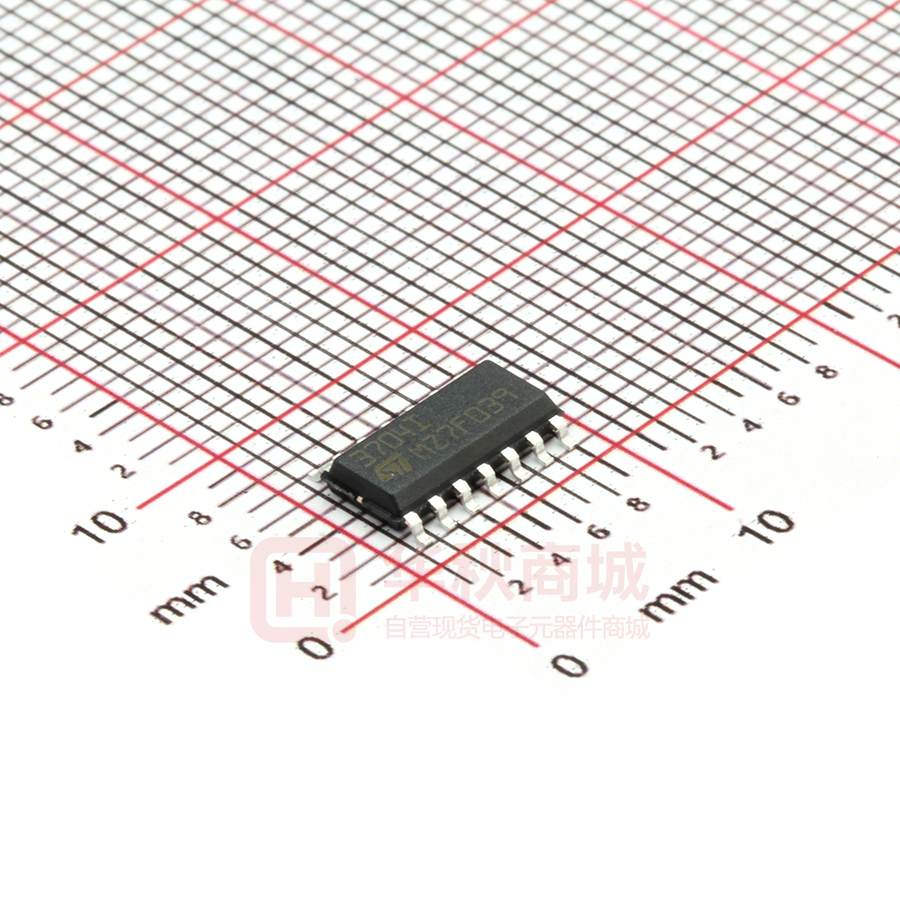

TS3704IDT

TS3704 Micropower quad CMOS voltage comparators Features ■ Push-pull CMOS output (no external pull-up resistor required) ■ Extremely low supply current: 9μa typ per comparator ■ Wide single supply range 2.7V to 16V or dual supplies (±1.35V to ±8V) ■ Extremely low input bias current: 1pA typ ■ Extremely low input offset current: 1pA typ ■ Input common-mode voltage range includes GND ■ High input impedance: 1012Ω typ ■ Last response time: 2μs typ. for 5mV overdrive ■ Pin-to-pin and functionally compatible with bipolar LM339 N DIP14 (Plastic package) D SO14 (Plastic micropackage) P TSSOP14 (Thin shrink small outline package) Description Pin connections (Top view) The TS3704 is a micropower CMOS quad voltage comparator with extremely low consumption of 9μA typ / comparator (20 times less than bipolar LM339). The push-pull CMOS output stage allows power and space saving by eliminating the external pull-up resistor required by usual opencollector output comparators. Output 2 Thus response times remain similar to the LM339. 1 14 Output 1 2 13 Output 4 VCC + 12 V CC - Inverting Input 1 4 - + 11 Non-inverting Input 4 Non-inverting Input 1 5 + - 10 Inverting Input 4 Inverting Input 2 6 - + 9 Non-inverting Input 3 + - 8 Inverting Input 3 Non-inverting Input 2 February 2007 Rev 3 3 Output 3 7 1/11 www.st.com 11 Schematic diagram 1 TS3704 Schematic diagram Figure 1. Schematic diagram (for 1/4 TS3704) VCC + T 10 T1 T2 T9 T17 T11 R1 T12 Input T3 T18 T21 Input + T4 Output T 13 T8 T19 T5 T7 T14 T15 T6 VCC - 2/11 T16 T20 TS3704 2 Absolute maximum ratings Absolute maximum ratings Table 1. Absolute maximum ratings Symbol VCC+ Vid Parameter Value Unit 18 V ±18 V 18 V 18 V 20 mA 50 mA 1500 830 710 mW Storage temperature range -65 to +150 °C HBM: human body model(6) 500 V 50 V 1.5 kV Supply voltage (1) Differential input voltage (3) Vi Input voltage Vo Output voltage Io Output current IF pd Tstg ESD (2) Forward current in ESD protection diodes on input Power dissipation DIP14 SO14 TSSOP14 (4) (5) (7) MM: machine model (8) CDM: charged device model 1. All voltage values, except differential voltage, are with respect to network ground terminal. 2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal. 3. The magnitude of the input and the output voltages must never exceed the magnitude of the positive and negative supply voltages. 4. Guaranteed by design. 5. Pd is calculated with Tamb = +25°C, Tj = +150°C and Rthja = 80°C/W for DIP14 package Rthja = 150°C/W for SO14 package Rthja = 175°C/W for TSSOP14 package 6. Human body model: A 100pF capacitor is charged to the specified voltage, then discharged through a 1.5kΩ resistor between two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating. 7. Machine model: A 200pF capacitor is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5Ω). This is done for all couples of connected pin combinations while the other pins are floating. 8. Charged device model: all pins and the package are charged together to the specified voltage and then discharged directly to the ground through only one pin. This is done for all pins. Table 2. Operating conditions Symbol Parameter VCC+ Supply voltage TS3704C, TS3704I TS3704M Vicm Common mode input voltage range Toper Operating free-air temperature range TS3704C TS3704I TS3704M Value Unit 2.7 to 16 4 to 16 V 0 to VCC+ -1.5 V 0 to +70 -40 to +125 -55 to +125 °C 3/11 Electrical characteristics 3 TS3704 Electrical characteristics Table 3. Symbol VCC+ = 3V, VCC- = 0V, Tamb = 25°C (unless otherwise specified) Parameter Min. Typ. Vio Input offset voltage (1) Vic = 1.5V Tmin ≤ Tamb ≤ Tmax Iio Input offset current (2) Vic = 1.5V Tmin ≤ Tamb ≤ Tmax 1 Input bias current (2) Vic = 1.5V Tmin ≤ Tamb ≤ Tmax 1 Iib Max. Unit 5 6.5 mV pA 300 pA 600 VCC+-1.2 VCC+ -1.5 Vicm Input common mode voltage range Tmin ≤ Tamb ≤ Tmax 0 0 CMR Common-mode rejection ratio Vic = Vicm min 80 dB SVR Supply voltage rejection ratio VCC+ = 3V to 5V 75 dB VOH High level output voltage Vid = 1V, IOH = -4mA Tmin ≤ Tamb ≤ Tmax 2.4 V VOL Low level output voltage Vid = -1V, IOL = 4mA Tmin ≤ Tamb ≤ Tmax ICC Supply current (each comparator) No load - Outputs low Tmin ≤ Tamb ≤ Tmax tPLH Response time low to high Vic = 0V, f = 10kHz, CL = 50pF, overdrive = 5mV TTL input 1.2 0.7 μs tPHL Response time high to low Vic = 0V, f = 10kHz, CL = 50pF, overdrive = 5mV TTL input 2 0.15 μs 2 1.8 V 300 400 575 mV 7 20 25 μA 1. The specified offset voltage is the maximum value required to drive the output up to 2.5V or down to 0.3V. 2. Maximum values include unavoidable inaccuracies of the industrial tests. 4/11 TS3704 Electrical characteristics Table 4. Symbol VCC+ = 5V, VCC- = 0V, Tamb = 25°C (unless otherwise specified) Parameter Min. Typ. Max. Unit 1.2 5 6.5 mV Vio Input offset voltage (1) Vic = 2.5V, Vcc+ = 5V to 10V Tmin ≤ Tamb ≤ Tmax Iio Input offset current (2) Vic = 2.5V Tmin ≤ Tamb ≤ Tmax 1 Input bias current (2) Vic = 2.5V Tmin ≤ Tamb ≤ Tmax 1 Iib pA 300 pA 600 VCC+-1.2 VCC+ -1.5 Vicm Input common mode voltage range Tmin ≤ Tamb ≤ Tmax CMR Common-mode rejection ratio Vic = Vicm min 80 dB SVR Supply voltage rejection ratio VCC+ = +5V to +10V 92 dB VOH High level output voltage Vid = 1V, IOH = -4mA Tmin ≤ Tamb ≤ Tmax 4.7 V VOL Low level output voltage Vid = -1V, IOL = 4mA Tmin ≤ Tamb ≤ Tmax ICC Supply current (each comparator) No load - Outputs low tPLH Response time low to high Vic = 0V, f = 10kHz, CL = 50pF, overdrive = 5mV Overdrive = 10mV Overdrive = 20mV Overdrive = 40mV TTL input 1.2 1 0.9 0.8 0.7 tPHL Response time high to low Vic = 0V, f = 10kHz, CL = 50pF, overdrive = 5mV Overdrive = 10mV Overdrive = 20mV Overdrive = 40mV TTL input 2 1.5 0.9 0.7 0.15 tf 0 0 4.5 4.3 Fall time f = 10kHz, CL = 50pF, overdrive 50mV V 200 300 375 mV 9 20 25 μA 30 μs μs ns 1. The specified offset voltage is the maximum value required to drive the output up to 4.5V or down to 0.3V. 2. Maximum values include unavoidable inaccuracies of the industrial tests. 5/11 Package information 4 TS3704 Package information In order to meet environmental requirements, STMicroelectronics offers these devices in ECOPACK® packages. These packages have a Lead-free second level interconnect. The category of second level interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an STMicroelectronics trademark. ECOPACK specifications are available at: www.st.com. 6/11 TS3704 4.1 Package information DIP14 package mechanical data Dimensions Ref. Millimeters Min. a1 0.51 B 1.39 Typ. Inches Max. Min. Typ. Max. 0.020 1.65 0.055 0.065 b 0.5 0.020 b1 0.25 0.010 D 20 0.787 E 8.5 0.335 e 2.54 0.100 e3 15.24 0.600 F 7.1 0.280 I 5.1 0.201 L Z 3.3 1.27 0.130 2.54 0.050 0.100 7/11 Package information 4.2 TS3704 SO14 package mechanical data Dimensions Ref. Millimeters Min. Typ. A a1 Inches Max. Typ. 1.75 0.1 0.2 a2 Max. 0.068 0.003 0.007 1.65 0.064 b 0.35 0.46 0.013 0.018 b1 0.19 0.25 0.007 0.010 C 0.5 0.019 c1 45° (typ.) D 8.55 8.75 0.336 0.344 E 5.8 6.2 0.228 0.244 e 1.27 0.050 e3 7.62 0.300 F 3.8 4.0 0.149 0.157 G 4.6 5.3 0.181 0.208 L 0.5 1.27 0.019 0.050 M S 8/11 Min. 0.68 0.026 8° (max.) TS3704 4.3 Package information TSSOP14 package mechanical data Figure 2. TSSOP14 package Dimensions Ref. Millimeters Min. Typ. A Inches Max. Min. Typ. 1.2 A1 0.05 A2 0.8 b Max. 0.047 0.15 0.002 0.004 0.006 1.05 0.031 0.039 0.041 0.19 0.30 0.007 0.012 c 0.09 0.20 0.004 0.0089 D 4.9 5 5.1 0.193 0.197 0.201 E 6.2 6.4 6.6 0.244 0.252 0.260 E1 4.3 4.4 4.48 0.169 0.173 0.176 1 e 0.65 BSC K 0° L 0.45 A 0.60 0.0256 BSC 8° 0° 0.75 0.018 8° 0.024 0.030 A2 A1 b e K c L E D E1 PIN 1 IDENTIFICATION 1 9/11 Ordering information 5 TS3704 Ordering information Table 5. Order codes Part number Temperature range Package Packaging Marking DIP14 Tube TS3704CN TS3704CD/CDT SO14 Tube or tape & reel 3704C TS3704IN DIP14 Tube TS3704IN SO14 Tube or tape & reel 3704I TS3704IPT TSSOP14 Tape & reel 3704I TS3704MN DIP14 Tube TS3704MN SO14 Tube or tape & reel 3704M TSSOP14 Tape & reel 3704M TS3704CN 0°C, +70°C TS3704ID/IDT TS3704MD/MDT -40°C, +125°C -55°C, +125°C TS3704MPT 6 Revision history Date Revision 1-Oct- 2004 1 Initial release. 1-Aug-2005 2 1 - PPAP references inserted in the datasheet. 2 - ESD protection inserted in Table 1 on page 3. 3 PPAP references removed. Updated footnotes related to ESD in Table 1 on page 3. Added Table 2 on page 3. Order codes added to Table 5 on page 10. 26-Feb-2007 10/11 Changes TS3704 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2007 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 11/11
