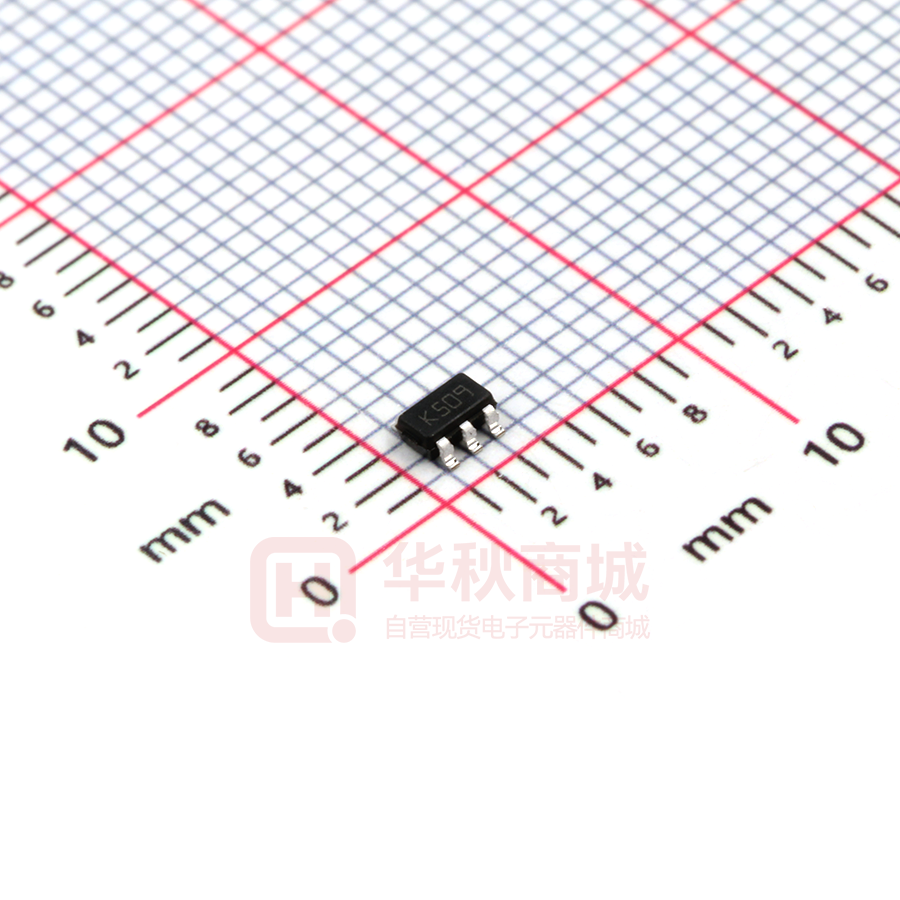

TS391RILT

TS391, TS391A Datasheet Low-power single voltage comparator Features • • SOT23-5 DFN8 2x2 • • • • • Wide single supply voltage range or dual supplies 2 V to 36 V or ± 1 V to ± 18 V Very low supply current (0.2 mA) independent of supply voltage (1 mW / comparator at 5 V) Low input bias current: 25 nA typ. Low input offset current: ± 5 nA typ. Low input offset voltage: ± 2 mV max. for TS391A Input common-mode voltage range includes ground Low output saturation voltage: 250 mV typ. (Io= 4 mA) • • Differential input voltage range equal to the supply voltage TTL, DTL, ECL, CMOS compatible outputs Description These devices consist of a low-power voltage comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic where the input common-mode voltage range includes ground, even though operated from a single power supply voltage. Maturity status link TS391, TS391A DS1551 - Rev 10 - January 2021 For further information contact your local STMicroelectronics sales office. www.st.com TS391, TS391A Schematic diagram 1 Schematic diagram Figure 1. Schematic diagram VCC 3.5 µA 100 µA Non-inverting input VCC VCC 3.5 µA 100 µA VO Inverting input VCC DS1551 - Rev 10 page 2/16 TS391, TS391A Package pin connections 2 Package pin connections Figure 2. Pin connections (top view) TS391, TS391A OUT 1 VCC- 2 IN- 3 TS391R 5 VCC+ 4 IN- 1 VCC- 2 IN+ 3 IN+ SOT23-5 5 VCC+ 4 OUT SOT23-5 TS391 1 8 E+ 2 7 VCC+ E- 3 6 Out VCC- 4 5 DFN8 2x2 DS1551 - Rev 10 page 3/16 TS391, TS391A Absolute maximum ratings and operating conditions 3 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings (AMR) Symbol Parameter VCC Supply voltage Vid Differential input voltage Vi Input voltage Vo Output voltage (1) Tj Unit ±18 or 36 ±36 -0.3 to 36 V 36 Output short-circuit to ground (2) Infinite Maximum junction temperature 150 Tstg Storage temperature range Rthja Thermal resistance junction to ambient (3) ESD Value -65 to 150 SOT23-5 250 DFN8 2x2 57 Human body model (HBM) (4) 1500 Machine model (MM) (5) 100 Charged device model (CDM) (6) 1000 °C °C/W V 1. Output voltage can be set up to 36 V even if the VCC is lower. 2. Short-circuits from the output to VCC + can cause excessive heating and potential destruction. The maximum output current is approximately 20 mA independent of the magnitude of VCC +. 3. Short-circuits can cause excessive heating. These values are typical. 4. Human body model: a 100 pF capacitor is charged to the specified voltage, then discharged through a 1.5 kΩ resistor between two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating. 5. Machine model: a 200 pF capacitor is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 Ω). This is done for all couples of connected pin combinations while the other pins are floating. 6. Charged device model: all pins and package are charged together to the specified voltage and then discharged directly to ground through only one pin. This is done for all pins. Table 2. Operating conditions Symbol Parameter VCC Supply voltage Vicm Input common mode voltage range (1) Toper Operating free-air temperature range Value Unit 2 to 36 or ±1 to ±18 Tamb = 25 °C Tmin ≤ Tamb ≤ Tmax 0 to (VCC +) - 1.5 V 0 to (VCC +) - 2 -40 to 125 °C 1. The input common-mode voltage of either input signal voltage should not be allowed to go negative by more than 0.3 V. The upper end of the common-mode voltage range is (VCC +) – 1.5 V, but either or both inputs can go to 30 V without damage. DS1551 - Rev 10 page 4/16 TS391, TS391A Electrical characteristics 4 Electrical characteristics Table 3. VCC + = 5 V, VCC - = 0 V, Tamb = 25 °C (unless otherwise specified) Symbol Parameter and test conditions TS391 Vio TS391A TS391 Iib TS391A Iio AVD ICC Min. Input offset voltage 1 5 1 Input offset voltage, Tmin ≤ Tamb ≤ Tmax 1.5 mV 2 Input bias current 25 Input bias current, Tmin ≤ Tamb ≤ Tmax 250 400 Input bias current (2) 25 Input bias current, Tmin ≤ Tamb ≤ Tmax 150 250 Input offset current 5 Input offset current, Tmin ≤ Tamb ≤ Tmax nA 50 150 Large signal voltage gain, (VCC +) = 15 V, RL=15 kΩ, Vο = 1 tο 11 V 50 200 V/mV Supply current (VCC +) = 5 V, no load 0.2 0.5 Supply current (VCC +) = 30 V, no load 0.5 1.25 mA Isink Output sink current, Vid = -1 V, Vo = 1.5 V VOL Low level output voltage, Vid = 1 V, VCC + = Vo = 30 V IOH High level output current, Vid = 1 V, VCC + = Vo = 30 V Small signal response time, RL = 5.1 kΩ to (VCC + ) Unit 9 Input offset voltage (1) Differential input voltage (3) trel Max. Input offset voltage, Tmin ≤ Tamb ≤ Tmax Vid tre Typ. VCC + 6 (4) Large signal response time, Vi = TTL, Vref = 1.4 V, RL = 5.1 kΩ to VCC + 16 250 V mA 400 700 0.1 mV nA 1 µA 1.3 µs 300 ns 1. At the output switch point, Vo ≈ 1.4 V, RS = 0 Ω with (VCC +) from 5 V to 30 V, and over the full input common-mode range (0 V to (VCC +) – 1.5 V). 2. The direction of the input current is out of the IC due to the PNP input stage. This current is essentially constant, independent of the state of the output, so there is no load charge on the reference of input lines. 3. Positive excursions of the input voltage may exceed the power supply level. As long as the other voltage remains within the common-mode range, the comparator will provide a proper output state. The low input voltage state must not be less than –0.3 V (or 0.3 V below the negative power supply, if used) 4. The response time specified is for a 100 mV input step with 5 mV overdrive. For larger overdrive signals, 300 ns can be obtained. DS1551 - Rev 10 page 5/16 TS391, TS391A Electrical characteristic curves 5 Electrical characteristic curves Figure 4. Response time for various input overdrives negative transition Figure 5. Input current vs. supply voltage Figure 6. Response time for various input overdrives positive transition Input voltage (mV) Output voltage (V) Figure 3. Supply current vs. supply voltage Vi = 0V 9 Tam b = -55˚C R i = 10 Ω Output voltage (V) 60 Tam b = 0˚C Tam b = +25˚C 40 20 Input voltage (mV) INPUT CURRENT (nA) 80 Tam b = +125˚C Tam b = +70˚C 0 10 20 30 40 SUPPLY VOLTAGE (V) S ATUR AT ION VOLTAGE (V) Figure 7. Output saturation voltage vs. output current 10 1 10 0 10 -1 10 -2 10 -3 Out of saturation Tam b = +125˚C Tam b = -55˚C Tam b = +25˚C 10 -2 10 -1 10 0 10 1 10 2 OUTPUT SINK CURRENT (mA) DS1551 - Rev 10 page 6/16 TS391, TS391A Package information 6 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark. DS1551 - Rev 10 page 7/16 TS391, TS391A SOT23-5 package information 6.1 SOT23-5 package information Figure 8. SOT23-5 package outline Table 4. SOT23-5 mechanical data Dimensions Millimeters Ref. A Min. Typ. Max. Min. Typ. Max. 0.90 1.20 1.45 0.035 0.047 0.057 A1 DS1551 - Rev 10 Inches 0.15 0.006 A2 0.90 1.05 1.30 0.035 0.041 0.051 B 0.35 0.40 0.50 0.014 0.016 0.020 C 0.09 0.15 0.20 0.004 0.006 0.008 D 2.80 2.90 3.00 0.110 0.114 0.118 D1 1.90 0.075 e 0.95 0.037 E 2.60 2.80 3.00 0.102 0.110 0.118 F 1.50 1.60 1.75 0.059 0.063 0.069 L 0.10 0.35 0.60 0.004 0.014 0.024 K 0 degrees 10 degrees 0 degrees 10 degrees page 8/16 TS391, TS391A DFN8 2 x 2 package information 6.2 DFN8 2 x 2 package information Figure 9. DFN8 2 x 2 package outline Table 5. DFN8 2 x 2 mechanical data Dimensions Millimeters Ref. A Min. Typ. Max. Min. Typ. Max. 0.51 0.55 0.60 0.020 0.022 0.024 A1 0.05 A3 0.002 0.15 0.006 b 0.18 0.25 0.30 0.007 0.010 0.012 D 1.85 2.00 2.15 0.073 0.079 0.085 D2 1.45 1.60 1.70 0.057 0.063 0.067 E 1.85 2.00 2.15 0.073 0.079 0.085 E2 0.75 0.90 1.00 0.030 0.035 0.039 e L ddd DS1551 - Rev 10 Inches 0.50 0.225 0.325 0.020 0.425 0.08 0.009 0.013 0.017 0.003 page 9/16 TS391, TS391A DFN8 2 x 2 package information Figure 10. DFN8 2 x 2 recommended footprint DS1551 - Rev 10 page 10/16 TS391, TS391A Ordering information 7 Ordering information Table 6. Order codes Part number Temperature range TS391ILT TS391IQ2T -40 °C to 125 °C (automotive grade) SOT23-5 SOT23-5 (automotive grade) DFN8 2x2 Marking K511 K512 SOT23-5 TS391IYLT (1) TS391RIYLT (1) Packaging SOT23-5 TS391AILT TS391RILT Package K510 Tape and reel K509 K535 K5D 1. Qualification and characterization according to AEC Q100 and Q003 or equivalent, advanced screening according to AEC Q001 & Q002 or equivalent. DS1551 - Rev 10 page 11/16 TS391, TS391A Revision history Table 7. Document revision history Date Revision Changes 22-Sep-2004 1 Initial release. 06-Jan-2006 2 PPAP reference inserted in the document. Added values for Rthja, Rthjc and ESD in Table 1: Absolute maximum ratings (AMR). 21-Nov-2007 3 Added footnote for automotive grade order code in order codes table. Updated format. 21-Jan-2010 4 Corrected ESD tolerance values for human body model and machine model in Table 1: Absolute maximum ratings (AMR) and added ESD tolerance value for charged device model. Updated note 1 in Table 6: Order codes. Added TS391R pinout on page 1. 23-May-2011 5 Modified VCC range in Table 2: Operating conditions. Added TS391RILT order code in Table 6: Order codes. 02-Mar-2012 6 Added DFN8 package information and changed SOT23-5L package drawing in Chapter 4. Removed letter "L" and "plastic package" from SOT23-5 silhouette and letters "Q2" and "plastic micropackage" from DFN8 2x2 silhouette. Standardized name of the DFN8 package to: "DFN8 2x2" throughout datasheet. 06-Nov-2015 7 Table 1: "Absolute maximum ratings (AMR)": added parameter Vo Table 4: "SOT23-5 mechanical data": updated “K” parameter Table 5: "DFN8 2 x 2 mechanical data": updated “L” parameter Added new part number TS391A 20-Mar-2017 8 Features: updated low input offset voltage for TS391A Table 3: added Vio and Iib information for TS391A Table 6: "Order codes": added new order code TS391AILT DS1551 - Rev 10 06-Mar-2020 9 Table 6 added new order code TS391RIYLT 14-Jan-2021 10 Updated Figure 3. Pin connections (top view). page 12/16 TS391, TS391A Contents Contents 1 Schematic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2 Package pin connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3 Absolute maximum ratings and operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 4 Electrical characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 5 Electrical characteristic curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 6 Package information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 7 6.1 SOT23-5 package information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 6.2 DFN8 2 x 2 package information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 DS1551 - Rev 10 page 13/16 TS391, TS391A List of tables List of tables Table 1. Table 2. Absolute maximum ratings (AMR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Table 3. Table 4. Table 5. Table 6. Table 7. VCC + = 5 V, VCC - = 0 V, Tamb = 25 °C (unless otherwise specified) SOT23-5 mechanical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . DFN8 2 x 2 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DS1551 - Rev 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 . 8 . 9 11 12 page 14/16 TS391, TS391A List of figures List of figures Figure 1. Figure 2. Figure 3. Figure 4. Figure 5. Figure 6. Figure 7. Figure 8. Figure 9. Figure 10. DS1551 - Rev 10 Schematic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pin connections (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . Supply current vs. supply voltage . . . . . . . . . . . . . . . . . . . . . Response time for various input overdrives - negative transition Input current vs. supply voltage. . . . . . . . . . . . . . . . . . . . . . . Response time for various input overdrives - positive transition . Output saturation voltage vs. output current . . . . . . . . . . . . . . SOT23-5 package outline . . . . . . . . . . . . . . . . . . . . . . . . . . DFN8 2 x 2 package outline . . . . . . . . . . . . . . . . . . . . . . . . . DFN8 2 x 2 recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 . 3 . 6 . 6 . 6 . 6 . 6 . 8 . 9 10 page 15/16 TS391, TS391A IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2021 STMicroelectronics – All rights reserved DS1551 - Rev 10 page 16/16
