TSV6290, TSV6290A, TSV6291,
TSV6291A
Micropower with high merit factor CMOS operational amplifiers
Datasheet - production data
Description
The TSV6290 and the TSV6291 are single
operational amplifiers with a high bandwidth
which consume only 29 µA. They must be used
in a gain configuration (G < -3, G > 4).
With a very low input bias current and low offset
voltage (800 µV maximum for the A version), the
TSV629x family of devices is ideal for
applications requiring precision. The devices can
operate at a power supply ranging from 1.5 to
5.5 V, and therefore suit battery-powered
devices, extending battery life.
The TSV6290 comes with a shutdown function.
Features
Low supply voltage: 1.5 V – 5.5 V
Rail-to-rail input and output
Low input offset voltage: 800 µV max
(A version)
Low power consumption: 29 µA typical
Gain bandwidth product: 1.3 MHz typical
Stable when used in gain configuration
Micropackages: SOT23-5/6, SC70-5/6
Low input bias current: 1 pA typical
Extended temperature range: -40 to 125 °C
4 kV human body model
The TSV6290 and TSV6291 present a high
tolerance to ESD, sustaining 4 kV for the human
body model.
The TSV6290 and TSV6291 are offered in
SOT23-5/6 and SC70-5/6 micropackages, with
extended temperature ranges from -40 °C to
125 °C.
All these features make the TSV629x ideal for
sensor interfaces, battery-supplied and portable
applications, as well as active filtering.
Applications
Battery-powered applications
Portable devices
Signal conditioning
Active filtering
Medical instrumentation
August 2016
DocID17117 Rev 2
This is information on a product in full production.
1/24
www.st.com
Contents
TSV6290, TSV6290A, TSV6291, TSV6291A
Contents
1
Package pin connections................................................................ 3
2
Absolute maximum ratings and operating conditions ................. 4
3
4
Electrical characteristics ................................................................ 5
Electrical characteristic curves .................................................... 10
5
Application information ................................................................ 13
6
5.1
Operating voltages .......................................................................... 13
5.2
Rail-to-rail input ............................................................................... 13
5.3
Rail-to-rail output ............................................................................. 13
5.4
Shutdown function (TSV6290) ........................................................ 14
5.5
Optimization of DC and AC parameters .......................................... 14
5.6
Driving resistive and capacitive loads ............................................. 15
5.7
PCB layouts .................................................................................... 15
5.8
Macromodel .................................................................................... 15
Package information ..................................................................... 16
6.1
SOT23-5 package information ........................................................ 17
6.2
SOT23-6 package information ........................................................ 18
6.3
SC70-5 (or SOT323-5) package information ................................... 19
6.4
SC70-6 (or SOT323-6) package information ................................... 20
7
Ordering information..................................................................... 22
8
Revision history ............................................................................ 23
2/24
DocID17117 Rev 2
TSV6290, TSV6290A, TSV6291, TSV6291A
1
Package pin connections
Package pin connections
Figure 1: Package pin connections (top view)
DocID17117 Rev 2
3/24
Absolute maximum ratings and operating
conditions
2
TSV6290, TSV6290A, TSV6291, TSV6291A
Absolute maximum ratings and operating conditions
Table 1: Absolute maximum ratings (AMR)
Symbol
Parameter
Value
Supply voltage (1)
VCC
6
Differential input voltage
Vid
Vin
Iin
(2)
±VCC
Input voltage
(3)
(VCC-) - 0.2 to (VCC+) + 0.2
Input current
(4)
10
SHDN
Shutdown voltage (3)
(VCC-) - 0.2 to (VCC+) + 0.2
Tstg
Storage temperature
-65 to 150
Tj
Maximum junction temperature
Thermal resistance junction-toambient (5)(6)
Rthja
HBM: human body model
MM: machine model
ESD
Unit
150
SOT23-5
250
SOT23-6
240
SC70-5
205
SC70-6
232
mA
V
°C
°C/W
(7)
(8)
CDM: charged device model
V
(9)
Latch-up immunity
4
kV
300
V
1.5
kV
200
mA
Notes:
(1)All
voltage values, except differential voltage, are with respect to network ground terminal.
(2)Differential
(3)V
cc
(4)Input
(5)R
th
voltages are the non-inverting input terminal with respect to the inverting input terminal.
- Vin must not exceed 6 V, Vin must not exceed 6 V.
current must be limited by a resistor in series with the inputs.
are typical values.
(6)Short-circuits
can cause excessive heating and destructive dissipation.
(7)Human
body model: 100 pF discharged through a 1.5 kΩ resistor between two pins of the device, done for all
couples of pin combinations with other pins floating.
(8)Machine
mode: a 200 pF capacitor is charged to the specified voltage, then discharged directly between two
pins of the device with no external series resistor (internal resistor < 5 Ω), done for all couples of pin combinations
with other pins floating.
(9)Charged
device model: all pins plus package are charged together to the specified voltage and then discharged
directly to the ground.
Table 2: Operating conditions
Symbol
4/24
Parameter
VCC
Supply voltage
Vicm
Common mode input voltage range
Toper
Operating free air temperature range
Value
1.5 to 5.5
DocID17117 Rev 2
(VCC-) - 0.1 to (VCC+) + 0.1
-40 to 125
Unit
V
°C
TSV6290, TSV6290A, TSV6291, TSV6291A
3
Electrical characteristics
Electrical characteristics
Table 3: Electrical characteristics at (VCC+) = 1.8 V with (VCC-) = 0 V, Vicm = VCC/2,
Tamb = 25 °C, and RL connected to VCC/2 (unless otherwise specified)
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
DC performance
TSV6290, TSV6291
Vio
DVio
Offset voltage
4
TSV6290A, TSV6291A
0.8
Tmin < Top < Tmax, TSV6290, TSV6291
6
Tmin < Top < Tmax, TSV6290A, TSV6291A
2
μV/°C
Input offset voltage drift
2
Iio
Input offset current,
Vout = VCC/2 (1)
1
10
1
100
Iib
Input bias current,
Vout = VCC/2 (1)
1
10
1
100
CMR
Common mode rejection
ratio, 20 log (ΔVic/ΔVio)
Avd
Large signal voltage gain
VOH
High-level output voltage,
VOH = VCC - Vout
VOL
Low-level output voltage
Isink
Iout
Isource
ICC
Supply current (per operator)
Tmin < Top < Tmax
Tmin < Top < Tmax
0 V to 1.8 V, Vout = 0.9 V
53
Tmin < Top < Tmax
51
RL = 10 kΩ, Vout = 0.5 V to 1.3 V
78
Tmin < Top < Tmax
73
RL = 10 kΩ
dB
95
Tmin < Top < Tmax
35
50
4
Tmin < Top < Tmax
35
mV
50
Vοut = 1.8 V
6
Tmin < Top < Tmax
4
Vοut = 0 V
6
Tmin < Top < Tmax
4
No load, Vout = VCC/2
pA
74
5
RL = 10 kΩ
mV
12
mA
10
25
Tmin < Top < Tmax
31
33
µA
AC performance
GBP
Gain bandwidth product
RL = 10 kΩ, CL = 100 pF
Gain
Minimum gain for stability
Phase margin = 60 °, Rf = 10 kΩ,
RL = 10 kΩ, CL = 20 pF
Slew rate
RL = 10 kΩ, CL = 100 pF,
Vout = 0.5 V to 1.3 V
SR
1.1
4
-3
0.33
MHz
V/V
V/μs
Notes:
(1)Guaranteed
by design.
DocID17117 Rev 2
5/24
Electrical characteristics
TSV6290, TSV6290A, TSV6291, TSV6291A
Table 4: Shutdown characteristics VCC = 1.8 V (TSV6290)
Symbol
Parameter
Conditions
Min.
Typ.
Max.
2.5
50
Unit
DC performance
SHDN = (VCC-)
ICC
Supply current in shutdown
mode (all operators)
Tmin < Top < 85 °C
200
Tmin < Top < 125 °C
1.5
ton
Amplifier turn-on time
RL = 5 kΩ, Vout = (VCC-) to (VCC-) + 0.2 V
300
toff
Amplifier turn-off time
RL = 5 kΩ, Vout = (VCC+) - 0.5 to
(VCC+) - 0.7 V
30
VIH
SHDN logic high
VIL
SHDN logic low
IIH
SHDN current high
SHDN = (VCC+)
10
IIL
SHDN current low
SHDN = (VCC-)
10
Output leakage in shutdown
mode
SHDN = (VCC-)
50
Tmin < Top < Tmax
1
IOLeak
6/24
µA
ns
1.3
0.5
DocID17117 Rev 2
nΑ
V
pA
nA
TSV6290, TSV6290A, TSV6291, TSV6291A
Electrical characteristics
Table 5: (VCC+) = 3.3 V, (VCC-) = 0 V, Vicm = VCC/2, Tamb = 25 °C, RL connected to VCC/2
(unless otherwise specified)
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
DC performance
TSV6290, TSV6291
Vio
4
TSV6290A, TSV6291A
Offset voltage
0.8
Tmin < Top < Tmax, TSV6290, TSV6291
6
Tmin < Top < Tmax, TSV6290A, TSV6291A
DVio
Iio
Iib
CMR
Avd
VOH
VOL
Input bias current
Common mode rejection
ratio, 20 log (ΔVic/ΔVio)
Large signal voltage gain
High-level output voltage,
VOH = VCC - Vout
Low-level output voltage
Iout
Isource
Supply current (per operator)
μV/°C
2
Tmin < Top < Tmax
(1)
Isink
ICC
2
Input offset voltage drift
Input offset current (1)
Tmin < Top < Tmax
0 V to 3.3 V, Vout = 1.65 V
57
Tmin < Top < Tmax
53
RL= 10 kΩ, Vout = 0.5 V to 2.8 V
81
Tmin < Top < Tmax
76
RL = 10 kΩ
1
10
1
100
1
10
1
100
dB
98
5
35
50
RL = 10 kΩ
pA
79
Tmin < Top < Tmax
4
Tmin < Top < Tmax
35
mV
50
Vout = 5 V
23
Tmin < Top < Tmax
20
Vout = 0 V
23
Tmin < Top < Tmax
20
No load, Vout = 2.5 V
mV
45
mA
38
26
Tmin < Top < Tmax
33
35
µA
AC performance
GBP
Gain
SR
Gain bandwidth product
RL = 10 kΩ, CL = 100 pF
Minimum gain for stability
Phase margin = 60 °, Rf = 10 kΩ,
RL = 10 kΩ, CL = 20 pF
Slew rate
RL = 10 kΩ, CL = 100 pF,
Vout = 0.5 V to 2.8 V
1.2
4
-3
0.4
MHz
V/V
V/μs
Notes:
(1)Guaranteed
by design.
DocID17117 Rev 2
7/24
Electrical characteristics
TSV6290, TSV6290A, TSV6291, TSV6291A
Table 6: (VCC+) = 5 V, (VCC-) = 0 V, Vicm = VCC/2, Tamb = 25 °C, RL connected to VCC/2
(unless otherwise specified)
Symbol
Parameter
Min.
Typ.
Max.
Unit
DC performance
TSV6290, TSV6291
Vio
4
TSV6290A, TSV6291A
Offset voltage
0.8
Tmin < Top < Tmax, TSV6290, TSV6291
6
Tmin < Top < Tmax, TSV6290A, TSV6291A
DVio
Iio
Iib
2
Input offset voltage drift
Input offset current (1)
Input bias current
Tmin < Top < Tmax
(1)
Tmin < Top < Tmax
Common mode rejection
ratio, 20 log (ΔVic/ΔVio)
0 V to 5 V, Vout = 2.5 V
60
Tmin < Top < Tmax
55
SVR
Supply voltage rejection
ratio, 20 log (ΔVCC/ΔVio)
VCC = 1.8 to 5 V
75
Tmin < Top < Tmax
73
Avd
Large signal voltage gain
RL = 10 kΩ, Vout = 0.5 V to 4.5 V
85
Tmin < Top < Tmax
80
VOH
High-level output voltage,
VOH = VCC - Vout
Low-level output voltage
Isink
Iout
Isource
ICC
Supply current
(per operator)
μV/°C
2
CMR
VOL
RL = 10 kΩ
1
10
1
100
1
10
1
100
102
dB
98
7
35
50
RL = 10 kΩ
pA
80
Tmin < Top < Tmax
6
Tmin < Top < Tmax
35
mV
50
Vout = 5 V
40
Tmin < Top < Tmax
35
Vout = 0 V
40
Tmin < Top < Tmax
35
No load, Vout = 2.5 V
mV
69
mA
74
30
Tmin < Top < Tmax
36
38
µA
AC performance
GBP
Gain bandwidth product
RL = 10 kΩ, CL = 100 pF
Gain
Minimum gain for stability
Phase margin = 60 °, Rf = 10 kΩ,
RL = 10 kΩ, CL = 20 pF
SR
Slew rate
RL = 10 kΩ, CL = 100 pF,
Vout = 0.5 V to 4.5 V
0.5
V/μs
en
Equivalent input noise
voltage
f = 1 kHz
70
nV/√Hz
Total harmonic distortion
Av = -10, fin = 1 kHz, RL= 100 kΩ,
Vicm = Vcc/2, Vin = 40 mVpp
0.15
%
THD
Notes:
(1)Guaranteed
8/24
by design.
DocID17117 Rev 2
1.3
4
-3
MHz
V/V
TSV6290, TSV6290A, TSV6291, TSV6291A
Electrical characteristics
Table 7: Shutdown characteristics VCC = 5 V (TSV6290)
Symbol
Parameter
Conditions
Min.
Typ.
Max.
5
50
Unit
DC performance
SHDN = VIL
ICC
Supply current in shutdown
mode (all operators)
Tmin < Top < 85 °C
200
Tmin < Top < 125 °C
1.5
Amplifier turn-on time
RL = 5 kΩ , Vout = (VCC-) to (VCC-) + 0.2 V
300
toff
Amplifier turn-off time
RL = 5 kΩ, Vout = (VCC+) - 0.5 V to
(VCC+) - 0.7 V
30
VIH
SHDN logic high
VIL
SHDN logic low
IIH
SHDN current high
SHDN = (VCC+)
10
IIL
SHDN current low
SHDN = (VCC-)
10
Output leakage in shutdown
mode
SHDN = (VCC-)
50
Tmin < Top < Tmax
1
ton
IOLeak
µA
ns
4.5
0.5
DocID17117 Rev 2
nΑ
V
pA
nA
9/24
Electrical characteristic curves
4
TSV6290, TSV6290A, TSV6291, TSV6291A
Electrical characteristic curves
Figure 2: Supply current vs. supply voltage at
Vicm = VCC/2
Figure 3: Output current vs. output voltage at
VCC = 1.5 V
Figure 4: Output current vs. output voltage at VCC = 5 V
Figure 5: Peaking at closed loop gain = -10 at
VCC = 1.5 V and VCC = 5 V
Figure 6: Peaking at closed loop gain = -3, VCC = 1.5 V
Figure 7: Peaking at closed loop gain = -3, VCC = 5 V
10/24
DocID17117 Rev 2
TSV6290, TSV6290A, TSV6291, TSV6291A
Electrical characteristic curves
Figure 8: Positive slew rate vs. supply voltage in
closed loop
Figure 9: Negative slew rate vs. supply voltage in
closed loop
Figure 10: Slew rate vs. supply voltage in open loop
Figure 11: Slew rate timing in open loop
Figure 12: Slew rate timing in closed loop
Figure 13: Noise at VCC = 5 V
DocID17117 Rev 2
11/24
Electrical characteristic curves
TSV6290, TSV6290A, TSV6291, TSV6291A
Figure 14: Distortion + noise vs. output voltage at
VCC = 1.8 V
Figure 15: Distortion + noise vs. output voltage at
VCC = 5 V
Figure 16: Distortion + noise vs. frequency at
VCC = 1.8 V
Figure 17: Distortion + noise vs. frequency at
VCC = 5 V
12/24
DocID17117 Rev 2
TSV6290, TSV6290A, TSV6291, TSV6291A
5
Application information
5.1
Operating voltages
Application information
The TSV6290 and TSV6291 can operate from 1.5 to 5.5 V. Their parameters are fully
specified for 1.8, 3.3 and 5 V power supplies. However, the parameters are very stable in
the full VCC range and several characterization curves show the TSV629x characteristics at
1.5 V. Additionally, the main specifications are guaranteed in extended temperature ranges
from -40 °C to 125 °C.
5.2
Rail-to-rail input
The TSV6290 and TSV6291 are built with two complementary PMOS and NMOS input
differential pairs. The devices have a rail-to-rail input, and the input common-mode range is
extended from (VCC-) - 0.1 V to (VCC+) + 0.1 V. The transition between the two pairs appears
at (VCC+) - 0.7 V. In the transition region, the performance of CMR, SVR, Vio and THD is
slightly degraded (as shown in Figure 18 and Figure 19 for Vio vs. Vicm).
Figure 18: Input offset voltage vs. input common mode
at VCC = 1.5 V
Figure 19: Input offset voltage vs. input common mode
at VCC = 5 V
The devices are guaranteed without phase reversal.
5.3
Rail-to-rail output
The operational amplifiers’ output levels can go close to the rails: 35 mV maximum above
and below the rail when connected to a 10 kΩ resistive load to VCC/2.
DocID17117 Rev 2
13/24
Application information
5.4
TSV6290, TSV6290A, TSV6291, TSV6291A
Shutdown function (TSV6290)
The operational amplifier is enabled when the SHDN pin is pulled high. To disable the
amplifier, the SHDN must be pulled down to VCC-. When in shutdown mode, the amplifier’s
output is in a high impedance state. The SHDN pin must never be left floating, but tied to
(VCC+) or (VCC-).
The turn-on and turn-off times are calculated for an output variation of ±200 mV (Figure 20
and Figure 21 show the test configurations).
Figure 20: Test configuration for turn-on time
(Vout pulled down)
Figure 21: Test configuration for turn-off time
(Vout pulled down)
Figure 22: Turn-on time, VCC = 5 V, Vout pulled down,
T = 25 °C
Figure 23: Turn-off time, VCC= 5 V, Vout pulled down,
T = 25 °C
25°
µ
5.5
Optimization of DC and AC parameters
These devices use an innovative approach to reduce the spread of the main DC and AC
parameters. An internal adjustment achieves a very narrow spread of the current
consumption (29 µA typical, min/max at ±17 %). Parameters linked to the current
consumption value, such as GBP, SR and Avd, benefit from this narrow dispersion.
14/24
DocID17117 Rev 2
TSV6290, TSV6290A, TSV6291, TSV6291A
5.6
Application information
Driving resistive and capacitive loads
These products are micropower, low-voltage operational amplifiers optimized to drive
rather large resistive loads, above 5 kΩ. For lower resistive loads, the THD level may
significantly increase.
The amplifiers have a relatively low internal compensation capacitor, making them very fast
while consuming very little. They are ideal when used in a non-inverting configuration or in
an inverting configuration in the following conditions.
IGainI ≥ 3 in an inverting configuration (CL = 20 pF, RL = 100 kΩ) οr
ΙgainI ≥ 10 (CL = 100 pF, RL = 100 kΩ)
Gain ≥ 4 in a non-inverting configuration (CL = 20 pF, RL = 100 kΩ) οr
gain ≥ 11 (CL = 100 pF, RL= 100 kΩ)
As these operational amplifiers are not unity gain stable, for a low closed-loop gain it is
recommended to use the TSV62x (29 µA, 420 kHz) or TSV63x (60 µA, 880 kHz) which are
unity gain stable.
Table 8: Related products
5.7
Part #
Icc (µA) at 5 V
GBP (MHz)
SR (V/µs)
Minimum gain for stability
(CLoad = 100 pF)
TSV620-1
29
0.42
0.14
1
TSV6290-1
29
1.3
0.5
11
TSV630-1
60
0.88
0.34
1
TSV6390-1
60
2.4
1.1
11
PCB layouts
For correct operation, it is advised to add 10 nF decoupling capacitors as close as possible
to the power supply pins.
5.8
Macromodel
An accurate macromodel of the TSV6290 and TSV6291 is available on STMicroelectronics’
web site at www.st.com. This model is a trade-off between accuracy and complexity (that
is, time simulation) of the TSV629x operational amplifiers. It emulates the nominal
performances of a typical device within the specified operating conditions mentioned in the
datasheet. It helps to validate a design approach and to select the right operational
amplifier, but it does not replace on-board measurements.
DocID17117 Rev 2
15/24
Package information
6
TSV6290, TSV6290A, TSV6291, TSV6291A
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
16/24
DocID17117 Rev 2
TSV6290, TSV6290A, TSV6291, TSV6291A
6.1
Package information
SOT23-5 package information
Figure 24: SOT23-5 package outline
Table 9: SOT23-5 mechanical data
Dimensions
Ref.
A
Millimeters
Inches
Min.
Typ.
Max.
Min.
Typ.
Max.
0.90
1.20
1.45
0.035
0.047
0.057
A1
0.15
0.006
A2
0.90
1.05
1.30
0.035
0.041
0.051
B
0.35
0.40
0.50
0.014
0.016
0.020
C
0.09
0.15
0.20
0.004
0.006
0.008
D
2.80
2.90
3.00
0.110
0.114
0.118
D1
1.90
0.075
e
0.95
0.037
E
2.60
2.80
3.00
0.102
0.110
0.118
F
1.50
1.60
1.75
0.059
0.063
0.069
L
0.10
0.35
0.60
0.004
0.014
0.024
K
0 degrees
10 degrees
0 degrees
DocID17117 Rev 2
10 degrees
17/24
Package information
6.2
TSV6290, TSV6290A, TSV6291, TSV6291A
SOT23-6 package information
Figure 25: SOT23-6 package outline
Table 10: SOT23-6 mechanical data
Dimensions
Ref.
Millimeters
Min.
A
Typ.
0.90
A1
Max.
Min.
1.45
0.035
Typ.
Max.
0.057
0.10
0.004
A2
0.90
1.30
0.035
0.051
b
0.35
0.50
0.013
0.019
c
0.09
0.20
0.003
0.008
D
2.80
3.05
0.110
0.120
E
1.50
1.75
0.060
0.069
e
18/24
Inches
0.95
0.037
H
2.60
3.00
0.102
0.118
L
0.10
0.60
0.004
0.024
θ
0°
10 °
0°
10 °
DocID17117 Rev 2
TSV6290, TSV6290A, TSV6291, TSV6291A
6.3
Package information
SC70-5 (or SOT323-5) package information
Figure 26: SC70-5 (or SOT323-5) package outline
SIDE VIEW
DIMENSIONS IN MM
GAUGE PLANE
COPLANAR LEADS
SEATING PLANE
TOP VIEW
Table 11: SC70-5 (or SOT323-5) mechanical data
Dimensions
Ref.
Millimeters
Min.
A
Typ.
0.80
A1
Inches
Max.
Min.
1.10
0.032
Typ.
0.043
0.10
A2
0.80
b
0.90
Max.
0.004
1.00
0.032
0.035
0.15
0.30
0.006
0.012
c
0.10
0.22
0.004
0.009
D
1.80
2.00
2.20
0.071
0.079
0.087
E
1.80
2.10
2.40
0.071
0.083
0.094
E1
1.15
1.25
1.35
0.045
0.049
0.053
e
0.65
0.025
e1
1.30
0.051
L
0.26
<
0°
0.36
0.46
0.010
8°
0°
DocID17117 Rev 2
0.014
0.039
0.018
8°
19/24
Package information
6.4
TSV6290, TSV6290A, TSV6291, TSV6291A
SC70-6 (or SOT323-6) package information
Figure 27: SC70-6 (or SOT323-6) package outline
Table 12: SC70-6 (or SOT323-6) mechanical data
Dimensions
Ref
Millimeters
Min.
A
Typ.
0.80
A1
Max.
Min.
1.10
0.031
Typ.
Max.
0.043
0.10
0.004
A2
0.80
1.00
0.031
0.039
b
0.15
0.30
0.006
0.012
c
0.10
0.18
0.004
0.007
D
1.80
2.20
0.071
0.086
E
1.15
1.35
0.045
0.053
e
20/24
Inches
0.65
0.026
HE
1.80
2.40
0.071
0.094
L
0.10
0.40
0.004
0.016
Q1
0.10
0.40
0.004
0.016
DocID17117 Rev 2
TSV6290, TSV6290A, TSV6291, TSV6291A
Package information
Figure 28: SC70-6 (or SOT323-6) recommended footprint
DocID17117 Rev 2
21/24
Ordering information
7
TSV6290, TSV6290A, TSV6291, TSV6291A
Ordering information
Table 13: Order codes
Part number
Package
Packing
Marking
TSV6290ILT
SΟΤ23-6
K106
TSV6290ICT
SC70-6
K16
TSV6290AILT
SΟΤ23-6
K139
TSV6290AICT
TSV6291ILT
22/24
Temperature range
-40 °C to 125 °C
SC70-6
SΟΤ23-5
Tape and reel
K39
K107
TSV6291ICT
SC70-5
K14

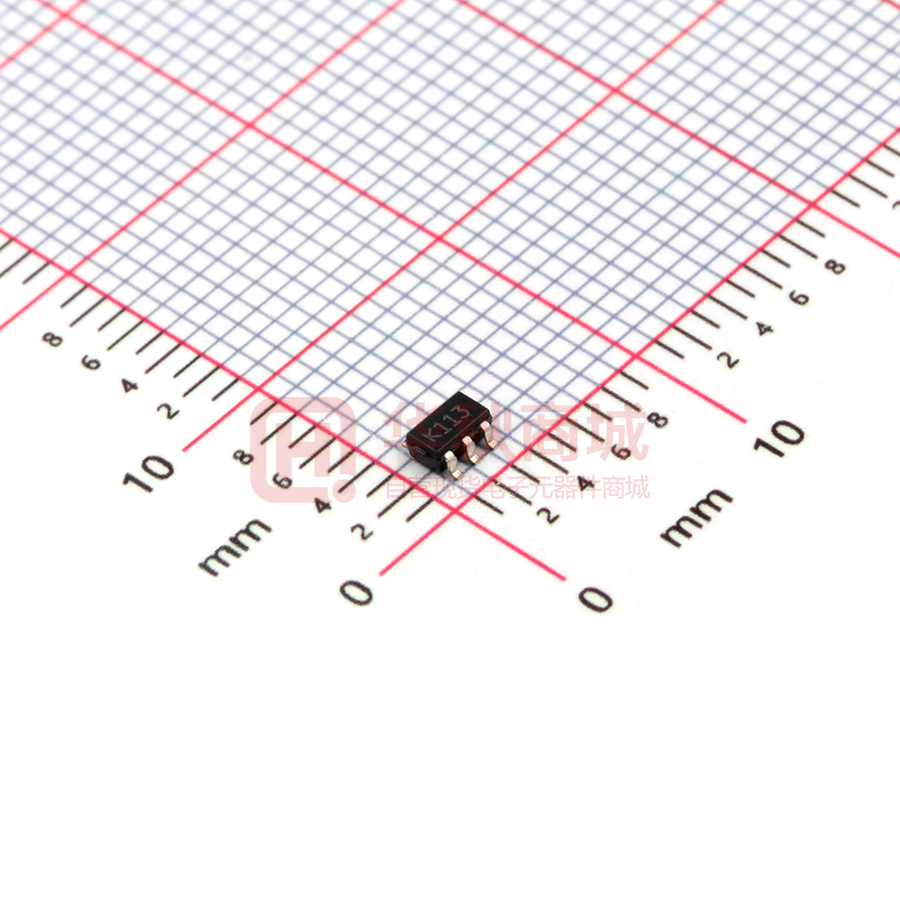

TSV6291AILT
SΟΤ23-5
K113
TSV6291AICT
SC70-5
K15
DocID17117 Rev 2
TSV6290, TSV6290A, TSV6291, TSV6291A
8
Revision history
Revision history
Table 14: Document revision history
Date
Revision
04-Mar-2010
1
Initial release.
2
Updated datasheet layout
Table 3, Table 5, and Table 6: VOH “min.” values changed to “max.”
values.
Figure 8, Figure 9, Figure 10: updated Y-axes
Table 11: updated A and A2 min. values in inches
10-Aug-2016
Changes
DocID17117 Rev 2
23/24
TSV6290, TSV6290A, TSV6291, TSV6291A
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2016 STMicroelectronics – All rights reserved
24/24
DocID17117 Rev 2
工商网监
湘ICP备2023018690号
