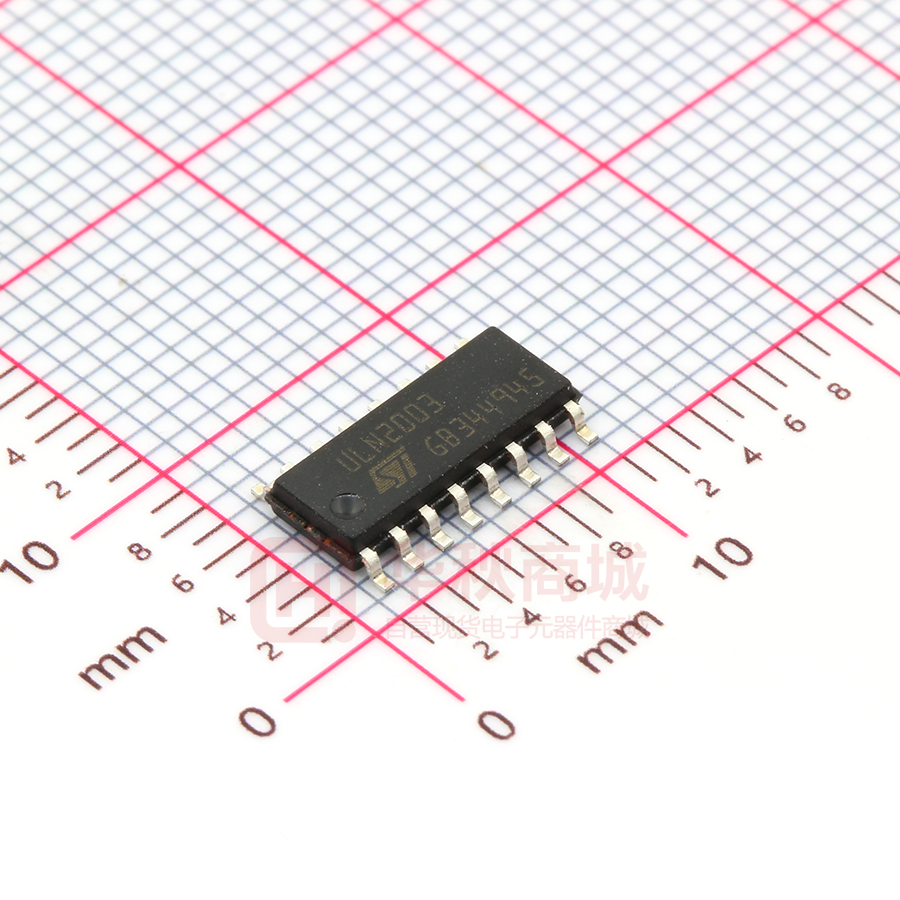

ULN2003D1013TR

ULN200xA ULN200xD1 Seven darlington array Features ■ ■ ■ ■ ■ ■ ■ Seven darlingtons per package Output current 500 mA per driver (600 mA peak) Output voltage 50 V Integrated suppression diodes for inductive loads Outputs can be paralleled for higher current TTL/CMOS/PMOS/DTL Compatible inputs Inputs pinned opposite outputs to simplify layout These versatile devices are useful for driving a wide range of loads including solenoids, relays DC motors, LED displays filament lamps, thermal printheads and high power buffers. The ULN2001A/2002A/2003A and 2004A are supplied in 16 pin plastic DIP packages with a copper leadframe to reduce thermal resistance. They are available also in small outline package (SO-16) as ULN2001D1/2002D1/2003D1/ 2004D1. DIP-16 SO-16 (Narrow) Description The ULN2001, ULN2002, ULN2003 and ULN 2004 are high voltage, high current darlington arrays each containing seven open collector darlington pairs with common emitters. Each channel rated at 500 mA and can withstand peak currents of 600 mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. The versions interface to all common logic families: – ULN2001 (general purpose, DTL, TTL, PMOS, CMOS) – ULN2002 (14-25V PMOS) – ULN2003 (5V TTL, CMOS) – ULN2004 (6-15V CMOS, PMOS) Table 1. Device summary Order code ULN2001A ULN2002A ULN2003A ULN2004A ULN2001D1013TR ULN2002D1013TR ULN2003D1013TR ULN2004D1013TR Rev. 6 1/14 www.st.com 14 August 2007 ULN200xA - ULN200xD1 Contents 1 2 3 4 5 6 7 8 Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Test circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Order code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2/14 ULN200xA - ULN200xD1 Diagram 1 Figure 1. Diagram Schematic diagram ULN2001 (each driver) ULN2002 (each driver) ULN2003 (each driver) ULN2004 (each driver) 3/14 Pin configuration ULN200xA - ULN200xD1 2 Figure 2. Pin configuration Pin connections (top view) 4/14 ULN200xA - ULN200xD1 Maximum ratings 3 Table 2. Maximum ratings Absolute maximum ratings Parameter Output voltage Input voltage (for ULN2002A/D - 2003A/D - 2004A/D) Continuous collector current Continuous base current Operating ambient temperature range Storage temperature range Junction temperature Value 50 30 500 25 - 20 to 85 - 55 to 150 150 Unit V V mA mA °C °C °C Symbol VO VI IC IB TA TSTG TJ Table 3. Symbol RthJA Thermal data Parameter Thermal resistance junction-ambient, Max. DIP-16 70 SO-16 120 Unit ° C/W 5/14 Electrical characteristics ULN200xA - ULN200xD1 4 Table 4. Symbol Electrical characteristics Electrical characteristics (TA = 25°C unless otherwise specified). Parameter Test condition VCE = 50 V, (Figure 3.) TA = 70°C, VCE= 50 V (Figure 3.) ICEX Output leakage current TA = 70°C for ULN2002, VCE= 50 V, VI = 6 V (Figure 4.) TA = 70°C for ULN2002, VCE= 50 V, VI = 1V (Figure 4.) IC = 100 mA, IB = 250 µA 0.9 1.1 1.3 0.82 0.93 0.35 1 50 65 13 2.4 2.7 3 5 6 7 8 1000 15 0.5 VI to 0.5 VO 0.5 VI to 0.5 VO VR = 50 V TA = 70°C, VR = 50 V IF = 350 mA 1.7 0.25 0.25 25 1 1 50 µA 100 2 V pF µs µs Min. Typ. Max. 50 100 500 500 1.1 1.3 1.6 1.25 1.35 mA 0.5 1.45 µA V µA Unit Collector-emitter saturation VCE(SAT) voltage (Figure 5.) IC = 200 mA, IB= 350 µA IC = 350 mA, IB= 500 µA for ULN2002, VI = 17 V II(ON) Input current (Figure 6.) for ULN2003, VI = 3.85 V for ULN2004, VI = 5 V VI = 12 V II(OFF) Input current (Figure 7.) TA = 70°C, IC = 500 µA VCE= 2 V, for ULN2002 IC = 300 mA for ULN2003 IC = 200 mA IC = 250 mA IC = 300 mA for ULN2004 IC = 125 mA IC = 200 mA IC = 275 mA IC = 350 mA for ULN2001, VCE = 2 V, IC = 350 mA VI(ON) Input voltage (Figure 8.) V hFE CI tPLH tPHL IR VF DC Forward current gain (Figure 5.) Input capacitance Turn-on delay time Turn-off delay time Clamp diode leakage current (Figure 9.) Clamp diode forward voltage (Figure 10.) 6/14 ULN200xA - ULN200xD1 Test circuits 5 Figure 3. Test circuits Output leakage current Figure 4. Output leakage current (for ULN2002 only) Figure 5. Collector-emitter saturation voltage Figure 6. Input current (ON) Figure 7. Input current (OFF) Figure 8. Input voltage 7/14 Test circuits ULN200xA - ULN200xD1 Figure 9. Clamp diode leakage current Figure 10. Clamp diode forward voltage Figure 11. Collector current vs input current Ic (mA) Tj=25˚C 500 400 Max 300 200 TYPICAL 100 0 D96IN453 Figure 12. Collector current vs saturation voltage Ic (mA) 500 Tj=25˚C 400 Max 300 200 TYPICAL 100 0 0.0 0.5 1.0 1.5 Vce(sat) D96IN454 0 100 200 300 400 500 Ib(μA) Figure 13. Peak collector current vs duty cycle Figure 14. Peak collector current vs duty cycle Ic peak (mA) 500 400 300 200 100 0 0 20 40 60 80 DC 765 4 3 2 D96IN451 NUMBER OF ACTIVE OUTPUT Ic peak (mA) 500 400 300 D96IN452A Tamb=70˚C (SO16) 2 3 Tamb=70˚C (DIP16) 200 7 5 100 NUMBER OF ACTIVE OUTPUT 0 0 20 40 60 80 100 DC 8/14 ULN200xA - ULN200xD1 Package mechanical data 6 Package mechanical data In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. These packages have a Lead-free second level interconnect. The category of second Level Interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com. 9/14 Package mechanical data ULN200xA - ULN200xD1 Plastic DIP-16 (0.25) mechanical data mm. Dim. Min. a1 B b b1 D E e e3 F I L Z 3. 3 1.27 8.5 2.54 17.78 7.1 5.1 0.130 0.050 0.51 0.77 0.5 0.25 20 0.335 0.100 0.700 0.280 0.201 1.65 Typ. Max. Min. 0.020 0.030 0.020 0.010 0.787 0.065 Typ. Max. inch. P001C 10/14 ULN200xA - ULN200xD1 Table 5. Dim. Min. A a1 0.1 Typ. Max. 1.75 0.25 0.004 Min. Package mechanical data SO-16 Narrow mechanical data mm. inch. Typ. Max. 0.069 0.009 a2 b b1 C c1 D(1) 1.6 0.35 0.19 0.5 45° 9.8 5.8 1.27 8.89 3.8 4.60 0.4 4.0 5.30 1.27 0.150 0.181 0.150 10 6.2 (typ.) 0.386 0.228 0.050 0.350 0.46 0.25 0.014 0.007 0.020 0.063 0.018 0.010 0.394 0.244 E e e3 F(1) 0.157 0.208 0.050 G L M S 0.62 8° (max.) 0.024 Figure 15. Package dimensions 11/14 Order code ULN200xA - ULN200xD1 7 Table 6. Order code Order code Part numbers ULN2001A ULN2002A ULN2003A ULN2004A ULN2001D1013TR ULN2002D1013TR ULN2003D1013TR ULN2004D1013TR Package DIP-16 DIP-16 DIP-16 DIP-16 SO-16 in Tape & Reel SO-16 in Tape & Reel SO-16 in Tape & Reel SO-16 in Tape & Reel 12/14 ULN200xA - ULN200xD1 Revision history 8 Table 7. Date Revision history Revision history Revision 5 6 Changes Order code updated and document reformatted. Added Table 1. in cover page. 05-Dec-2006 28-Aug-2007 13/14 ULN200xA - ULN200xD1 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2007 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 14/14
