USBLC6-2

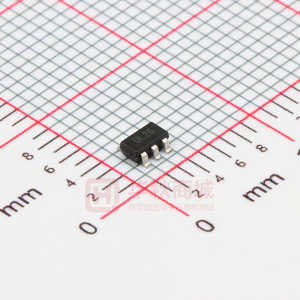

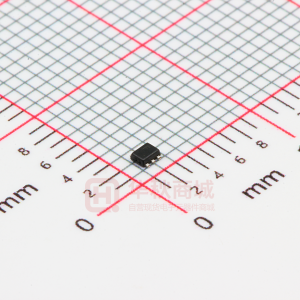

® USBLC6-2 VERY LOW CAPACITANCE ESD PROTECTION ASD (Application Specific Devices) MAIN APPLICATIONS ■ USB2.0 ports at 480Mbps (high speed) and USB OTG ports ■ Backwards Compatible with USB1.1 Low and full speed ■ Ethernet port: 10/100Mb/s ■ SIM card protection ■ Video line protection ■ Portable and mobile electronics DESCRIPTION The USBLC6-2P6 and USBLC6-2SC6 are two monolithic Application Specific Devices dedicated to ESD protection of high speed interfaces such as USB2.0, Ethernet links and Video lines. The very low line capacitance secures a high level of signal integrity without compromising in protection sensitive chips against the most stringent characterized ESD strikes. FEATURES ■ 2 data lines protection ■ Protects VBUS ■ Very low capacitance: 3.5pF max ■ Very low leakage current: 1µA max ■ SOT-666 and SOT23-6L packages ■ RoHS compliant BENEFITS ■ Very low capacitance between lines to GND for optimized data integrity and speed ■ Ultra low PCB space consuming: 2.9mm² max for SOT-666 package and 9mm² max for SOT23-6L package ■ Enhanced ESD protection: IEC61000-4-2 level 4 compliance guaranteed at device level, hence greater immunity at system level ■ ESD protection of VBUS. Allows ESD current flowing to Ground when ESD event occurs on data line ■ High reliability offered by monolithic integration ■ Very low leakage current for longer operation of battery powered devices ■ Fast response time ■ Consistant D+/D- signal balance - Best capacitance matching tolerance I/O to GND of 0.04pF - Compliance with USB2.0 requirement (0 di surge 0 VI/O t +5V VCL- = -VF surge
