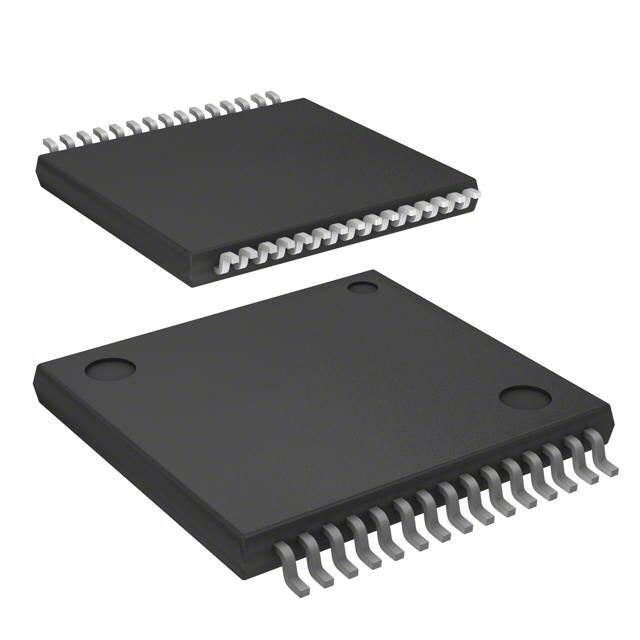

VND5004ASP30TR-E

VND5004A-E VND5004ASP30-E Double 4 mΩ high-side driver with analog current sense for automotive applications Datasheet - production data – – – – Load current limitation Thermal shutdown Self limiting of fast thermal transients Protection against loss of ground and loss of VCC – Reverse battery protection with self switchon of the PowerMOS – Electrostatic discharge protection PQFN - 12x12 Power lead-less MultiPowerSO-30 Applications Features  All types of resistive, inductive and capacitive loads  Suitable for power management applications Max transient supply voltage VCC 41V Operating voltage range VCC 4.5 to 27V Max on-state resistance (per ch.) RON 4m Current limitation (typ) ILIMH 100A IS 2A(1) Off state supply current 1. Typical value with all loads connected Description The VND5004A-E and VND5004ASP30-E are devices made using STMicroelectronics VIPower technology. They are intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp and load dump protection circuit protect the devices against transients on the Vcc pin. These devices integrate an analog current sense which delivers a current proportional to the load current (according to a known ratio) when CS_DIS is driven low or left open. When CS_DIS is driven high, the CURRENT SENSE pin is high impedance. Output current limitation protects the devices in overload condition. In case of long duration overload, the devices limit the dissipated power to a safe level up to thermal shutdown intervention. Thermal shutdown with automatic restart allows the device to recover normal operation as soon as a fault condition disappears.  AEC-Q100 qualified  General – Inrush current active management by power limitation – Very low stand-by current – 3.0 V CMOS compatible input – Optimized electromagnetic emission – Very low electromagnetic susceptibility – In compliance with the 2002/95/EC European directive  Diagnostic functions – Proportional load current sense – Current sense disable – Thermal shutdown indication  Protection – Undervoltage shutdown – Overvoltage clamp Table 1. Device summary Package PQFN-12x12 Power lead-less MultiPowerSO-30 January 2017 This is information on a product in full production. Order codes Tape and Reel VND5004ATR-E VND5004ASP30TR-E DocID13342 Rev 8 Tray VND5004A-E - 1/34 www.st.com Contents VND5004A-E, VND5004ASP30-E Contents 1 Block diagram and pin configurations . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2 Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3 4 5 6 2/34 2.1 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2 Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.4 Electrical characteristics curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.1 MCU I/Os protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.2 Load dump protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.3 Maximum demagnetization energy (VCC = 13.5 V) . . . . . . . . . . . . . . . . . 19 Package and PC board thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4.1 MultiPowerSO-30 thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4.2 PQFN - 12x12 Power lead-less thermal data . . . . . . . . . . . . . . . . . . . . . . 23 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 5.1 MultiPowerSO-30 package information . . . . . . . . . . . . . . . . . . . . . . . . . . 26 5.2 PQFN - 12x12 Power lead-less package information . . . . . . . . . . . . . . . 28 5.3 MultiPowerSO-30 packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 5.4 PQFN - 12x12 Power lead-less packing information . . . . . . . . . . . . . . . . 31 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 DocID13342 Rev 8 VND5004A-E, VND5004ASP30-E List of tables List of tables Table 1. Table 2. Table 3. Table 4. Table 5. Table 6. Table 7. Table 8. Table 9. Table 10. Table 11. Table 12. Table 13. Table 14. Table 15. Table 16. Table 17. Table 18. Table 19. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Pin functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Suggested connections for unused and n.c. pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Power section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Switching (VCC = 13V; Tj = 25°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Logic input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Protection and diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Current sense (8 V
