VND5T016ASP-E
Double channel high side driver with analog CurrentSense
for 24 V automotive applications
Datasheet − production data
Features
Max transient supply voltage
VCC
58 V
Operating voltage range
VCC
8 to 36 V
Typ ON-state resistance (per ch.)
RON
16 mΩ
Current limitation (typ)
ILIM
70 A
IS
2 µA(1)
OFF-state supply current
1. Typical value with all loads connected.
• General
– Very low standby current
– 3.0 V CMOS compatible input
– Optimized electromagnetic emission
– Very low electromagnetic susceptibility
– Compliance with European directive
2002/95/EC
– Fault reset standby pin (FR_Stby)
• Diagnostic functions
– Proportional load current sense
– Current sense precision for wide range
currents
– Off state open load detection
– Output short to VCC detection
– Overload and short to ground latch-off
– Thermal shutdown latch-off
– Very low current sense leakage
• Protections
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Protection against loss of ground and loss
of VCC
– Thermal shutdown
– Reverse battery protected with self switch
of the PowerMOS
– Electrostatic discharge protection
February 2016
This is information on a product in full production.

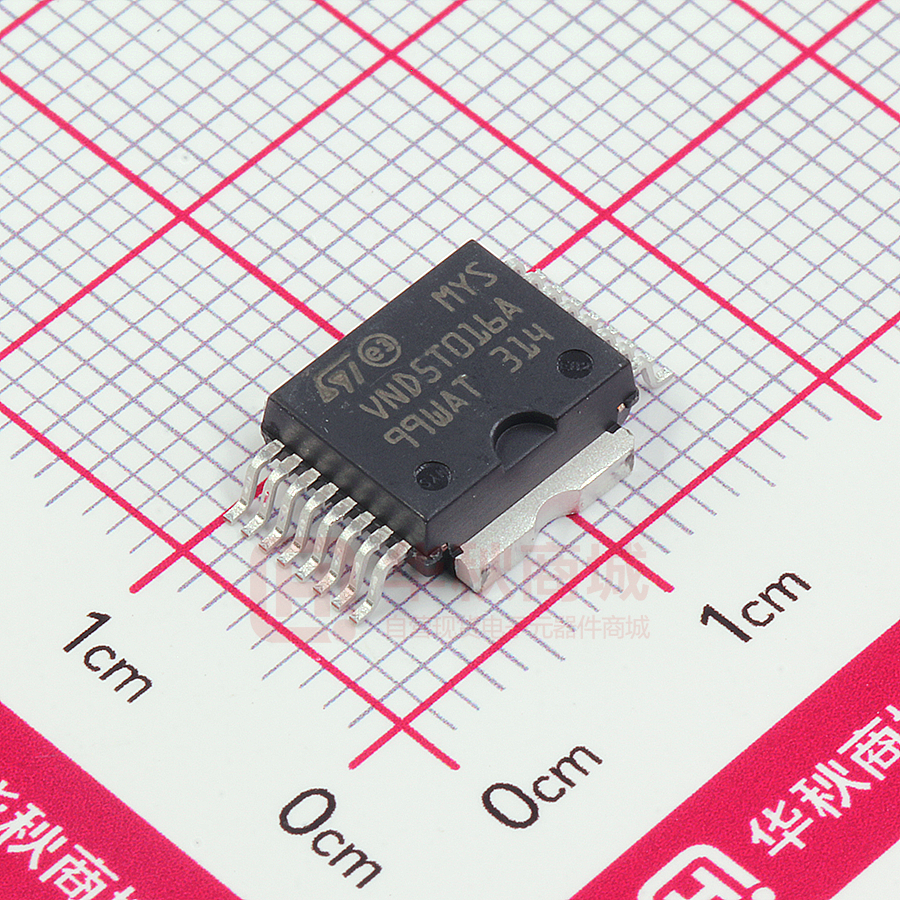

PowerSO-16
Application
• All types of resistive, inductive and capacitive
loads
Description
The VND5T016ASP-E is a device made using
STMicroelectronics® VIPower® technology,
intended for driving resistive or inductive loads
with one side connected to ground. Active VCC
pin voltage clamp protects the device against low
energy spikes. This device integrates an analog
current sense which delivers a current
proportional to the load current. Fault conditions
such as overload, overtemperature or short to
VCC are reported via the current sense pin.
Output current limitation protects the device in
overload condition. The device will latch off in
case of overload or thermal shutdown.
The device is reset by a low level pass on the fault
reset standby pin.
A permanent low level on the inputs and fault
reset standby pin disables all outputs and sets the
device in standby mode.
DocID022687 Rev 4
1/31
www.st.com
Contents
VND5T016ASP-E
Contents
1
Block diagram and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2
Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3
2.1
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2
Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4
Electrical characteristics curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.5
Maximum demagnetization energy (VCC = 24 V) . . . . . . . . . . . . . . . . . . . 21
Package and PCB thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.1
4
PowerSO-16 thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.1
ECOPACK® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.2
PowerSO-16 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.3
Packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5
Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2/31
DocID022687 Rev 4
VND5T016ASP-E
List of tables
List of tables
Table 1.
Table 2.
Table 3.
Table 4.
Table 5.
Table 6.
Table 7.
Table 8.
Table 9.
Table 10.
Table 11.
Table 12.
Table 13.
Table 14.
Table 15.
Table 16.
Table 17.
Table 18.
Pin function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Suggested connections for unused and not connected pins . . . . . . . . . . . . . . . . . . . . . . . . 6
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Power section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switching (VCC = 24V; Tj = 25°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Logic inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Protections and diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Current sense (8 V < VCC < 36 V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Openload detection (FR_Stby = 5 V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Truth table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Electrical transient requirements (part 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical transient requirements (part 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical transient requirements (part 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Thermal parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
PowerSO-16 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
DocID022687 Rev 4
3/31
3
List of figures
VND5T016ASP-E
List of figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Figure 9.
Figure 10.
Figure 11.
Figure 12.
Figure 13.
Figure 14.
Figure 15.
Figure 16.
Figure 17.
Figure 18.
Figure 19.
Figure 20.
Figure 21.
Figure 22.
Figure 23.
Figure 24.
Figure 25.
Figure 26.
Figure 27.
Figure 28.
Figure 29.
Figure 30.
Figure 31.
Figure 32.
4/31
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Configuration diagram (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Current and voltage conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
treset definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
tstby definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Output stuck to VCC detection delay time at FR_Stby activation . . . . . . . . . . . . . . . . . . . . 14
Current sense delay characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Open-load off-state delay timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Switching characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Delay response time between rising edge of output current and rising edge of
current sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Output voltage drop limitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Device behavior in overload condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Off-state output current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
High level input current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Input clamp voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Input low level voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Input high level voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Input hysteresis voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
On-state resistance vs Tcase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
On-state resistance vs VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
ILIMH vs Tcase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Turn-on voltage slope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Turn-off voltage slope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Maximum turn-off current versus inductance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
PowerSO-16 PC board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Rthj-amb vs PCB copper area in open box free air condition (one channel ON) . . . . . . . . 22
PowerSO-16 thermal impedance junction ambient single pulse (one channel ON) . . . . . . 23
Thermal fitting model of a double channel HSD in PowerSO-16 . . . . . . . . . . . . . . . . . . . . 23
PowerSO-16 package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
PowerSO-16 tube shipment (no suffix) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
PowerSO-16 tape and reel shipment (suffix “TR”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
PowerSO-16 suggested pad layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
DocID022687 Rev 4
VND5T016ASP-E
1
Block diagram and pin description
Block diagram and pin description
Figure 1. Block diagram
9&&
5HYHUVH
%DWWHU\
3URWHFWLRQ
6LJQDO&ODPS
8QGHUYROWDJH
,1
&RQWURO 'LDJQRVWLF
&RQWURO 'LDJQRVWLF
3RZHU
&ODPS
'5,9(5
,1
&+
921
/LPLWDWLRQ
2YHU
WHPSHUDWXUH
&XUUHQW
/LPLWDWLRQ
2))6WDWH
2SHQORDG
)5B6WE\
9 6(16(+
&6
&XUUHQW
6HQVH
&+
&6
287
/2*,&
287
29(5/2$'3527(&7,21
$&7,9(32:(5/,0,7$7,21
*1'
("1($'5
Table 1. Pin function
Name
VCC
Function
Battery connection
OUTn
Power output
GND
Ground connection
INn
Voltage controlled input pin with hysteresis, CMOS-compatible; they control output
switch state
CSn
Analog current sense pin, they deliver a current proportional to the load current
FR_Stby
In case of latch-off for overtemperature/overcurrent condition, a low pulse on the
FR_Stby pin is needed to reset the channel.
The device enters in standby mode if all inputs and the FR_Stby pin are low.
DocID022687 Rev 4
5/31
30
Block diagram and pin description
VND5T016ASP-E
Figure 2. Configuration diagram (top view)
9
10
11
12
13
14
15
16
IN1
CS1
NC
FR_Stby
GND
NC
CS2
IN2
8
7
6
5
4
3
2
1
OUT1
OUT1
OUT1
OUT1
OUT2
OUT2
OUT2
OUT2
17
VCC
Table 2. Suggested connections for unused and not connected pins
Connection / pin
Current Sense
N.C.
Output
Input
FR_Stby
Floating
Not allowed
X(1)
X
X
X
To ground
Through 10 kΩ
resistor
X
Not allowed
Through 10 kΩ
resistor
Through 10 kΩ
resistor
1. X: do not care.
6/31
DocID022687 Rev 4
VND5T016ASP-E
2
Electrical specifications
Electrical specifications
Figure 3. Current and voltage conventions
IS
VCC
VCC
VFn
IFR_Stby
OUTn
FR_Stby
VFR_Stby
IOUTn
VOUTn
ISENSEn
IINn
CSn
INn
VINn
VSENSEn
GND
IGND
2.1
Absolute maximum ratings
Stressing the device above the ratings listed in Table 3 may cause permanent damage to
the device. These are stress ratings only and operation of the device at these or any other
conditions above those indicated in the Operating sections of this specification is not
implied. Exposure to the conditions reported in this section for extended periods may affect
device reliability.
Table 3. Absolute maximum ratings
Symbol
Parameter
Value
Unit
VCC
DC supply voltage
58
V
-VCC
Reverse DC supply voltage
32
V
IOUT
DC output current
Internally limited
A
-IOUT
Reverse DC output current
45
A
DC input current
-1 to 10
mA
Fault reset standby DC input current
-1 to 1.5
mA
VCC-58 to
+VCC
V
IIN
IFR_Stby
VCSENSE Current sense maximum voltage
EMAX
Maximum switching energy
(L = 11 mH; Vbat = 32 V; Tjstart = 150°C; IOUT = 5.3 A)
320
mJ
LSMAX
Maximum stray inductance in short circuit condition
RL = 300 mΩ; VBAT = 32 V; Tjstart = 150°C; IOUT = IlimH_max
40
µH
DocID022687 Rev 4
7/31
30
Electrical specifications
VND5T016ASP-E
Table 3. Absolute maximum ratings (continued)
Symbol
Value
Unit
VESD
Electrostatic discharge
(Human Body Model: R = 1.5 KΩ; C = 100 pF)
– INPUT
– CURRENT SENSE
– FAULT RESET STANDBY PIN
– OUTPUT
– VCC
4000
2000
4000
5000
5000
V
V
V
V
V
VESD
Charge device model (CDM-AEC-Q100-011)
750
V
Junction operating temperature
-40 to 150
°C
Storage temperature
-55 to 150
°C
Value
Unit
0.9
°C/W
See Figure 26
°C/W
Tj
Tstg
2.2
Parameter
Thermal data
Table 4. Thermal data
Symbol
Parameter
Rthj-case Thermal resistance junction-case (Max.) (with one channel ON)
Rthj-amb
8/31
Thermal resistance junction-ambient (Max.)
DocID022687 Rev 4
VND5T016ASP-E
2.3
Electrical specifications
Electrical characteristics
8 V < VCC < 36 V; -40°C < Tj < 150°C, unless otherwise specified.
Table 5. Power section
Symbol
Parameter
VCC
Operating supply voltage
VUSD
VUSDhyst
RON
RON REV
Vclamp
IS
IL(off1)
Test conditions
Min.
Typ.
Max.
Unit
8
24
36
V
Undervoltage shutdown
3.5
5
V
Undervoltage shutdown
hysteresis
0.5
On state resistance(1)
IOUT = 5 A; Tj = 25°C;
8 V < VCC < 36 V
V
16
mΩ
IOUT = 5 A; Tj = 150°C;
8 V < VCC < 36 V
32
Reverse battery ON
state resistance
VCC = -24 V; IOUT = -5 A;
Tj = 25°C
16
mΩ
Clamp voltage
IS = 20 mA
64
70
V
Off-state; VCC = 24 V; Tj = 25°C;
VIN = VOUT = VSENSE = 0 V
2(2)
5
µA
On-state; VCC = 24 V; VIN = 5 V;
IOUT = 0 A
4.5
6.5
mA
0.01
3
Supply current
Off state output current
58
VIN = VOUT = 0 V; VCC = 24 V;
Tj = 25°C
0
VIN = VOUT = 0 V; VCC = 24 V;
Tj = 125°C
0
µA
5
1. For each channel
2. PowerMOS leakage included.
Table 6. Switching (VCC = 24V; Tj = 25°C)
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
td(on)
Turn-on delay time
RL = 4.8 Ω
—
50
—
µs
td(off)
Turn-off delay time
RL = 4.8 Ω
—
45
—
µs
dVOUT/dt(on) Turn-on voltage slope
RL = 4.8 Ω
0.65
V/µs
dVOUT/dt(off) Turn-off voltage slope
RL = 4.8 Ω
0.6
V/µs
WON
Switching energy losses during twon
RL = 4.8 Ω
—
2.1
—
mJ
WOFF
Switching energy losses during twoff
RL = 4.8 Ω
—
0.9
—
mJ
DocID022687 Rev 4
9/31
30
Electrical specifications
VND5T016ASP-E
Table 7. Logic inputs
Symbol
Parameter
VIL
Input low level voltage
IIL
Low level input current
VIH
Input high level voltage
IIH
High level input current
VI(hyst)
Input hysteresis voltage
VICL
Input clamp voltage
Fault_reset_standby low
level voltage
IFR_Stby_L
Low level
fault_reset_standby
current
VFR_Stby_H
Fault_reset_standby high
level voltage
IFR_Stby_H
High level
fault_reset_standby
current
(hyst)
VFR_Stby_CL
VIN = 0.9 V
Max.
Unit
0.9
V
1
µA
2.1
V
10
0.25
IIN = 1 mA
µA
V
5.5
7
V
-0.7
0.9
VFR_Stby = 0.9 V
µA
2.1
V
10
0.25
IFR_Stby = 15 mA (10 ms)
V
1
VFR_Stby = 2.1 V
Fault_reset_standby
hysteresis voltage
Fault_reset_standby
clamp voltage
Typ.
VIN = 2.1 V
µA
V
11
15
V
IFR_Stby = -1 mA
-0.7
treset
Overload latch-off reset
time
See Figure 5
2
24
µs
tstby
Standby delay
See Figure 4
120
1200
µs
Figure 4. treset definition
T_reset
FR_STBY
IN
OUTPUT
CS
Overload
Channel
10/31
Min.
IIN = -1 mA
VFR_Stby_L
VFR_Stby
Test conditions
DocID022687 Rev 4
VND5T016ASP-E
Electrical specifications
Figure 5. tstby definition
)5B6WGE\
,1387Q
,*1'
WVWE\
WVWE\
*$3*&)7
Table 8. Protections and diagnostics
Symbol
Parameter
Test conditions
IlimH
DC short circuit current
IlimL
Short circuit current during
thermal cycling
TTSD
Shutdown temperature
Reset temperature
TRS
Thermal reset of status
Max.
Unit
45
70
90
A
90
A
VCC = 24 V;
TR < Tj < TTSD
Output voltage drop limitation
16
150
175
TRS + 1
TRS + 5
A
200
135
Thermal hysteresis (TTSD - TR)
VDEMAG Turn-off output voltage clamp
VON
Typ.
5 V < VCC < 36 V
TR
THYST
VCC = 24 V
Min.
IOUT = 5 A; VIN = 0;
VCC - 58 VCC - 64 VCC - 70
L = 6 mH
DocID022687 Rev 4
°C
°C
7
IOUT = 500 mA
°C
25
°C
V
mV
11/31
30
Electrical specifications
VND5T016ASP-E
Table 9. Current sense (8 V < VCC < 36 V)
Symbol
Test conditions
Min. Typ.
Max. Unit
Current sense
ratio drift
IOUT = 12 mA to 100 mA;
Ical = 50 mA; VSENSE = 0.5 V
IOUT/ISENSE
IOUT = 100 mA; VSENSE = 0.5 V;
Tj = -40°C to 150°C
Current sense
ratio drift
IOUT = 100 mA; VSENSE = 0.5 V;
Tj = -40°C to 150 °C
IOUT/ISENSE
IOUT = 0.6 A; VSENSE = 1 V;
Tj = -40°C...150°C
Tj = 25°C...150°C
Current sense
ratio drift
IOUT = 0.6 A; VSENSE = 1 V;
Tj = -40°C to 150°C
IOUT/ISENSE
IOUT = 1.6 A; VSENSE = 1 V;
Tj = -40°C to 150°C
Tj = 25°C to 150°C
Current sense
ratio drift
IOUT = 1.6 A; VSENSE = 1 V;
Tj = -40°C to 150°C
IOUT/ISENSE
IOUT = 2.4 A; VSENSE = 2 V;
Tj = -40°C to 150°C
Tj = 25°C to 150°C
Current sense
ratio drift
IOUT = 2.4 A; VSENSE = 2 V;
Tj = -40°C to 150°C
IOUT/ISENSE
IOUT = 3 A; VSENSE = 4 V;
Tj = -40°C to 150°C
Tj = 25°C to 150°C
Current sense
ratio drift
IOUT = 3 A; VSENSE = 4 V;
Tj = -40°C to 150°C
IOUT/ISENSE
IOUT = 4.2 A; VSENSE = 4 V;
Tj = -40°C to 150°C
Tj = 25°C to 150°C
Current sense
ratio drift
IOUT = 4.2 A; VSENSE = 4 V;
Tj = -40°C to 150°C
IOUT/ISENSE
IOUT = 20 A; VSENSE = 4 V;
Tj = -40°C to 150°C
dK6/K6(1)
Current sense
ratio drift
IOUT = 20 A; VSENSE = 4 V;
Tj = -40°C to 150°C
-4
4
%
dK/Kbulb1(TOT)(1)
Current sense
ratio drift
IOUT = 1.6 A to 4.2 A;
IOUTCAL = 3 A; VSENSE = 2 V
-15
50
%
dK/Kbulb2(TOT)(1)
Current sense
ratio drift
IOUT = 0.6 A to 2.4 A;
IOUTCAL = 1.2 A; VSENSE = 2 V
-30
25
%
IOUT = 0 A; VSENSE = 0 V;
VIN = 0 V; Tj = -40°C to 150°C
0
1
IOUT = 0 A; VSENSE = 0 V;
VIN = 5 V; Tj = -40°C to 150°C
0
dKled/Kled(TOT)(1)
K0
dK0/K0(1)
K1
dK1/K1(1)
K2
dK2/K2(1)
K3
dK3/K3(1)
K4
dK4/K4(1)
K5
dK5/K5(1)
K6
ISENSE0
12/31
Parameter
Analog sense
leakage current
DocID022687 Rev 4
-50
50
%
1185 5770 10760
-25
25
%
2225
8580
5350
3000
7500
-20
20
%
2935
7305
4650
3250
6200
-22
17
%
2800
6680
4200
2955
5560
-16
23
%
2850
6000
4200
3170
5270
-17
17
%
3200
5400
4200
3450
4965
-13
13
%
3940 4200 4535
µA
2
VND5T016ASP-E
Electrical specifications
Table 9. Current sense (8 V < VCC < 36 V) (continued)
Symbol
Parameter
Test conditions
Min. Typ.
Max. Unit
VSENSE
Max analog sense
IOUT = 20 A; RSENSE = 3.9 KΩ
output voltage
VSENSEH
Analog sense
output voltage in
fault condition(2)
VCC = 24 V; RSENSE = 3.9 KΩ
8
ISENSEH
Analog sense
output current in
fault condition(2)
VCC = 24 V; VSENSE = 5 V
9
12
mA
tDSENSE2H
Delay response
time from rising
edge of INPUT
pin
VSENSE < 4 V;
0.5 A < IOUT < 20 A;
ISENSE = 90% of ISENSE max
(see Figure 7)
300
600
µs
ΔtDSENSE2H
Delay response
time between
rising edge of
output current and
rising edge of
current sense
VSENSE < 4V;
ISENSE = 90% of ISENSEMAX,
IOUT = 90% of IOUTMAX
IOUTMAX = 5A (see Figure 10)
450
µs
tDSENSE2L
Delay response
time from falling
edge of INPUT
pin
VSENSE < 4 V;
0.5 A < IOUT < 20 A; ISENSE=10%
of ISENSE max
(see Figure 7)
20
µs
5
V
V
5
1. Parameter guaranteed by design; it is not tested.
2. Fault condition includes: power limitation, overtemperature and open load in OFF-state condition.
Table 10. Openload detection (FR_Stby = 5 V)
Symbol
Test conditions
Min.
Openload Off State
voltage detection
threshold
VIN = 0 V; 8 V < VCC < 36 V
tDSTKON
Output short circuit to
VCC detection delay at
turn off
IL(off2)
td_vol
VOL
Parameter
Max.
Unit
2
4
V
See Figure 8.
180
1800
µs
Off state output current
at VOUT = 4 V
VIN = 0 V; VSENSE = 0 V;
VOUT rising from 0 V to 4 V
-120
0
µA
Delay response from
output rising edge to
VSENSE rising edge in
openload
VOUT = 4 V; VIN = 0 V;
VSENSE = 90% of VSENSEH;
RSENSE = 3.9 KΩ
20
µs
See Figure 6;
Input1,2 = low
50
µs
Output short circuit to
tDFRSTK_ON VCC detection delay at
FR_Stby activation
DocID022687 Rev 4
Typ.
13/31
30
Electrical specifications
VND5T016ASP-E
Figure 6. Output stuck to VCC detection delay time at FR_Stby activation
)567%<
9VHQVH+
9&6
W')567.B21
,QSXW /RZ
*$3*&)7
Figure 7. Current sense delay characteristics
,1387
/2$'&855(17
6(16(&855(17
W'6(16(+
W'6(16(/
*$3*&)7
Figure 8. Open-load off-state delay timing
OUTPUT STUCK TO VCC
VIN
VOUT > VOL
VSENSEH
VCS
tDSTKON
14/31
DocID022687 Rev 4
With FR_Stby = 5 V
VND5T016ASP-E
Electrical specifications
Figure 9. Switching characteristics
9287
W:RQ
W:RII
G9287GW RII
G9287GW RQ
WU
WI
W
,1387
7G RQ
7G RII
W
*$3*&)7
DocID022687 Rev 4
15/31
30
Electrical specifications
VND5T016ASP-E
Figure 10. Delay response time between rising edge of output current and rising edge
of current sense
9,1
ǻW'6(16(+
W
,287
,2870$;
,2870$;
W
,6(16(
,6(16(0$;
,6(16(0$;
W
*$3*&)7
Figure 11. Output voltage drop limitation
9&&9287
7M &
7M &
7M &
921
,287
921521 7
$*9
16/31
DocID022687 Rev 4
VND5T016ASP-E
Electrical specifications
Figure 12. Device behavior in overload condition
WBUHVHW
WBUHVHW
)$8/7B5(6(7
,1Q
287387Q
9VHQVH+
&6Q
RYHUORDG
RYHUORDGUHVHW
RYHUORDGGLDJUHVHW
29(5/2$'
&+$11(/Q
287387QDQG&6QFRQWUROOHGE\,1Q
)$8/7B5(6(7IURPµ¶WRµ¶ĺQRDFWLRQRQ&6QSLQ
RYHUORDGODWFKRII,QQKLJKĺ&6QKLJK
)$8/7B5(6(7ORZ$1'7HPSFKDQQHOQ RYHUORDGBUHVHWĺRYHUORDGODWFKUHVHWDIWHUWBUHVHW
WR )$8/7B5(6(7ORZ$1',1QKLJKĺWKHUPDOF\FOLQJ&6QKLJK
)$8/7B5(6(7KLJKĺODWFKRIIUHVHWGLVDEOHG
WR RYHUORDGHYHQWDQG)$8/7B5(6(7KLJKĺODWFKRIIQRWKHUPDOF\FOLQJ
WR RYHUORDGGLDJQRVWLFGLVDEOHGHQDEOHGE\WKHLQSXW
RYHUORDGODWFKRIIUHVHWE\)$8/7B5(6(7
29(5/2$' WKHUPDOVKXWGRZQ25SRZHUOLPLWDWLRQ
*$3*&)7
Table 11. Truth table
Fault reset
standby
Input
Output
Sense
Standby
L
L
X
0
Normal operation
X
X
L
H
L
H
0
Nominal
Overload
X
X
L
H
L
H
0
> Nominal
Overtemperature /
short to ground
X
L
H
L
H
H
L
Cycling
Latched
0
VSENSEH
VSENSEH
Undervoltage
X
X
L
0
Short to VBAT
L
H
X
L
L
H
H
H
H
0
VSENSEH
< Nominal
Open load Off-state
(with pull-up)
L
H
X
L
L
H
H
H
H
0
VSENSEH
0
Negative output
voltage clamp
X
L
Negative
0
Conditions
DocID022687 Rev 4
17/31
30
Electrical specifications
VND5T016ASP-E
Table 12. Electrical transient requirements (part 1)
Test levels (1)
ISO 7637-2:
2004(E)
Number of
pulses or
test times
Burst cycle/pulse
repetition time
Delays and
impedance
Test pulse
III
IV
1
- 450 V
- 600 V
5000
pulses
0.5 s
5s
1 ms, 50 Ω
2a
+ 37 V
+ 50 V
5000
pulses
0.2 s
5s
50 µs, 2 Ω
3a
- 150 V
- 200 V
1h
90 ms
100 ms
0.1 µs, 50 Ω
3b
+ 150 V
+ 200 V
1h
90 ms
100 ms
0.1 µs, 50 Ω
4
- 12 V
- 16 V
1 pulse
100 ms, 0.01 Ω
5b (2)
+ 123 V
+ 174 V
1 pulse
350 ms, 1 Ω
1. The above test levels must be considered referred to VCC = 24.5 V except for pulse 5b
2. Valid in case of external load dump clamp: 58 V maximum referred to ground.
Table 13. Electrical transient requirements (part 2)
ISO 7637-2:
2004(E)
Test level results
Test pulse
III
IV
1
C
C(1)
2a
C
C
3a
C
C
3b(2)
E
E
3b(3)
C
C
4
C
C
5b(4)
C
C
1. With Rload < 24Ω.
2. Without capacitor betweeen VCC and GND.
3. With 10 nF betweeen VCC and GND.
4. External load dump clamp, 58 V maximum, referred to ground.
Table 14. Electrical transient requirements (part 3)
18/31
Class
Contents
C
All functions of the device are performed as designed after exposure to disturbance.
E
One or more functions of the device are not performed as designed after exposure to
disturbance and cannot be returned to proper operation without replacing the device.
DocID022687 Rev 4
VND5T016ASP-E
2.4
Electrical specifications
Electrical characteristics curves
Figure 13. Off-state output current
Figure 14. High level input current
,ORII>X$@
,LK>X$@
9LQ 9
2II6WDWH
9FF 9
9LQ 9RXW
7F>&@
7F>&@
("1($'5
Figure 15. Input clamp voltage
("1($'5
Figure 16. Input low level voltage
9LO>9@
9LFO>9@
,LQ P$
7F>&@
7F>&@
("1($'5
Figure 17. Input high level voltage
("1($'5
Figure 18. Input hysteresis voltage
9LK\VW>9@
9LK>9@
7F>&@
("1($'5
DocID022687 Rev 4
7F>&@
("1($'5
19/31
30
Electrical specifications
VND5T016ASP-E
Figure 19. On-state resistance vs Tcase
5RQ>P2KP@
Figure 20. On-state resistance vs VCC
5RQ>P2KP@
7F &
7F &
,RXW $
9FF 9
7F &
7F &
7F>&@
9FF>9@
("1($'5
Figure 21. ILIMH vs Tcase
("1($'5
Figure 22. Turn-on voltage slope
G9RXWGW 2Q>9XV@
,OLPK>$@
9FF 9
9FF 9
5O ȍ
7F>&@
("1($'5
Figure 23. Turn-off voltage slope
G9RXWGW 2II>9XV@
9FF 9
5O ȍ
7F>&@
20/31
("1($'5
DocID022687 Rev 4
7F>&@
("1($'5
VND5T016ASP-E
2.5
Electrical specifications
Maximum demagnetization energy (VCC = 24 V)
Figure 24. Maximum turn-off current versus inductance
"
$
#
, $
91'7$ 63 6LQJOH 3XOVH
5HSHWLWLYHSXOVH7MVWDUW &
5HSHWLWLYHSXOVH7MVWDUW &
/ P+
("1($'5
A: Tjstart = 150°C single pulse
B: Tjstart = 100°C repetitive pulse
C: Tjstart = 125°C repetitive pulse
9,1,/
'HPDJQHWL]DWLRQ
'HPDJQHWL]DWLRQ
'HPDJQHWL]DWLRQ
W
*$3*&)7
Note:
Values are generated with RL = 0 Ω. In case of repetitive pulses, Tjstart (at the beginning of
each demagnetization) of every pulse must not exceed the temperature specified above for
curves A and B.
DocID022687 Rev 4
21/31
30
Package and PCB thermal data
VND5T016ASP-E
3
Package and PCB thermal data
3.1
PowerSO-16 thermal data
Figure 25. PowerSO-16 PC board
("1($'5
1. Layout condition of Rth and Zth measurements (board finish thickness 1.6 mm +/- 10%; board double layer;
board dimension 77 mm x 86 mm; board material FR4; Cu thickness 70 µm (front and back side); thermal
vias separation 1.2 mm; thermal via diameter 0.3 mm +/- 0.08 mm; Cu thickness on vias 0.025 mm).
Figure 26. Rthj-amb vs PCB copper area in open box free air condition (one channel
ON)
57+MBDPEYV&XKHDWVLQNDUHD
57+MDPE
57+MBDPE &:
3&%&XKHDWVLQNDUHD FPA
*$3*&)7
22/31
DocID022687 Rev 4
VND5T016ASP-E
Package and PCB thermal data
Figure 27. PowerSO-16 thermal impedance junction ambient single pulse (one
channel ON)
=7+ &:
&X FP
&X FP
&X IRRWSULQW
7LPH V
("1($'5
Figure 28. Thermal fitting model of a double channel HSD in PowerSO-16
1. The fitting model is a semplified thermal tool and is valid for transient evolutions where the embedded
protections (power limitation or thermal cycling during thermal shutdown) are not triggered.
Equation 1: pulse calculation formula
Z THδ = R TH ⋅ δ + Z THtp ( 1 – δ )
where δ = tP/T
DocID022687 Rev 4
23/31
30
Package and PCB thermal data
VND5T016ASP-E
Table 15. Thermal parameters
2
24/31
Area/island (cm )
Footprint
2
8
R1 = R7 (°C/W)
0.1
R2 = R8 (°C/W)
0.5
R3 (°C/W)
2
R4 (°C/W)
7
R5 (°C/W)
12
12
8
R6 (°C/W)
22
18
12
C1 = C7 (W.s/°C)
0.01
C2 = C8 (W.s/°C)
0.05
C3 (W.s/°C)
0.5
C4 (W.s/°C)
2
C5 (W.s/°C)
3
4
7
C6 (W.s/°C)
5
6
12
DocID022687 Rev 4
VND5T016ASP-E
Package information
4
Package information
4.1
ECOPACK®
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
4.2
PowerSO-16 mechanical data
Figure 29. PowerSO-16 package dimensions
P013Q
DocID022687 Rev 4
25/31
30
Package information
VND5T016ASP-E
Table 16. PowerSO-16 mechanical data
mm
Dim.
Min.
Typ.
Max.
A1
0
0.05
0.1
A2
3.4
3.5
3.6
A3
1.2
1.3
1.4
A4
0.15
0.2
0.25
a
0.2
b
0.27
0.35
0.43
c
0.23
0.27
0.32
D
9.4
9.5
9.6
D1
7.4
7.5
7.6
d
0
0.05
0.1
E (1)
13.85
14.1
14.35
E1
9.3
9.4
9.5
E2
7.3
7.4
7.5
E3
5.9
6.1
6.3
e
0.8
e1
5.6
F
0.5
G
1.2
L
0.8
1
R1
0.25
R2
T
26/31
1.1
0.8
2°
5°
T1
6° (typ.)
T2
10° (typ.)
Package weight
(typ.)
DocID022687 Rev 4
8°
VND5T016ASP-E
4.3
Package information
Packing information
Figure 30. PowerSO-16 tube shipment (no suffix)
Base q.ty
Bulk q.ty
A
B
C (± 0.1)
Tube length (± 0.5)
C
A
B
50
1000
4.9
17.2
0.8
532
All dimensions are in mm.
Figure 31. PowerSO-16 tape and reel shipment (suffix “TR”)
REEL DIMENSIONS
Base q.ty
Bulk q.ty
A (max)
B (min)
C (± 0.2)
F
G (+ 2 / -0)
N (min)
T (max)
600
600
330
1.5
13
20.2
24.4
60
30.4
All dimensions are in mm.
TAPE DIMENSIONS
According to Electronic Industries Association
(EIA) Standard 481 rev. A, Feb. 1986
Tape width
Tape hole spacing
Component spacing
Hole diameter
Hole diameter
Hole position
Compartment depth
Hole spacing
W
P0 (± 0.1)
P
D (+ 0.1/-0)
D1 (min)
F (± 0.05)
K (max)
P1 (± 0.1)
All dimensions are in mm.
24
4
24
1.5
1.5
11.5
6.5
2
End
Start
Top
No components
Components
No components
cover
tape
500mm min
Empty components pockets
saled with cover tape.
500mm min
User direction of feed
DocID022687 Rev 4
27/31
30
Package information
VND5T016ASP-E
Figure 32. PowerSO-16 suggested pad layout
("1($'5
28/31
DocID022687 Rev 4
VND5T016ASP-E
5
Order codes
Order codes
Table 17. Device summary
Order codes
Package
PowerSO-16
Tube
Tape and reel
VND5T016ASP-E
VND5T016ASPTR-E
DocID022687 Rev 4
29/31
30
Revision history
6
VND5T016ASP-E
Revision history
Table 18. Document revision history
30/31
Date
Revision
Changes
15-Feb-2012
1
Initial release.
13-Apr-2012
2
Updated Table :
Table 9: Current sense (8 V < VCC < 36 V):
– renamed dKled/Kled in dKled/Kled(TOT), dK/Kbulb1 in
dK/Kbulb1(TOT) and dK/Kbulb2 in dK/Kbulb2(TOT)
– dK/Kbulb1(TOT), dK/Kbulb2(TOT): updated test condition
18-Sep-2013
3
Updated disclaimer.
16-Feb-2016
4
Table 4: Thermal data:
– Rthj-case: updated value
DocID022687 Rev 4
VND5T016ASP-E
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2016 STMicroelectronics – All rights reserved
DocID022687 Rev 4
31/31
31
工商网监
湘ICP备2023018690号
