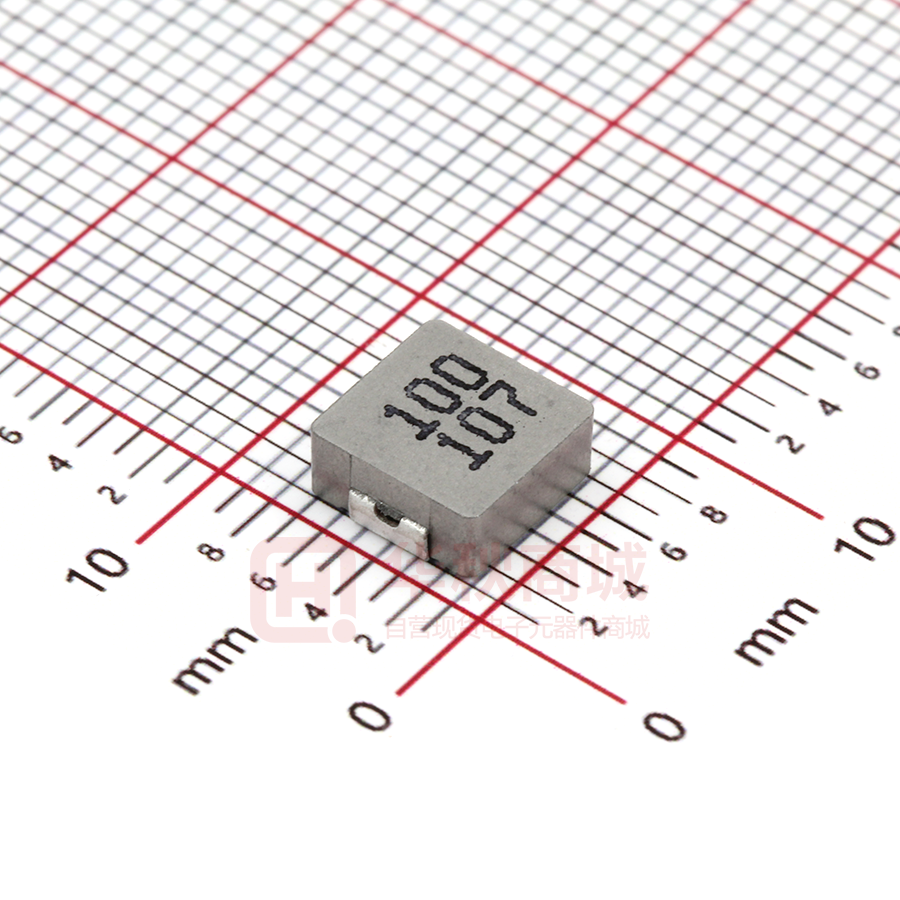

0630CDMCCDS-100MC

SMD Power Inductor 0630CDMCC/DS Description • Metal compound molding type construction. • Magnetically shielded. • Low audible core noise. • Suitable for large current. • L×W×H: 7.3×6.8×3.0mm Max. • Product weight:0.73g (Ref.) • Moisture Sensitivity Level: 1 • RoHS compliance. • Halogen Free available. RoHS Halogen Free 3.8 3.6±0.2 2.8±0.2 6.6±0.2 7.0±0.3 2.9±0.2 Dimension - [mm] 0～0.15 Environmental Data • Operating temperature range: -55℃～+125℃ (including coil’s self temperature rise) • Storage temperature range: -55℃～+125℃ • Solder reflow temperature: 260 ℃ peak. Packaging • Carrier tape and reel packaging. • 1500pcs/Reel. 1.6±0.3 2.0±0.1 Land pattern and Schematics - [mm] Applications • Ideally used in notebook, ultrabook, tablet PC, LCD display, Server application. • High current, POL converters. • Low profile, high current power supplies. • Battery powered devices. • DC/DC converters in distributed power systems. 8.4 3.5 3.7 Page 1 of 5 Revised: 1-Sep-17 SMD Power Inductor 0630CDMCC/DS Electrical Characteristics Inductance [Within] (μH) ※1 D.C.R (mΩ) Max.(Typ.) at 25℃ Saturation Current (A) Max.(Typ.) (at 25℃) ※2 Temperature rise current (A) (Typ.) ※3 Part No. Stamp 0630CDMCCDS-R22MC R22 0.22±20% 3.0(2.5) 32.3(38.0) 24.0 0630CDMCCDS-R24MC R24 0.24±20% 3.1(2.6) 31.0(36.6) 23.0 0630CDMCCDS-R33MC R33 0.33±20% 3.5(3.0) 27.5(32.3) 21.0 0630CDMCCDS-R47MC R47 0.47±20% 4.1(3.5) 20.6(24.2) 20.0 0630CDMCCDS-R56MC R56 0.56±20% 4.5(3.9) 17.5(20.5) 18.8 0630CDMCCDS-R68MC R68 0.68±20% 5.3(4.8) 17.0(20.0) 16.5 0630CDMCCDS-R82MC R82 0.82±20% 6.0(5.4) 16.5(19.5) 14.8 0630CDMCCDS-1R0MC 1R0 1.0±20% 7.4(6.7) 14.0(16.5) 14.4 0630CDMCCDS-1R5MC 1R5 1.5±20% 12.1(10.6) 12.9(15.2) 10.2 0630CDMCCDS-2R2MC 2R2 2.2±20% 15.0(13.5) 10.5(12.3) 9.3 0630CDMCCDS-3R3MC 3R3 3.3±20% 22.0(18.0) 9.7(11.4) 8.4 0630CDMCCDS-4R7MC 4R7 4.7±20% 33.0(28.0) 5.8(6.8) 6.3 0630CDMCCDS-5R6MC 5R6 5.6±20% 43.0(37.0) 5.5(6.5) 5.2 0630CDMCCDS-6R8MC 6R8 6.8±20% 48.0(42.5) 5.3(6.3) 5.0 0630CDMCCDS-8R2MC 8R2 8.2±20% 60.0(54.0) 4.9(5.8) 4.3 0630CDMCCDS-100MC 100 10.0±20% 67.0(62.0) 4.6(5.5) 4.0 0630CDMCCDS-150MC 150 15.0±20% 115.0(104.0) 3.6(4.3) 3.3 0630CDMCCDS-220MC 220 22.0±20% 200.0(180.0) 3.4(4.0) 2.3 ※1 Measuring frequency Inductance at 100kHz ,1.0V ※2 Saturation current: The value of DC current when the inductance is over 70% of its initial value. ※3 Temperature rise current: The actual value of DC current when temperature of coil rise is △T=40℃(Ta=25℃) Board conditions: FR4, Copper=70μm,four-layer PWB, t=1.6mm. Page 2 of 5 Revised: 1-Sep-17 SMD Power Inductor 0630CDMCC/DS Saturation Current & Temperature Rise Graph △T L (20℃) 1. 0630CDMCCDS-R22MC L (μH) △T (℃) L (μH) 2. 0630CDMCCDS-R24MC △T (℃) L (μH) 3. 0630CDMCCDS-R33MC △T (℃) 0.30 60 0.30 60 0.6 0.25 50 0.25 50 0.5 50 0.20 40 0.20 40 0.4 40 0.15 30 0.15 30 0.3 30 0.10 20 0.10 20 0.2 20 0.05 10 0.05 10 0.1 10 0 0.00 0 0.0 0.00 0 8 16 24 DC (A) 32 4. 0630CDMCCDS-R47MC L (μH) 0 40 △T (℃) L (μH) 8 16 24 DC (A) 32 5. 0630CDMCCDS-R56MC 0 0 40 △T (℃) 60 L (μH) 8 16 24 DC (A) 32 6. 0630CDMCCDS-R68MC 40 △T (℃) 0.6 60 0.90 60 0.90 0.5 50 0.75 50 0.75 50 0.4 40 0.60 40 0.60 40 0.3 30 0.45 30 0.45 30 0.2 20 0.30 20 0.30 20 0.1 10 0.15 10 0.15 10 0 0.00 0 0.00 0.0 0 5 10 15 20 DC (A) 25 7. 0630CDMCCDS-R82MC L (μH) 30 0 △T (℃) L (μH) 5 10 15 DC (A) 20 8. 0630CDMCCDS-1R0MC 0 0 25 △T (℃) 60 L (μH) 5 10 15 DC (A) 20 9. 0630CDMCCDS-1R5MC 25 △T (℃) 0.90 60 1.2 60 1.8 0.75 50 1.0 50 1.5 50 0.60 40 0.8 40 1.2 40 0.45 30 0.6 30 0.9 30 0.30 20 0.4 20 0.6 20 0.15 10 0.2 10 0.3 10 0.00 0 0.0 0 0.0 0 5 10 15 DC (A) 20 0 25 10. 0630CDMCCDS-2R2MC L (μH) △T (℃) L (μH) 4 8 12 DC (A) 16 11. 0630CDMCCDS-3R3MC 60 0 0 20 △T (℃) L (μH) 4 8 12 DC (A) 16 12. 0630CDMCCDS-4R7MC 20 △T (℃) 2.4 60 3.6 60 6 60 2.0 50 3.0 50 5 50 1.6 40 2.4 40 4 40 1.2 30 1.8 30 3 30 0.8 20 1.2 20 2 20 0.4 10 0.6 10 1 10 0 0.0 0 0 0 0.0 0 4 8 DC (A) 12 16 0 3 6 9 DC (A) Page 3 of 5 12 15 0 2 4 DC (A) 6 Revised: 1-Sep-17 8 SMD Power Inductor 0630CDMCC/DS Saturation Current & Temperature Rise Graph △T L (20℃) 13. 0630CDMCCDS-5R6MC L (μH) △T (℃) L (μH) 14. 0630CDMCCDS-6R8MC △T (℃) L (μH) 15. 0630CDMCCDS-8R2MC △T (℃) 6 60 9.0 60 9.0 5 50 7.5 50 7.5 50 4 40 6.0 40 6.0 40 3 30 4.5 30 4.5 30 2 20 3.0 20 3.0 20 1 10 1.5 10 1.5 10 0 0.0 0 0.0 0 0 2 4 DC (A) 6 8 0 L (μH) 16. 0630CDMCCDS-100MC △T (℃) 2 4 6 DC (A) L (μH) 17. 0630CDMCCDS-150MC 0 0 8 △T (℃) 60 L (μH) 1 2 3 4 DC (A) 5 18. 0630CDMCCDS-220MC 6 △T (℃) 12 60 18 60 24 10 50 15 50 20 50 8 40 12 40 16 40 6 30 9 30 12 30 4 20 6 20 8 20 2 10 3 10 4 10 0 0 0 0 0 0 1 2 3 4 DC (A) 5 6 0 1 2 3 DC (A) Page 4 of 5 4 5 60 0 0 1 2 3 DC (A) 4 Revised: 1-Sep-17 5 SMD Power Inductor 0630CDMCC/DS Solder Reflow Condition T (℃) 300 250 Heat Endurance T (℃) 300 250 260℃ 230℃ 200 100 50 0 50 0 60 120 180 240 230℃ 40s 150 60 100 0 245℃ PEAK 200 10 150 Temperature Chart 300 T (s) 170±10 ℃,60~120s 0 60 120 180 240 300 T (s) Please refer to the sales offices on our website - http://www.sumida.com Hong Kong Shanghai Shenzhen Taipei Tel.+852-2880-6781 FAX.+852-2565-9600 sales@hk.sumida.com Tel.+86-21-5836-3299 FAX.+86-21-5836-3266 shanghai.sales@cn.sumida.com Tel.+86-755-8291-0228 FAX.+86-755-8291-0338 shenzhen.sales@cn.sumida.com Tel.+886-2-8751-2737 FAX.+886-2-8751-2738 sales@tw.sumida.com Saitama(Japan) Seoul Singapore San Jose Tel.+81-48-691-7300 FAX.+81-48-691-7340 sales@jp.sumida.com Tel.+82-2-6237-0777 FAX.+82-2-6237-0778 sales@kr.sumida.com Tel.+65-6296-3388 FAX.+65-6841-4426 sales@sg.sumida.com Tel.+1-408-321-9660 FAX.+1-408-321-9308 sales@us.sumida.com Chicago Obernzell Neumarkt Tel.+1-847-545-6700 FAX. +1-847-545-6720 sales@us.sumida.com Tel.+49-8591-937-0 FAX. +49-8591-937-103 contact@eu.sumida.com Tel.+49-9181-4509-110 FAX. +49-9181-4509-310 infocomp@eu.sumida.com Page 5 of 5 Revised: 1-Sep-17
