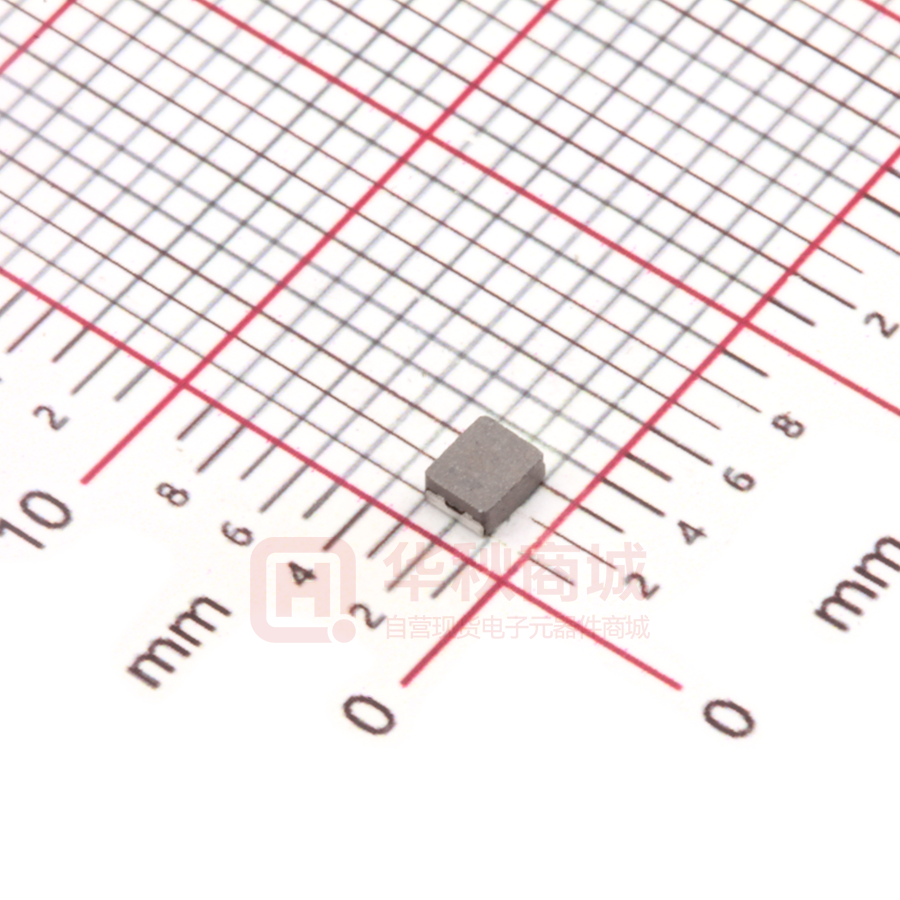

SMD Power Inductor
252012CDMCD/DS
Description
• Metal compound molding type construction
• Magnetically shielded
• Low audible core noise
• Suitable for large current.
• L×W×H:2.7×2.2×1.2mm Max.
• Product weight: 0.38mg (Ref.)
• Moisture Sensitivity Level: 1
Environmental Data
• Operating temperature range: -55°C~+125°C (including coils self temperature rise)
• Storage temperature range: -55°C~+125°C
Packaging
• Carrier tape and reel packaging.
• 3000Pcs per reel
Applications
• DC/DC converter for CPU in Notebook PC. Smartphones, LCD displays, HDDs, DVDs, DVCs,DSCs,PDAs ect..
• Thin type on-board power supply module for exchanger VRM for server.
• Low profile, high current power supplies
• Battery powered devices
Dimension - [mm]
Note: This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 1 of 4
Ver. 2018-05-14
WWW.SUMIDA.COM
SMD Power Inductor
252012CDMCD/DS
Recommended Land pattern - [mm]
Wire Connection
Note: This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 2 of 4
Ver. 2018-05-14
WWW.SUMIDA.COM
SMD Power Inductor
252012CDMCD/DS
Electrical Characteristics
Part Number
Inductance
[Within]
(μH) ※1
252012CDMCDDS-R47MC
0.47 ± 20%
252012CDMCDDS-R68MC
0.68 ± 20%
252012CDMCDDS-1R0MC
1.00 ± 20%
252012CDMCDDS-1R5MC
1.50 ± 20%
252012CDMCDDS-2R2MC
2.20 ± 20%
Temperature
D.C.R. at 20℃ Saturation Current
Rise Current
max(typ) (mΩ)
at 20℃(A) ※2
(A) ※3
21.00
(17.00)
30.00
(25.00)
42.00
(35.00)
61.00
(53.00)
82.00
(68.00)
7.30
6.10
6.30
5.50
5.40
4.20
3.60
3.60
3.30
3.00
※1 Measuring frequency Inductance at 1MHz,0.1V
※2 Saturation current: This indicates the value of D.C. current when the inductance becomes 30% lower than its initial value.
※3 Temperature rise current: The actual value of D.C. current when the temperature of coil becomes
△T=40℃ (Ta=25℃).(Test board condition: FR4, Copper=70μm, four-layer PWB t=1.6mm)
Solder Reflow Condition
Note: This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 3 of 4
Ver. 2018-05-14
WWW.SUMIDA.COM
SMD Power Inductor
252012CDMCD/DS
Saturation Current & Temperature Rise Graph
1. 252012CDMCDDS-R47MC
2. 252012CDMCDDS-R68MC
3. 252012CDMCDDS-1R0MC
L (μH)
L (μH)
L (μH)
△T(℃)
DC(A)
△T(℃)
DC(A)
DC(A)
4. 252012CDMCDDS-1R5MC
5. 252012CDMCDDS-2R2MC
L (μH)
L (μH)
△T(℃)
DC(A)
△T(℃)
△T(℃)
DC(A)
Note: This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 4 of 4
Ver. 2018-05-14
WWW.SUMIDA.COM
