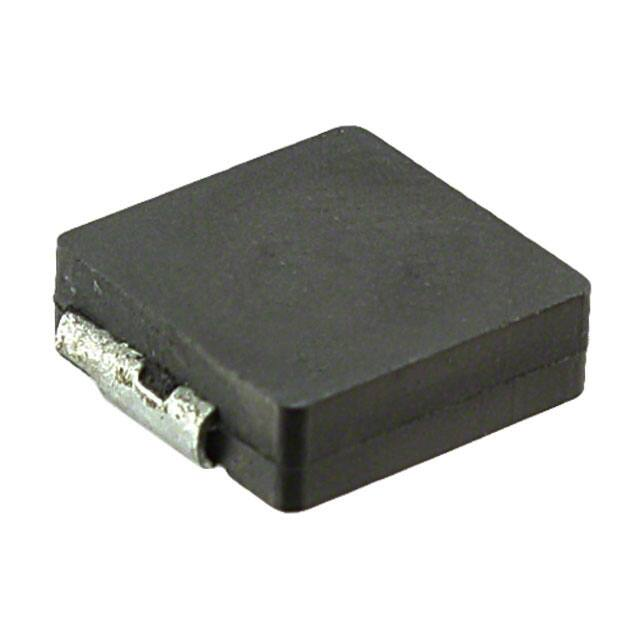

CDMC8D28NP-R39MC

CDMC8D28NP-R39MC

  • 厂商:

    SUMIDA(胜美达)

  • 封装:

    非标准

  • 描述:

    固定电感器 Nonstandard 390nH ±20% 19.9A 2.8mΩ

  • 数据手册
  • 价格&库存
CDMC8D28NP-R39MC 数据手册
SMD Power Inductor CDMC8D28 Description • Metal compound molding type construction. • Magnetically shielded. • L×W×H: 9.5×8.7×3.0 mm Max. • Product weight:1.2 g (Ref.) • Moisture Sensitivity Level: 1 • RoHS compliance. RoHS Dimension - [mm] 1.7±0.3 3.5±0.3 1.7±0.3 3.0 Max. 9.5 Max. 8.5±0.2 0.01 Min. 1 2 :Electrode Land pattern and Schematics - [mm] 10.5 5.0 Packaging • Carrier tape and reel packaging. • 13.0”diameter reel • 1000pcs per reel Applications • Ideally used in low voltage-high current laptop PC & sever power supply. ② 4.0 ① Environmental Data • Operating temperature range: -40℃~+125℃ (including coil’s self temperature rise) • Storage temperature range: -40℃~+85℃ • Solder reflow temperature: 260 ℃ peak. Electrical Characteristics Part No. Stamp Inductance (μH) [Within]※1 D.C.R. (mΩ) [Max.] (Typ.) (at 20℃) Saturation current (A)(at 20℃)※2 Temperature rise current (A) ※3 CDMC8D28NP-R18MC R18 0.18±20% 1.6(1.33) 28.7(35.9) 25.8 CDMC8D28NP-R39MC R39 0.39±20% 2.8(2.32) 19.8(24.7) 19.9 CDMC8D28NP-R68MC R68 0.68±20% 4.6(3.84) 16.0(20.0) 15.4 CDMC8D28NP-1R2MC 1R2 1.2±20% 7.0(5.80) 12.2(15.3) 12.9 CDMC8D28NP-1R8MC 1R8 1.8±20% 12.6(10.5) 9.4(11.8) 9.3 CDMC8D28NP-2R2MC 2R2 2.2±20% 16.1(13.4) 8.8(11.0) 8.1 CDMC8D28NP-3R3MC 3R3 3.3±20% 22.2(18.5) 7.0(8.8) 7.3 CDMC8D28NP-3R9MC 3R9 3.9±20% 24.1(20.1) 6.4(8.0) 7.1 ※1. Measuring condition: at 1MHz. ※2. Saturation current: The value of D.C. current when the inductance decreases to 80% of it’s nominal value. ※3. Temperature rise current: The value of D.C. current when the temperature rise is △t=40℃(Ta=20℃). Page 1 of 3 Revised: 10-Jan-17 SMD Power Inductor CDMC8D28 Saturation Current & Temperature Rise Graph L (20℃) 1. CDMC8D28NP-R18MC L (μH) △T L (125℃) △T (℃) L (μH) 2. CDMC8D28NP-R39MC △T (℃) L (μH) 3. CDMC8D28NP-R68MC △T (℃) 0.30 60 0.6 60 1.2 60 0.25 50 0.5 50 1.0 50 0.20 40 0.4 40 0.8 40 0.15 30 0.3 30 0.6 30 0.10 20 0.2 20 0.4 20 0.05 10 0.1 10 0.2 10 0.00 0 0.0 0 0.0 0 0 L (μH) 10 20 DC (A) 30 4. CDMC8D28NP-1R2MC 40 0 △T (℃) L (μH) 5 10 15 20 DC (A) 25 5. CDMC8D28NP-1R8MC 30 0 △T (℃) L (μH) 4 8 12 16 DC (A) 20 6. CDMC8D28NP-2R2MC 24 △T (℃) 1.2 60 2.4 60 3.0 60 1.0 50 2.0 50 2.5 50 0.8 40 1.6 40 2.0 40 0.6 30 1.2 30 1.5 30 0.4 20 0.8 20 1.0 20 0.2 10 0.4 10 0.5 10 0 0.0 0 0.0 0.0 0 L (μH) 4 8 12 DC (A) 16 7. CDMC8D28NP-3R3MC 20 0 △T (℃) L (μH) 4 8 DC (A) 12 8. CDMC8D28NP-3R9MC 16 60 4.8 60 3.0 50 4.0 50 2.4 40 3.2 40 1.8 30 2.4 30 1.2 20 1.6 20 0.6 10 0.8 10 0 0.0 0 2 4 DC (A) 6 8 10 2 4 6 8 DC (A) 10 △T (℃) 3.6 0.0 0 0 0 0 2 4 6 8 10 DC (A) Page 2 of 3 Revised: 10-Jan-17 12 SMD Power Inductor CDMC8D28 Solder Reflow Condition T (℃) 300 250 Heat Endurance T (℃) 300 250 260℃ 230℃ 200 100 50 0 50 0 60 120 180 240 230℃ 40s 150 60 100 0 245℃ PEAK 200 10 150 Temperature Chart 300 T (s) 170±10 ℃,60~120s 0 60 120 180 240 300 T (s) Please refer to the sales offices on our website - http://www.sumida.com Hong Kong Shanghai Shenzhen Taipei Tel.+852-2880-6781 FAX.+852-2565-9600 sales@hk.sumida.com Tel.+86-21-5836-3299 FAX.+86-21-5836-3266 shanghai.sales@cn.sumida.com Tel.+86-755-8291-0228 FAX.+86-755-8291-0338 shenzhen.sales@cn.sumida.com Tel.+886-2-8751-2737 FAX.+886-2-8751-2738 sales@tw.sumida.com Saitama(Japan) Seoul Singapore San Jose Tel.+81-48-691-7300 FAX.+81-48-691-7340 sales@jp.sumida.com Tel.+82-2-6237-0777 FAX.+82-2-6237-0778 sales@kr.sumida.com Tel.+65-6296-3388 FAX.+65-6841-4426 sales@sg.sumida.com Tel.+1-408-321-9660 FAX.+1-408-321-9308 sales@us.sumida.com Chicago Obernzell Neumarkt Tel.+1-847-545-6700 FAX. +1-847-545-6720 sales@us.sumida.com Tel.+49-8591-937-0 FAX. +49-8591-937-103 contact@eu.sumida.com Tel.+49-9181-4509-110 FAX. +49-9181-4509-310 infocomp@eu.sumida.com Page 3 of 3 Revised: 10-Jan-17
