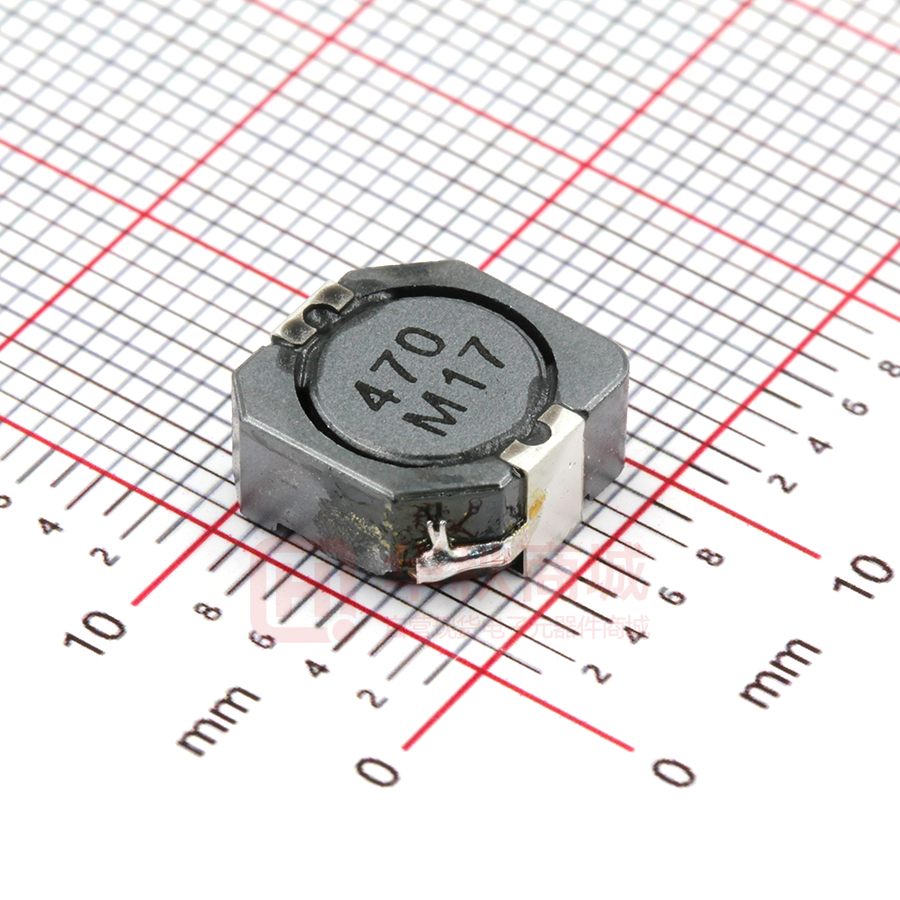

CDRH105RNP-470NC

SMD Power Inductor CDRH105R .5 13 X. MA 4.8±0.3 10.0±0.3 2 3.0±0.1 ELECTRODE Schematics 1.6 7.3 1.6 Land patterns - [mm] 1.2±0.15 7.7±0.3 10.2±0.3 1 (0.8μH～22μH) (27μH～82μH) (100μH～1.0mH) 3.2 Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order. Page 1 of 6 www.sumida.com Revised: 23-Oct-2017 SMD Power Inductor CDRH105R Electrical Characteristics Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order. Page 2 of 6 www.sumida.com Revised: 23-Oct-2017 SMD Power Inductor CDRH105R Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order. Page 3 of 6 www.sumida.com Revised: 23-Oct-2017 SMD Power Inductor CDRH105R Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order. Page 4 of 6 www.sumida.com Revised: 23-Oct-2017 SMD Power Inductor CDRH105R Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order. Page 5 of 6 www.sumida.com Revised: 23-Oct-2017 SMD Power Inductor CDRH105R Solder Reflow Condition For sales office information, please click here to visit our website. Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order. Page 6 of 6 www.sumida.com Revised: 23-Oct-2017
