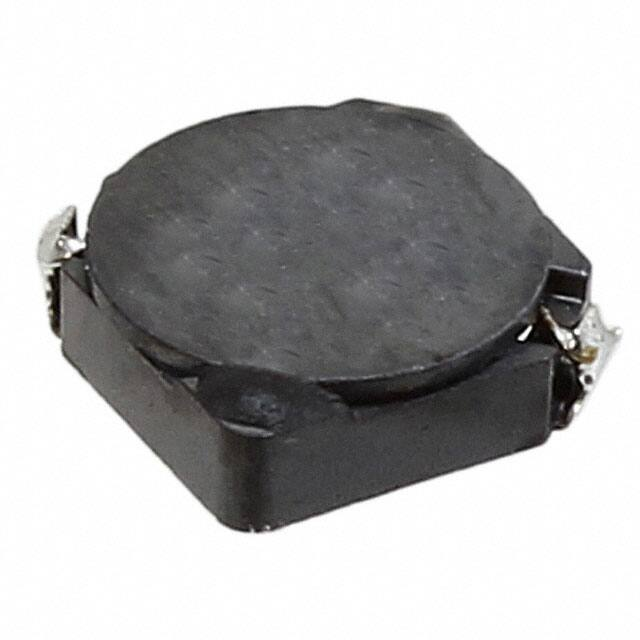

CDRH5D16NP-150MC

SMD Power Inductor CDRH5D16 Description • Ferrite drum core construction. • Magnetically shielded. • L×W×H:5.8×5.8×1.8 mm Max. • Product weight: 1.88mg(Ref.) • Moisture Sensitivity Level: 1 • RoHS compliance. RoHS Environmental Data • Operating temperature range: -40℃~+105℃ (including coil’s self temperature rise) • Storage temperature range: -40℃～+105℃ • Solder reflow temperature: 260 ℃ peak. Dimension - [mm] 5.6±0.2 5.6±0.2 1.8 Max. Packaging • Carrier tape and reel packaging • 7.0”diameter reel • 1000pcs per reel E le c tr o d e Applications • Ideally used in Mobile phone, Notebook PC, MP3,PDA,HDD,DSC/DVC,Game machine, etc. as DC-DC converter inductors. Land pattern and Schematics - [mm] 1. 6 4. 3 2 7. １ ２ (0.90μH～10.0μH) １ ２ (15.0μH～100μH) Page 1 of 4 Revised: 9-Jan-17 SMD Power Inductor CDRH5D16 Electrical Characteristics Part Name Stamp Saturation Current (Ａ) ※2 Inductance (μH) [within] ※1 D.C.R.(Ω) [Max.] (Typ.) (at 20℃) at 20℃ at 105℃ Temperature Rise Current (Ａ) ※3 CDRH5D16NP-0R9NC 0R9 0.90±25％ 14.6ｍ(11.7ｍ) 4.70 3.90 4.70 CDRH5D16NP-2R2NC 2R2 2.2±25％ 35.9ｍ(28.7ｍ) 3.00 2.45 2.90 CDRH5D16NP-3R3NC 3R3 3.3±25％ 44.5ｍ(35.6ｍ) 2.60 2.15 2.40 CDRH5D16NP-4R7NC 4R7 4.7±25％ 64.1ｍ(51.3ｍ) 2.15 1.75 2.10 CDRH5D16NP-6R8NC 6R8 6.8±25％ 84.3ｍ(67.4ｍ) 1.80 1.45 1.70 CDRH5D16NP-8R2NC 8R2 8.2±25％ 0.11(89.7ｍ) 1.55 1.25 1.50 CDRH5D16NP-100MC 100 10.0±20％ 0.14(0.11) 1.45 1.15 1.30 CDRH5D16NP-150MC 150 15.0±20％ 0.20(0.16) 1.15 0.95 1.10 CDRH5D16NP-220MC 220 22.0±20％ 0.32(0.25) 0.95 0.80 0.80 CDRH5D16NP-330MC 330 33.0±20％ 0.44(0.35) 0.80 0.65 0.70 CDRH5D16NP-470MC 470 47.0±20％ 0.58(0.46) 0.68 0.52 0.60 CDRH5D16NP-680MC 680 68.0±20％ 0.86(0.69) 0.55 0.44 0.50 CDRH5D16NP-820MC 820 82.0±20％ 1.06(0.85) 0.50 0.40 0.42 CDRH5D16NP-101MC 101 100±20％ 0.45 0.35 0.35 1.41(1.13) ※1. Inductance measuring condition: at 100kHz. ※2. Saturation current: The value of D.C. current when the inductance decreases to 65% of it’s nominal value. ※3. Temperature rise current: The value of D.C. current when the temperature rise is △t＝40℃(Ta＝20℃). Page 2 of 4 Revised: 9-Jan-17 SMD Power Inductor CDRH5D16 Saturation Current & Temperature Rise Graph L (20℃) L (μH) △T L (105℃) 1. CDRH5D16NP-0R9NC △T (℃) L (μH) 2. CDRH5D16NP-2R2NC △T (℃) 3. CDRH5D16NP-3R3NC L (μH) △T (℃) 1.2 60 3.0 60 3.6 60 1.0 50 2.5 50 3.0 50 0.8 40 2.0 40 2.4 40 0.6 30 1.5 30 1.8 30 0.4 20 1.0 20 1.2 20 0.2 10 0.5 10 0.6 10 0.0 0 0.0 0 0.0 0 0 1 2 3 4 DC (A) 5 4. CDRH5D16NP-4R7NC L (μH) 0.0 0.6 1.2 1.8 2.4 3.0 3.6 DC (A) 6 △T (℃) L (μH) 5. CDRH5D16NP-6R8NC 0.0 0.5 1.0 1.5 2.0 2.5 3.0 DC (A) △T (℃) L (μH) 6. CDRH5D16NP-8R2NC △T (℃) 6 60 9.0 60 12 60 5 50 7.5 50 10 50 4 40 6.0 40 8 40 3 30 4.5 30 6 30 2 20 3.0 20 4 20 1 10 1.5 10 2 10 0 0 0.0 0 0 0 0.0 L (μH) 0.5 1.0 1.5 DC (A) 2.0 7. CDRH5D16NP-100MC 0.0 0.3 0.6 0.9 1.2 1.5 1.8 DC (A) 0.0 0.4 0.8 1.2 1.6 2.0 2.4 DC (A) 2.5 △T (℃) 8. CDRH5D16NP-150MC L (μH) △T (℃) L (μH) 9. CDRH5D16NP-220MC △T (℃) 12 60 18 60 30 10 50 15 50 25 50 8 40 12 40 20 40 6 30 9 30 15 30 4 20 6 20 10 20 2 10 3 10 5 10 0 0 0 0 0 0.0 0.0 0.3 0.6 0.9 1.2 1.5 1.8 DC (A) L (μH) 10. CDRH5D16NP-330MC △T (℃) 0.3 0.6 0.9 DC (A) 1.2 11. CDRH5D16NP-470MC L (μH) 60 0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 DC (A) 1.5 △T (℃) L (μH) 12. CDRH5D16NP-680MC △T (℃) 36 60 60 60 90 60 30 50 50 50 75 50 24 40 40 40 60 40 18 30 30 30 45 30 12 20 20 20 30 20 6 10 10 10 15 10 0 0 0 0 0 0 0.0 0.2 0.4 0.6 DC (A) 0.8 1.0 0.0 0.2 0.4 0.6 DC (A) Page 3 of 4 0.8 0.0 0.2 0.4 0.6 DC (A) Revised: 9-Jan-17 0.8 SMD Power Inductor CDRH5D16 Saturation Current & Temperature Rise Graph L (20℃) L (μH) 13. CDRH5D16NP-820MC △T L (105℃) △T (℃) L (μH) 14. CDRH5D16NP-101MC △T (℃) 90 60 120 60 75 50 100 50 60 40 80 40 45 30 60 30 30 20 40 20 15 10 20 10 0 0 0 0 0.0 0.1 0.2 0.3 0.4 0.5 0.6 DC (A) 0.0 0.1 0.2 0.3 0.4 0.5 0.6 DC (A) Solder Reflow Condition T (℃) 300 250 Heat Endurance T (℃) 300 250 260℃ 230℃ 200 100 50 0 50 0 60 120 180 240 230℃ 40s 150 60 100 0 245℃ PEAK 200 10 150 Temperature Chart 300 T (s) 170±10 ℃,60~120s 0 60 120 180 240 300 T (s) Please refer to the sales offices on our website - http://www.sumida.com Hong Kong Shanghai Shenzhen Taipei Tel.+852-2880-6781 FAX.+852-2565-9600 sales@hk.sumida.com Tel.+86-21-5836-3299 FAX.+86-21-5836-3266 shanghai.sales@cn.sumida.com Tel.+86-755-8291-0228 FAX.+86-755-8291-0338 shenzhen.sales@cn.sumida.com Tel.+886-2-8751-2737 FAX.+886-2-8751-2738 sales@tw.sumida.com Saitama(Japan) Seoul Singapore San Jose Tel.+81-48-691-7300 FAX.+81-48-691-7340 sales@jp.sumida.com Tel.+82-2-6237-0777 FAX.+82-2-6237-0778 sales@kr.sumida.com Tel.+65-6296-3388 FAX.+65-6841-4426 sales@sg.sumida.com Tel.+1-408-321-9660 FAX.+1-408-321-9308 sales@us.sumida.com Chicago Obernzell Neumarkt Tel.+1-847-545-6700 FAX. +1-847-545-6720 sales@us.sumida.com Tel.+49-8591-937-0 FAX. +49-8591-937-103 contact@eu.sumida.com Tel.+49-9181-4509-110 FAX. +49-9181-4509-310 infocomp@eu.sumida.com Page 4 of 4 Revised: 9-Jan-17
