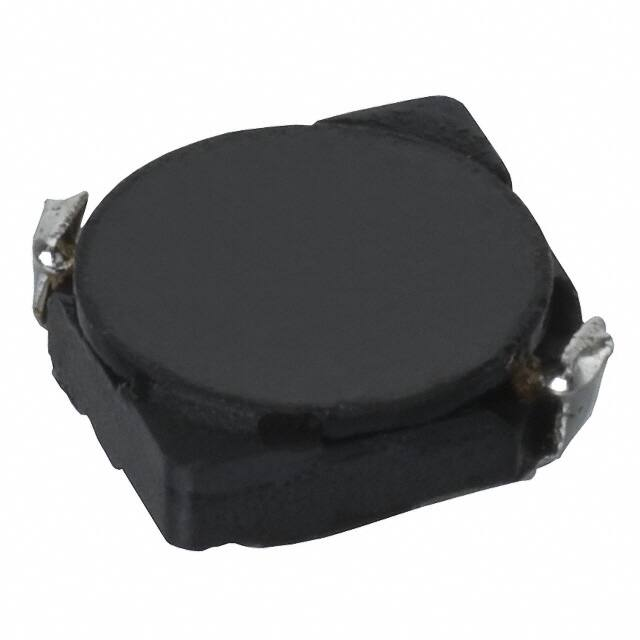

POWER INDUCTORS Type: CDRH5D18, CDRH5D18B/HP ◆ Product Description ・6.0×6.0mm Max.(L×W)(CDRH5D18), 6.3×6.2mm Max.(L×W)(CDRH5D18B/HP) 2.0mm Max. Height. ・Inductance Range: 4.1～100μH(CDRH5D18), 0.6～5.0μH(CDRH5D18B/HP). ・Rated current range: 0.36～1.95A(CDRH5D18),1.7～4.4A(CDRH5D18B/HP). ・In addition to the standard versions of inductors shown here, custom inductors are available to meet your exact requirements. ◆ Feature ・Magnetically shielded construction. ・Ideally used in Mobile phone, MP3, PDA,HDD, DSC/DVC, Game machine, etc as DC-DC Converter inductors. ・RoHS Compliance Dimensions (mm) 2 x. ※ 5.7±0.3 (1.8) 2.0 Max. Electrode terminal 1.8±0.2 3.5 6.0±0.2 6.0±0.3 5.5 1.3 2.2 CDRH5D18 φ 6 4. 2.0 5.5 8. Ma ※ 5.7±0.3 ◆ CDRH5D18B/HP Please refer to the sales offices on our website for a representative near you www.sumida.com 1/3 POWER INDUCTORS Type: CDRH5D18, CDRH5D18B/HP ◆ Land Pattern (mm) 2.15 1.7 2.0 6.3 3.2 2.15 2.5 CDRH5D18 CDRH5D18B/HP ◆ Specification(CDRH5D18) Part Name ※ CDRH5D18NP-4R1N□ CDRH5D18NP-5R4N□ CDRH5D18NP-6R2N□ CDRH5D18NP-8R9N□ CDRH5D18NP-1ØØN□ CDRH5D18NP-12ØN□ CDRH5D18NP-15ØN□ CDRH5D18NP-18ØN□ CDRH5D18NP-22ØN□ CDRH5D18NP-27ØN□ CDRH5D18NP-33ØN□ CDRH5D18NP-39ØN□ CDRH5D18NP-47ØN□ CDRH5D18NP-56ØN□ CDRH5D18NP-68ØN□ CDRH5D18NP-82ØN□ CDRH5D18NP-1Ø1N□ Stamp 4R1 5R4 6R2 8R9 100 120 150 180 220 270 330 390 470 560 680 820 101 Inductance(μH) [Within］ 100kHz/1V 4.1±30% 5.4±30% 6.2±30% 8.9±30% 10±30% 12±30% 15±30% 18±30% 22±30% 27±30% 33±30% 39±30% 47±30% 56±30% 68±30% 82±30% 100±30% D.C.R. (Ω) [Max.] (Typ.) (at 20℃) 57m (42m) 76m (56m) 96m (71m) 116m (86m) 124m (92m) 153m (113m) 196m (145m) 210m (155m) 290m (215m) 330m (245m) 385m (285m) 520m (385m) 595m (440m) 665m (493m) 840m (622m) 978m (725m) 1.2 (895m) Rated current (A) ※1 1.95 1.60 1.40 1.25 1.20 1.10 0.97 0.85 0.80 0.75 0.65 0.57 0.54 0.50 0.43 0.41 0.36 Please refer to the sales offices on our website for a representative near you www.sumida.com 2/3 POWER INDUCTORS Type: CDRH5D18, CDRH5D18B/HP ◆ Specification(CDRH5D18B/HP) Saturation Current （A）※1-2 Inductance （μH） ［Within］ 100kHz/1V D.C.R.(mΩ) Max.(Typ.) (at 20℃) (at20℃) (at100℃) Temperature rise current (A)※2 0R6 0.6±20% 25 (19) 8.2 6.8 4.4 CDRH5D18BHPNP-1RØM□ 1R0 1.0±20% 31 (24) 6.6 5.6 3.7 CDRH5D18BHPNP-1R5M□ 1R5 1.5±20% 38 (29) 5.3 4.6 2.8 CDRH5D18BHPNP-1R8M□ 1R8 1.8±20% 46 (35) 5.0 4.1 2.5 CDRH5D18BHPNP-2R7M□ 2R7 2.7±20% 65 (50) 3.9 3.3 2.3 CDRH5D18BHPNP-3R3M□ 3R3 3.3±20% 78 (60) 3.4 2.9 2.0 CDRH5D18BHPNP-4R2M□ 4R2 4.2±20% 98 (75) 3.1 2.5 1.8 CDRH5D18BHPNP-5RØM□ 5R0 5.0±20% 109 (84) 2.7 2.4 1.7 Part Name ※ Stamp CDRH5D18BHPNP-ØR6M□ ※ Description of part name CDRH5D18BHPNP-ØR6M□ B Box C Carrier Tape ※1-1. Rated current: The DC current at which the inductance decreases to 65 % of it’s nominal value or when △t=30℃, whichever is lower(Ta=20℃). ※1-2. Saturation current:The DC current at which the inductance decreases to 65% of it’s nominal value. ※2. Temperature rise current: The DC current at which the temperature rise is △t＝40℃.(Ta＝20℃). Please refer to the sales offices on our website for a representative near you www.sumida.com 3/3
