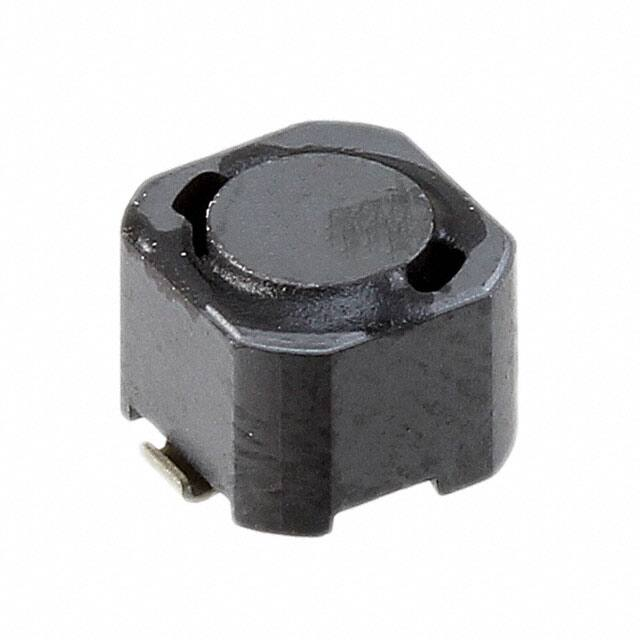

CDRH64BNP-330MC-B

CDRH64BNP-330MC-B

  • 厂商:

    SUMIDA(胜美达)

  • 封装:

    非标准

  • 描述:

    固定电感器 Nonstandard 33µH ±20% 750mA 330mΩ

  • 数据手册
  • 价格&库存
CDRH64BNP-330MC-B 数据手册
SMD Power Inductor CDRH64B Description • Ferrite drum core construction • Magnetically shielded • L×W×H:6.9×6.5×5.0mm Max. • Product weight: 0.58g(Ref.) • Moisture Sensitivity Level: 1 • RoHS compliance. RoHS Environmental Data • Operating temperature range: -40℃~+100℃ (including coil’s self temperature rise) • Storage temperature range: -40℃~+100℃ • Solder reflow temperature: 260 ℃ peak. Dimension - [mm] 6.2± 0.3 1.5± 0.2 0.6 0.1 5.9±0.3 4.6 6.6±0.3 MAX.5.0 Packaging • Carrier tape and reel packaging • 12.9”diameter reel • 1000pcs per reel ELECTRODE Applications • Ideally used in Notebook PC, LCD TV, Game machine, HDD,DSC/DVC, etc as DC-DC converter inductors. Land pattern and Schematics - [mm] 7.4 4.6 1.9 PART OF SILK SCREEN Page 1 of 5 Revised: 9-Jan-17 SMD Power Inductor CDRH64B Electrical Characteristics Part Name Stamp Inductance (μH) [ within ] ※1 D.C.R. (Ω) Max. (Typ.) (at 20℃) Rated Current (A) ※2 CDRH64BNP-100MC-B 100 10±20% 0.12 (88m) 1.35 CDRH64BNP-120MC-B 120 12±20% 0.13 (97m) 1.20 CDRH64BNP-150MC-B 150 15±20% 0.18 (0.13) 1.10 CDRH64BNP-180MC-B 180 18±20% 0.24 (0.18) 1.00 CDRH64BNP-220MC-B 220 22±20% 0.27 (0.20) 0.91 CDRH64BNP-270MC-B 270 27±20% 0.30 (0.22) 0.82 CDRH64BNP-330MC-B 330 33±20% 0.33 (0.25) 0.75 CDRH64BNP-390MC-B 390 39±20% 0.37 (0.27) 0.69 CDRH64BNP-470MC-B 470 47±20% 0.52 (0.38) 0.62 CDRH64BNP-560MC-B 560 56±20% 0.56 (0.41) 0.58 CDRH64BNP-680MC-B 680 68±20% 0.63 (0.47) 0.52 CDRH64BNP-820MC-B 820 82±20% 0.71 (0.53) 0.47 CDRH64BNP-101MC-B 101 100±20% 1.03 (0.76) 0.43 CDRH64BNP-121MC-B 121 120±20% 1.15 (0.85) 0.39 CDRH64BNP-151MC-B 151 150±20% 1.68 (1.29) 0.35 CDRH64BNP-181MC-B 181 180±20% 1.87 (1.44) 0.32 CDRH64BNP-221MC-B 221 220±20% 2.08 (1.60) 0.29 CDRH64BNP-271MC-B 271 270±20% 2.37 (1.82) 0.26 CDRH64BNP-331MC-B 331 330±20% 2.67 (2.05) 0.23 CDRH64BNP-391MC-B 391 390±20% 2.94 (2.26) 0.22 CDRH64BNP-471MC-B 471 470±20% 3.93 (3.02) 0.20 CDRH64BNP-561MC-B 561 560±20% 5.43 (4.18) 0.18 CDRH64BNP-681MC-B 681 680±20% 7.32 (5.63) 0.17 CDRH64BNP-821MC-B 821 820±20% 8.24 (6.34) 0.15 CDRH64BNP-102MC-B 102 1000±20% 9.26 (7.13) 0.14 ※1. Inductance measuring condition: at 1 kHz ※2. Rated current: The DC current at which the inductance decreases to 75% of it's nominal value or when △t=40℃, whichever is lower (Ta=20℃). Page 2 of 5 Revised: 9-Jan-17 SMD Power Inductor CDRH64B Saturation Current & Temperature Rise Graph L (20℃) L (μH) 1. CDRH64BNP-100MC-B △T L (100℃) △T (℃) L (μH) 2. CDRH64BNP-120MC-B △T (℃) L (μH) 3. CDRH64BNP-150MC-B △T (℃) 12 60 12 60 18 60 10 50 10 50 15 50 8 40 8 40 12 40 6 30 6 30 9 30 4 20 4 20 6 20 2 10 2 10 3 10 0 0 0 0 0 0.0 L (μH) 0.5 1.0 1.5 DC (A) 2.0 4. CDRH64BNP-180MC-B 2.5 0.0 △T (℃) L (μH) 0.5 1.0 1.5 DC (A) 2.0 5. CDRH64BNP-220MC-B 2.5 0 0.0 0.4 0.8 1.2 1.6 2.0 2.4 DC (A) △T (℃) L (μH) 6. CDRH64BNP-270MC-B △T (℃) 24 60 30 60 30 60 20 50 25 50 25 50 16 40 20 40 20 40 12 30 15 30 15 30 8 20 10 20 10 20 4 10 5 10 5 10 0 0 0 0 0 0 0.0 0.3 0.6 0.9 1.2 1.5 1.8 DC (A) L (μH) 7. CDRH64BNP-330MC-B 0.0 △T (℃) L (μH) 0.3 0.6 0.9 DC (A) 1.2 8. CDRH64BNP-390MC-B 1.5 0.0 △T (℃) L (μH) 0.3 0.6 0.9 DC (A) 1.2 9. CDRH64BNP-470MC-B 1.5 △T (℃) 36 60 48 60 60 60 30 50 40 50 50 50 24 40 32 40 40 40 18 30 24 30 30 30 12 20 16 20 20 20 6 10 8 10 10 10 0 0 0 0 0 0.0 0.3 0.6 0.9 DC (A) 1.2 10. CDRH64BNP-560MC-B L (μH ) 1.5 0.0 0.2 0.4 0.6 0.8 1.0 1.2 DC (A) △ T (℃) 11. CDRH64BNP-680MC-B L (μH ) 0 0.0 △T (℃) 0.2 0.4 0.6 DC (A) 0.8 12. CDRH64BNP-820MC-B L (μH) 1.0 △ T (℃) 60 60 90 60 120 60 50 50 75 50 100 50 40 40 60 40 80 40 30 30 45 30 60 30 20 20 30 20 40 20 10 10 15 10 20 10 0 0 0 0 0 0.0 0.2 0.4 0.6 DC (A) 0.8 1.0 0.0 0.2 0.4 0.6 DC (A) Page 3 of 5 0.8 1.0 0 0.0 0.2 0.4 0.6 DC (A) 0.8 Revised: 9-Jan-17 1.0 SMD Power Inductor CDRH64B Saturation Current & Temperature Rise Graph L (20℃) △T L (100℃) 13. CDRH64BNP-101MC-B L (μH) △T (℃) L (μH) 120 60 180 60 180 60 100 50 150 50 150 50 80 40 120 40 120 40 60 30 90 30 90 30 40 20 60 20 60 20 20 10 30 10 30 10 0 0 0 0 0 0.0 0.2 0.4 0.6 0.8 14. CDRH64BNP-121MC-B 0.0 0.2 DC (A) 0.4 0.6 △T (℃) L (μH) 0.8 15. CDRH64BNP-151MC-B △T (℃) 0 0.0 0.1 0.2 0.3 0.4 0.5 0.6 DC (A) DC (A) 16. CDRH64BNP-181MC-B L (μH) △T (℃) L (μH) 240 60 240 60 300 60 200 50 200 50 250 50 160 40 160 40 200 40 120 30 120 30 150 30 80 20 80 20 100 20 40 10 40 10 50 10 0 0 0 0 0 0.0 0.1 0.2 0.3 0.4 0.5 0.6 17. CDRH64BNP-221MC-B △T (℃) L (μH) 0.1 DC (A) 0.2 0.3 DC (A) 0.4 21. CDRH64BNP-471MC-B 0.5 19. CDRH64BNP-331MC-B L (μH) △T (℃) L (μH) 360 60 480 60 600 60 300 50 400 50 500 50 240 40 320 40 400 40 180 30 240 30 300 30 120 20 160 20 200 20 60 10 80 10 100 10 0 0 0 0 0.0 0.1 0.2 0.3 DC (A) 0.4 0.5 20. CDRH64BNP-391MC-B △T (℃) 0 0.0 0.0 0.1 0.2 0.3 0.4 0.5 0.6 DC (A) 18. CDRH64BNP-271MC-B 0.0 0.1 0.2 0.3 DC (A) 0.4 L (μH) △T (℃) 0 0.5 0 0.0 0.1 0.2 DC (A) 0.3 L (μH) 600 60 900 60 900 60 500 50 750 50 750 50 400 40 600 40 600 40 300 30 450 30 450 30 200 20 300 20 300 20 100 10 150 10 150 10 0 0.0 0.1 0.2 DC (A) 0.3 0.4 △T (℃) 0 0 0.00 0.08 0.16 0.24 DC (A) Page 4 of 5 0.32 L (μH) 24. CDRH64BNP-821MC-B 0.4 22. CDRH64BNP-561MC-B L (μH) △T (℃) 0 23. CDRH64BNP-681MC-B △T (℃) 0 △T (℃) 0 0.00 0.05 0.10 0.15 0.20 0.25 0.30 DC (A) Revised: 9-Jan-17 SMD Power Inductor CDRH64B Saturation Current & Temperature Rise Graph L (20℃) L (μH) △T L (100℃) 25. CDRH64BNP-102MC-B △T (℃) 1200 60 1000 50 800 40 600 30 400 20 200 10 0 0 0.00 0.05 0.10 0.15 0.20 0.25 DC (A) Solder Reflow Condition Heat Endurance T (℃) Temperature Chart T (℃) 300 300 260℃ 250 230℃ 200 245℃ PEAK 250 230℃ 200 40s 10 150 150 60 170±10 ℃,60~120s 100 100 50 50 0 0 0 60 120 180 240 300 T (s) 0 60 120 180 240 Please refer to the sales offices on our website - http://www.sumida.com Hong Kong Shanghai Shenzhen Taipei Tel.+852-2880-6781 FAX.+852-2565-9600 sales@hk.sumida.com Tel.+86-21-5836-3299 FAX.+86-21-5836-3266 shanghai.sales@cn.sumida.com Tel.+86-755-8291-0228 FAX.+86-755-8291-0338 shenzhen.sales@cn.sumida.com Tel.+886-2-8751-2737 FAX.+886-2-8751-2738 sales@tw.sumida.com Saitama(Japan) Seoul Singapore San Jose Tel.+81-48-691-7300 FAX.+81-48-691-7340 sales@jp.sumida.com Tel.+82-2-6237-0777 FAX.+82-2-6237-0778 sales@kr.sumida.com Tel.+65-6296-3388 FAX.+65-6841-4426 sales@sg.sumida.com Tel.+1-408-321-9660 FAX.+1-408-321-9308 sales@us.sumida.com Chicago Obernzell Neumarkt Tel.+1-847-545-6700 FAX. +1-847-545-6720 sales@us.sumida.com Tel.+49-8591-937-0 FAX. +49-8591-937-103 contact@eu.sumida.com Tel.+49-9181-4509-110 FAX. +49-9181-4509-310 infocomp@eu.sumida.com Page 5 of 5 Revised: 9-Jan-17 300 T (s)
