CDRH6D38NP-8R7N

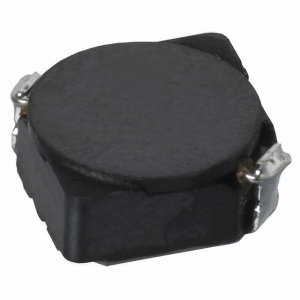

POWER INDUCTORS Type: CDRH6D38 ◆ Product Description ・7.0×7.0mm Max.(L×W ) , 4.0mm Max. Height. ・Inductance range: 3.3～100μH ・Rated current range: 0.65～3.5A ・In addition to the standards versions shown here, custom inductors are also available to meet your exact requirements. ◆ Feature ・Magnetically shielded construction. ・Ideally used in Game machine, HDD, Notebook PC, Projector,PDA, etc as DC-DC Converter inductors. ・RoHS Compliance. ◆ Dimensions (mm) 5 9. x. Ma ① 4 5. φ ※ 6.7±0.3 ② ※ 6.7±0.3 (3.8) Max.4.0 Electrode 6 .5 ◆ Land Pattern (mm) 2.65 7.3 Please refer to the sales offices on our website for a representative near you 2.65 2.0 www.sumida.com 2.0 6.5 1/2 POWER INDUCTORS Type: CDRH6D38 ◆ Specification Part Name ※ CDRH6D38NP-3R3N□ CDRH6D38NP-5RØN□ CDRH6D38NP-6R2N□ CDRH6D38NP-7R4N□ CDRH6D38NP-8R7N□ CDRH6D38NP-1ØØN□ CDRH6D38NP-12ØN□ CDRH6D38NP-15ØN□ CDRH6D38NP-18ØN□ CDRH6D38NP-22ØN□ CDRH6D38NP-27ØN□ CDRH6D38NP-33ØN□ CDRH6D38NP-39ØN□ CDRH6D38NP-47ØN□ CDRH6D38NP-56ØN□ CDRH6D38NP-68ØN□ CDRH6D38NP-82ØN□ CDRH6D38NP-1Ø1N□ Stamp 3R3 5R0 6R2 7R4 8R7 100 120 150 180 220 270 330 390 470 560 680 820 101 Inductance ［Within］ 10kHz/1V 3.3μH±30% 5.0μH±30% 6.2μH±30% 7.4μH±30% 8.7μH±30% 10μH±30% 12μH±30% 15μH±30% 18μH±30% 22μH±30% 27μH±30% 33μH±30% 39μH±30% 47μH±30% 56μH±30% 68μH±30% 82μH±30% 100μH±30% D.C.R.(Ω) Max.(Typ.) (at 20℃) 20m (15m) 24m (18m) 27m (20m) 31m (23m) 34m (25m) 38m (28m) 53m (39m) 57m (42m) 92m (68m) 96m (71m) 109m (81m) 124m (92m) 138m(102m) 155m(115m) 202m(150m) 234m(173m) 324m(240m) 358m(265m) Rated Current (A) ※1 3.50 2.90 2.50 2.30 2.20 2.00 1.70 1.60 1.50 1.30 1.20 1.10 1.00 0.95 0.85 0.75 0.70 0.65 ※ Description of part name CDRH6D38NP-3R3N□ B Box C Carrier Tape ※1 Rated current: The DC current at which the inductance decreases to 65% of it's nominal value or when △t=30℃, whichever is lower(Ta=20℃). Please refer to the sales offices on our website for a representative near you www.sumida.com 2/2
