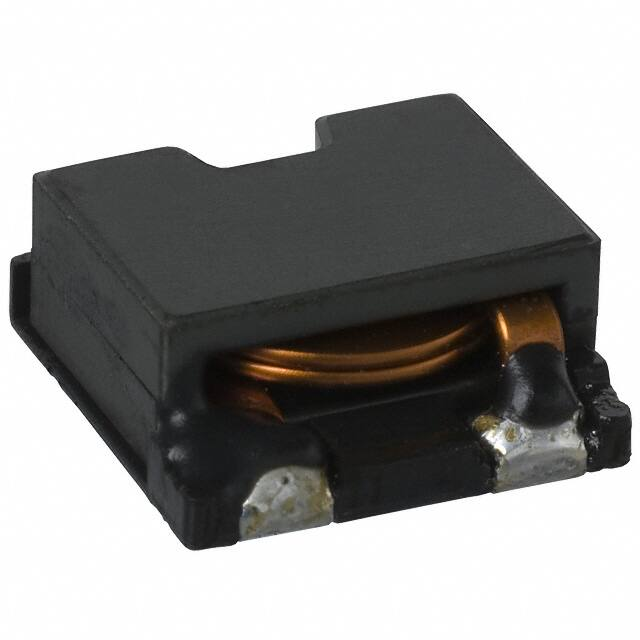

CEP125-1R5MC-D

POWER INDUCTORS (SMT Type) CEP125 SHIELDED TYPE Outline By using the square wire, power inductors can be used for strong currents with low profile and low resistance. Dimensions (mm) 5.7MAX. 2.6 3.0 4.0 10.0 4.0 4.2 2 3 7.0 12.9MAX. CONSTRUCTION CONNECTION 2.5 12.9MAX. LAND PATTERNS(mm) 2.6 1 4.0 4.2 13.5 (0.3µH – 10µH) (BOTTOM VIEW) TYPE CEP125 Parts No. Inductance D.C.R. (Ω) (Max) Typical / Rated D. C. Current (A) 0.3µH 2R5 2.5µH 3.4 (2.8) / 10.0 0R4 0.4µH 2R7 2.7µH 0R6 0.66µH 2R8 2.8µH 0R7 0.7µH 3R0 3.0µH 0R8 0.8µH 3R2 3.2µH 0R9 0.9µH 3R6 3.6µH 1R0 1.0µH 4R0 4.0µH 1R2 1.2µH 4R3 4.3µH 1R3 1.3µH 4R8 4.8µH 1R4 1.4µH 5R6 5.6µH 1R5 1.5µH 6R0 6.0µH 1R6 1.6µH 6R4 6.4µH 1R7 1.7µH 7R2 7.2µH 1R8 1.8µH 8R0 8.0µH 2R1 2.1µH 8R2 8.2µH 11.4 (9.5) / 5.8 2R2 2.2µH 100 10.0µH 13.5 (11.2) / 5.0 2R4 2.4µH Parts No. Inductance 0R3 D.C.R. (Ω) (Max) Typical / Rated D. C. Current (A) 2.5 (2.1) / 14.0 5.4 (4.5) / 8.3 8.0 (6.6) / 6.7 Measuring Freq. (L) CEP125 100kHz Tolerance of Inductance CEP125 ± 20% (M) Rated D.C. Current This inductance the value of current when the inductance is over 75% Sales Contact North America 1701 Golf Road, Tower 3 Suite 400, Rolling Meadows, IL 60008, USA Tel: (1) 847 545-6700 Fax: (1) 847 545-6720 www.sumida.com Japan Nihonbashi- ingyocho 2-Chome, Chuo-ku, Tokyo, Japan Tel: (81) 03 3667-3301 Fax: (81) 03 3667-3456 of the nominal value. Hong Kong 14/F, Eastern Centre, 1065 King's Road, Quarry Road, Hong Kong Tel: (852) 2880-6688 Fax: (852) 2880-9596 Taiwan No. 171, Futech Street, Hsin-I, Taipei, Taiwan, ROC Tel: (886) 2 2726-2177 Fax: (886) 2 2728-2726 Singapore 996 Bendemeer Road #04-05 to 06 Singapore 339944 Tel: (65) 2963-388 Fax: (65) 2963-390 Europe Chaussee de Tervuren113A, 1160 Brussels Belgium Email: europe.sales@hk.sumida.com Rev1.0 07/02
