CMD4D13NP-6R8MC

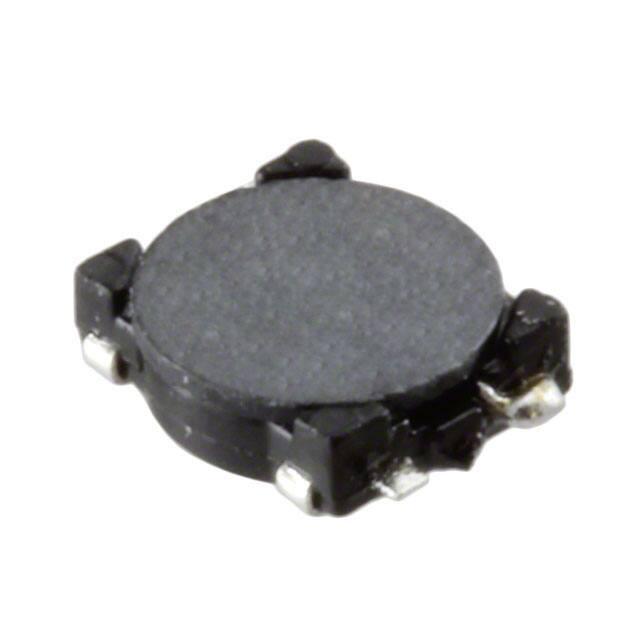

Power Transformers Type: CMD4D13 ◆ Product Description ・5.8×4.4 mm Max.(L×W),1.45mm Max. Height. ・Inductance Range: 3.3～150μH. ・Rated current range: 130～850mA. ・4 Terminal pins’ type gives a flexible design as inductors or transformers(SEPIC,ZETA circuit). ・In addition to the standards versions used as power inductors shown here, custom designs as transformers(SEPIC,ZETA circuit) and inductors are also available. ◆ Feature ・Magnetically unshielded construction. ・Ideally used in portable devices such as Mobilephone,DSC/DVC,MP3,PDA, etc as DC-DC Converter inductors, specially suitable for White LED drive. ・RoHS Compliance. ◆ Dimensions (mm) 3.5 ±0.3 3.7±0.3 1.45 Max. 3 . 0 ± 3 . 4 2 . 0 ± 5 . 0 3 . 0 ± 2 . 3 4.1 ±0.3 8 . 5 2.9 ◆ Land Pattern (mm) 1.4 . x a M ◆ Schematics(Bottom) 2.5 S 8. 0 (2) (3) ２ ３ １ ４ 2. 3 5.3 (1) (4) “Ｓ”is winding start. Please refer to the sales offices on our website for a representative near you www.sumida.com 1/2 Power Transformers Type: CMD4D13 ◆ Specification Part No. ※ Stamp □ CMD4D13NP-4R7M□ CMD4D13NP-6R8M□ CMD4D13NP-100M□ CMD4D13NP-150M□ CMD4D13NP-220M□ CMD4D13NP-330M□ CMD4D13NP-470M□ CMD4D13NP-680M□ CMD4D13NP-101M□ CMD4D13NP-151M□ CMD4D13NP-3R3M Inductance H 100kHz/1V （μ ） ±20％ 4.7±20％ 6.8±20％ 10±20％ 15±20％ 22±20％ 33±20％ 47±20％ 68±20％ 100±20％ 150±20％ 3R3 3.3 4R7 6R8 100 150 220 330 470 680 101 151 Ω ℃ D.C.R.(m ) Max.(Typ.) (at 20 ) （ ） ℃※ Saturation Current mA (at 20 ) 1 Temperature Rise current (mA) 2 ※ 160(123) 1200 850 194(149) 1000 800 276(212) 810 650 335(258) 710 570 508(391) 580 450 766(589) 480 370 1162(894) 370 280 1658(1326) 320 220 2534(2027) 260 180 3304(2643) 210 170 5362(4290) 180 130 ※ Description of Part Name □ CMD4D13NP-3R3M B Box C Carrier Tape ※1.Saturation current: The DC current at which the inductance decreases to 90% of it’s initial value. ※2.Temperature rise current: The DC current at which the temperature rise is △t＝40℃.(Ta＝20℃) Please refer to the sales offices on our website for a representative near you www.sumida.com 2/2
