CPFC11D60-100M08

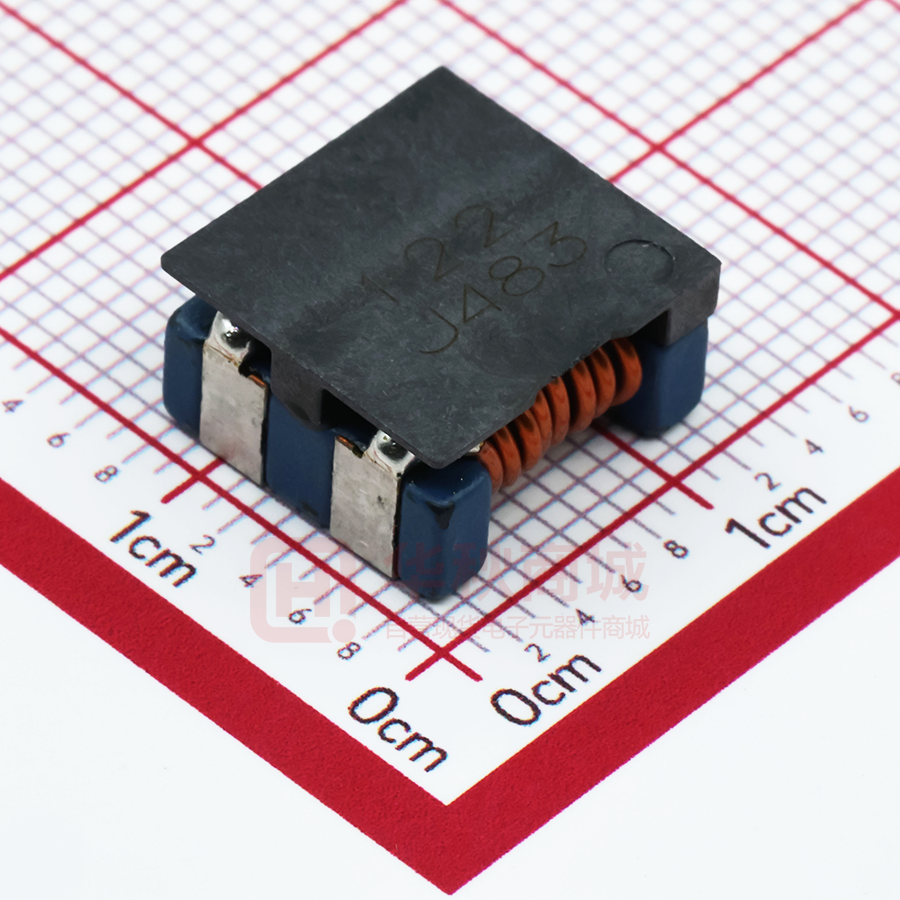

DC Common Mode Chokes < SMD Type: CPFC Series> Type: CPFC11D60 ◆ Product Description ・12.8×11.7mm Max.(L×W), 6.5mm Max. Height . ・Custom design is available. ◆ Feature ・For medical machines and automotive related applications. ・Of high reliabilities. ・RoHS Compliance ◆ Dimensions (mm) 6.5 Max. 12.8 Max. 7.5(Typ.) 2.1±0.2 2.1±0.2 2. 0 ± 54 .2 . x a M 7 . 1 1 2. 0 ± 7. 2 .2 0 ± 5 4. 2 ◆ Land Pattern (mm) 3.2 7.3 ◆ Schematics (Bottom) 3.2 6. 2 4. 2 ② ③ ① ④ 6. 2 ◆ Specification Part Name. Stamp CPFC11D60-100M08 122 Impedance (1,2-3,4) 100MHz 800Ω Min. （1265Ωtyp.） D.C.R (1-4) and (2-3) Rated Current (1-2) ※1 (3-4)short 8.0mΩ Max. 6.0A ※1. Rated Current:The DC current at which the temperature rise is △t＝40℃.(Ta＝20℃) Please refer to the sales offices on our website for a representative near you www.sumida.com 1/1
