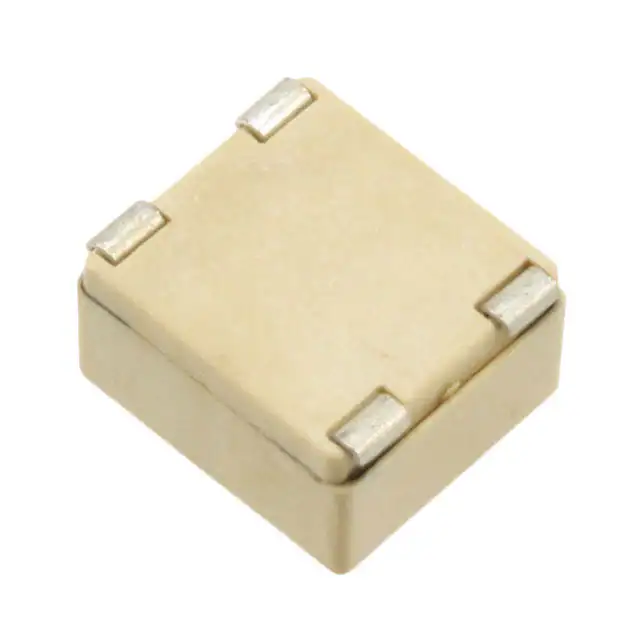

CPFC85NP-WH07

DC COMMON MODE CHOKES CPFC85 Outline DC common mode chokes Schematics Recommended land patterns(mm) 1 4 2.0 S 2.5 3 2.8 2 1.5 2.5 S 6.5 3.0 1.5 Silk screen In order to prevent short-circuiting, a silk screen is recommended. Dimensions (mm) Impedance Characteristics 10k 5.5MAX. 6.9 3.4 8.2MAX. 0.9 IMPEDANCE (Ω) 7.2 0.5 1.8 9.3MAX. 1k WH07 100 WH04 10 0.05 1 1M 10M 100M 1G FREQUENCY (Hz) Features EMI filter of 15k Ohm at 1.0 MHz Small size SMT type & Reflow soldering is available. Application ADSL modem, EMI filter for telephone line Specifications Impedance D.C.R (1-4)(2-3) (1-4)(2-3) CPFC85-WH07 1kΩ (@100MHz) Max. 0.02Ω 4.00A CPFC85-WH04 300 Ω (@100MHz) Max. 0.02Ω 5.65A Type Sales Contact North America 1701 Golf Road, Tower 3 Suite 400, Rolling Meadows, IL 60008, USA Tel: (1) 847 545-6700 Fax: (1) 847 545-6720 www.sumida.com Japan Nihonbashi- ingyocho 2-Chome, Chuo-ku, Tokyo, Japan Tel: (81) 03 3667-3301 Fax: (81) 03 3667-3456 Hong Kong 14/F, Eastern Centre, 1065 King's Road, Quarry Road, Hong Kong Tel: (852) 2880-6688 Fax: (852) 2880-9596 Taiwan No. 171, Futech Street, Hsin-I, Taipei, Taiwan, ROC Tel: (886) 2 2726-2177 Fax: (886) 2 2728-2726 Singapore 996 Bendemeer Road #04-05 to 06 Singapore 339944 Tel: (65) 2963-388 Fax: (65) 2963-390 Rated current Europe Chaussee de Tervuren113A, 1160 Brussels Belgium Email: europe.sales@hk.sumida.com Rev1.0 07/02
