ESMIT-4180/C

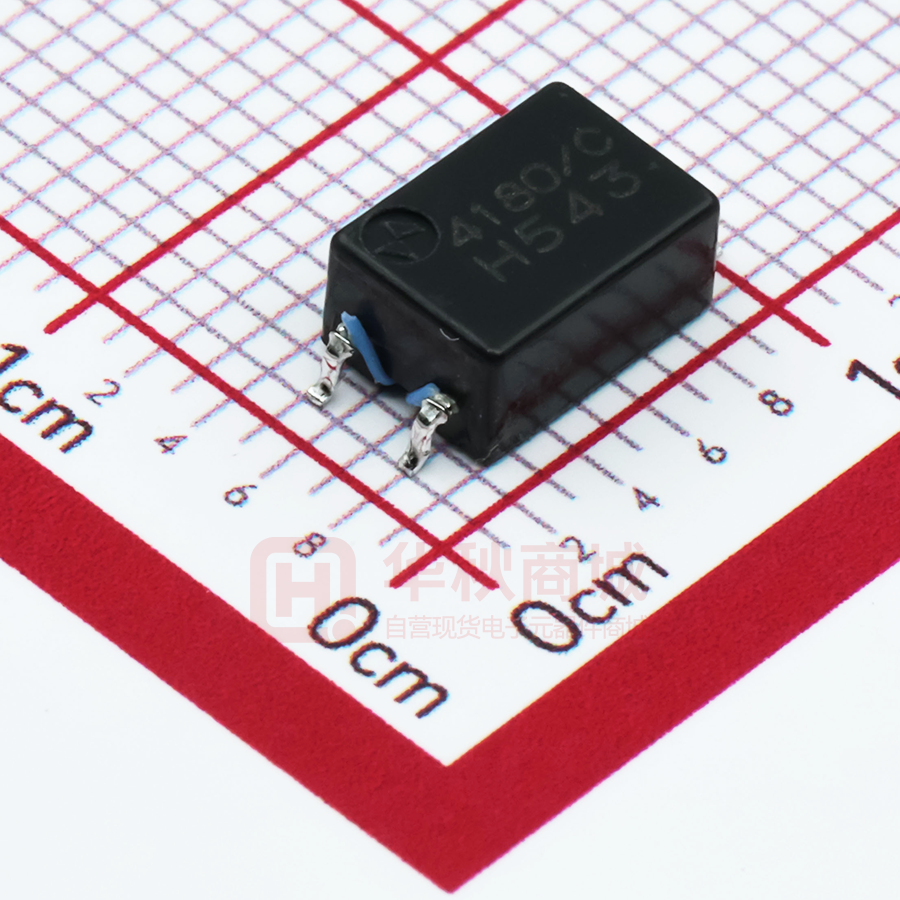

ESMIT-4180/C CBM5D33 Description  Reference Design in Freescale HV/EV Battery Management  System MC33771 and MC33664  Low Profile  Qualified to AEC-Q200  High Voltage Isolation 3750Vrms  Operating Temperature: -40˚C to +125˚C  Optimize Core Material for low temperature operation Applications  Automotive and Industrial Applications Dimension – mm [inch] Recommended PCB Pad Layout - mm [inch] Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order. Page 1 of 2 www.sumida.com Ver.1.0 2016.04.22 ESMIT-4180/C CBM5D33 Electrical Characteristics @ 25˚C PARAMETER CONDITIONS VALUE UNITS TOLERANCE Inductance (OCL) 100 kHz, 0.01 V, (1-2) 125 µH Min. Inductance (OCL) 100 kHz, 0.01v , (1.2), -40˚C 120 µH Nom. (1-2) 0.25  Max. (4-3) 0.25  Ma. 3750 Vrms Min. -40 to +105 ˚C Nom. DC Resistance (DCR) Dielectric Breakdown Isolation (equivalent to 1 min, 3000 Vrms) 1 sec, (1-4) Max Leakage current 0.5mA Operating Temperature Soldering Reflow Profile For sales office information, please click here to visit our website. Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order. Page 2 of 2 www.sumida.com Ver.1.0 2016.04.22
