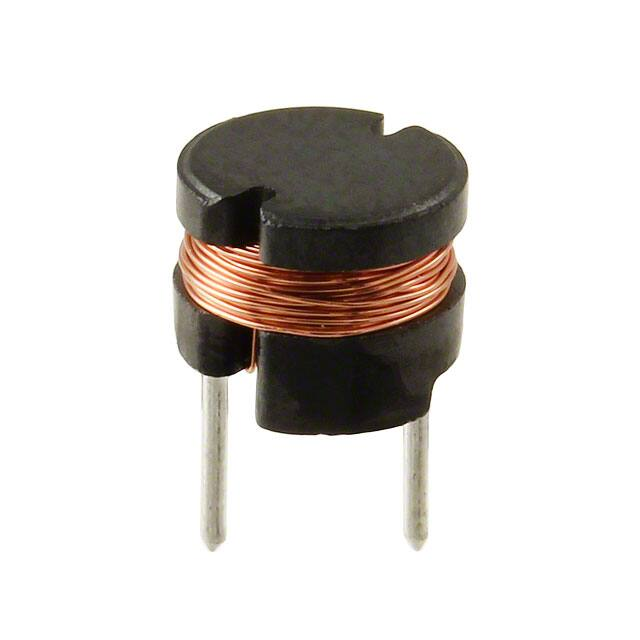

RCH654NP-471K

PIN Power Inductor RCH-654 Description • Ferrite drum core construction. • Magnetically unshielded. • L×W×H: 6.5×6.5×5.0mm Max. • Product weight: 0.5 g(Ref.) • Moisture Sensitivity Level: 1 • RoHS compliance. RoHS Environmental Data • Operating temperature range: -40℃～+85℃ (including coil’s self temperature rise) • Storage temperature range: -40℃～+85℃ MAX.5.0 ± 1.0 4.0 4.0±0.3 +0.1 φ0.5-0.05 Dimension - [mm] φ 6.0± 0.5 Packaging • Box packaging. Applications • Ideally used in Printers, LCD TV, DVD, Copy Machine, Mainboard of the compounding machines etc. as DC-DC Converter inductors. Schematics - [mm] Page 1 of 6 Revised: 10-Jan-17 PIN Power Inductor RCH-654 Electrical Characteristics PART NO. STAMP RCH654NP-1R0M RCH654NP-1R5M RCH654NP-2R0M RCH654NP-2R5M RCH654NP-3R3M RCH654NP-3R9M RCH654NP-4R7M RCH654NP-5R6M RCH654NP-6R2M RCH654NP-7R2M RCH654NP-8R2M RCH654NP-100M RCH654NP-120K RCH654NP-150K RCH654NP-180K RCH654NP-220K RCH654NP-270K RCH654NP-330K RCH654NP-390K RCH654NP-470K RCH654NP-560K RCH654NP-680K RCH654NP-820K RCH654NP-101K RCH654NP-121K RCH654NP-151K RCH654NP-181K RCH654NP-221K RCH654NP-271K RCH654NP-331K RCH654NP-391K RCH654NP-471K RCH654NP-561K RCH654NP-681K RCH654NP-821K RCH654NP-102K 1R0M 1R5M 2R0M 2R5M 3R3M 3R9M 4R7M 5R6M 6R2M 7R2M 8R2M 100M 120K 150K 180K 220K 270K 330K 390K 470K 560K 680K 820K 101K 121K 151K 181K 221K 271K 331K 391K 471K 561K 681K 821K 102K INDUCTANCE [WITHIN] ※1 1.0μH± 20% 1.5μH± 20% 2.0μH± 20% 2.5μH± 20% 3.3μH± 20% 3.9μH± 20% 4.7μH± 20% 5.6μH± 20% 6.2μH± 20% 7.2μH± 20% 8.2μH± 20% 10μH± 20% 12μH± 10% 15μH± 10% 18μH± 10% 22μH± 10% 27μH± 10% 33μH± 10% 39μH± 10% 47μH± 10% 56μH± 10% 68μH± 10% 82μH± 10% 100μH± 10% 120μH± 10% 150μH± 10% 180μH± 10% 220μH± 10% 270μH± 10% 330μH± 10% 390μH± 10% 470μH± 10% 560μH± 10% 680μH± 10% 820μH± 10% 1.0 mH± 10% D.C.R. (Ω)[MAX.] at 20℃ 29m 34m 39m 43m 48m 55m 60m 66m 72m 78m 85m 91m 0.10 0.12 0.13 0.18 0.21 0.27 0.29 0.34 0.42 0.48 0.55 0.68 0.77 0.95 1.15 1.30 1.55 2.18 2.47 2.92 3.97 4.57 5.28 7.06 RATED CURRENT (mA)※2 3000 2850 2480 2210 1980 1830 1740 1530 1440 1350 1260 1200 1050 980 930 900 810 740 680 620 570 510 470 420 390 350 320 290 260 230 210 200 180 160 150 130 ※1: Inductance measuring condition: 1.0μH ～ 8.2μH at 7.96MHz 10μH ～ 82μH at 2.52MHz 100μH ～ 1.0mH at 1 kHz ※2: The rated current indicates the lower value of current when the inductance is 10% lower than its initial value at D.C. superposition or the temperature of coil rises 40℃ with D.C. current passing. (Ta＝20℃) Page 2 of 6 Revised: 10-Jan-17 PIN Power Inductor RCH-654 Saturation Current & Temperature Rise Graph L (20℃) △T L (100℃) 1. RCH654NP-1R0M L (μH) 1.2 △T (℃) 60 L (μH) 2.4 2. RCH654NP-1R5M △T (℃) 60 L (μH) 2.4 3. RCH654NP-2R0M △T (℃) 60 1.0 50 2.0 50 2.0 50 0.8 40 1.6 40 1.6 40 0.6 30 1.2 30 1.2 30 0.4 20 0.8 20 0.8 20 0.2 10 0.4 10 0.4 10 0 0.0 0 0.0 0.0 0 1 2 3 DC (A) 4 5 0 6 1 2 3 4 5 6 0 0 1 2 △T (℃) 60 L (μH) 3.6 4 5 DC (A) DC (A) 4. RCH654NP-2R5M L (μH) 3.6 3 5. RCH654NP-3R3M △T (℃) 60 L (μH) 6 6. RCH654NP-3R9M △T (℃) 60 3.0 50 3.0 50 5 50 2.4 40 2.4 40 4 40 1.8 30 1.8 30 3 30 1.2 20 1.2 20 2 20 0.6 10 0.6 10 1 10 0 0.0 0 0 0.0 0 1 2 3 4 5 0 1 2 DC (A) 3 4 0 0 1 DC (A) 7. RCH654NP-4R7M L (μH) 6 △T (℃) 60 L (μH) 6 2 3 4 DC (A) 8. RCH654NP-5R6M △T (℃) 60 L (μH) 9.0 9. RCH654NP-6R2M △T (℃) 60 5 50 5 50 7.5 50 4 40 4 40 6.0 40 3 30 3 30 4.5 30 2 20 2 20 3.0 20 1 10 1 10 1.5 10 0 0 0 0.0 0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 0.0 0.5 DC (A) 1.0 1.5 2.0 2.5 3.0 0 0.0 0.5 △T (℃) 60 L (μH) 12 1.5 2.0 2.5 DC (A) DC (A) 10. RCH654NP-7R2M L (μH) 9.0 1.0 11. RCH654NP-8R2M △T (℃) 60 L (μH) 12 12. RCH654NP-100M △T (℃) 60 7.5 50 10 50 10 50 6.0 40 8 40 8 40 4.5 30 6 30 6 30 3.0 20 4 20 4 20 1.5 10 2 10 2 10 0 0 0 0 0.0 0.0 0.5 1.0 1.5 DC (A) 2.0 2.5 0.0 0.5 1.0 1.5 DC (A) Page 3 of 6 2.0 0 0.0 0.5 1.0 1.5 DC (A) Revised: 10-Jan-17 2.0 PIN Power Inductor RCH-654 Saturation Current & Temperature Rise Graph L (20℃) △T L (100℃) 13. RCH654NP-120K L (μH) 24 △T (℃) 60 L (μH) 24 14. RCH654NP-150K △T (℃) 60 L (μH) 24 15. RCH654NP-180K △T (℃) 60 20 50 20 50 20 50 16 40 16 40 16 40 12 30 12 30 12 30 8 20 8 20 8 20 4 10 4 10 4 10 0 0 0 0 0 0.0 0.5 1.0 1.5 DC (A) 2.0 0.0 0.5 1.0 1.5 2.0 0 0.0 0.5 DC (A) 16. RCH654NP-220K L (μH) 36 △T (℃) 60 L (μH) 36 17. RCH654NP-270K △T (℃) 60 L (μH) 48 1.0 1.5 DC (A) 18. RCH654NP-330K 2.0 △T (℃) 60 30 50 30 50 40 50 24 40 24 40 32 40 18 30 18 30 24 30 12 20 12 20 16 20 6 10 6 10 8 10 0 0 0 0 0 0.0 0.3 0.6 0.9 DC (A) 1.2 1.5 19. RCH654NP-390K L (μH) 48 0.0 1.8 △T (℃) 60 L (μH) 60 0.3 0.6 0.9 1.2 DC (A) 20. RCH654NP-470K 0 0.0 1.5 0.3 0.6 0.9 1.2 1.5 DC (A) △T (℃) 60 L (μH) 90 21. RCH654NP-560K △T (℃) 60 40 50 50 50 75 50 32 40 40 40 60 40 24 30 30 30 45 30 16 20 20 20 30 20 8 10 10 10 15 10 0 0 0 0 0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 0.0 0.2 0.4 DC (A) 0.6 0.8 1.0 1.2 0 0.0 0.2 △T (℃) 60 L (μH) 120 0.6 0.8 1.0 DC (A) DC (A) 22. RCH654NP-680K L (μH) 90 0.4 23. RCH654NP-820K △T (℃) 60 L (μH) 120 24. RCH654NP-101K △T (℃) 60 75 50 100 50 100 50 60 40 80 40 80 40 45 30 60 30 60 30 30 20 40 20 40 20 15 10 20 10 20 10 0 0 0 0 0 0.0 0.2 0.4 0.6 DC (A) 0.8 1.0 0.0 0.2 0.4 0.6 0.8 DC (A) Page 4 of 6 1.0 0 0.0 0.2 0.4 0.6 DC (A) Revised: 10-Jan-17 0.8 PIN Power Inductor RCH-654 Saturation Current & Temperature Rise Graph L (20℃) 25. RCH654NP-121K L (μH) 180 △T L (100℃) △T (℃) 60 L (μH) 180 26. RCH654NP-151K △T (℃) 60 L (μH) 240 27. RCH654NP-181K △T (℃) 60 150 50 150 50 200 50 120 40 120 40 160 40 90 30 90 30 120 30 60 20 60 20 80 20 30 10 30 10 40 10 0 0 0 0 0 0.0 0.2 0.4 DC (A) 0.6 0.0 0.8 0.2 0.4 0.6 0.8 0 0.0 0.1 0.2 0.3 0.4 0.5 0.6 DC (A) DC (A) 28. RCH654NP-221K L (μH) 240 △T (℃) 60 L (μH) 360 29. RCH654NP-271K △T (℃) 60 L (μH) 360 30. RCH654NP-331K △T (℃) 60 200 50 300 50 300 50 160 40 240 40 240 40 120 30 180 30 180 30 80 20 120 20 120 20 40 10 60 10 60 10 0 0 0 0 0 0.0 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.1 DC (A) 0.2 0.3 0.4 0 0.5 0.0 0.1 DC (A) 31. RCH654NP-391K L (μH) 480 △T (℃) 60 L (μH) 600 0.2 0.3 0.4 DC (A) 32. RCH654NP-471K △T (℃) 60 L (μH) 900 33. RCH654NP-561K △T (℃) 60 400 50 500 50 750 50 320 40 400 40 600 40 240 30 300 30 450 30 160 20 200 20 300 20 80 10 100 10 150 10 0 0 0.0 0.1 0.2 0.3 0 0.4 0 0.0 DC (A) 34. RCH654NP-681K L (μH) 900 0.1 0.2 0.3 0 0.4 0 0.00 0.05 0.10 0.15 0.20 0.25 0.30 DC (A) DC (A) △T (℃) 60 L (μH) 900 35. RCH654NP-821K L (μH) △T (℃) 1200 60 36. RCH654NP-102K △T (℃) 60 750 50 750 50 1000 50 600 40 600 40 800 40 450 30 450 30 600 30 300 20 300 20 400 20 150 10 150 10 200 10 0 0 0.00 0.05 0.10 0.15 0.20 0.25 0.30 DC (A) 0 0 0.00 0.05 0.10 0.15 0.20 0.25 0.30 DC (A) Page 5 of 6 0 0 0.00 0.05 0.10 DC (A) 0.15 0.20 Revised: 10-Jan-17 PIN Power Inductor RCH-654 Please refer to the sales offices on our website - http://www.sumida.com Hong Kong Shanghai Shenzhen Taipei Tel.+852-2880-6781 FAX.+852-2565-9600 sales@hk.sumida.com Tel.+86-21-5836-3299 FAX.+86-21-5836-3266 shanghai.sales@cn.sumida.com Tel.+86-755-8291-0228 FAX.+86-755-8291-0338 shenzhen.sales@cn.sumida.com Tel.+886-2-8751-2737 FAX.+886-2-8751-2738 sales@tw.sumida.com Saitama(Japan) Seoul Singapore San Jose Tel.+81-48-691-7300 FAX.+81-48-691-7340 sales@jp.sumida.com Tel.+82-2-6237-0777 FAX.+82-2-6237-0778 sales@kr.sumida.com Tel.+65-6296-3388 FAX.+65-6841-4426 sales@sg.sumida.com Tel.+1-408-321-9660 FAX.+1-408-321-9308 sales@us.sumida.com Chicago Obernzell Neumarkt Tel.+1-847-545-6700 FAX. +1-847-545-6720 sales@us.sumida.com Tel.+49-8591-937-0 FAX. +49-8591-937-103 contact@eu.sumida.com Tel.+49-9181-4509-110 FAX. +49-9181-4509-310 infocomp@eu.sumida.com Page 6 of 6 Revised: 10-Jan-17
