XDUY08C

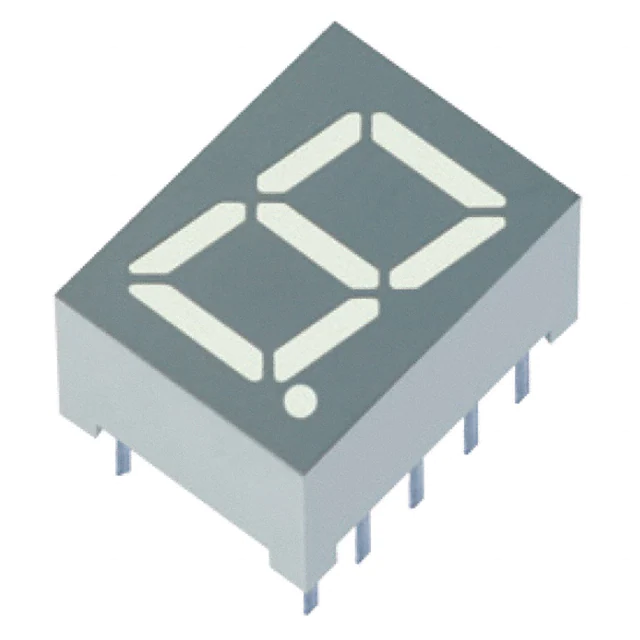

Part Number: XDUY08C 9.9mm (0.39") SINGLE DIGIT NUMERIC DISPLAY Features Package Schematics ● Low power consumption ● Robust package ● I.C. Compatible ● Standard configuration: Gray face w/ white segments ● Optional black face provides superior color contrast ● RoHS Compliant Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) UY (GaAsP/GaP) Unit Operating Characteristics (TA=25°C) UY (GaAsP/GaP) Unit Reverse Voltage VR 5 V Forward Voltage (Typ.) (IF=10mA) VF 1.95 V Forward Current IF 30 mA Forward Voltage (Max.) (IF=10mA) VF 2.5 V Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width iFS 140 mA Reverse Current (Max.) (VR=5V) IR 10 uA Power Dissipation PD 75 mW Wavelength of Peak Emission CIE127-2007* (Typ.) (IF=10mA) λP 590* nm Operating Temperature TA -40 ~ +85 Tstg -40 ~ +85 Wavelength of Dominant Emission CIE127-2007* (Typ.) (IF=10mA) λD 588* nm Spectral Line Full Width At Half-Maximum (Typ.) (IF=10mA) △λ 35 nm C 20 pF Storage Temperature Lead Solder Temperature [2mm Below Package Base] °C 260°C For 3-5 Seconds Capacitance (Typ.) (VF=0V, f=1MHz) Part Number XDUY08C Emitting Color Yellow Emitting Material GaAsP/GaP Luminous Intensity CIE127-2007* (IF=10mA) ucd min. typ. 1400 360* 2990 990* Wavelength CIE127-2007* nm λP Description 590* Common Cathode, Rt.Hand Decimal. *Luminous intensity value and wavelength are in accordance with CIE127-2007 standards. Jan 16,2014 XDSA0149 V7-X Layout: Maggie L. P. 1/3 Part Number: XDUY08C 9.9mm (0.39") SINGLE DIGIT NUMERIC DISPLAY  UY Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity / Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Jan 16,2014 XDSA0149 V7-X Layout: Maggie L. P. 2/3 Part Number: XDUY08C 9.9mm (0.39") SINGLE DIGIT NUMERIC DISPLAY PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Jan  16,2014 XDSA0149 V7-X Layout: Maggie L. P. 3/3
