XDVG100C

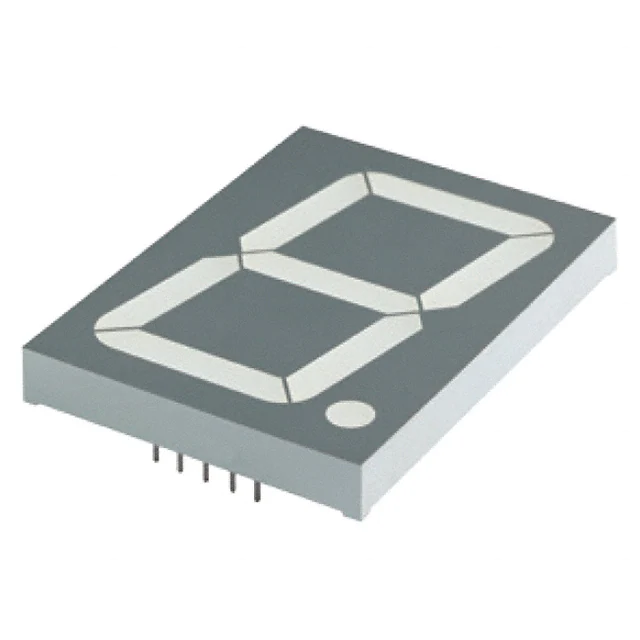

Part Number: XDVG100C 101.2mm (4.0") SINGLE DIGIT NUMERIC DISPLAY Features Package Schematics ● Low power consumption ● Robust package ● I.C. Compatible ● Standard configuration: Gray face w/ white segments ● Optional black face provides superior color contrast ● RoHS Compliant Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) VG (AlGaInP) Unit VR 5 V Forward Current (Dp) IF 60 (30) mA Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width (Dp) iFS 300 (150) mA Power Dissipation (Per Chip) PD 150 mW Operating Temperature TA -40 ~ +85 Tstg -40 ~ +85 Reverse Voltage (Per Chip) Storage Temperature Lead Solder Temperature [2mm Below Package Base] Operating Characteristics (TA=25°C) 260°C For 3-5 Seconds VF 8.0 (4.0) V Forward Voltage (Max.) (Dp) (IF=10mA) VF 10 (5.0) V IR 10 uA Wavelength of Peak Emission CIE127-2007* (Typ.) (IF=10mA) λP 574* nm Wavelength of Dominant Emission CIE127-2007* (Typ.) (IF=10mA) λD 570* nm Spectral Line Full Width At Half-Maximum (Typ.) (IF=10mA) △λ 20 nm C 15 pF Reverse Current (Max.) Capacitance (Typ.) (VF=0V, f=1MHz) Part Number XDVG100C Emitting Color Green Emitting Material AlGaInP Unit Forward Voltage (Typ.) (Dp) (IF=10mA) (Per Chip) (VR=5V) °C VG (AlGaInP) Luminous Intensity CIE127-2007* (IF=10mA) ucd min. typ. 31000 14000* 99990 29990* Wavelength CIE127-2007* nm λP Description 574* Common Cathode, Rt.Hand Decimal. *Luminous intensity value and wavelength are in accordance with CIE127-2007 standards. Mar 11,2014 XDSB3582 V3-X Layout: Maggie L. P. 1/3 Part Number: XDVG100C 101.2mm (4.0") SINGLE DIGIT NUMERIC DISPLAY  VG Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity / Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Mar 11,2014 XDSB3582 V3-X Layout: Maggie L. P. 2/3 Part Number: XDVG100C 101.2mm (4.0") SINGLE DIGIT NUMERIC DISPLAY PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Mar  11,2014 XDSB3582 V3-X Layout: Maggie L. P. 3/3
