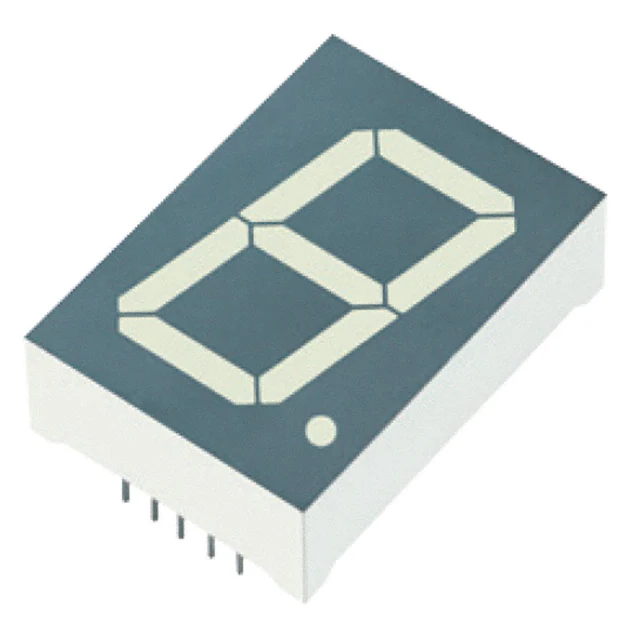

XDVG25A

Part Number: XDVG25A 25.4mm (1.0 ") SINGLE DIGIT NUMERIC DISPLAY Features Package Schematics ● Low power consumption ● Robust package ● I.C. Compatible ● Standard configuration: Gray face w/ white segments ● Optional black face provides superior color contrast ● RoHS Compliant Notes: 1. All dimensions are in millimeters (inches), Tolerance is ± 0.25(0.01")unless otherwise noted. 2. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) VG (AlGaInP) Unit VR 5 V Forward Current (Dp) IF 30 (30) Forward Voltage (Typ.) (Dp) (IF=10mA) mA Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width (Dp) iFS 150 (150) Power Dissipation (Per Chip) PD 75 Operating Temperature TA -40 ~ +85 Tstg -40 ~ +85 Reverse Voltage (Per Chip) Storage Temperature Lead Solder Temperature [2mm Below Package Base] VG (AlGaInP) Unit VF 4.0 (2.0) V Forward Voltage (Max.) (Dp) (IF=10mA) VF 5.0 (2.5) V mA Reverse Current (Max.) (Per Chip) (VR=5V) IR 10 (10) uA mW Wavelength of Peak Emission CIE127-2007* (Typ.) (IF=10mA) λP 574* nm Wavelength of Dominant Emission CIE127-2007* (Typ.) (IF=10mA) λD 570* nm Spectral Line Full Width At Half-Maximum (Typ.) (IF=10mA) △λ 20 nm C 15 pF °C 260°C For 3-5 Seconds Operating Characteristics (TA=25°C) Capacitance (Typ.) (VF=0V, f=1MHz) Part Number XDVG25A Emitting Color Green Emitting Material AlGaInP Luminous Intensity CIE127-2007* (IF=10mA) ucd min. typ. 52000 14000* 94990 32990* *Luminous intensity value and wavelength are in accordance with CIE127-2007 standards. Jan 18,2014 Wavelength CIE127-2007* nm λP Description 574 * Common Anode, Rt. Hand Decimal. XDSB7708 V1-X Layout: Maggie L. P. 1/3 Part Number: XDVG25A 25.4mm (1.0 ") SINGLE DIGIT NUMERIC DISPLAY  VG Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity / Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Jan 18,2014 XDSB7708 V1-X Layout: Maggie L. P. 2/3 Part Number: XDVG25A 25.4mm (1.0 ") SINGLE DIGIT NUMERIC DISPLAY PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Jan  18,2014 XDSB7708 V1-X Layout: Maggie L. P. 3/3
