XEMG2550D

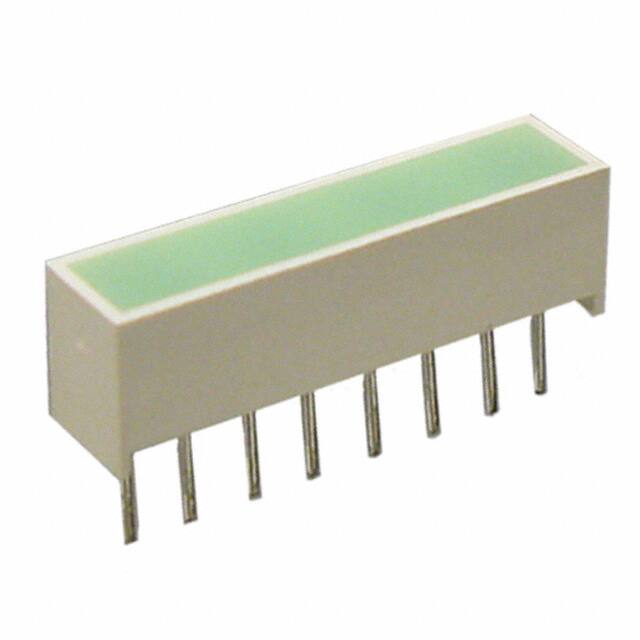

Part Number: XEMG2550D 19.05mmx3.81mm LED LIGHT BAR Features Package Schematics ● Robust package ● Uniform light disbursement ● Ideal for backlighting logos or icons ● Excellent for flush mounting ● RoHS compliant Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) MG (GaP) Unit Reverse Voltage VR 5 V Forward Current IF 25 mA Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width iFS Power Dissipation PD 62.5 Operating Temperature TA -40 ~ +85 Tstg -40 ~ +85 Storage Temperature Lead Solder Temperature [2mm Below Package Base] 140 mA mW °C 260°C For 3-5 Seconds Operating Characteristics (TA=25°C) Emitting Color Emitting Material VF 2.2 V Forward Voltage (Max.) (IF=20mA) VF 2.5 V Reverse Current (Max.) (VR=5V) IR 10 uA Wavelength of Peak Emission CIE127-2007* (Typ.) (IF=20mA) λP 565* nm Wavelength of Dominant Emission CIE127-2007* (Typ.) (IF=20mA) λD 568* nm Spectral Line Full Width At Half-Maximum (Typ.) (IF=20mA) △λ 30 nm C 15 pF Luminous Intensity CIE127-2007* (IF=20mA) mcd min. XEMG2550D Green GaP Unit Forward Voltage (Typ.) (IF=20mA) Capacitance (Typ.) (VF=0V, f=1MHz) Part Number MG (GaP) 12 5* Wavelength CIE127-2007* nm λP Lens-color 565* Green Diffused typ. 39 12* *Luminous intensity value and wavelength are in accordance with CIE127-2007 standards. Mar 05,2014 XDSA1982 V6-X Layout: Maggie L. P. 1/3 Part Number: XEMG2550D 19.05mmx3.81mm LED LIGHT BAR  MG Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity / Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Mar 05,2014 XDSA1982 V6-X Layout: Maggie L. P. 2/3 Part Number: XEMG2550D 19.05mmx3.81mm LED LIGHT BAR PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Mar 05,2014   XDSA1982 V6-X Layout: Maggie L. P. 3/3
