XK50MYKW23

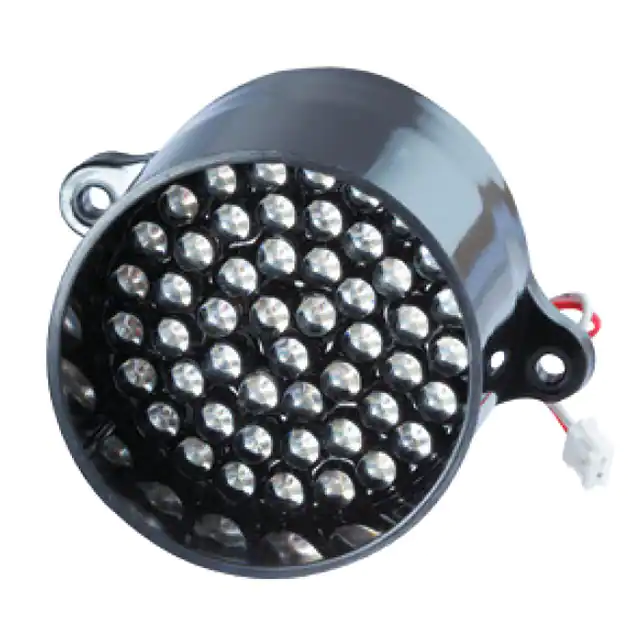

Part Number: XK50MYKW23 52mm LED CLUSTER Features zWaterproof construction. zSuitable for outdoor applications, signboard or message board, etc. zRoHS compliant. Package Schematics XLMYK17W-11.7X50PCS EMITTING COLOR(RED) Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. Dec 17, 2013 XDSB7668 V1-Z Layout: Maggie L. P. 1/3 Part Number: XK50MYKW23 52mm LED CLUSTER Electrical / Optical Characteristics at TA=25°C Symbol Parameter IV Device Min Typ. Max. Units Test Conditions Luminous Intensity CIE127-2007* 45000* 74990* - mcd IF=200mA 2 θ1/2 Viewing Angle - 40 - deg - VF Forward Voltage - 10 12.5 V IF=200mA λP Peak Wavelength CIE127-2007* - 590* - nm IF=200mA λD Dominant Wavelength CIE127-2007* - 590* - nm IF=200mA Δλ 1/2 Spectral Line Half-width - 20 - nm IF=200mA IR Reverse Current - - 100 uA VR = 5V XK50MYKW23 *Luminous intensity value and wavelength are in accordance with CIE127-2007 standards. Absolute Maximum Ratings at TA=25°C Parameter Type Units Total Power dissipation 3750 mW Total DC Forward Current 300 mA 5 V Reverse Voltage Operating Temperature -40°C To +70°C Storage Temperature -40°C To +85°C Dec 17, 2013 XDSB7668 V1-Z Layout: Maggie L. P. 2/3 Part Number: XK50MYKW23 52mm LED CLUSTER PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Dec 17,   2013 XDSB7668 V1-Z Layout: Maggie L. P. 3/3
