Part Number: XLMDKDG59MW3.15

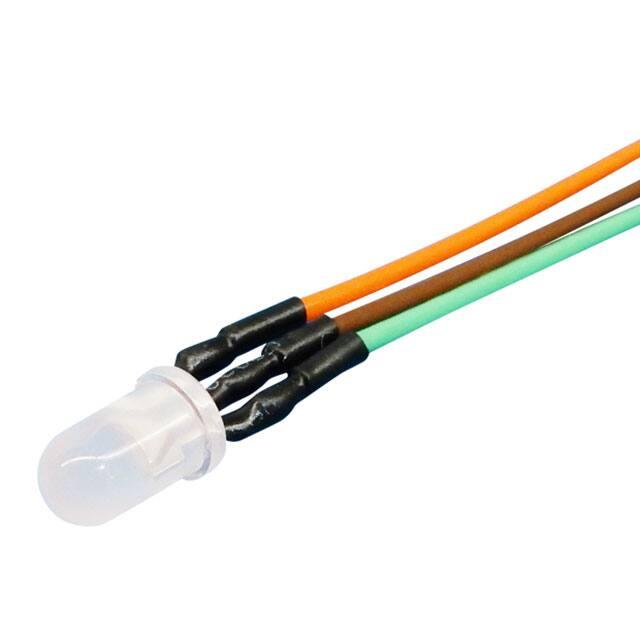

T-1 3/4 (5mm) INDICATOR LAMP WITH WIRE
Package Schematics
Features
● Radial / Through hole package
● Reliable & robust
● Low power consumption
● RoHS Compliant
Red
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Green
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings
(TA=25°C)
Red
(AlGaInP)
Green
(InGaN)
Unit
Reverse Voltage
VR
5
5
V
Forward Current
IF
30
25
mA
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
iFS
Power Dissipation
PD
Electrostatic Discharge Threshold
(HBM)
Operating Temperature
Storage Temperature
185
150
mA
75
102.5
mW
3000
450
V
TA
-40 ~ +85
Tstg
-40 ~ +85
°C
Lead Solder Temperature
[2mm Below Package Base]
260°C For 3 Seconds
Lead Solder Temperature
[5mm Below Package Base]
260°C For 5 Seconds
A Relative Humidity between 40% and 60% is recommended in
ESD-protected work areas to reduce static build up during assembly
process (Reference JEDEC/JESD625-A and JEDEC/J-STD-033)
Part
Number
Emitting
Color
Emitting
Material
Red
AlGaInP
Green
InGaN
XLMDKDG59MW3.15
Operating Characteristics
(TA=25°C)
Red
(AlGaInP)
Green
(InGaN)
Unit
Forward Voltage (Typ.)
(IF=20mA)
VF
1.95
3.3
V
Forward Voltage (Max.)
(IF=20mA)
VF
2.5
4.1
V
Reverse Current (Max.)
(VR=5V)
IR
10
50
uA
Wavelength of Peak
Emission CIE127-2007* (Typ.)
(IF=20mA)
λP
645*
515*
nm
Wavelength of Dominant
Emission CIE127-2007* (Typ.)
(IF=20mA)
λD
630*
525*
nm
Spectral Line Full Width
At Half-Maximum (Typ.)
(IF=20mA)
△λ
28
30
nm
C
35
45
pF
Capacitance (Typ.)
(VF=0V, f=1MHz)
Lens-color
White Diffused
Luminous Intensity
CIE127-2007*
(IF=20mA)
mcd
Wavelength
nm
λP
min.
typ.
600
80*
1195
198*
645*
700
700*
1495
1495*
515*
Viewing
Angle
2θ 1/2
30°
*Luminous intensity value and wavelength are in accordance with CIE127-2007 standards.
Jul 15,2017
XDSB8996
V1-X
Layout: Maggie L.
P. 1/3
Part Number: XLMDKDG59MW3.15
T-1 3/4 (5mm) INDICATOR LAMP WITH WIRE
Green
Red
Relative Radiant Intensity
100%
Ta = 25 °C
80%
60%
40%
20%
0%
350
400
450
500
550
600
Wavelength (nm)
650
700
750
800
Relative Intensity Vs. CIE Wavelength
Red
Green
Remarks:
If special sorting is required (e.g. binning based on forward voltage,
luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Jul 15,2017
XDSB8996
V1-X
Layout: Maggie L.
P. 2/3
Part Number: XLMDKDG59MW3.15
T-1 3/4 (5mm) INDICATOR LAMP WITH WIRE
PACKING & LABEL SPECIFICATIONS
TERMS OF USE
1. Data presented in this document reflect statistical figures and should be treated as technical reference only.
2. Contents within this document are subject to improvement and enhancement changes without notice.
3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet.
User accepts full risk and responsibility when operating the product(s) beyond their intended specifications.
4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please
consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life.
5. The contents within this document may not be altered without prior consent by SunLED.
6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp
Jul 15,2017
XDSB8996
V1-X
Layout: Maggie L.
P. 3/3
