XMUG07C

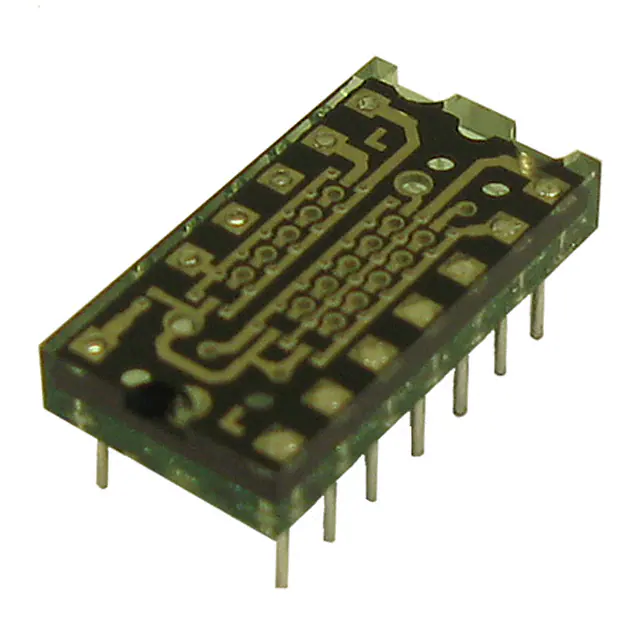

Part Number: XMUG07C 7.62mm (0.3 ") SINGLE COLOR DOT MATRIX DISPLAY Features Package Schematics ● Low power consumption ● Robust package ● I.C. Compatible ● Optional black face provides superior color contrast ● RoHS Compliant Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) UG (GaP) Unit Reverse Voltage VR 5 V Forward Current IF 25 mA Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width iFS 140 mA Power Dissipation PD 62.5 mW Operating Temperature TA -40 ~ +85 Tstg -40 ~ +85 Storage Temperature Lead Solder Temperature [2mm Below Package Base] °C 260°C For 3-5 Seconds Operating Characteristics (TA=25°C) XMUG07C Emitting Color Green Emitting Material GaP Unit Forward Voltage (Typ.) (IF=10mA) VF 2 V Forward Voltage (Max.) (IF=10mA) VF 2.5 V Reverse Current (Max.) (VR=5V) IR 10 uA Wavelength of Peak Emission CIE127-2007* (Typ.) (IF=10mA) λP 565* nm Wavelength of Dominant Emission CIE127-2007* (Typ.) (IF=10mA) λD 568* nm Spectral Line Full Width At Half-Maximum (Typ.) (IF=10mA) △λ 30 nm C 15 pF Capacitance (Typ.) (VF=0V, f=1MHz) Part Number UG (GaP) Luminous Intensity CIE127-2007* (IF=10mA) ucd min. typ. 3600 1400* 8290 2990* Wavelength CIE127-2007* nm λP Description 565* Column Cathode *Luminous intensity value and wavelength are in accordance with CIE127-2007 standards. Mar 04,2014 XDSA1810 V7-X Layout: Maggie L. P. 1/3 Part Number: XMUG07C 7.62mm (0.3 ") SINGLE COLOR DOT MATRIX DISPLAY  UG Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity / Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Mar 04,2014 XDSA1810 V7-X Layout: Maggie L. P. 2/3 Part Number: XMUG07C 7.62mm (0.3 ") SINGLE COLOR DOT MATRIX DISPLAY PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Mar 04,2014   XDSA1810 V7-X Layout: Maggie L. P. 3/3
