XSM2MOK383W

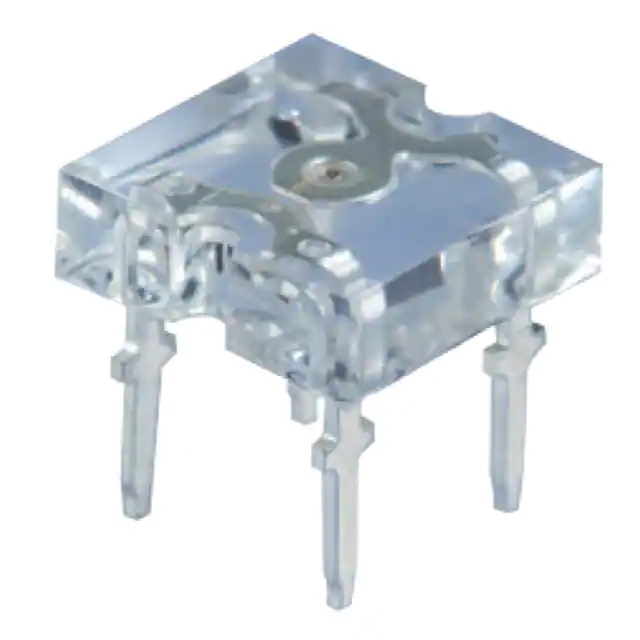

Part Number: XSM2MOK383W SUPER FLUX LED LAMP Features Package Schematics ● High current operation for greater luminous output ● Low power consumption and thermal resistance ● Can be used with automatic insertion equipment ● RoHS Compliant Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) M2MOK (AlGaInP) Unit Reverse Voltage VR 5 V Forward Current IF 30 mA Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width iFS 150 mA Power Dissipation PD 84 Operating Temperature TA -40 ~ +85 Tstg -40 ~ +85 Storage Temperature mW °C Lead Solder Temperature [2mm Below Package Base] 260°C For 3 Seconds Lead Solder Temperature [5mm Below Package Base] 260°C For 5 Seconds Operating Characteristics (TA=25°C) XSM2MOK383W Emitting Color Orange Emitting Material AlGaInP Lens-color Water Clear Unit Forward Voltage (Typ.) (IF=20mA) VF 2.2 V Forward Voltage (Max.) (IF=20mA) VF 2.8 V Reverse Current (Max.) (VR=5V) IR 10 uA Wavelength of Peak Emission CIE127-2007*(Typ.) (IF=20mA) λP 611* nm Wavelength of Dominant Emission CIE127-2007*(Typ.) (IF=20mA) λD 605* nm Spectral Line Full Width At Half-Maximum (Typ.) (IF=20mA) △λ 17 nm C 27 pF Capacitance (Typ.) (VF=0V, f=1MHz) Part Number M2MOK (AlGaInP) Luminous Intensity CIE127-2007* (IF=20mA) mcd Luminous Flux CIE127-2007* (IF=20mA) mlm min. typ. typ. 400 200* 795 397* 1400* Wavelength CIE127-2007* λP nm Viewing Angle 2θ 1/2 611* 110° 1. θ 1/2 Is the angle from optical centerline where the luminous intensity is 1/2 the optical peak value. 2. Drive current between 10mA and 30mA are recommended for long term performance. 3. Operation at current below 10mA is not recommended. 4. LEDs are binned according to their Luminous intensity. * Luminous intensity / luminous flux value and wavelength are in accordance with CIE127-2007 standards. Dec 17, 2013 XDSB7669 V1-X Layout: Maggie P. 1/3 Part Number: XSM2MOK383W SUPER FLUX LED LAMP ™ M2MOK Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity / Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Dec 17, 2013 XDSB7669 V1-X Layout: Maggie P. 2/3 Part Number: XSM2MOK383W SUPER FLUX LED LAMP PACKING & LABEL SPECIFICATIONS XSxxx383x TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Dec 17, 2013 XDSB7669 V1-X Layout: Maggie P. 3/3
