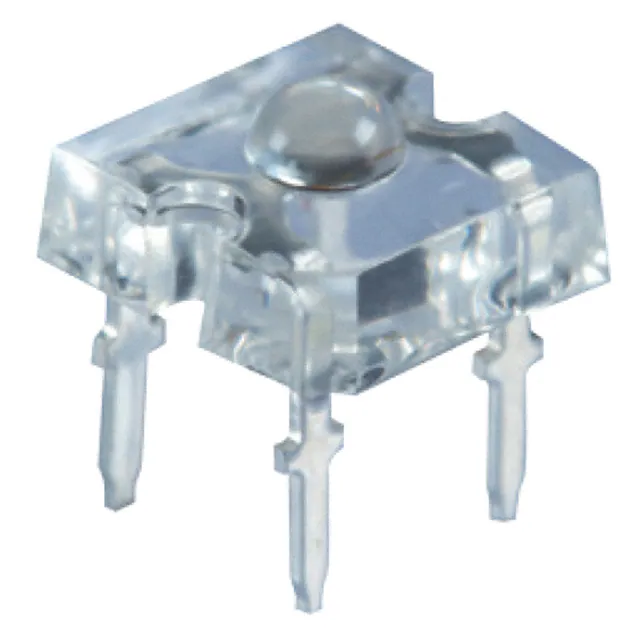

Part Number: XSM2MOK983W SUPER FLUX LED LAMP Features Package Schematics ● High current operation for greater luminous output ● Low power consumption and thermal resistance ● Can be used with automatic insertion equipment ● RoHS Compliant Benefits: ●Rugged design allows for easy maintenance ●Robust package for optimum reliability Typical Applications: ●Automotive side markers ●Gaming and entertainment lighting ●Signs and road hazard indicators Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) M2MOK (AlGaInP) Unit Reverse Voltage VR 5 V DC Forward Current IF 70 mA Power Dissipation PD 210 mW Operating Temperature TA -40 ~ +85 Tstg -55 ~ +85 °C Storage Temperature Lead Solder Temperature [1.5mm Below Seating Plane.][1] 260°C For 5 Seconds Operating Characteristics (TA=25°C) Part Number VF 2.0 V Forward Voltage (Typ.) (IF=70mA) VF 2.4 V Forward Voltage (Max.) (IF=70mA) VF 3.0 V Reverse Current (Max.) (VR=5V) IR 10 uA Wavelength of Peak Emission CIE127-2007*(Typ.) (IF=70mA) λP 611* nm Wavelength of Dominant Emission CIE127-2007*(Typ.) (IF=70mA) λD 605* nm Spectral Line Full Width At Half Maximum (Typ.) (IF=70mA) △λ 17 nm C 27 pF Rθj-pin 125 °C/W Thermal Resistance (Typ.) Emitting Color Emitting Material Lens-color Luminous Intensity CIE127-2007* (IF=70mA) cd min. XSM2MOK983W Orange AlGaInP Unit Forward Voltage (Min.) (IF=70mA) Capacitance (Typ.) (VF=0V, f=1MHz) 1.No Reflow soldering . M2MOK (AlGaInP) Water Clear 6 3.2* Luminous Flux CIE127-2007* (IF=70mA) lm typ. typ. 8.99 4.79* 8.5* Wavelength CIE127-2007* λP nm Viewing Angle 2θ 1/2 611* 70° 1.Luminous intensity is measured with an integrating sphere after the device has stabilized. 2.θ 1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 3.LEDs are binned according to their Luminous intensity. * Luminous intensity / luminous flux value and wavelength are in accordance with CIE127-2007 standards. Dec 26,2013 XDSB7671 V1-X Layout: Maggie L. P. 1/3 Part Number: XSM2MOK983W SUPER FLUX LED LAMP ™ M2MOK Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity / Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Dec 26,2013 XDSB7671 V1-X Layout: Maggie L. P. 2/3 Part Number: XSM2MOK983W SUPER FLUX LED LAMP PACKING & LABEL SPECIFICATIONS XSxxx983x TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Dec 26,2013 XDSB7671 V1-X Layout: Maggie L. P. 3/3
