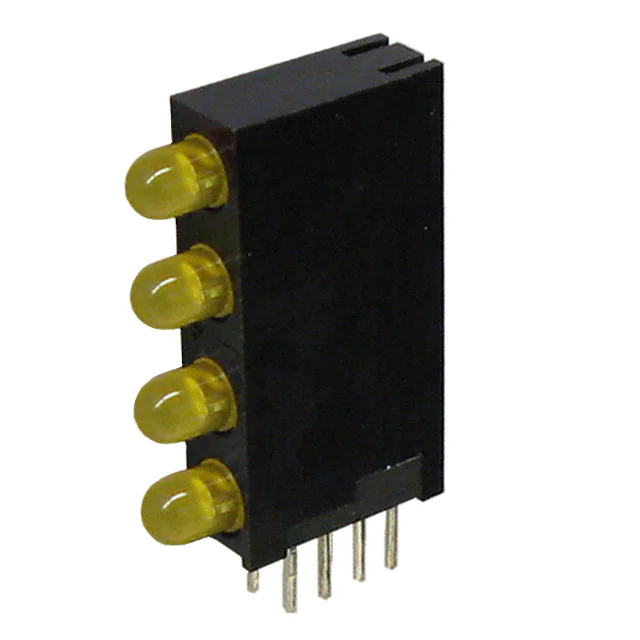

Part Number: XWA4LUY147D T-1 (3mm) QUAD-LEVEL LED INDICATOR Package Schematics Features ● Housing material: Type 66 Nylon ● Black casing provides superior contrast ● Housing UL rating: 94V-0 ● Reliable & robust ● Custom color combinations available ● RoHS Compliant Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) UY (GaAsP/GaP) Unit Reverse Voltage VR 5 V Forward Current IF 30 mA Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width iFS Power Dissipation PD 75 Operating Temperature TA -40 ~ +85 Tstg -40 ~ +85 Storage Temperature 140 mA mW °C Lead Solder Temperature [2mm Below Package Base] 260°C For 3 Seconds Lead Solder Temperature [5mm Below Package Base] 260°C For 5 Seconds Operating Characteristics (TA=25°C) XWA4LUY147D Emitting Color Yellow Emitting Material GaAsP/GaP Unit Forward Voltage (Typ.) (IF=10mA) VF 1.95 V Forward Voltage (Max.) (IF=10mA) VF 2.5 V Reverse Current (Max.) (VR=5V) IR 10 uA Wavelength of Peak Emission CIE127-2007* (Typ.) (IF=10mA) λP 590* nm Wavelength of Dominant Emission CIE127-2007* (Typ.) (IF=10mA) λD 588* nm Spectral Line Full Width At Half-Maximum (Typ.) (IF=10mA) △λ 35 nm C 20 pF Capacitance (Typ.) (VF=0V, f=1MHz) Part Number UY (GaAsP/GaP) Lens-color Yellow Diffused Luminous Intensity CIE127-2007* (IF=10mA) mcd min. typ. 6* 14* Wavelength CIE127-2007* nm λP Viewing Angle 2θ 1/2 590* 40° *Luminous intensity value and wavelength are in accordance with CIE127-2007 standards. Dec 28,2013 XDSA7923 V5-Z Layout: Maggie L. P. 1/3 Part Number: XWA4LUY147D T-1 (3mm) QUAD-LEVEL LED INDICATOR  UY Remarks: If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity / Luminous Flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Dec 28,2013 XDSA7923 V5-Z Layout: Maggie L. P. 2/3 Part Number: XWA4LUY147D T-1 (3mm) QUAD-LEVEL LED INDICATOR PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp   Dec 28,2013 XDSA7923 V5-Z Layout: Maggie L. P. 3/3
