XZDG25X143S

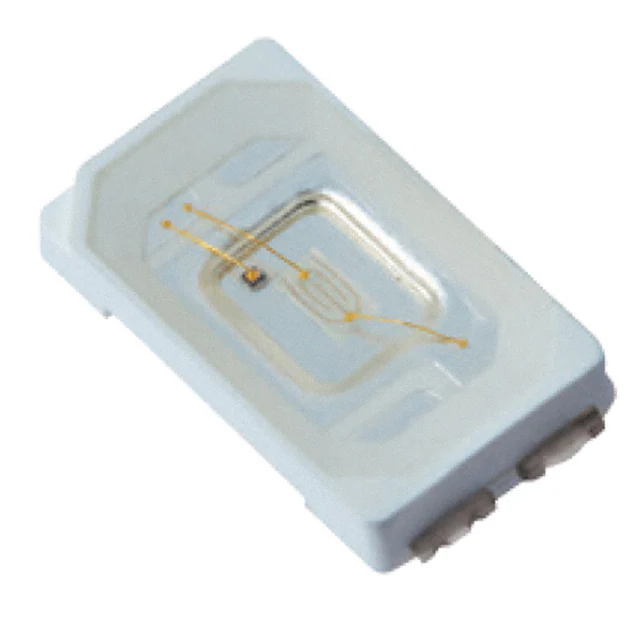

Part Number: XZDG25X143S 5.6mm x 3.0mm SURFACE MOUNT LED LAMP Features 5.6mm x 3.0mm x 0.77mm SMD LED IR-reflow compatible Standard Package: 2,000pcs / Reel ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES White SMD package with silicone resin MSL (Moisture Sensitivity Level): 2a RoHS compliant Typical Applications Entertainment and accent lighting Architectural lighting Ideal substitute for halogen and florescent lighting Automotive interior and exterior lighting Specialty lighting (Markers, Beacon, Pathway) Package Schematics Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. Sep 16,2016 XDSB6412 V3-Z Layout: Maggie L. P. 1/7 Part Number: XZDG25X143S 5.6mm x 3.0mm SURFACE MOUNT LED LAMP Handling Precautions Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic significantly reduces thermal stress, it is more susceptible to damage by external mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated LED products. Failure to comply might lead to damage and premature failure of the LED. 1. Handle the component along the side surfaces by using forceps or appropriate tools. 2. Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry. 3. Do not stack together assembled PCBs containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry. 4.1. The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks. 4.2. A pliable material is suggested for the nozzle tip to avoid scratching or damaging the LED surface during pickup. 4.3. The dimensions of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production. 5. As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plating of leadframe. Special care should be taken if an LED with silicone encapsulation is to be used near such substances. Sep 16,2016 XDSB6412 V3-Z Layout: Maggie L. P. 2/7 Part Number: XZDG25X143S 5.6mm x 3.0mm SURFACE MOUNT LED LAMP Part Number Emitting Color XZDG25X143S Green (InGaN) Luminous Intensity CIE127-2007* (IF=150mA) [2] cd Lens-color Luminous Flux CIE127-2007* (IF=150mA)*[2] lm Min. Typ. Min. Typ. 3.6* 5.49* 20* 26.7* Water Clear Viewing Angle 2 θ 1/2 [1] 120° Notes: 1. θ 1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. 3. LEDs are binned according to their luminous flux. * Luminous intensity / luminous flux value is in accordance with CIE127-2007 standards. Absolute Maximum Ratings at TA=25°C Parameter Symbol Value Unit Power Dissipation PD 600 mW Junction Temperature [1] TJ 110 °C Operating Temperature Top -40 To +100 °C Storage Temperature Tstg -40 To +110 °C IF 150 mA DC Forward Current [1] Reverse Voltage VR 5 V Peak Forward Current [2] IFM 300 mA Thermal Resistance [1] (Junction/ambient) Rth j-a 170 °C/W Thermal Resistance [1] (Junction/solder point) Rth j-S 50 °C/W 8000 V Electrostatic Discharge Threshold (HBM) Notes: 1. Rth(j-a) Results from mounting on PC board FR4 (pad size≥16 mm 2 per pad) 2. 1/10 Duty Cycle, 0.1ms Pulse Width. 3. A Relative Humidity between 40% and 60% is recommended in ESD-protected work areas to reduce static build up during assembly process (Reference JEDEC/ JESD625-A and JEDEC/J-STD-033) Electrical / Optical Characteristics at TA=25°C Value Parameter Symbol Wavelength at peak emission CIE127-2007* IF=150mA λpeak 515* nm Dominant Wavelength CIE127-2007* IF=150mA λdom [1] 525* nm △λ 30 nm VF [2] 3.5 Spectral bandwidth at 50% Φ Forward Voltage REL MAX IF = 150mA IF=150mA Typ. Max. Unit 4.0 V 85 mA Allowable Reverse Current IR Temperature coefficient of λpeak IF=150mA, -10°C≤ T≤100°C TCλpeak 0.09 nm/ °C Temperature coefficient of λdom IF=150mA, -10°C≤ T≤100°C TCλdom 0.03 nm/ °C Temperature coefficient of VF IF=150mA, -10°C≤ T≤100°C TCV -2.7 mV/ °C Notes: 1.The dominant Wavelength (λd) above is the setup value of the sorting machine. (Tolerance λd : ±1nm. ) 2. Forward Voltage: +/-0.1V. * Wavelength is in accordance with CIE127-2007 standards. Sep 16,2016 XDSB6412 V3-Z Layout: Maggie L. P. 3/7 Part Number: XZDG25X143S 5.6mm x 3.0mm SURFACE MOUNT LED LAMP Green Sep 16,2016 XDSB6412 V3-Z Layout: Maggie L. P. 4/7 Part Number: XZDG25X143S 5.6mm x 3.0mm SURFACE MOUNT LED LAMP Sep 16,2016 XDSB6412 V3-Z Layout: Maggie L. P. 5/7 Part Number: XZDG25X143S 5.6mm x 3.0mm SURFACE MOUNT LED LAMP LED is recommended for reflow soldering and soldering profile is shown below. Recommended Soldering Pattern (Units : mm; Tolerance: ±0.1) Reel Dimension The device has a single mounting surface. The device must be mounted according to the specifications. Tape Specification (Units : mm) Sep 16,2016 XDSB6412 V3-Z Layout: Maggie L. P. 6/7 Part Number: XZDG25X143S 5.6mm x 3.0mm SURFACE MOUNT LED LAMP PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Sep 16,2016 XDSB6412 V3-Z Layout: Maggie L. P. 7/7
