XZM2CRK54WA-8

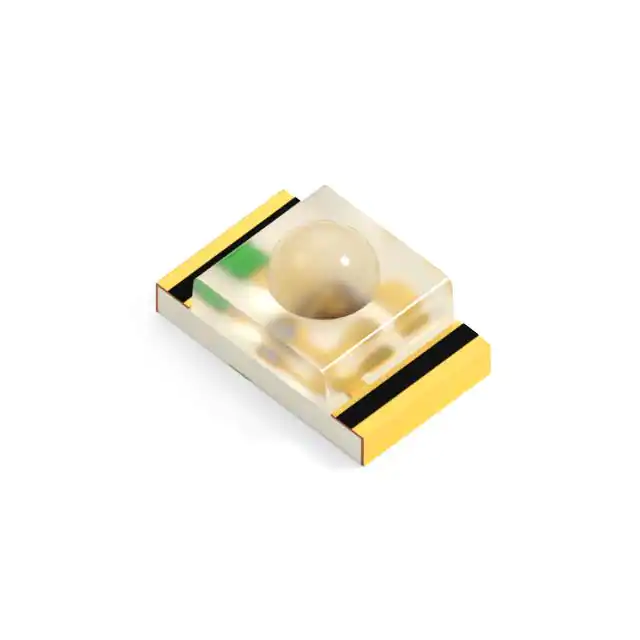

Part Number: XZM2CRK54WA-8 2.0 x 1.25 mm SMD Chip LED Lamp Features Package Schematics ● Ideal for indication light on hand held products ● Long life and robust package ● Standard Package: 3,000pcs/ Reel ● MSL (Moisture Sensitivity Level): 3 ● Halogen-free ● RoHS compliant ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES Notes: 1. All dimensions are in millimeters (inches). 2.Tolerance is ±0.15(0.006") unless otherwise noted. 3. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) Red (AlGaInP) Unit Reverse Voltage VR 5 V Forward Current IF 30 mA Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width iFS Power Dissipation PD 84 Operating Temperature TA -40 ~ +85 Tstg -40 ~ +85 150 mA mW °C Storage Temperature A Relative Humidity between 40% and 60% is recommended in ESD-protected work areas to reduce static build up during assembly process (Reference JEDEC/JESD625-A and JEDEC/J-STD-033) Operating Characteristics (TA=25°C) XZM2CRK54WA-8 Emitting Color Red Emitting Material AlGaInP Unit Forward Voltage (Typ.) (IF=20mA) VF 2.2 V Forward Voltage (Max.) (IF=20mA) VF 2.8 V Reverse Current (Max.) (VR=5V) IR 10 µA Wavelength of Peak Emission CIE127-2007* (Typ.) (IF=20mA) λP 640* nm Wavelength of Dominant Emission CIE127-2007* (Typ.) (IF=20mA) λD 625* nm Spectral Line Full Width At Half-Maximum (Typ.) (IF=20mA) △λ 20 nm C 27 pF Capacitance (Typ.) (VF=0V, f=1MHz) Part Number Red (AlGaInP) Lens-color Water Clear Luminous Intensity CIE127-2007* (IF=20mA) mcd min. typ. 3000 1000* 5990 1990* Wavelength CIE127-2007* nm λP Viewing Angle 2θ 1/2 640* 40° *Luminous intensity value and wavelength are in accordance with CIE127-2007 standards. Nov 30,2020 XDSB8977 V3-X Layout: Maggie L. P. 1/4 Part Number: XZM2CRK54WA-8 2.0 x 1.25 mm SMD Chip LED Lamp Red Relative Radiant Intensity 100% Ta = 25 °C 0° 15° Ta = 25 °C 80% 1.0 30° 60% 45° 40% 60° 0.5 20% 75° 0% 350 400 450 500 550 600 Wavelength (nm) 650 700 750 800 90° 0° 15° 30° 45° 60° 75° 0.0 90° Spatial Distribution Relative Intensity Vs. CIE Wavelength Ta = 25 °C 40 30 20 10 0 1.5 1.7 1.9 2.1 2.3 Forward voltage (V) Forward Current vs. Forward Voltage 2.5 2.5 Ta = 25 °C 2.0 1.5 1.0 0.5 0.0 Luminous intensity normalised at T a = 25 °C Forward current (mA) 50 Permissible forward current (mA) Luminous intensity normalised at 20 mA
Red 50 40 30 20 10 0 0 10 20 30 40 Forward current (mA) Luminous Intensity vs. Forward Current 50 2.5 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) Forward Current Derating Curve -40 -20 0 20 40 60 80 100 Ambient temperature (°C) Luminous Intensity vs. Ambient Temperature LED is recommended for reflow soldering and soldering profile is shown below. Nov 30,2020 XDSB8977 V3-X Layout: Maggie L. P. 2/4 Part Number: XZM2CRK54WA-8 2.0 x 1.25 mm SMD Chip LED Lamp
The device has a single mounting surface. The device must be mounted according to the specifications.
Recommended Soldering Pattern (Units : mm; Tolerance: ± 0.1)
Reel Dimension (Units : mm)
Tape Specification (Units : mm) Remarks: If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous intensity / luminous flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Nov 30,2020 XDSB8977 V3-X Layout: Maggie L. P. 3/4 Part Number: XZM2CRK54WA-8 2.0 x 1.25 mm SMD Chip LED Lamp PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at https://www.SunLEDusa.com/TechnicalNotes.asp Nov 30,2020 XDSB8977 V3-X Layout: Maggie L. P. 4/4
