Part Number: XZM2CRKM2DG45WT-9

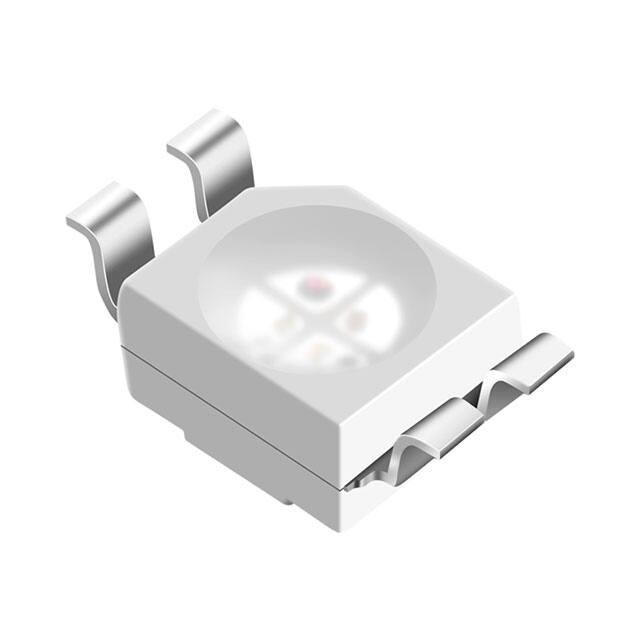

3.2x2.8mm PLCC4 SMD LED
Features
Package Schematics
● Ideal for indication light on hand held products
● Long life and robust package
● Standard Package: 2000pcs/ Reel
● MSL (Moisture Sensitivity Level): 3
● RoHS compliant.
RED
ATTENTION
GREEN
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.2(0.008") unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings
(TA=25°C)
Red
(AlGaInP)
Green
(InGaN)
Unit
Reverse Voltage
VR
5
5
V
Forward Current
IF
30
30
mA
Operating Characteristics
(TA=25°C)
Red
(AlGaInP)
Green
(InGaN)
Unit
Forward Voltage (Typ.)
(IF=20mA)
VF
2.2
3.2
V
Forward Voltage (Max.)
(IF=20mA)
VF
2.8
4
V
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
iFS
150
100
mA
Reverse Current (Max.)
(VR=5V)
IR
10
50
uA
Power Dissipation
PD
84
120
mW
λP
640*
520*
nm
3000
450
V
Wavelength of Peak
Emission CIE127-2007* (Typ.)
(IF=20mA)
°C
Wavelength of Dominant
Emission CIE127-2007* (Typ.)
(IF=20mA)
λD
625*
525*
nm
Spectral Line Full Width
At Half-Maximum (Typ.)
(IF=20mA)
△λ
20
35
nm
C
27
100
pF
Electrostatic Discharge Threshold (HBM)
Operating Temperature
Storage Temperature
TA
-40 ~ +85
Tstg
-40 ~ +85
A Relative Humidity between 40% and 60% is recommended in
ESD-protected work areas to reduce static build up during assembly
process (Reference JEDEC/JESD625-A and JEDEC/J-STD-033)
Capacitance (Typ.)
(VF=0V, f=1MHz)
Part
Number
Emitting
Color
Red
Emitting
Material
Lens-color
AlGaInP
XZM2CRKM2DG45WT-9
Water Clear
Green
InGaN
*Luminous intensity value and wavelength are in accordance with CIE127-2007 standards.
AUG 09,2016
Luminous Intensity
CIE127-2007*
(IF=20mA)
mcd
Wavelength
CIE127-2007*
nm λP
min.
typ.
1000
300*
1490
447*
640*
1000
1000*
1590
1590*
520*
XDSB8751
Viewing
Angle
2θ 1/2
120°
V1-X
Layout: Maggie L.
P. 1/4
Part Number: XZM2CRKM2DG45WT-9
3.2x2.8mm PLCC4 SMD LED
Green
Red
Red
Green
AUG 09,2016
XDSB8751
V1-X
Layout: Maggie L.
P. 2/4
Part Number: XZM2CRKM2DG45WT-9
3.2x2.8mm PLCC4 SMD LED
LED is recommended for reflow soldering and
soldering profile is shown below.
The device has a single mounting surface.
The device must be mounted according to the
specifications.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Tape Specification (Units : mm)
Reel Dimension
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity / luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
AUG 09,2016
XDSB8751
V1-X
Layout: Maggie L.
P. 3/4
Part Number: XZM2CRKM2DG45WT-9
3.2x2.8mm PLCC4 SMD LED
PACKING & LABEL SPECIFICATIONS
XZxxx45x
TERMS OF USE
1. Data presented in this document reflect statistical figures and should be treated as technical reference only.
2. Contents within this document are subject to improvement and enhancement changes without notice.
3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet.
User accepts full risk and responsibility when operating the product(s) beyond their intended specifications.
4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please
consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life.
5. The contents within this document may not be altered without prior consent by SunLED.
6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp
AUG 09,2016
XDSB8751
V1-X
Layout: Maggie L.
P. 4/4
