XZMDKVG88W

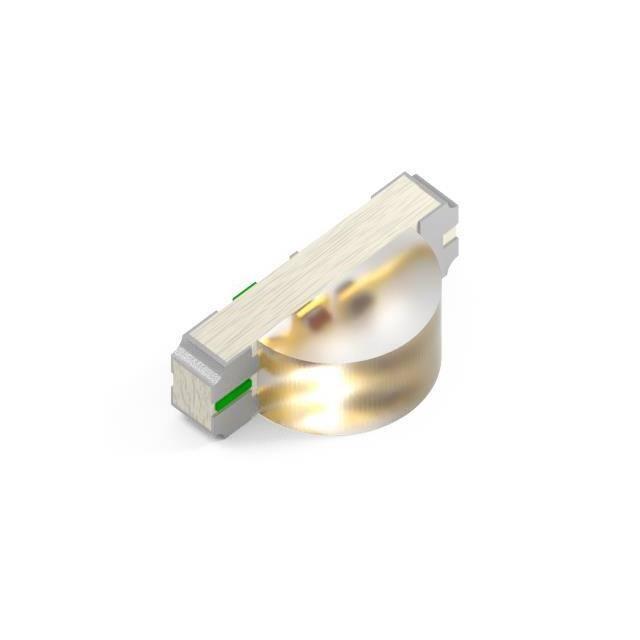

Part Number: XZMDKVG88W 3.2 x 1.0 mm Right Angle Bi-Color SMD Chip LED Lamp Package Schematics Features ● Ideal for indication light on hand held products ● Long life and robust package ● Standard Package: 2,000pcs/ Reel ● MSL (Moisture Sensitivity Level): 3 ● Halogen-free ● RoHS compliant ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) Red (AlGaInP) Green (AlGaInP) Unit Reverse Voltage VR 5 5 V Forward Current IF 30 30 mA Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width iFS Power Dissipation PD Operating Temperature TA -40 ~ +85 Tstg -40 ~ +85 Storage Temperature 185 150 75 75 mA mW °C A Relative Humidity between 40% and 60% is recommended in ESD-protected work areas to reduce static build up during assembly process (Reference JEDEC/JESD625-A and JEDEC/J-STD-033) Operating Characteristics (TA=25°C) Emitting Color Red Emitting Material 1.95 2.1 V Forward Voltage (Max.) (IF=20mA) VF 2.5 2.5 V Reverse Current (Max.) (VR=5V) IR 10 10 μA Wavelength of Peak Emission CIE127-2007* (Typ.) (IF=20mA) λP 645* 574* nm Wavelength of Dominant Emission CIE127-2007* (Typ.) (IF=20mA) λD 630* 570* nm Spectral Line Full Width At Half-Maximum (Typ.) (IF=20mA) △λ 28 20 nm C 35 15 pF Lens-color Water Clear Green Unit VF AlGaInP XZMDKVG88W Green (AlGaInP) Forward Voltage (Typ.) (IF=20mA) Capacitance (Typ.) (VF=0V, f=1MHz) Part Number Red (AlGaInP) AlGaInP *Luminous intensity value and wavelength are in accordance with CIE127-2007 standards. Aug 01,2022 Luminous Intensity CIE127-2007* (IF=20mA) mcd Wavelength CIE127-2007* nm λP min. typ. 120 40* 297 79* 645* 40 40* 69 69* 574* Viewing Angle 2θ 1/2 140° XDSB1758 V4-X Layout: Maggie L. P. 1/4 Part Number: XZMDKVG88W 3.2 x 1.0 mm Right Angle Bi-Color SMD Chip LED Lamp Green Relative Radiant Intensity 100% 80% Red Ta = 25 °C Ta = 25 °C 0° 15° 1.0 30° 45° 60% 60° 40% 20% 0.5 75° 0% 350 400 450 500 550 600 Wavelength (nm) 650 700 750 90° 800 0° 15° 30° 45° 60° 75° 0.0 90° Spatial Distribution Relative Intensity Vs. CIE Wavelength 2.5 Ta = 25 °C 40 Ta = 25 °C 2.0 30 Permissible forward current (mA) Forward current (mA) 50 1.5 20 1.0 10 0.5 0 1.5 0.0 1.7 1.9 2.1 2.3 Forward voltage (V) Forward Current vs. Forward Voltage 2.5 Luminous intensity normalised at Ta = 25 °C Luminous intensity normalised at 20mA  Red 50 40 30 20 10 0 0 10 20 30 40 Forward current (mA) Luminous Intensity vs. Forward Current 50 2.5 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) Forward Current Derating Curve -40 -20 0 20 40 60 80 100 Ambient temperature (°C) Luminous Intensity vs. Ambient Temperature 2.5 Ta = 25 °C 40 1.5 20 1.0 10 0 1.5 Ta = 25 °C 2.0 30 Permissible forward current (mA) Forward current (mA) 50 0.5 0.0 1.7 1.9 2.1 2.3 Forward voltage (V) Forward Current vs. Forward Voltage Aug 01,2022 2.5 Luminous intensity normalised at Ta = 25 °C Luminous intensity normalised at 20mA  Green 50 40 30 20 10 0 0 10 20 30 40 Forward current (mA) Luminous Intensity vs. Forward Current 50 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) Forward Current Derating Curve 2.5 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) Luminous Intensity vs. Ambient Temperature XDSB1758 V4-X Layout: Maggie L. P. 2/4 Part Number: XZMDKVG88W 3.2 x 1.0 mm Right Angle Bi-Color SMD Chip LED Lamp LED is recommended for reflow soldering and soldering profile is shown below.  The device has a single mounting surface. The device must be mounted according to the specifications.  Recommended Soldering Pattern (Units : mm; Tolerance: ± 0.1)  Tape Specification (Units : mm)  Reel Dimension (Units : mm) Remarks: If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous intensity / luminous flux: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. Aug 01,2022 XDSB1758 V4-X Layout: Maggie L. P. 3/4 Part Number: XZMDKVG88W 3.2 x 1.0 mm Right Angle Bi-Color SMD Chip LED Lamp PACKING & LABEL SPECIFICATIONS TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The performance of the product(s) should be evaluated and verified by the customer to ensure it can meet the customer’s application requirements. 6. The contents within this document may not be altered without prior consent by SunLED. 7. Additional technical notes are available at https://www.SunLEDusa.com/TechnicalNotes.asp Aug 01,2022 XDSB1758 V4-X Layout: Maggie L. P. 4/4
